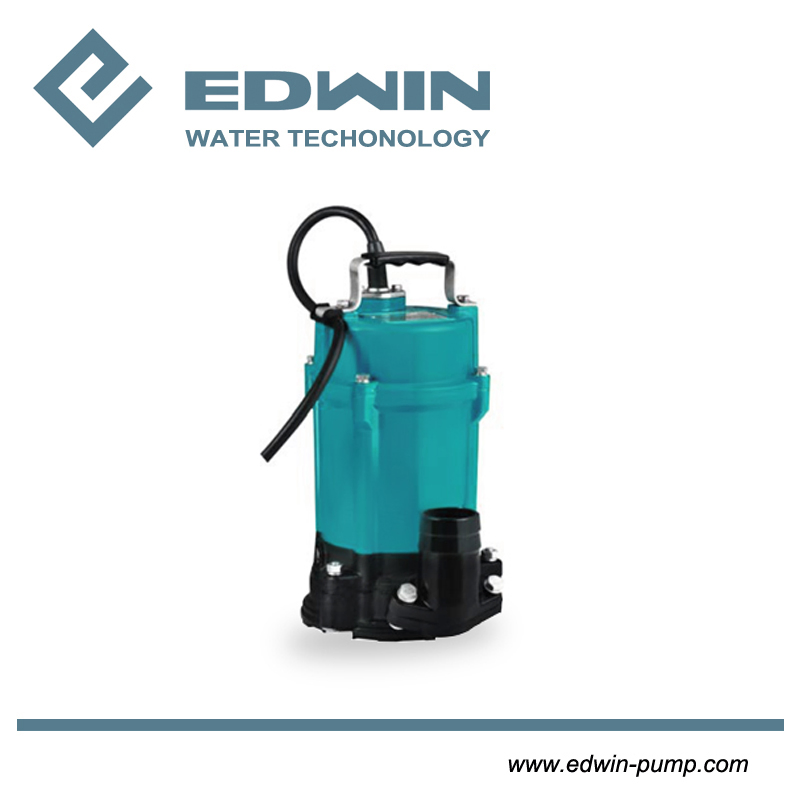

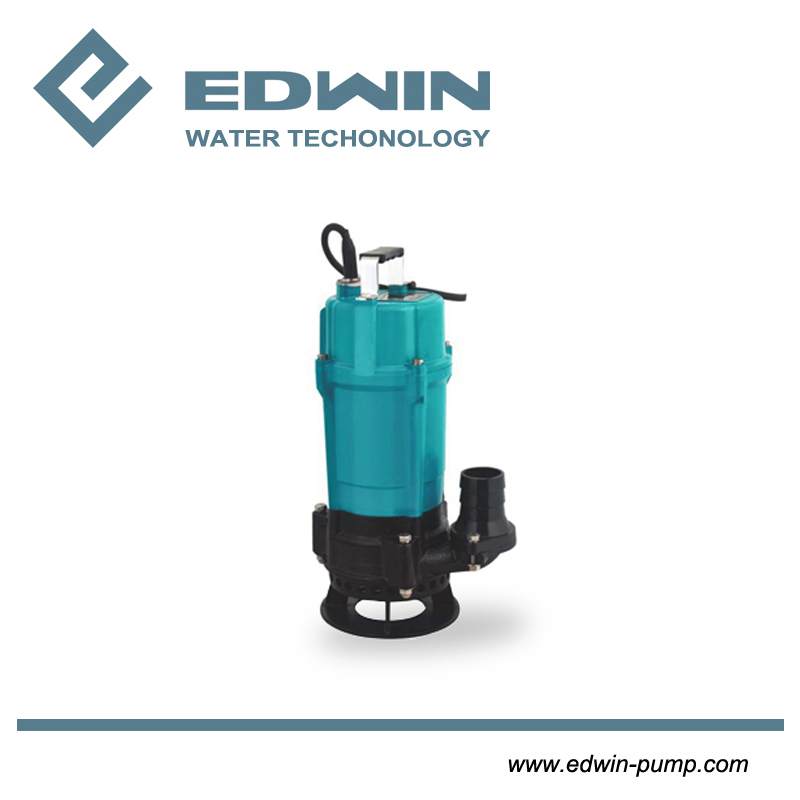

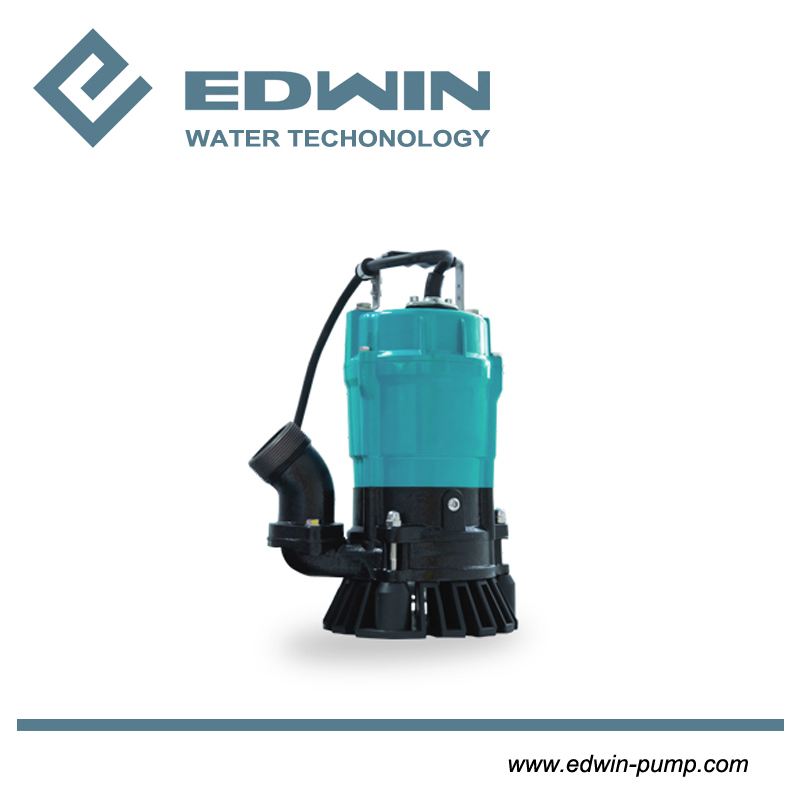

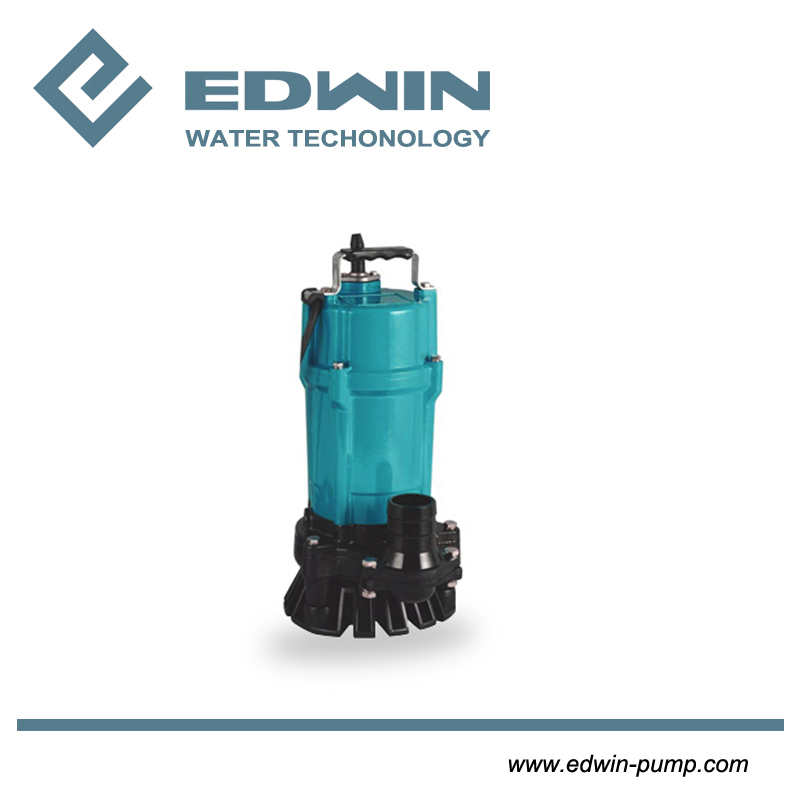

0.75kw 50mm Outlet 220V Mud Water Submersible Slurry Pump

1 / 5

0.75kw 50mm Outlet 220V Mud Water Submersible Slurry Pump

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

*FSME2.75

Max. Head

10-30m

Max. Capacity

200-300 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Single-stage Pump

Power

Electric

Start Up

Electric Pump

Type

Positive-Displacement Pump

Application

Submersible Pump, Sewage Pump

Insulation Class

Protection Class

IP68

📦 Packaging & Delivery

Package Size

44.50cm * 26.50cm * 25.50cm

Gross Weight

18.000kg

Transport Package

Wooden Box

📝 Product Description

FSME2.4 220V 0.55HP IP68 SS Shaft Submersible Dirty Water Pump

The 0.75KW 50mm Outlet 220V Mud Water Submersible Slurry Pump is a heavy-duty pump designed for pumping slurry and mud water in industrial and construction applications. It features a powerful 0.75KW motor and a 50mm outlet, allowing for efficient and high-capacity pumping of thick and abrasive fluids. The submersible design allows the pump to be fully submerged in the slurry, making it ideal for applications where the pump needs to operate in harsh and challenging environments.

Key Applications:

Civil engineering, building sites, basements or other utility pits, rainwater, mud water, and high-viscosity fluid.

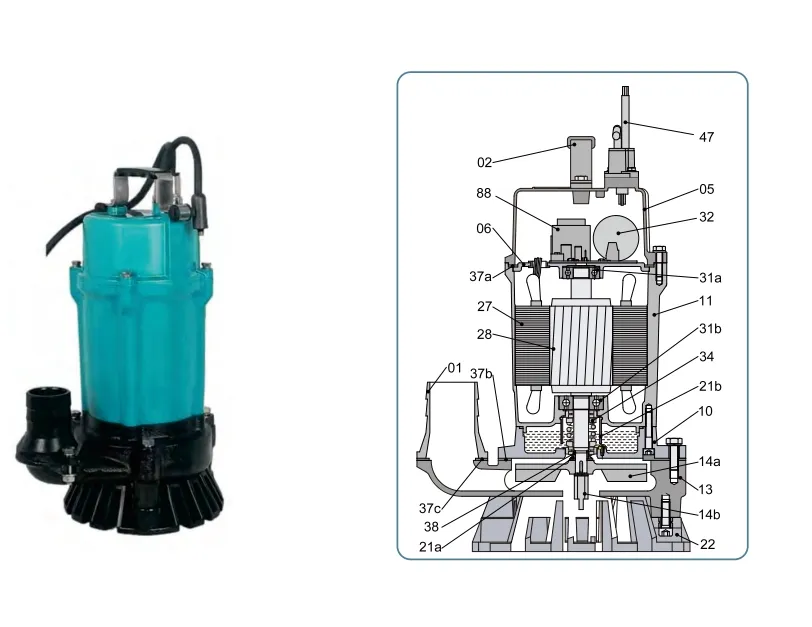

⚙️ Components and Materials

NO.	Name	Material
1	Hose coupling	Cast iron
2	Handle	Rubber & steel
3	Upper cover	Aluminum die casting
4	Up-Bearing house	Cast iron
5	Seal house	Cast iron
6	Motor body	Aluminum die casting
7	Pump body	Cast iron
8	Impeller	Ductile iron
9	Agitator	Stainless steel
10	Sand guard	NBR
11	Oil riser	LDPE
12	Seat assembly	PU
14	Rotor	Shaft: AISI420SS
15/16	Bearing	Ball bearing
19	Mechanical seal	Ceramic-Sic / Carbon-Ceramic
20/21/22	Gasket	NBR
23	Shaft sleeve	AISI420SS
24	Cable	H07RN-F

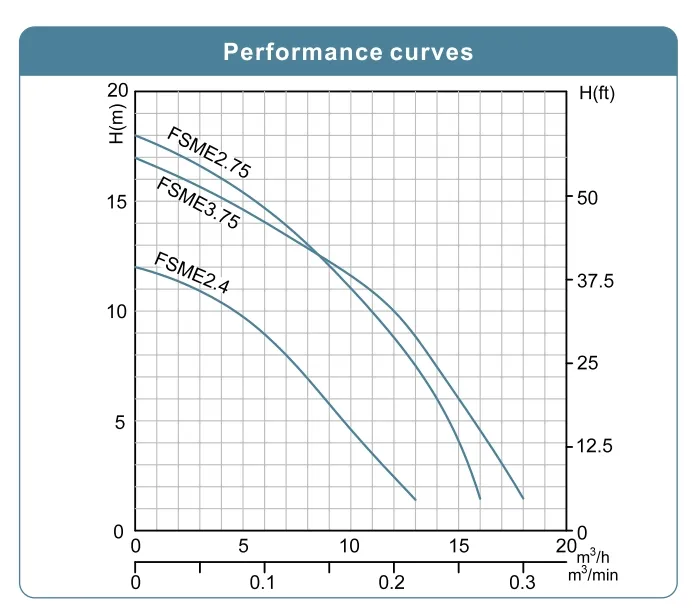

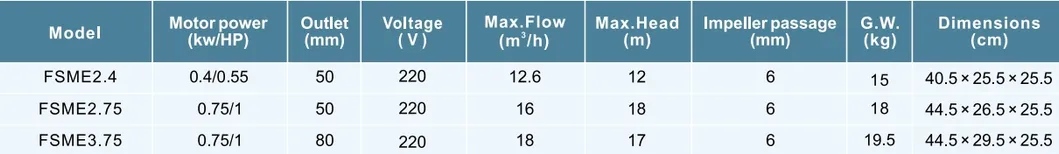

📈 Performance Curves & Data

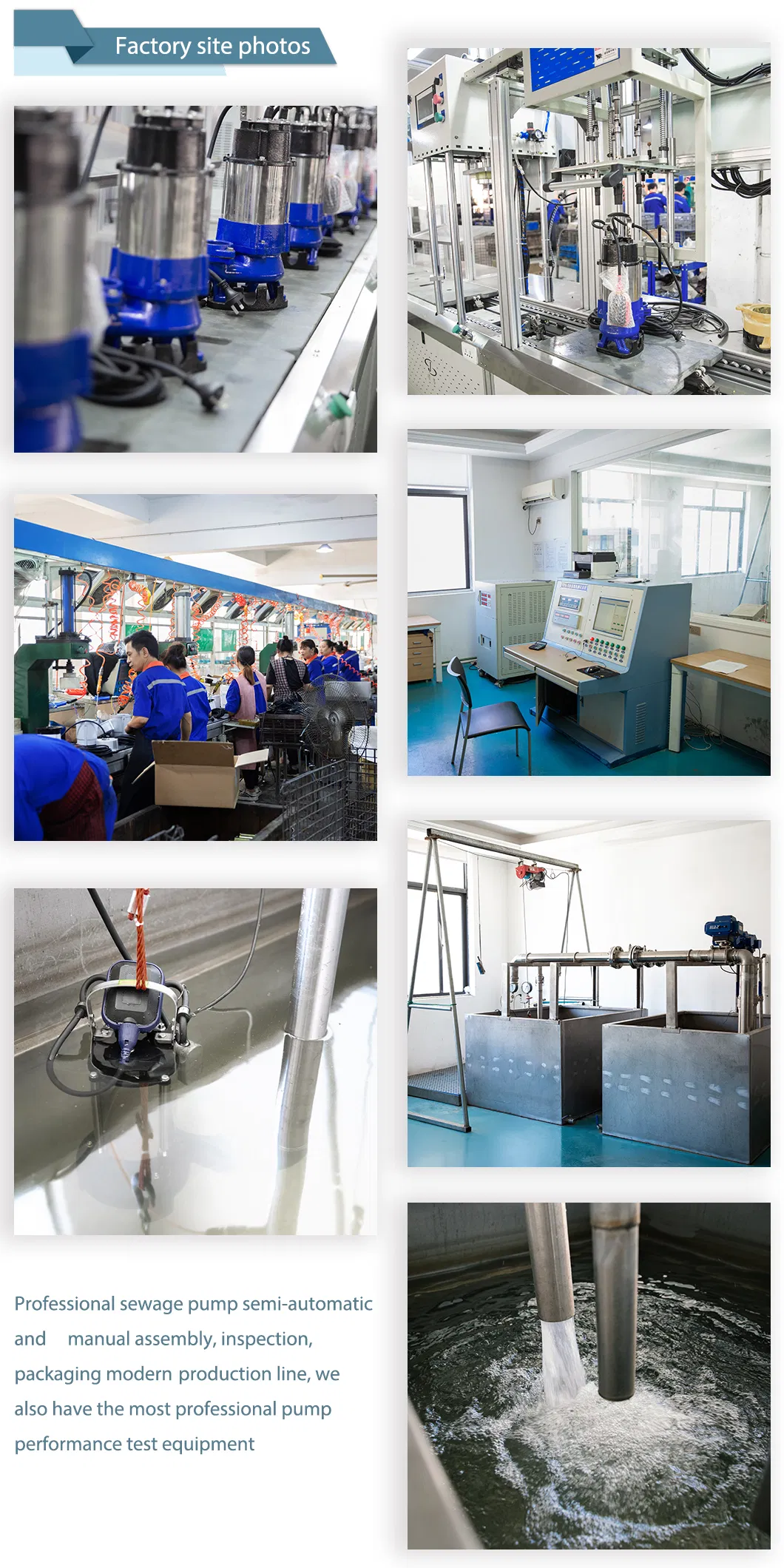

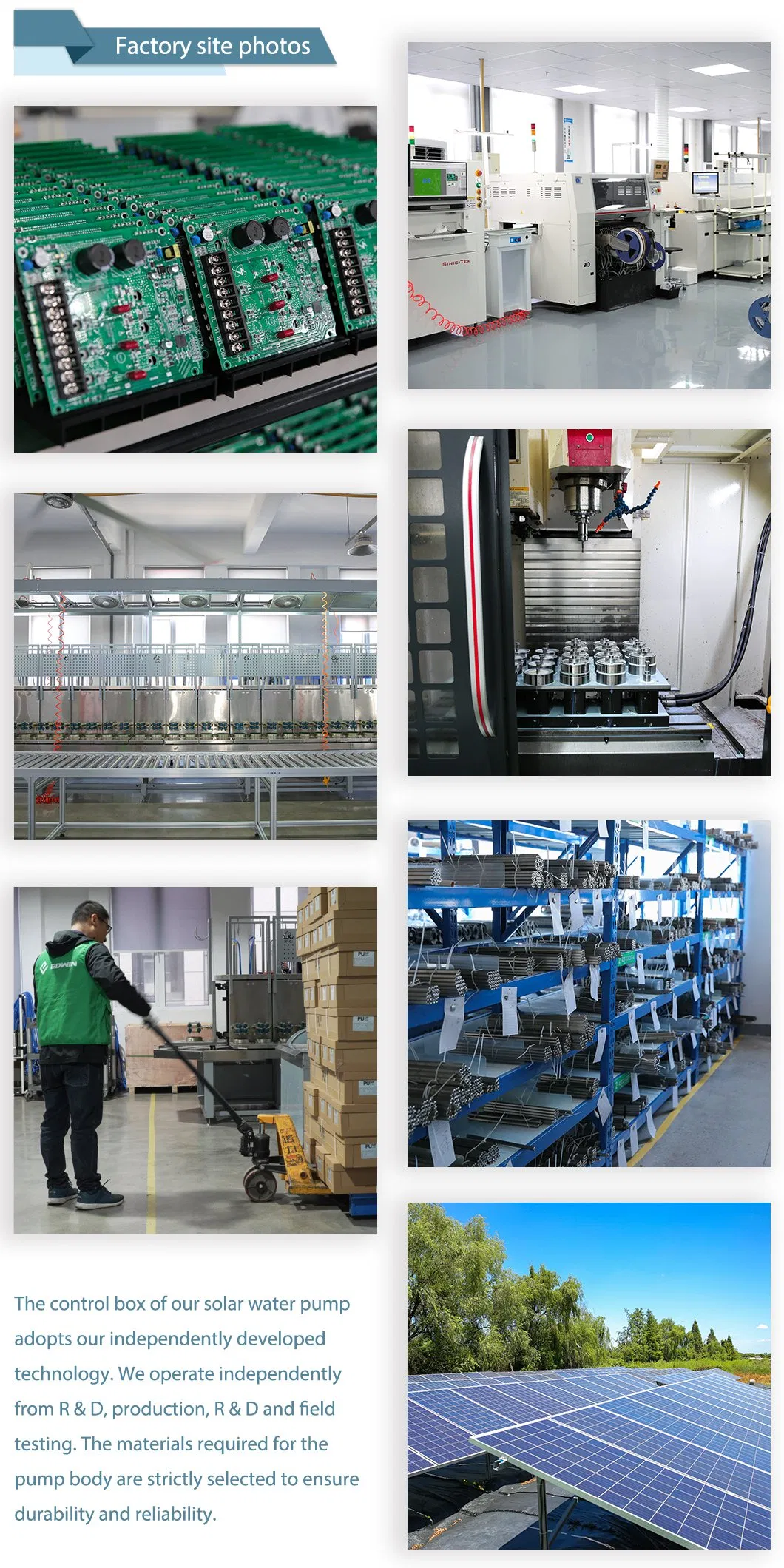

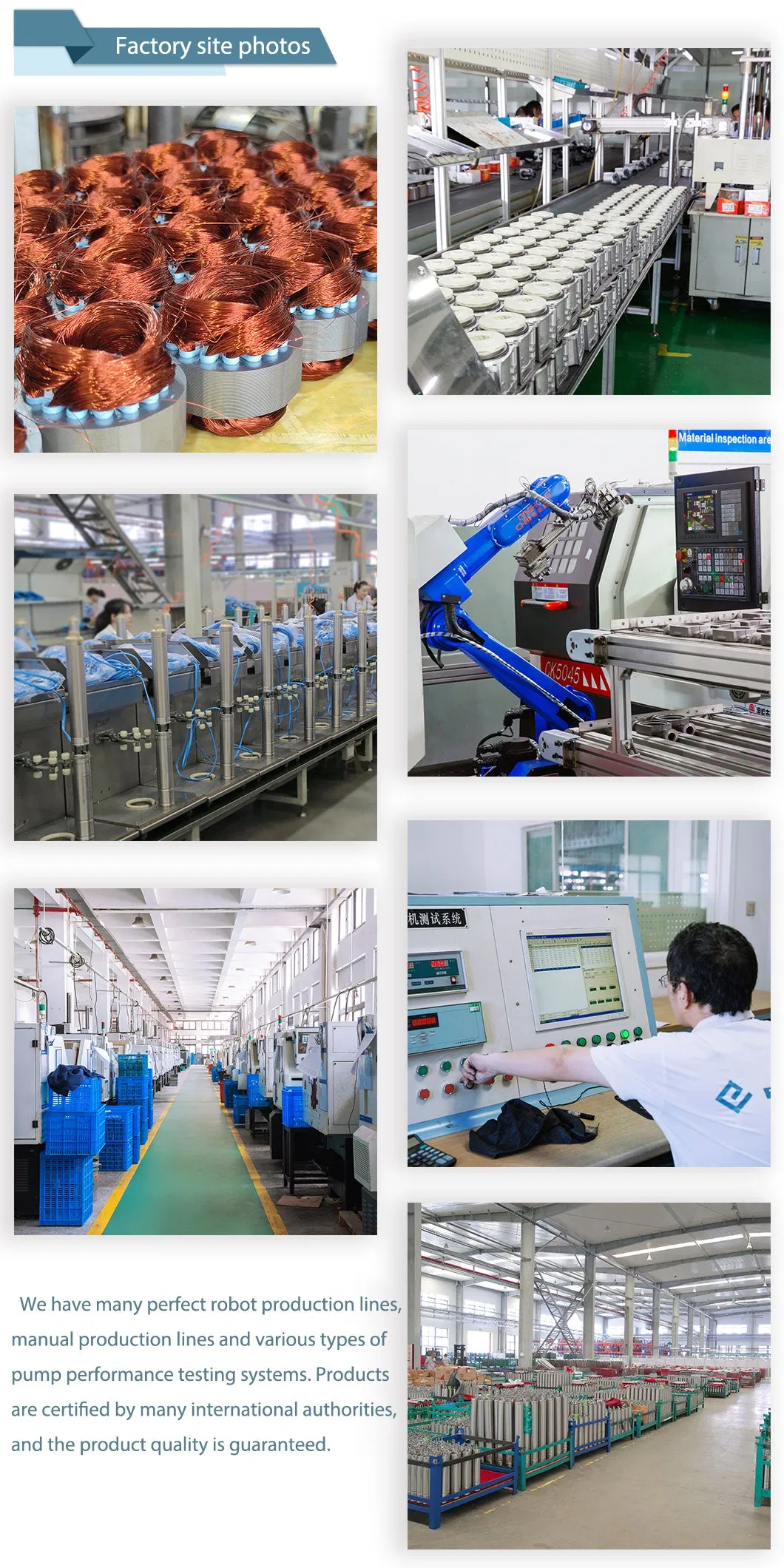

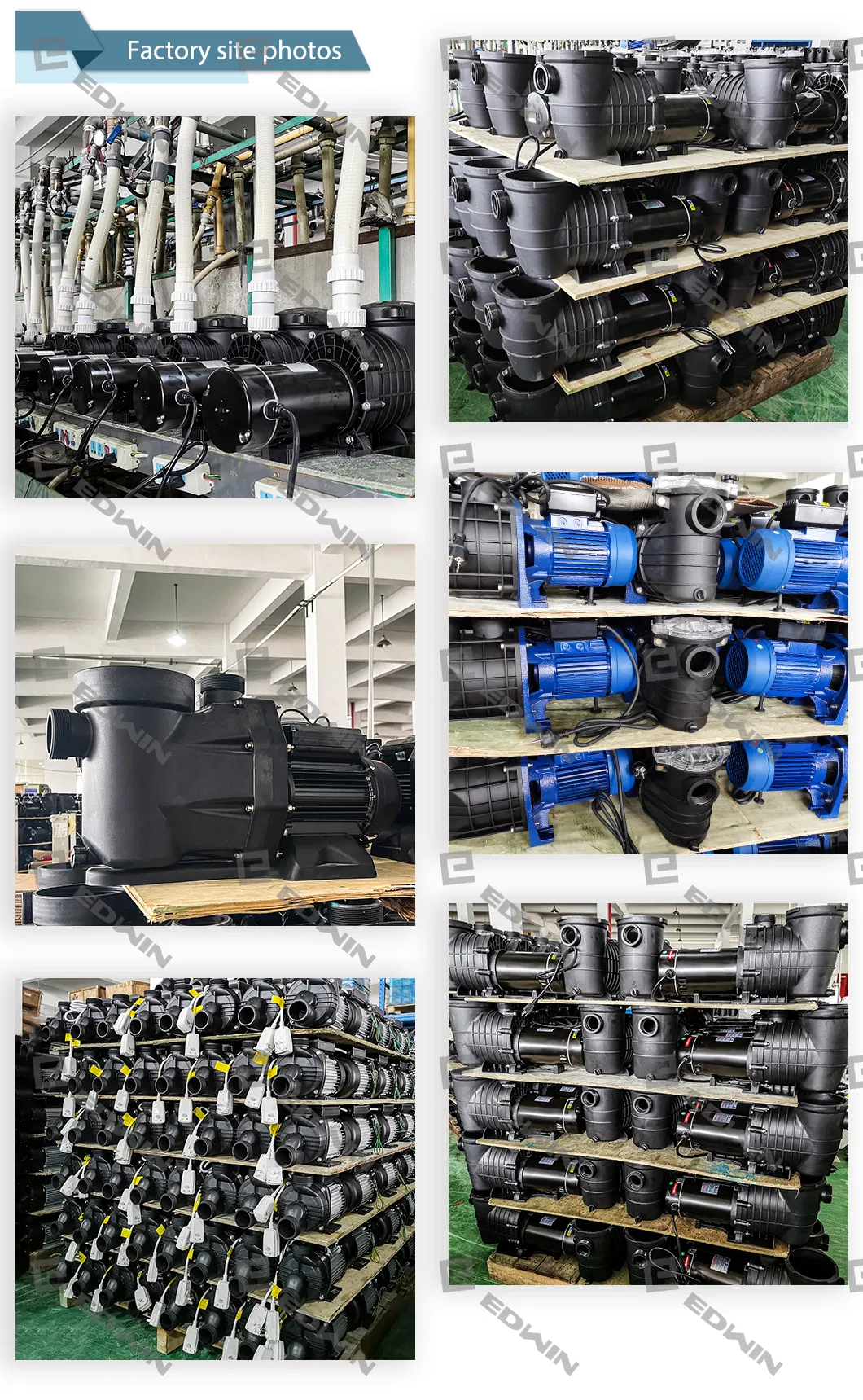

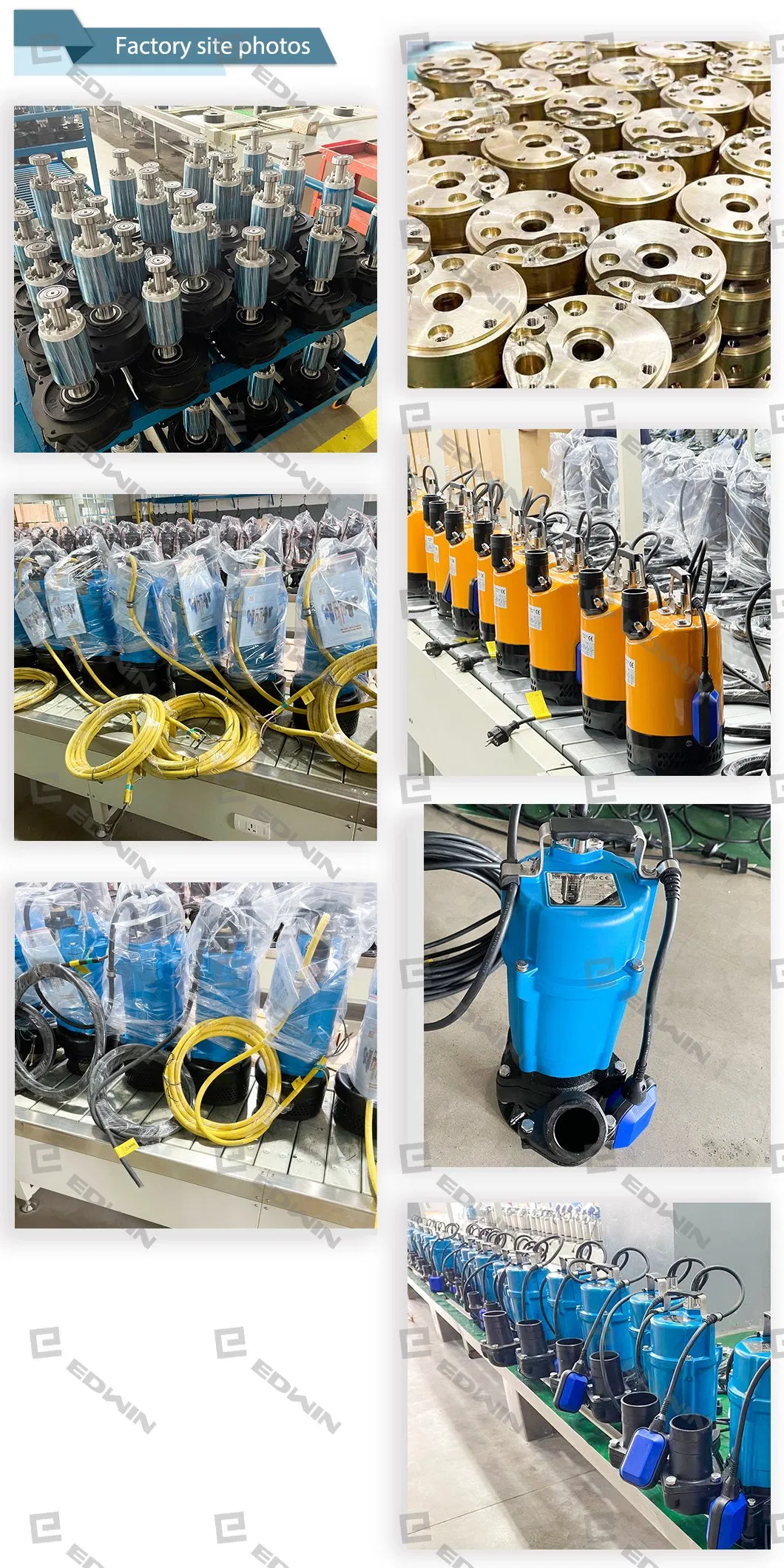

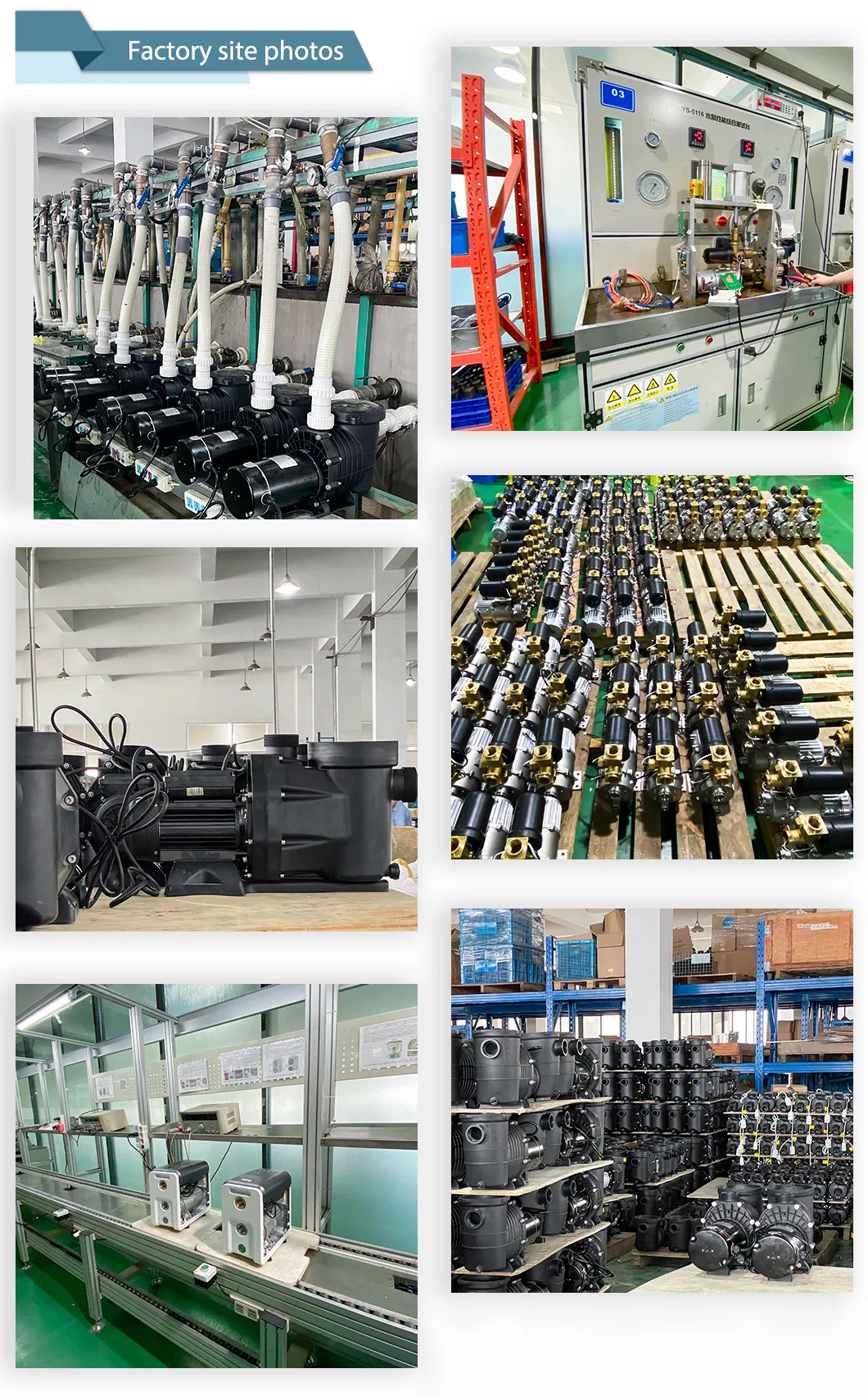

🏭 Product Line

Frequently Asked Questions

What type of fluids can this submersible pump handle?

This pump is specifically designed for mud water, slurry, rainwater, and high-viscosity fluids commonly found in civil engineering and building sites.

What is the protection rating and maximum submersion depth?

The pump features an IP68 protection class and can be submerged to a maximum water depth of 10 meters.

What materials are used for the pump shaft and impeller?

The shaft is made of high-quality AISI420SS stainless steel, and the impeller is constructed from durable ductile iron for wear resistance.

Is the motor protected against overheating?

Yes, the pump is built with Insulation Class F standards and designed to operate in water temperatures up to 40°C.

What are the power and voltage requirements?

This model operates on a 220V power supply with motor options ranging from 0.55HP to 0.75KW depending on the specific configuration.

Does the pump include a mechanical seal?

Yes, it utilizes a high-performance mechanical seal made of Ceramic-Sic and Carbon-Ceramic for reliable leak prevention.
