Warm reminder: Please note or contact us if the liquid temperature is more than 70 degrees Celsius before placing an order.

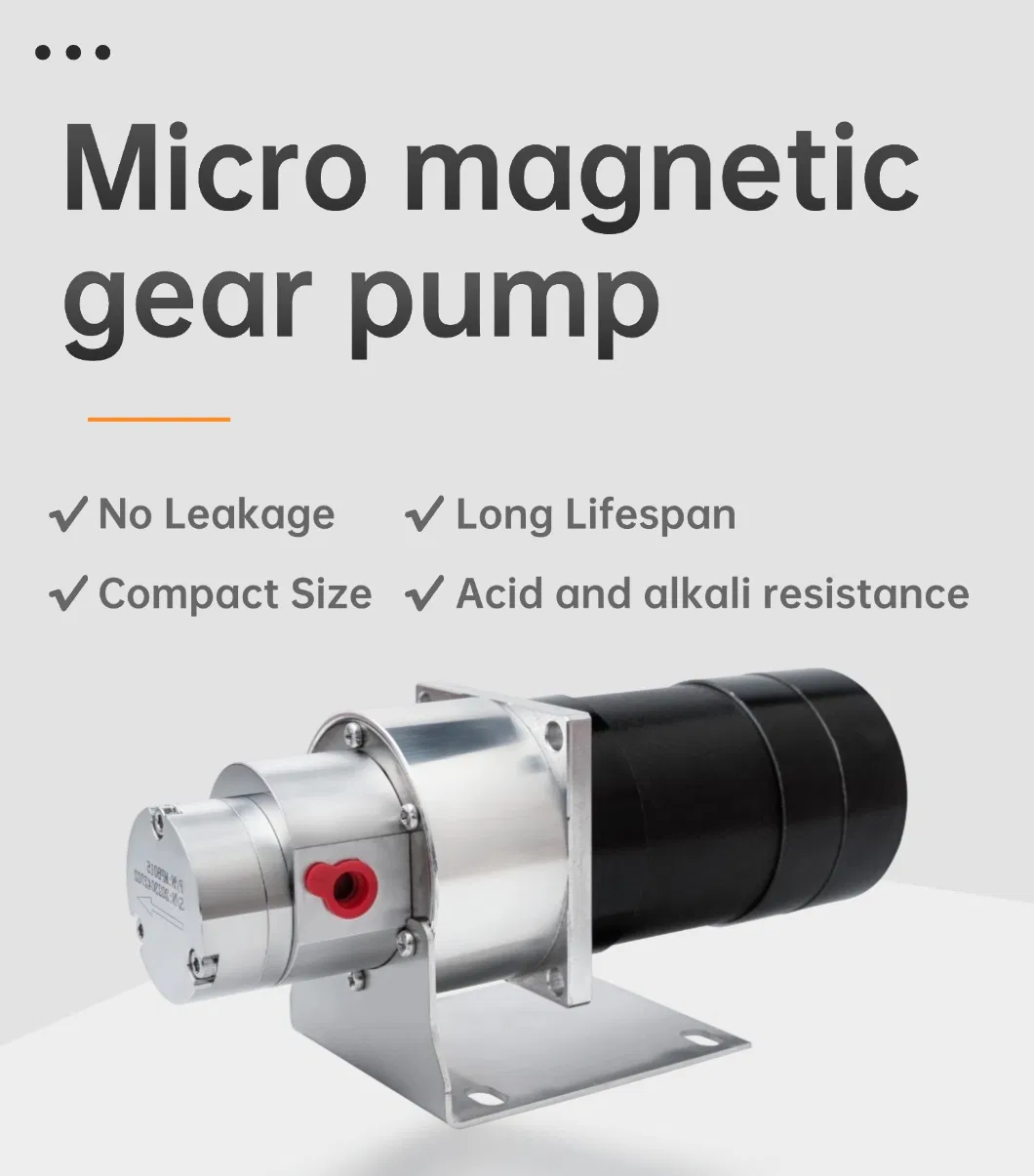

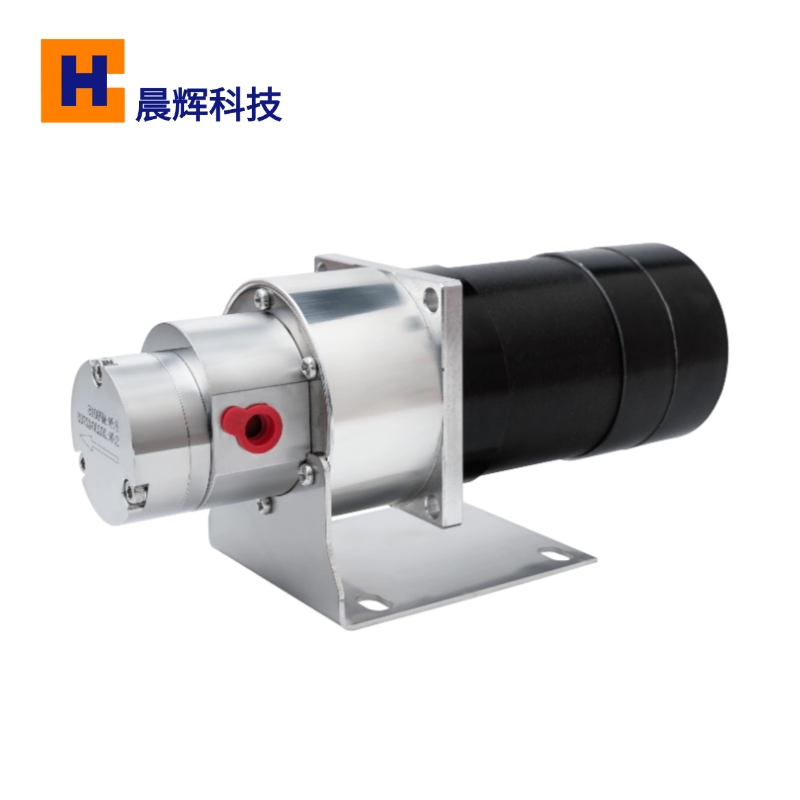

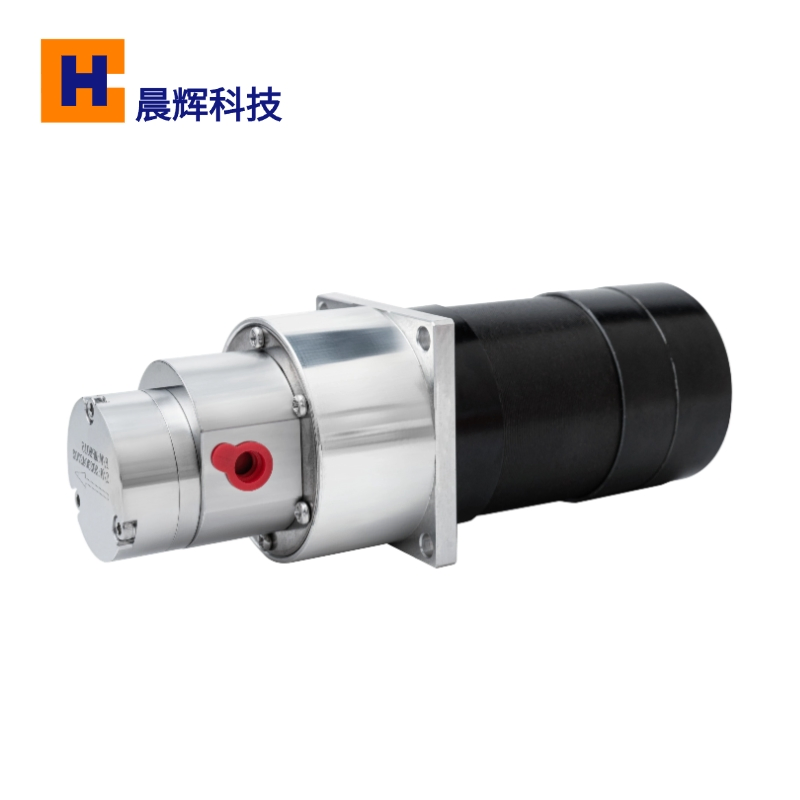

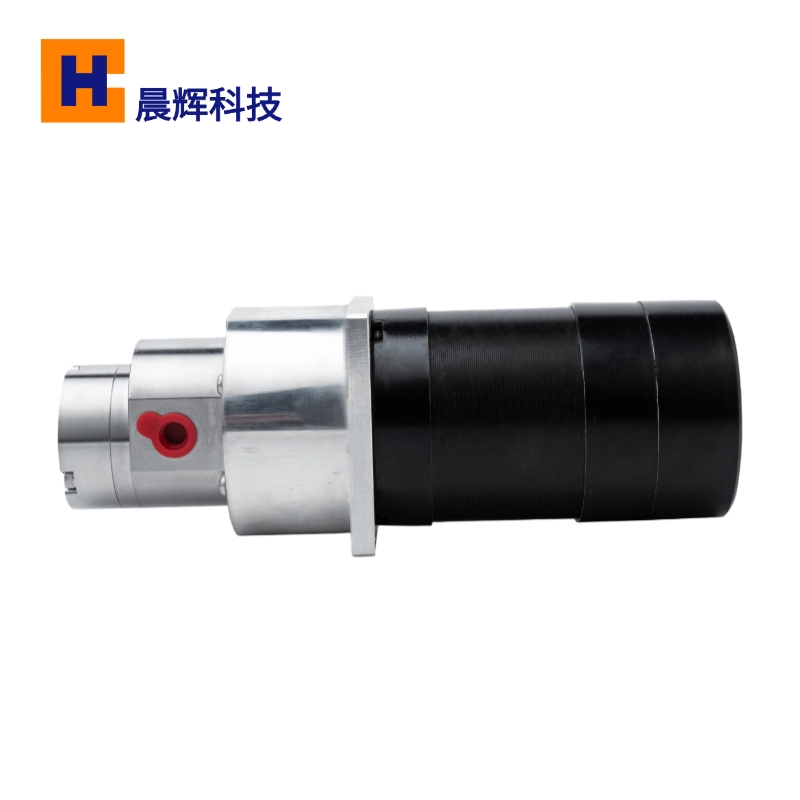

MPB015-110W DC Brushless Motor Magnetic Drive Gear Pump
The MPB015 micro magnetic drive gear pump features a DC brushless drive integrated motor, ensuring stable operation and a long service life. The motor and drive are designed as one unit, with the brushless driver integrated at the end of the motor. Two types are available: liquid inlet and outlet on the same side or different sides. Utilizing a shaftless motor design results in a smaller volume and flexible installation, ideal for stable performance in narrow spaces.

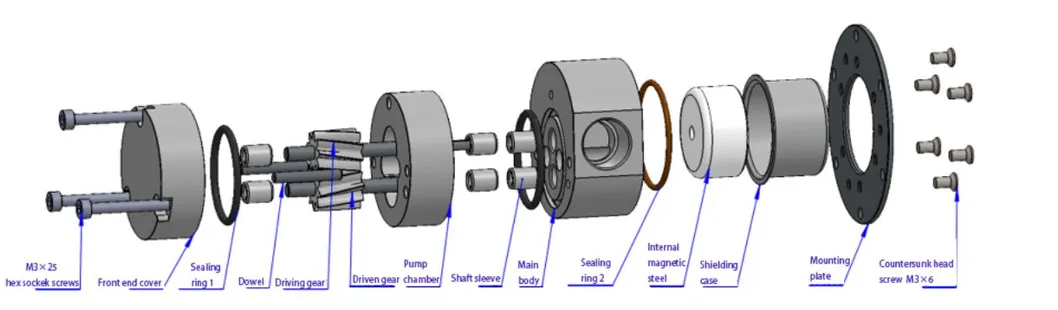

| 1. Inner-hexagon screw*3 | 2. Front end cover | 3. Sealing ring 1 |
| 4. Dowel*2 | 5. Driving gear | 6. Driven gear |
| 7. Pump Chamber/Body | 8. Shaft sleeve*6 | 9. Main body |
| 10. Sealing ring 2 | 11. Internal magnetic steel | 12. Shielding case |
| 13. Mounting plate | 14. Screw M3*6 | - |
Commonly used in: Refrigeration/Cooling, New Energy, Fire Controls, Medical/Pharmaceutical, SCR/DPF, Metering/Sampling, Spraying/Disinfection, Steam Engines, Lubrication, Mechanical Seal Flush, and Water Treatment.
Widely adopted in Ink-Jet printing systems, food processing equipment, laser apparatus, laboratory instruments, and fuel cell technology.
