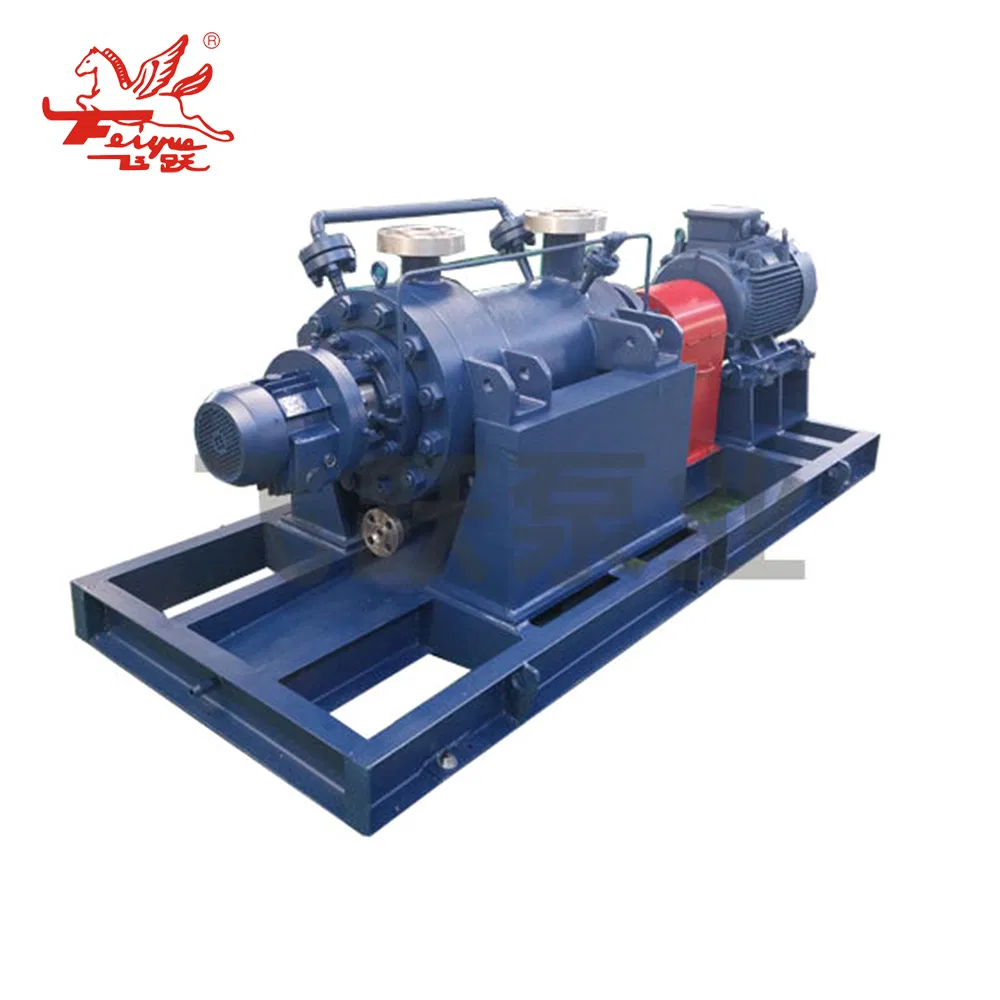

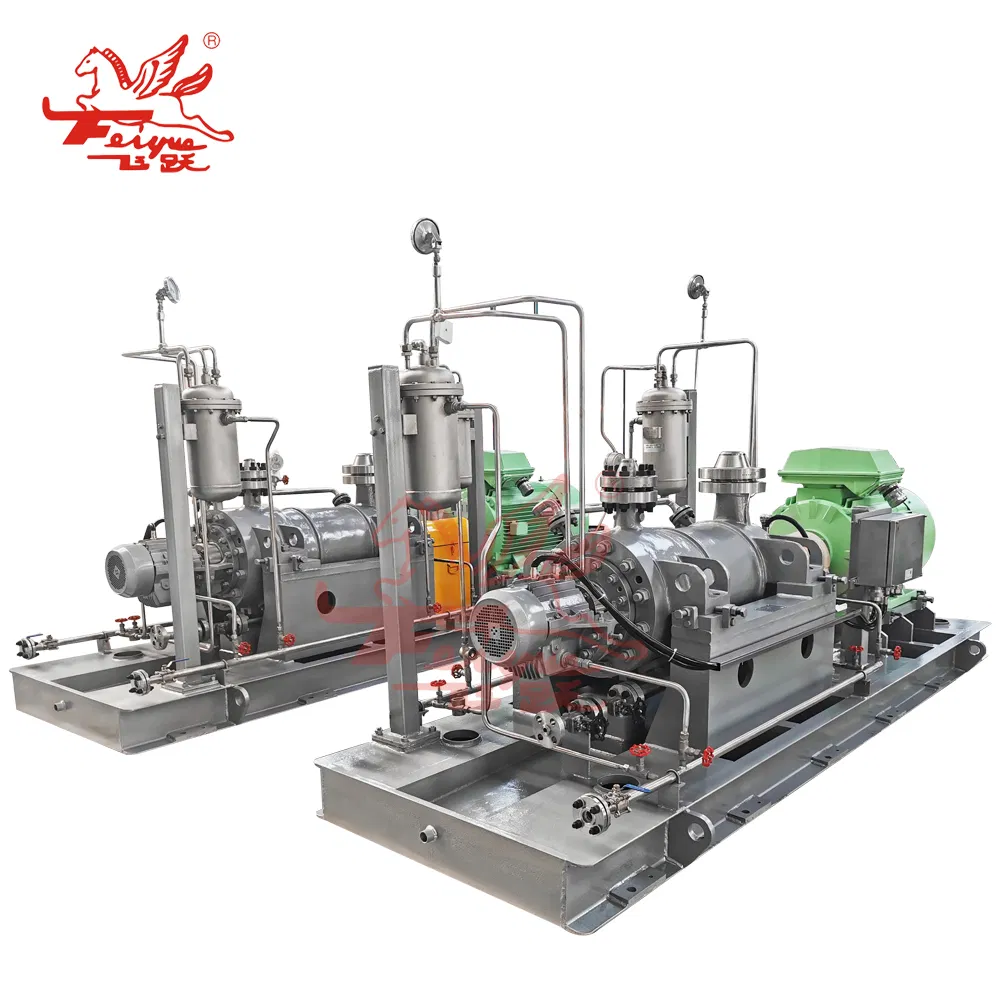

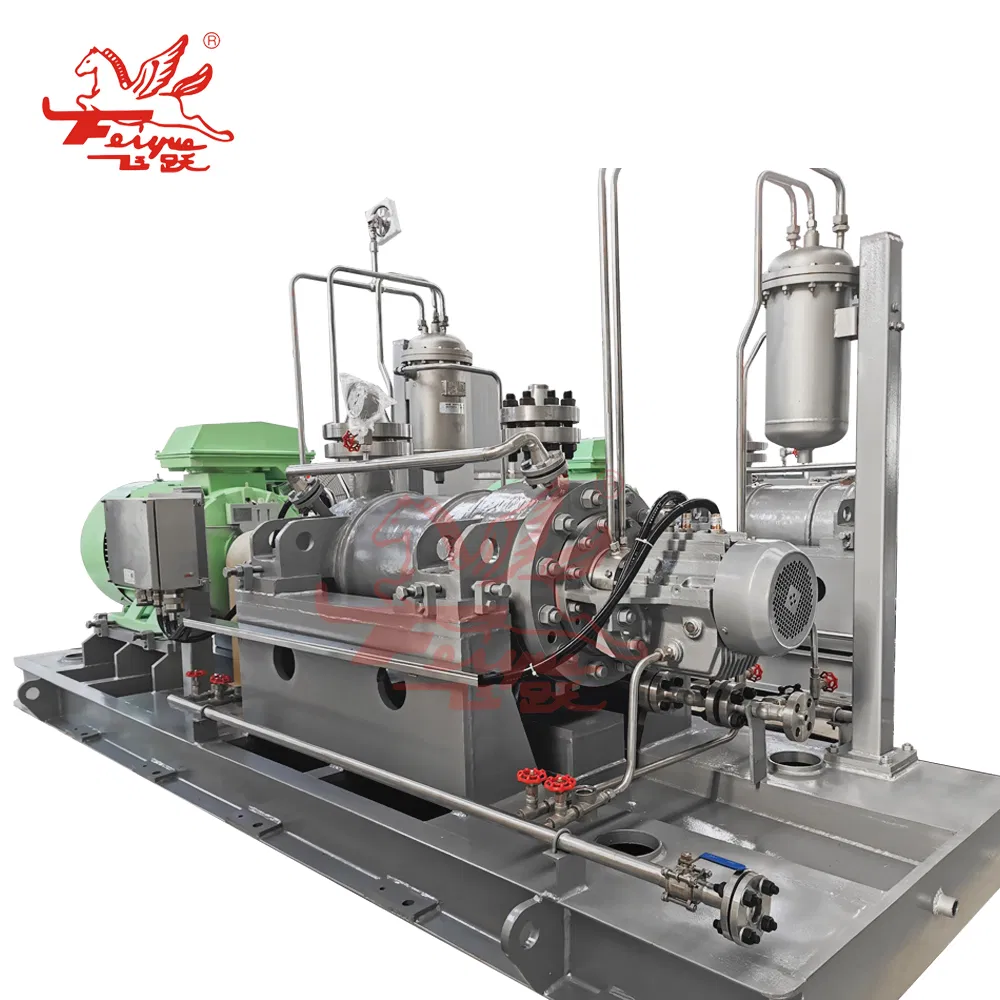

This series of high-temperature high-pressure centrifugal pump is designed for the oil and gas chemical industry, fully conforming to the API 610 design standard.
Oil refinery, petrochemical engineering, low temperature engineering, coal chemical industry, power plant, environmental protection, and wastewater treatment.
This series of pump is a horizontal single suction multi-stage sectional type centrifugal pump. It offers high efficiency, wide performance range, safe operation, and low noise. It is suitable for transporting neutral or corrosive media, including clean or particle-contained fluids (particle diameter less than 1/4 of impeller passageway).
Working temperature is -60 to 400ºC. Materials are optional including: HT200, QT600, JM3, 28# alloy, 304, 304L, 316L, 317L, 904L, CD4, Ha's C, Ha's B etc.

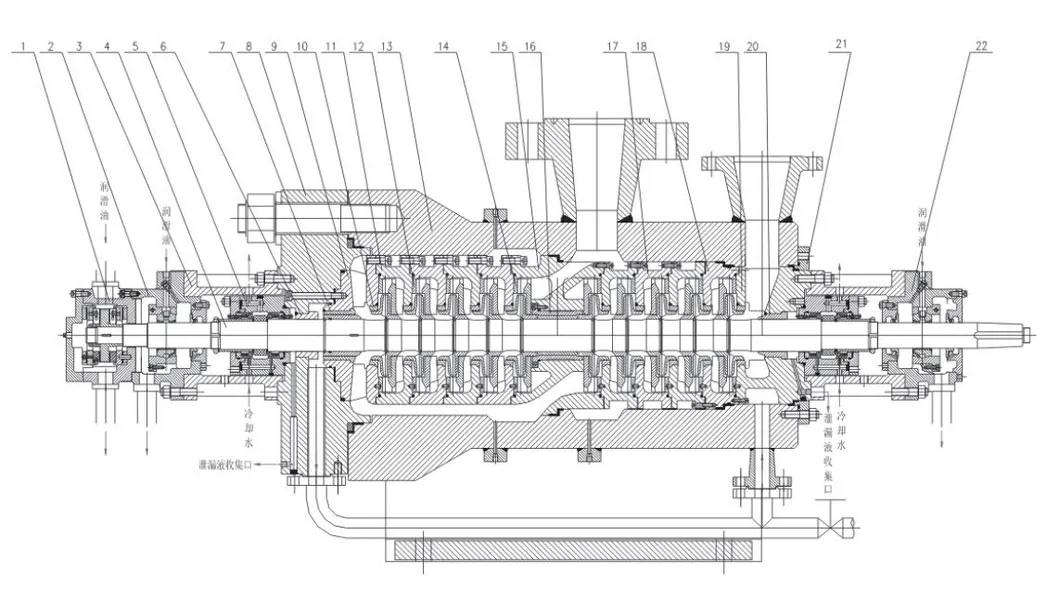

| 1 | Thrust bearing parts | 2 | Drive side sliding bearing | 3 | Bearing support | 4 | Rotor parts |
| 5 | Mechanical seal parts | 6 | Throttling set I | 7 | Throttling set II | 8 | Pump beast |
| 9 | Secondary guide plate | 10 | Mouth ring | 11 | High pressure middle | 12 | Guide vane |
| 13 | Shell | 14 | End guide vane | 15 | Transition pipe | 16 | Throttling set III |
