| Model NO. | M6 | Max.Head | 10-30m |
|---|---|---|---|
| Max.Capacity | >400 L/min | Driving Type | Diesel Engine |
| Material | Cast Iron | Structure | Single-stage Pump |
| Power | Diesel Engine | Max Suction Lift | 9m |
| Priming | Dry Priming, Vacuum Assisted | Speed | 1500-2900rpm |

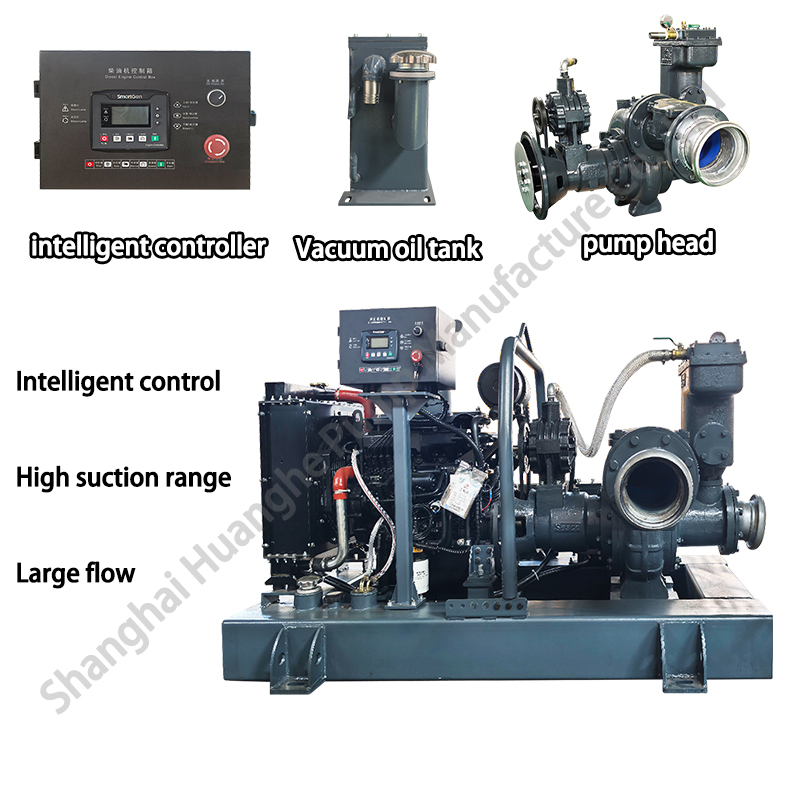

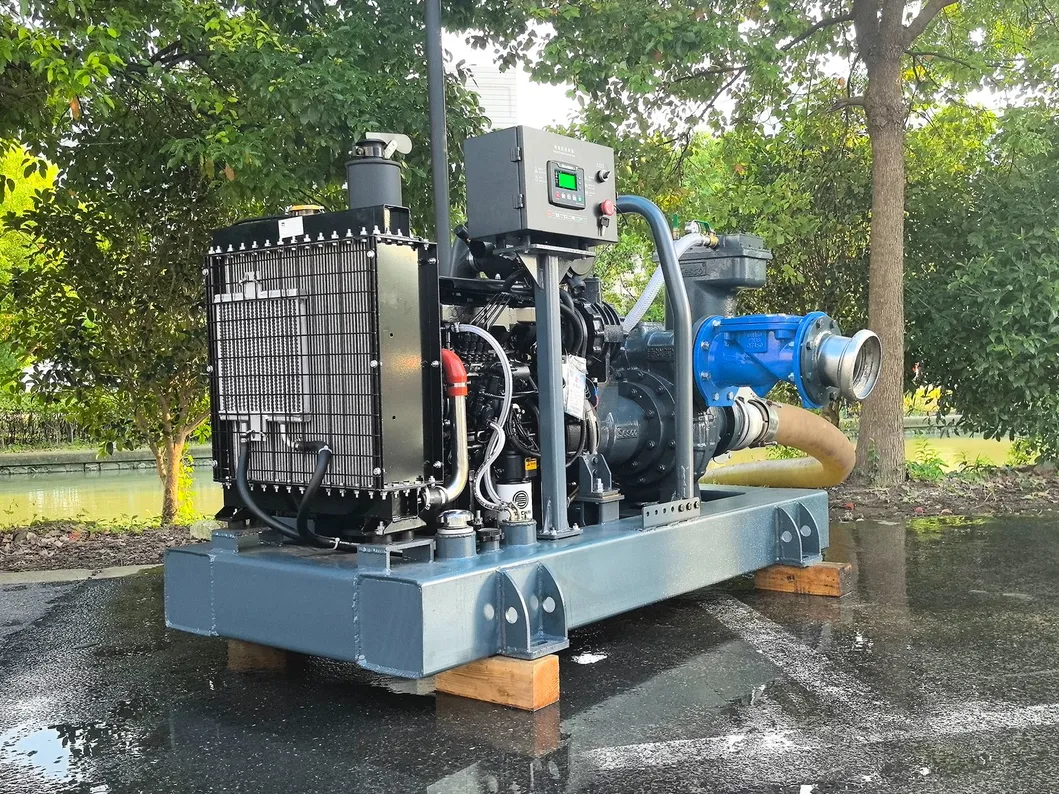

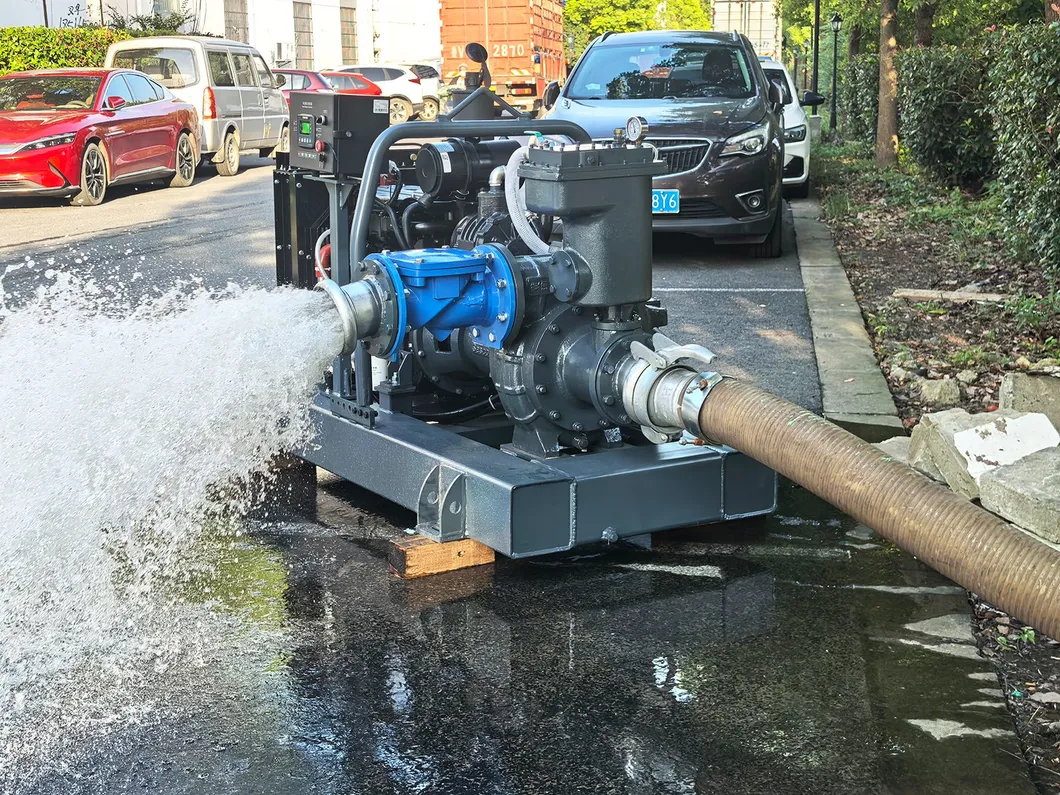

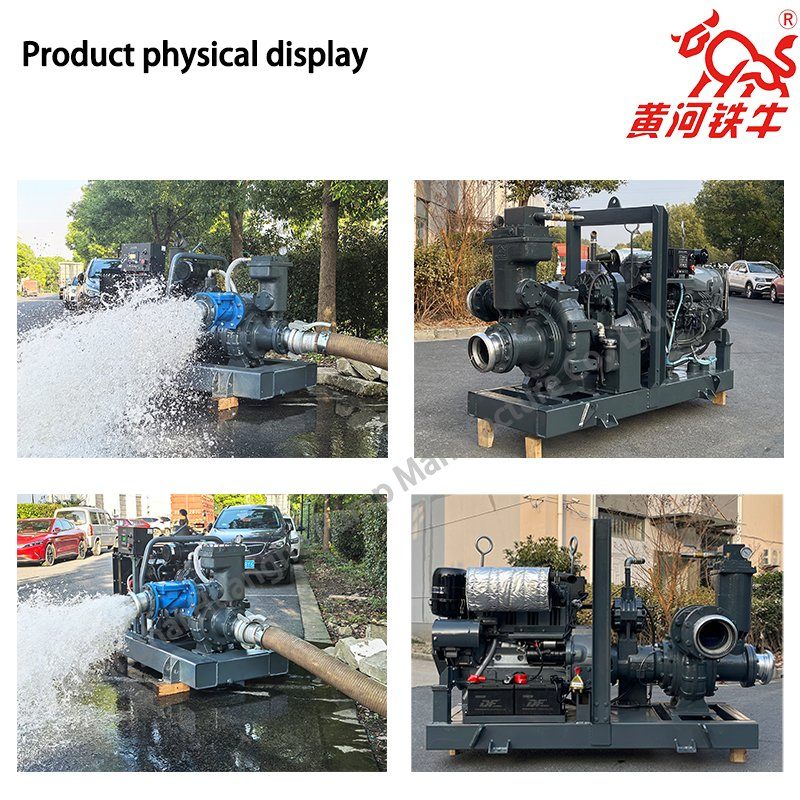

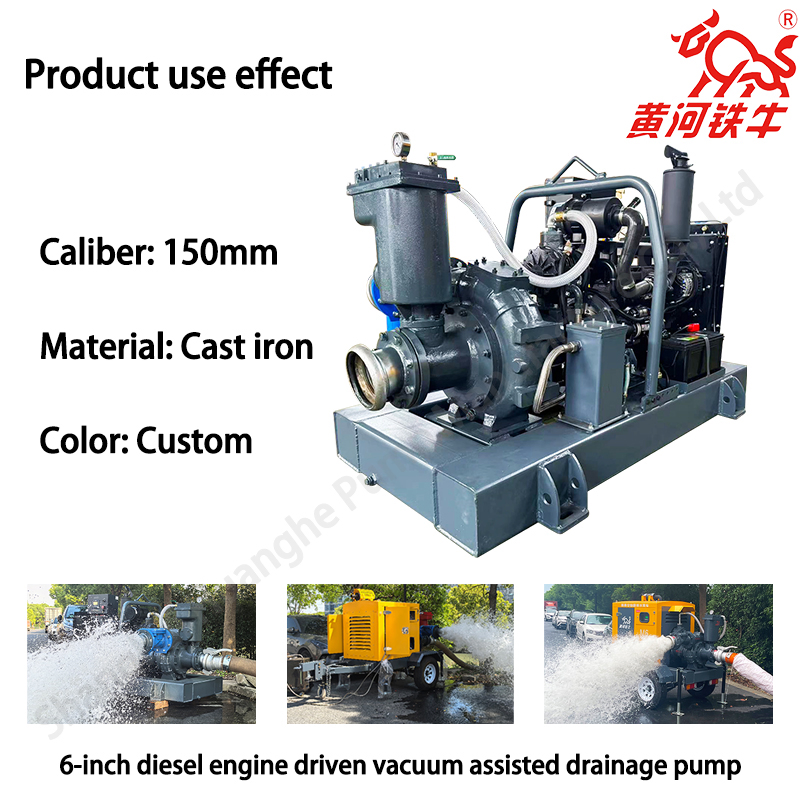

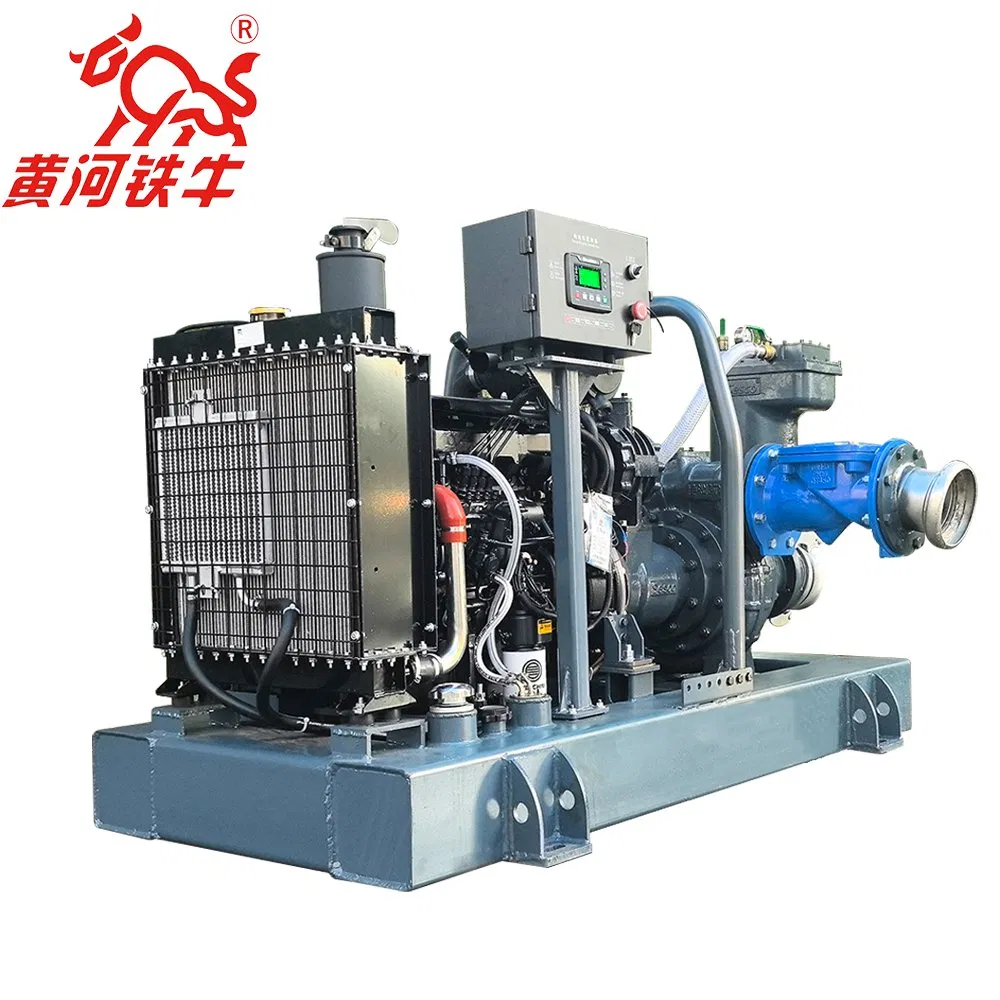

Vacuum self-priming pump

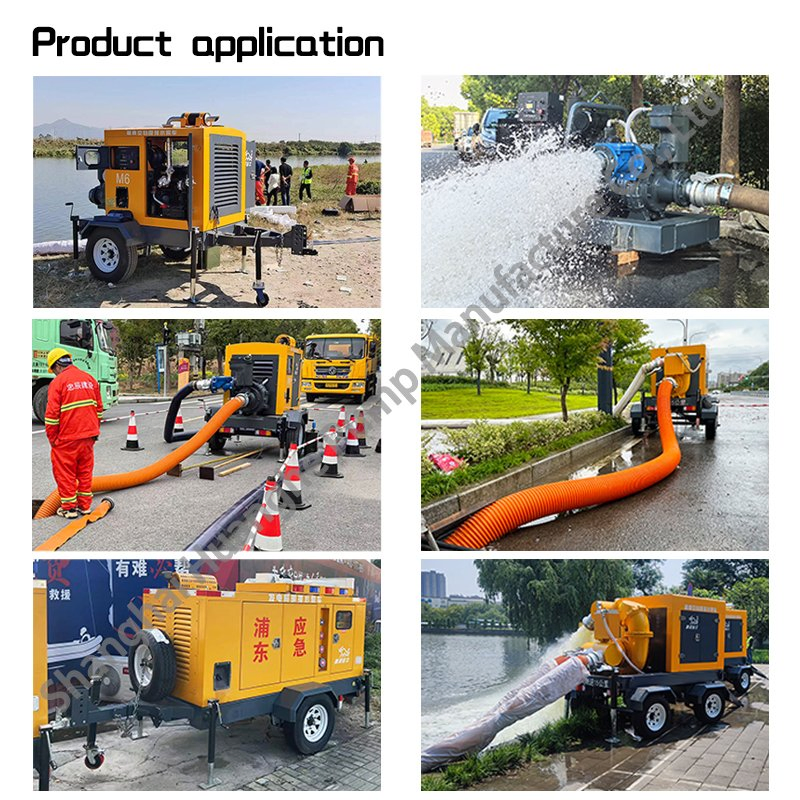

A pump is a machine used to pump high-energy liquids. This is a pump newly developed. Although the diameter of the pump is small, it has the effect of high flow rate, high head, and high suction. Easy to operate, one-click quick start. It can solve problems such as farmland irrigation, urban drainage, and flood discharge.
Method of Application
Points for Attention
1. The sealing O-ring should be smeared by butter before used, or it will be broken soon.
2. Make sure every joint is sealed well before starting the engine.
3. Make sure the fuel, oil, and coolant are enough in the engine.
4. Check if the power circuit is connected well.
| Model | Flow (m³/h) | Lift (m) | Suction height (m) | Speed (RPM) | Power (kw) |
|---|---|---|---|---|---|
| M6-20 | 160 | 20 | 9 | 2900 | 15 |
| M6-32 | 160 | 32 | 9 | 2900 | 22 |
| M6-20 | 200 | 20 | 9 | 1450 | 18.5 |
| M6-32 | 200 | 32 | 9 | 1450 | 30 |
| M6-50 | 200 | 50 | 9 | 1450 | 45 |
| M6-44 | 187 | 44 | 9 | 1450 | 37 |
| M6-80 | 200 | 80 | 9 | 1450 | 90 |
| M6-150 | 160 | 150 | 9 | 2900 | 110 |
| M6-125 | 200 | 125 | 9 | 2900 | 110 |
| M6-180 | 200 | 180 | 9 | 2900 | 250 |

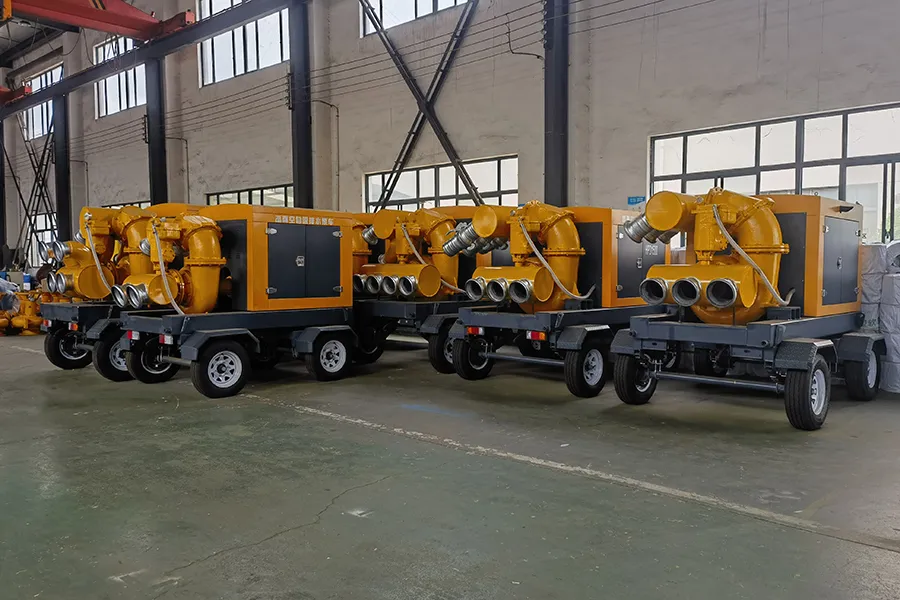

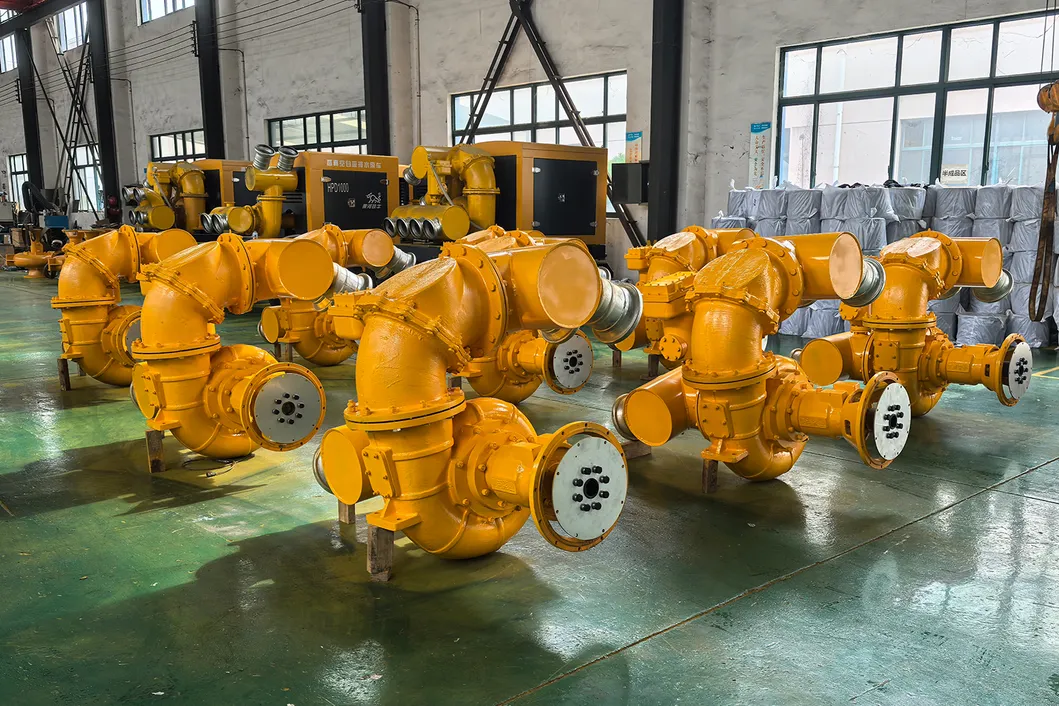

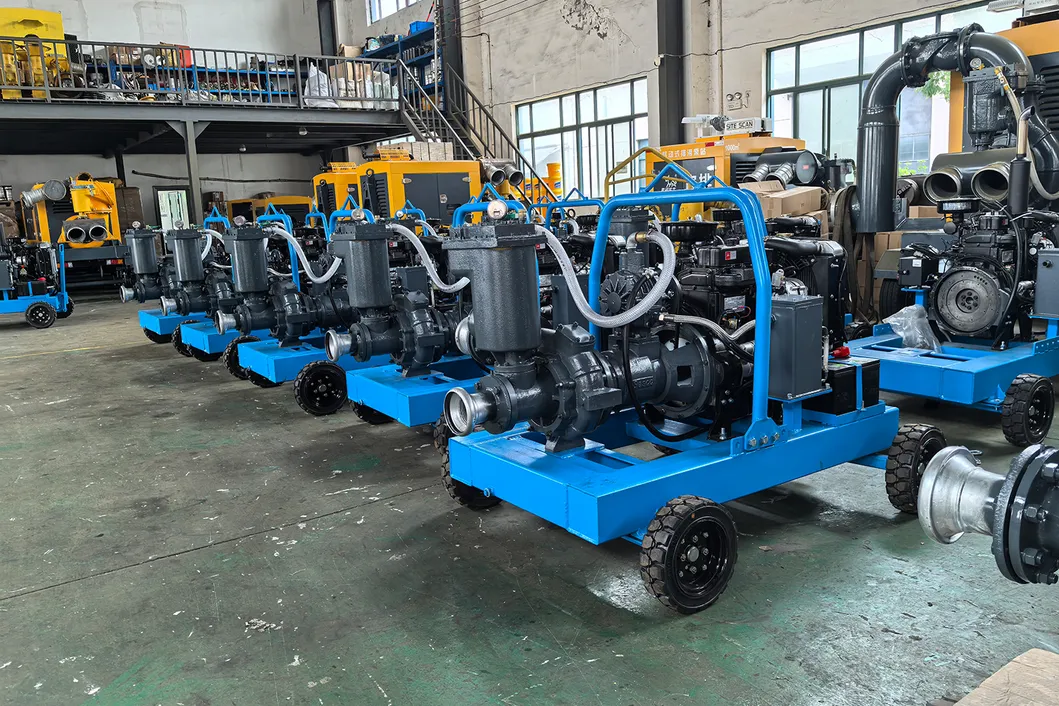

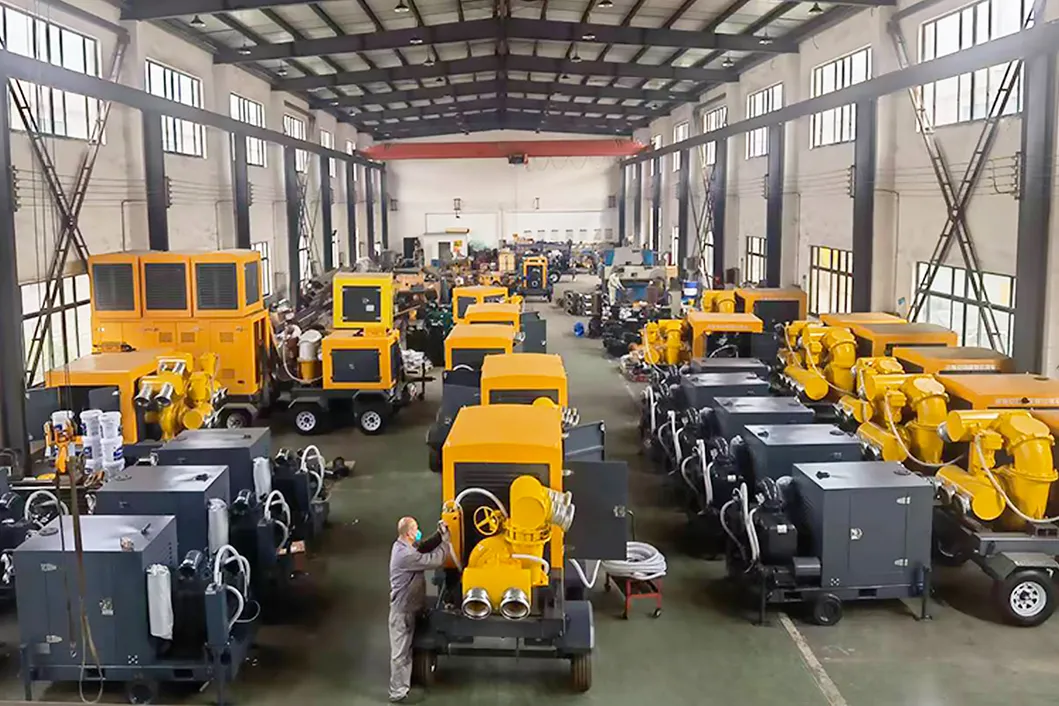

With a history of 29 years and over 15 years of research and design experience. As a production manufacturer, we have many years of sales experience and a good reputation. Our main products include flood control mobile pumps, marine seawater centrifugal pumps, farmland irrigation pumps, and mine flushing pumps. We have a complete team that can choose, design, and provide high-quality products that meet your requirements.
