Electric Stainless Steel Non-Clogging Centrifugal Submersible Sewage Water Pump

1 / 5

Electric Stainless Steel Non-Clogging Centrifugal Submersible Sewage Water Pump

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

GNWQ20-22-3, QX10-34-2.2, QX12.5-50-4

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Pipeline Pump

Power

Electric

Start Up

Electric Pump

Type

Sewage Pump

Application

Submersible Pump, Sewage Pump

Industry

Fisheries Pump

Media

Sewage Pumps

Performance

Sewage Pump for Dirty Water

Theory

Centrifugal Pump

Outlet

2inch, 3 Inch, 4 Inch, 5inch, 6 Inch

Motor Material

Cast Iron

Impeller Material

Cast Iron or S S

Impeller Type

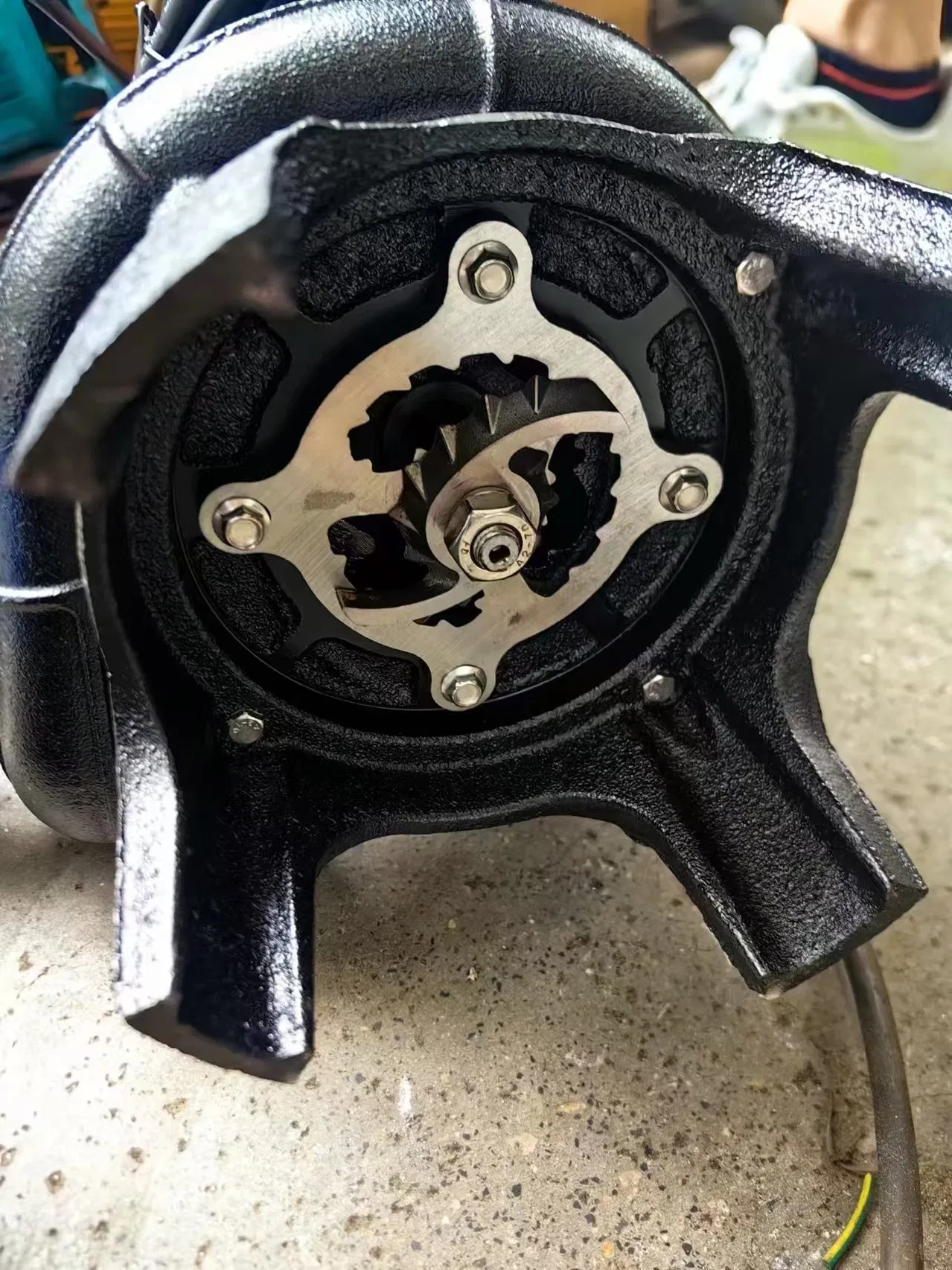

Vortex Impeller /Cutter

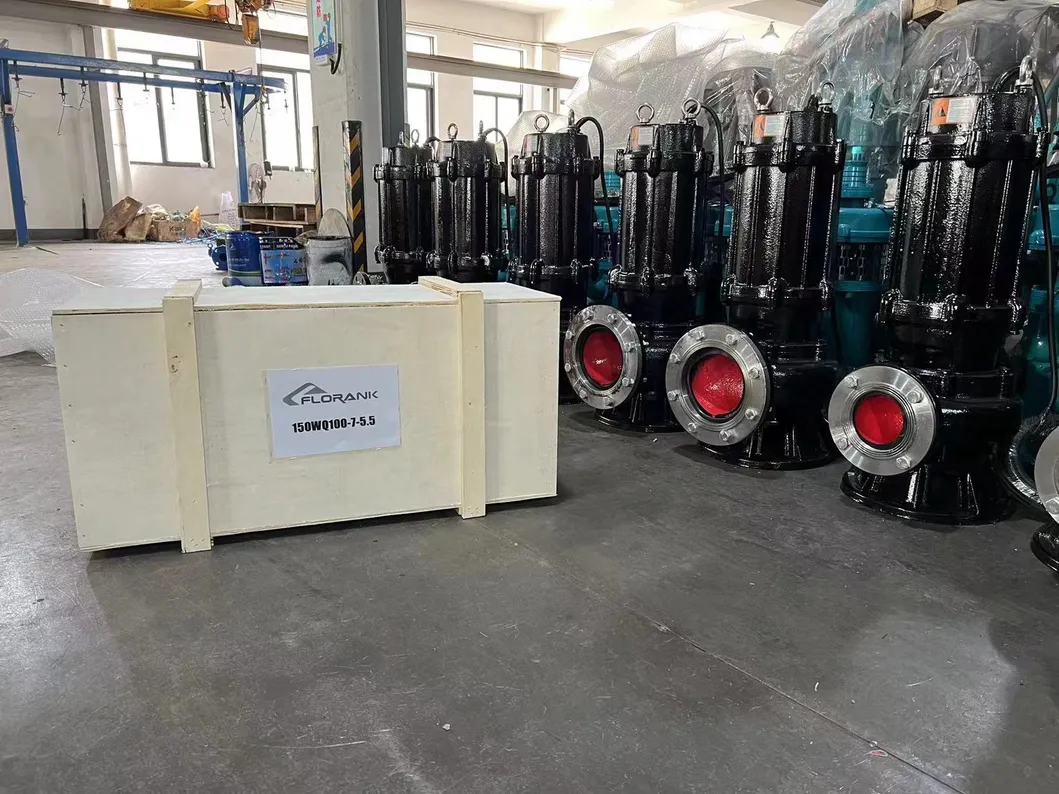

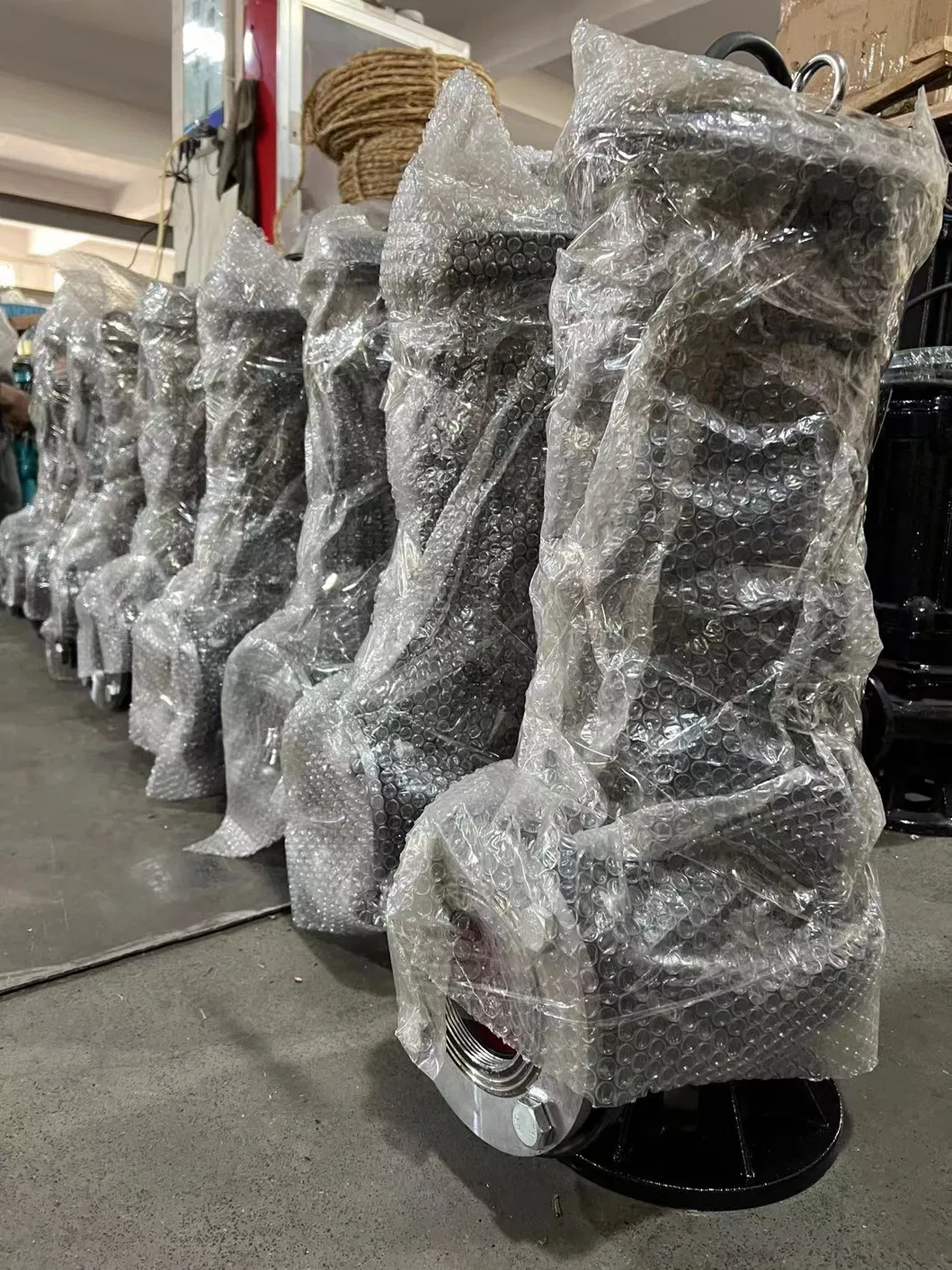

Transport Package

Wooden Case

Specification

Production Capacity

8000PCS /Year

📦 Packaging & Delivery

Package Size

80.00cm * 40.00cm * 40.00cm

Package Gross Weight

36.000kg

⚙️ Product Description

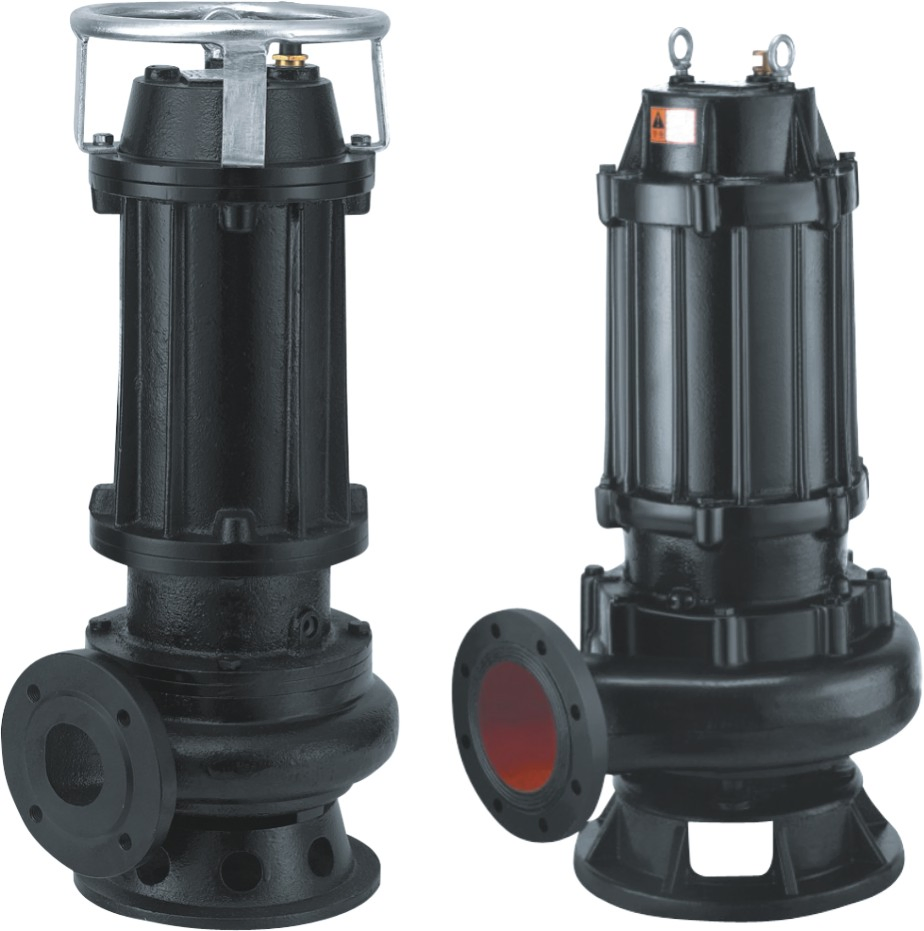

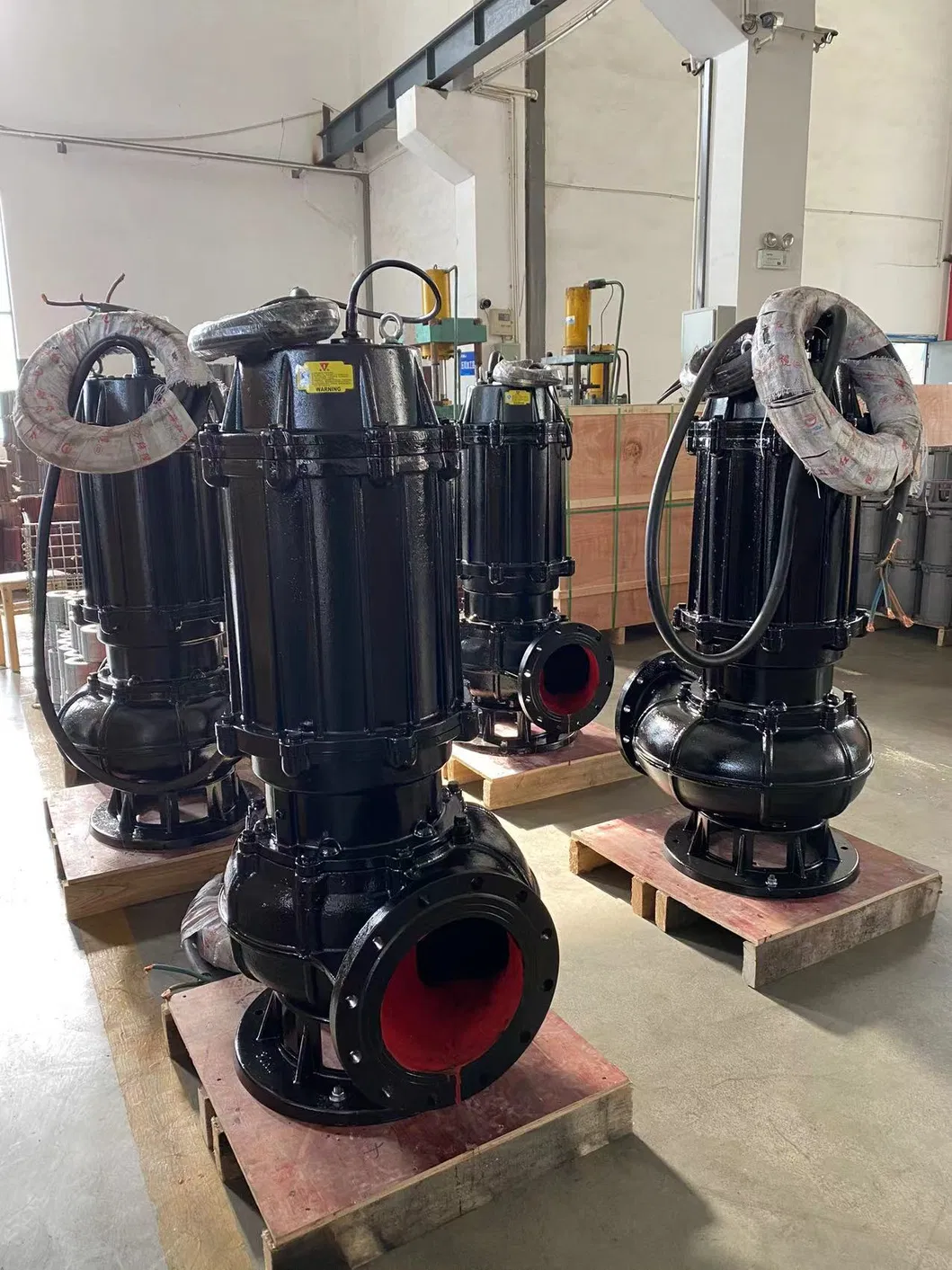

Submersible sewage water Pump (WQ series) for dirty water

Working Condition

Max. Submerged depth: 5m
Fluid temperature up to +40°C
Max ambient temperature +40°C

Application & Feature

The pumps are suitable for handling refluent water mixed with mud, liquids containing air or gas, as well as treated and putrid mud. They are designed for dirty water, sewage, industrial waste, etc. And they are suitable for installation in sewers, galleries, wells, underground car parks, etc.

They are designed for toilets drainage, agricultural drainage, septic tank drainage, animal husbandry drainage, factory waste water drainage.

Component Material

Pump body: Cast iron
Motor bracket: Cast iron
Impeller: Cast iron
Motor shaft: CS45# or SS
Mechanical seal: Ceramic-graphite or silicon carbide-carbide alloy

Motor Information

380V, 50Hz, 60Hz
Continuous duty.
Insulation class: E
Protection: IP X8

Model	Power		Discharge	Rated Flow	Rated Head	G.W	Dimension
Three Phase	Kw	Hp	Inch	m³/h	m	kg	mm
WQ6-16-0.75	0.75	1	2	6	16	22	470x250x250
WQ10-10-0.75	0.75	1	2.5	10	10	29	520x210x275
WQ15-7-0.75	0.75	1	2.5	15	7	31	520x210x275
WQ15-9-1.1	1.1	1.5	2	15	9	32	540x240x280
WQ7-15-1.1	1.1	1.5	2	7	15	31	540X240X280
WQ12-15-1.5	1.5	2	2	12	15	41	610X260X305
WQ18-15-1.5	1.5	2	2.5	18	15	46	610X260X305
WQ25-7-1.5	1.5	2	3	25	7	40	610X260X305
WQ25-10-1.5	1.5	2	2.5	25	10	42	610X260X305
WQ9-22-2.2	2.2	3	2	9	22	47	635x260x330
WQ15-20-2.2	2.2	3	2.5	15	20	49	635x260x330
WQ25-15-2.2	2.2	3	3	25	15	49	635x260x330
WQ27-15-2.2	2.2	3	2.5	27	15	49	635x260x330
WQ35-7-2.2	2.2	3	3	35	7	50	635x260x330
WQ42-9-2.2	2.2	3	2.5	42	9	51	655x270x325
WQ15-30-3	3	4	2.5	15	30	54	535x260x330
WQ20-22-3	3	4	3	20	22	54	535x260x330
WQ25-20-3	3	4	3	25	20	54	535x260x330
WQ37-13-3	3	4	3	37	13	68	720x320x390
WQ43-13-3	3	4	4	43	13	68	720x320x390
WQ50-7-3	3	4	4	50	7	65	720x320x390
WQ50-10-3	3	4	4	50	10	68	720x320x390
WQ40-15-4	4	5.5	2.5	40	15	81	755X325X395
WQ60-10-4	4	5.5	4	60	10	85	800X335X450
WQ15-40-5.5	5.5	7.5	2.5	15	40	85	755X325X395
WQ30-30-5.5	5.5	7.5	3	30	30	88	800X320X380
WQ65-15-5.5	5.5	7.5	4	65	15	105	345X325X1050
WQ65-20-7.5	7.5	10	4	65	20	140	415x415x1100
WQ80-15-7.5	7.5	10	4	80	15	140	415x415x1100
WQ100-10-7.5	7.5	10	6	100	10	140	415x415x1100

❓ Frequently Asked Questions

What is the maximum submersion depth for the WQ series?

The maximum submerged depth for these pumps is 5 meters.

What materials are used in the construction of the pump?

The pump body, motor bracket, and impeller are primarily made of high-quality cast iron for durability in dirty water environments.

Can this pump handle industrial waste and sewage?

Yes, it is specifically designed for dirty water, sewage, industrial waste, and liquids mixed with mud or putrid materials.

What are the motor's insulation and protection ratings?

The motor features an Insulation Class E rating and is protected to IP X8 standards, suitable for continuous duty.

Is this pump suitable for agricultural use?

Absolutely. It is highly effective for agricultural drainage, animal husbandry waste management, and septic tank drainage.

What types of mechanical seals are used?

The pumps utilize ceramic-graphite or silicon carbide-carbide alloy mechanical seals to ensure reliable performance.

Electric Stainless Steel Non-Clogging Centrifugal Submersible Sewage Water Pump

Product Description

Related Products

High Quality Engine Components Cylinder Head for Auto Spare Parts

Shantui Caterpillar Bulldozer Excavator Cummins Weichai Isuzu Perkins Hydraulic/Water/Fuel Injection/Oil/Gear/Working/Steering/Transmission/Gear Pump

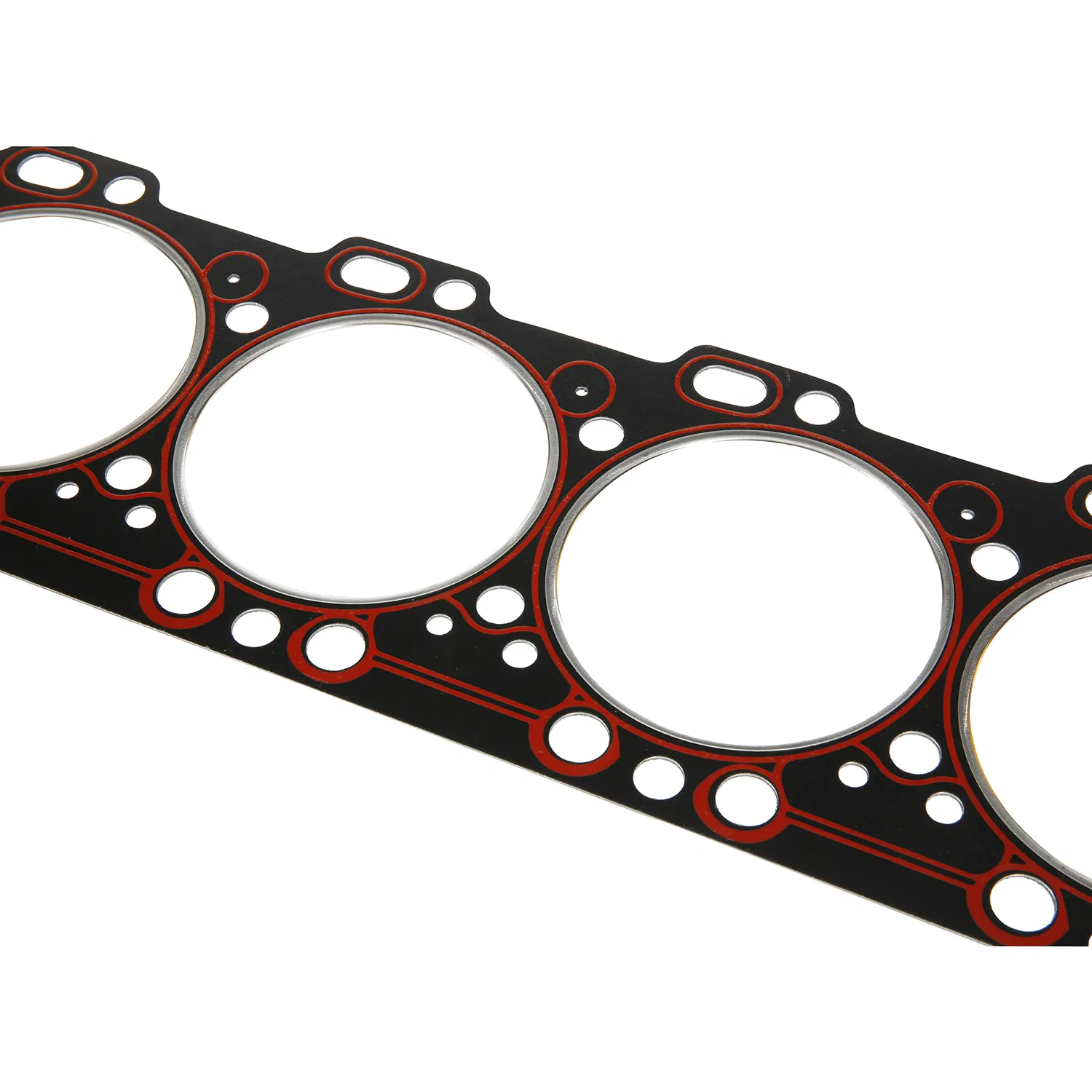

High Grade for Cummins 6CT Engine Parts Cylinder Head Gasket
