Drilling Rig Machine Oil Drilling Mud Pump of Type F1600
Drilling Rig Machine Oil Drilling Mud Pump of Type F1600
Drilling Rig Machine Oil Drilling Mud Pump of Type F1600
Drilling Rig Machine Oil Drilling Mud Pump of Type F1600
Drilling Rig Machine Oil Drilling Mud Pump of Type F1600
1 / 5
Drilling Rig Machine Oil Drilling Mud Pump of Type F1600
Drilling Rig Machine Oil Drilling Mud Pump of Type F1600
Drilling Rig Machine Oil Drilling Mud Pump of Type F1600
Drilling Rig Machine Oil Drilling Mud Pump of Type F1600
Drilling Rig Machine Oil Drilling Mud Pump of Type F1600

Drilling Rig Machine Oil Drilling Mud Pump of Type F1600

Customization: Available
After-sales Service: After Service Accepted
Warranty: After Service Accepted
Send Inquiry

Product Description

Basic Information
Model NO.
F-1600
Process
Forging
Surface Treatment
Spray-Paint
Operation Pressure
Atmospheric Pressure
Material
Alloy
Advantage
Durable
Application
Oil Drilling
Power Source
Hydraulic
Production Capacity
500 Sets/Per Year
HS Code
8413910000
Product Description

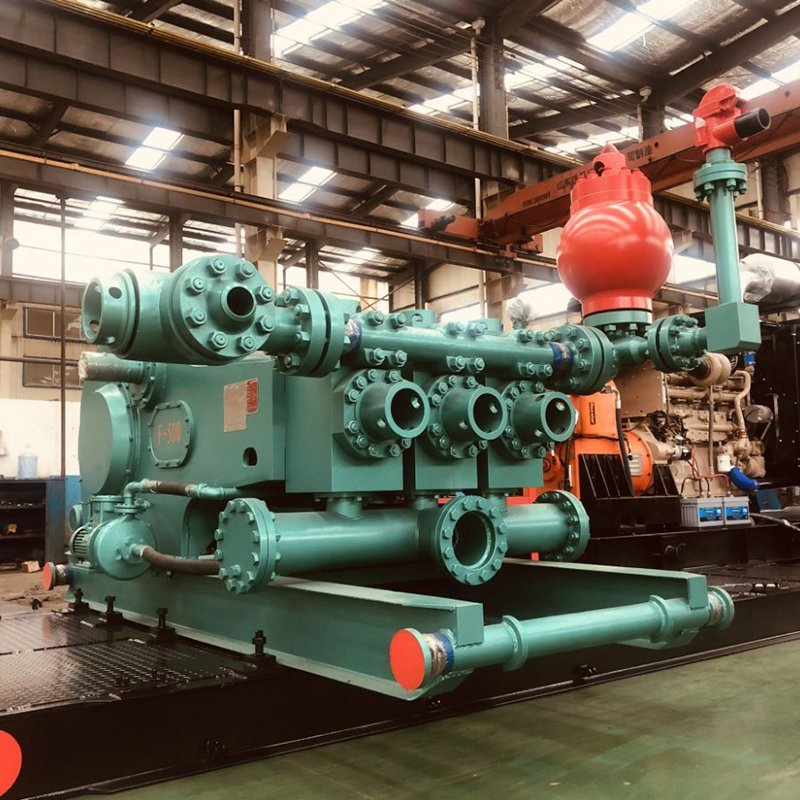

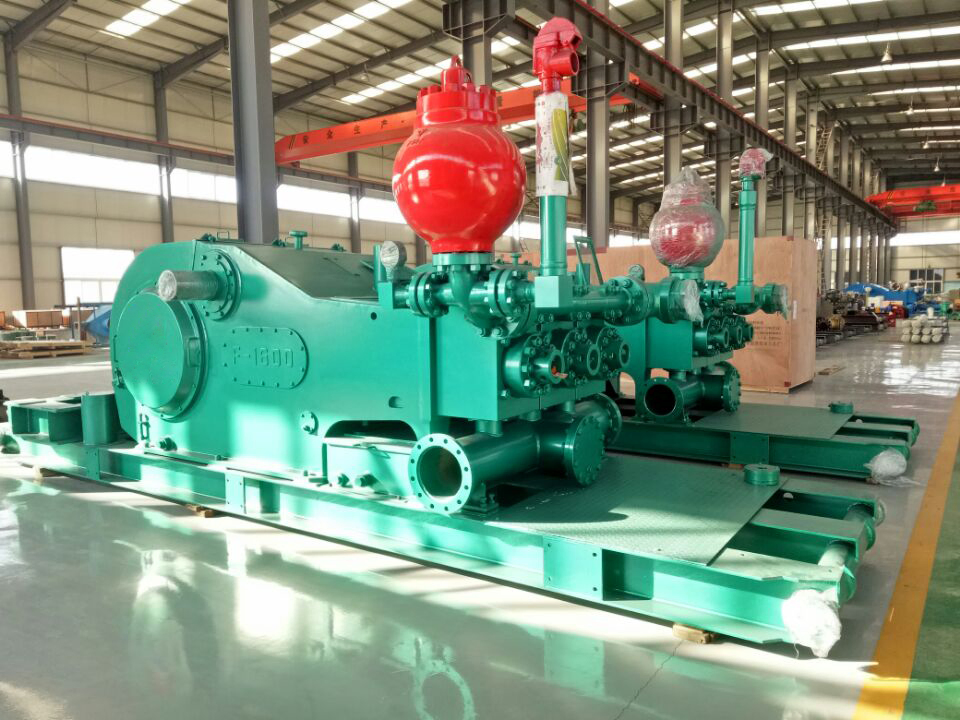

Oil Drilling Mud Pump F1600

Our F series mud pump is designed and manufactured strictly in accordance with API 7K standards. All spare parts are compatible with major international brands, ensuring the pump is easy to maintain globally.

  • Valve pot according to API # 6 standard.
  • Lubrication system: Oil circulating pump installation with fresh water heat exchanger.
  • Magnetic oil filter and cartridge type gauge included.
  • High-pressure relief valve (JA-3 shear PIN type) 1500-5000 PSI.
  • Three interchangeable forged steel one-piece fluid ends.
Item F500 F800 F1000 F1300 F1600
Power Rating HP(kw) 500 (373) 800 (597) 1000 (746) 1300 (969) 1600 (1193)
Stroke Rating SPM 165 150 140 120 120
Stroke Length (in/mm) 7.5" / 190.5 9" / 228.6 10" / 254 12" / 305 12" / 305
Gear Ratio 4.286 4.185 4.207 4.206 4.206
Inlet Dia. (in/mm) 8"/203 10"/254 12"/305 12"/305 12"/305
Outlet Dia. (in) 4" Flange 5-1/8" Flange 5-1/8" Flange 5-1/8" Flange 5-1/8" Flange
Max. Liner (in/mm) 6-3/4"/170 6-3/4"/170 6-3/4"/170 7"/180 7"/180
Mud Pump Dimensions
Mud Pump Details

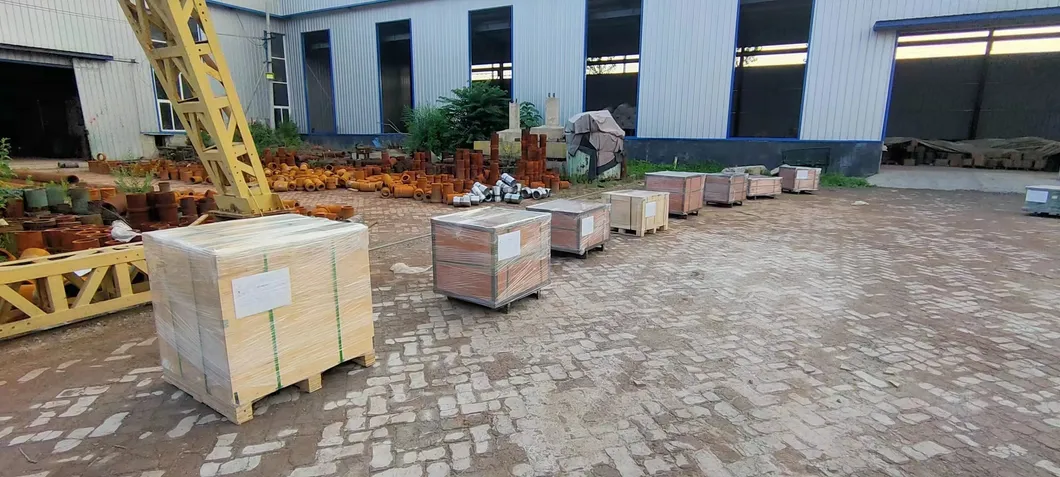

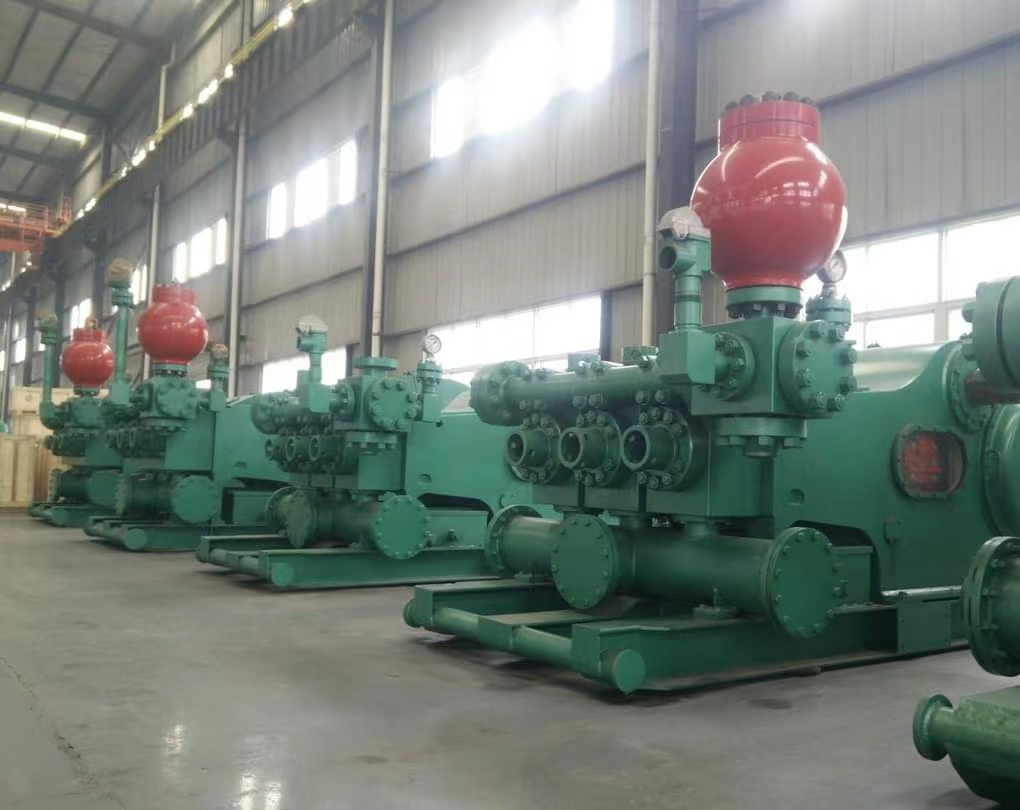

Mud Pump Manufacturing

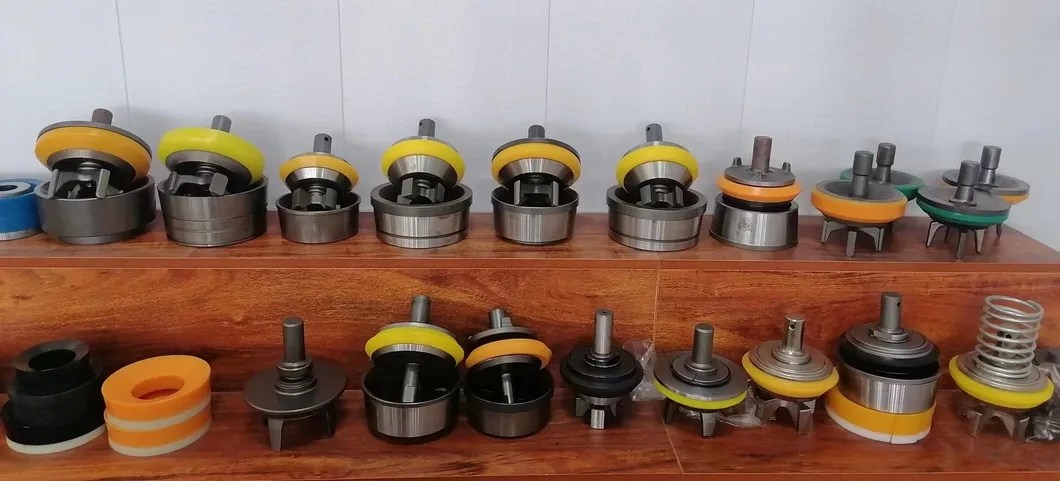

Related Pump Parts
Our Advantages
Advantage 1
Advantage 2
  • Professional manufacturer focusing on oil drilling equipment since 2006.
  • Factory equipped with advanced machinery and experienced technicians.
  • Strict quality control procedures ensuring premium product standards.
  • Large inventory and high production capacity (3000 units/month).
  • 24/7 immediate response and reliable after-sales service.
Certifications
Certification 1
Certification 2
Certification 3
Packaging & Shipping
Packaging and Delivery
Frequently Asked Questions
How long is the delivery time?
It typically takes about 15-35 days to finish an order, depending on the specific requirements and actual situation.
Do you offer OEM or design services?
Yes, we have a dedicated design department and can provide OEM products tailored to your specific requirements.
What is the warranty period for your mud pumps?
We provide a 1-year warranty on our products.
Are your spare parts interchangeable with other brands?
Yes, our F series mud pump parts are designed to be compatible with major brands such as BOMCO, NOV, and Emsco.
Which quality standards do your products follow?
All products meet the strict requirements of ISO9001 and API-7K (American Petroleum Institute) standards.
What is your monthly production capacity?
Our current production capacity is approximately 3000 units per month, supported by an expanded workshop.
