Material
Cast Iron, Bronze, SS304, SS316
Power
Electric Motor & Diesel Engine Driven
Application
Clarified Water, Sewage, Slurry, Oil Transfer, Chemical, Fire Fighting
Industry
Fire Fighting System
Performance
No Leakage Pump
Specification
CE, SGS, ISO9001

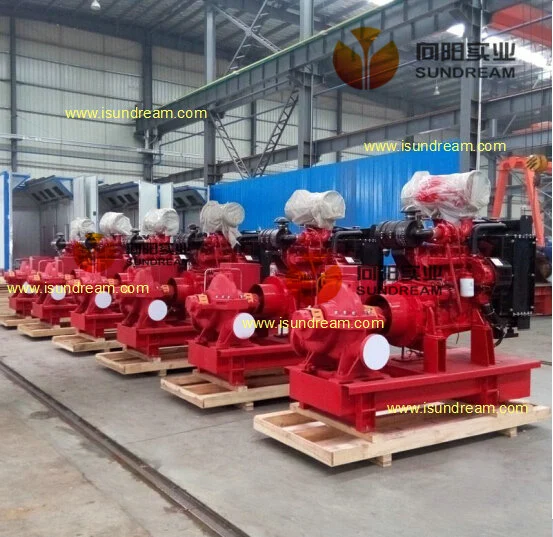

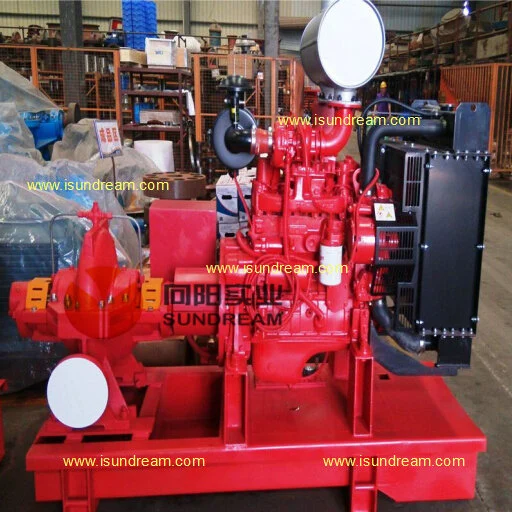

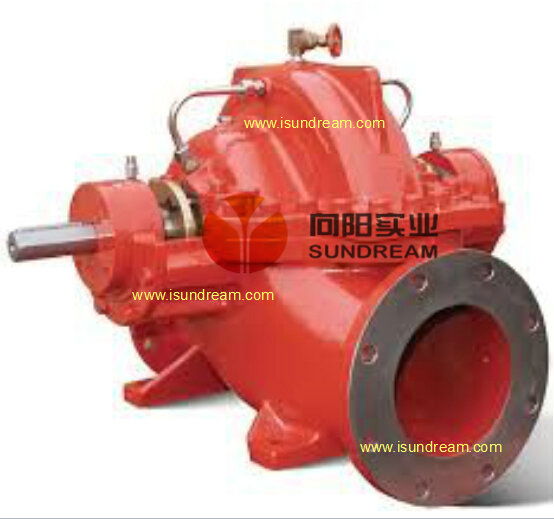

Professional manufacturer for Diesel engine driven fire fighting pump equipment with high and stable quality. The fire fighting pumps are manufactured according to NFPA20 standards, providing comprehensive fire pump solutions.
| 1. Inlet/Outlet | DN80-DN800 |
| 2. Impeller Diameter | 170mm-980mm |
| 3. Rotary Speed | 730RPM-3500RPM |
| 4. Flow Rates | >11600m3/h |
| 5. Head | >200m |
| 6. Power | >2000KW |
| 7. Voltage | 380V/400V/415V/440V/460V/525V etc. |
| 8. Frequency | 50Hz/60HZ |
| 9. Working Pressure | >2.5Mpa |
| 10. Material | Cast iron, Ductile iron, Stainless steel, Bronze, SS304, SS316, SS316L |
| 11. Drive Mode | Electric motor and Diesel engine |
| 12. Diesel Cooling | Water cooled & Air cooled |
| 13. Method of Connection | Direct soft coupling, V-belt pulley |
| 14. Drive Brand | Cummins, Deutz, Ricardo, Perkins, Weichai, SIEMENS |
Core Advantages & Usage
- Energy Efficiency: Development and production of the latest energy-efficient products with high efficiency and low running noise.
- Anti-Cavitation: Excellent anti-cavitation performance with a reasonable structure for long service life.
- Standard Compliance: Performance and technical requirements align with National GB6245-1998 "Fire pump performance requirements and test methods".
- Leak-Proof Design: Full seal, no leakage, and high corrosion resistance.
- Versatile Application: Ideal for pressurized water fire fighting systems, industrial drainage, high-rise building water supply, and refrigeration systems.
| Model |
Capacity (L/S) |
Pressure (Mpa) |
Power (KW) |
Speed (RPM) |
| XBD1.6/5-50 | 5 | 0.16 | 1.5 | 2950 |
| XBD2.3/5-50 | 5 | 0.23 | 3 | 2950 |
| XBD5/5-50 | 5 | 0.5 | 5.5 | 2950 |
| XBD8.8/10-65 | 10 | 0.88 | 18.5 | 1480 |
| XBD16/15-80 | 15 | 1.6 | 45 | 1480 |
| XBD20.4/50-150 | 50 | 2.04 | 160 | 1480 |
Frequently Asked Questions (FAQ)
1. What standards do these fire fighting pumps comply with?
The pumps are manufactured according to the international NFPA20 standard and the national GB6245-1998 requirements for performance and testing methods.
2. What are the available driving modes for the fire pump system?
We offer both electric motor-driven and diesel engine-driven configurations to ensure reliability in different emergency scenarios.
3. What materials are used for construction?
Pumps can be constructed from Cast Iron, Ductile Iron, Stainless Steel (SS304, SS316, SS316L), Cast Steel, or Bronze depending on the media and application.
4. Can these pumps handle liquids other than clean water?
They are designed for water and liquids with similar physical and chemical properties, including sewage, slurry, and certain chemical media in specialized applications.
5. What is the maximum flow rate and head capability?
The system can achieve flow rates exceeding 11600 m3/h and a head of over 200 meters, suitable for high-rise buildings and large industrial sites.
6. Is the fire pump package customizable?

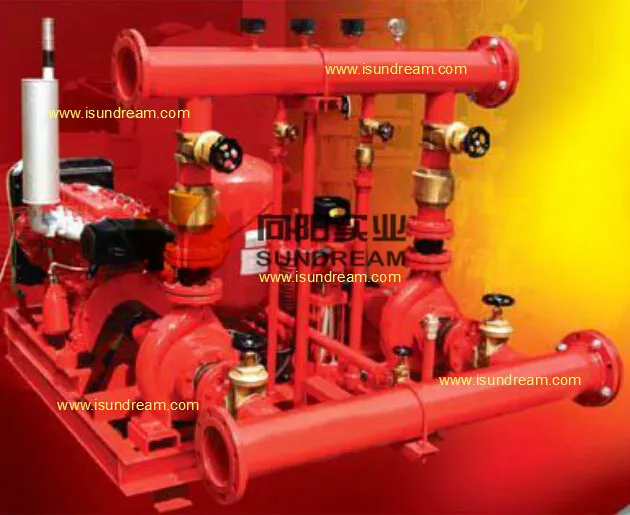

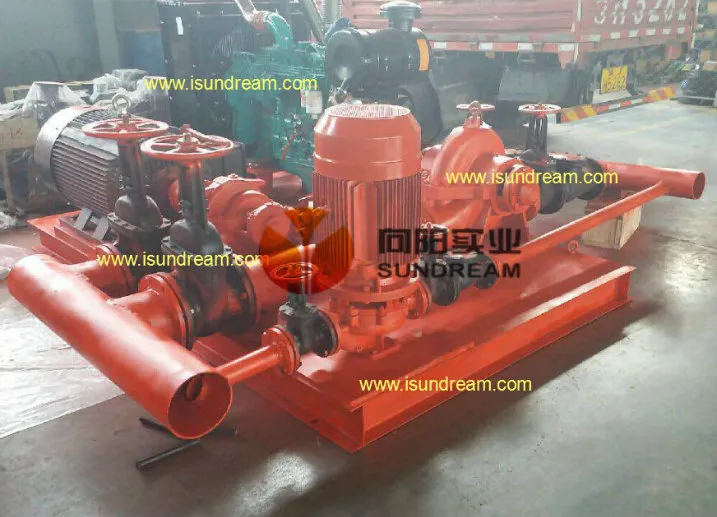

Yes, we provide fire pump packages that can include vertical jockey pumps, diesel engine auto-controllers, and skid-mounted trailer options.
