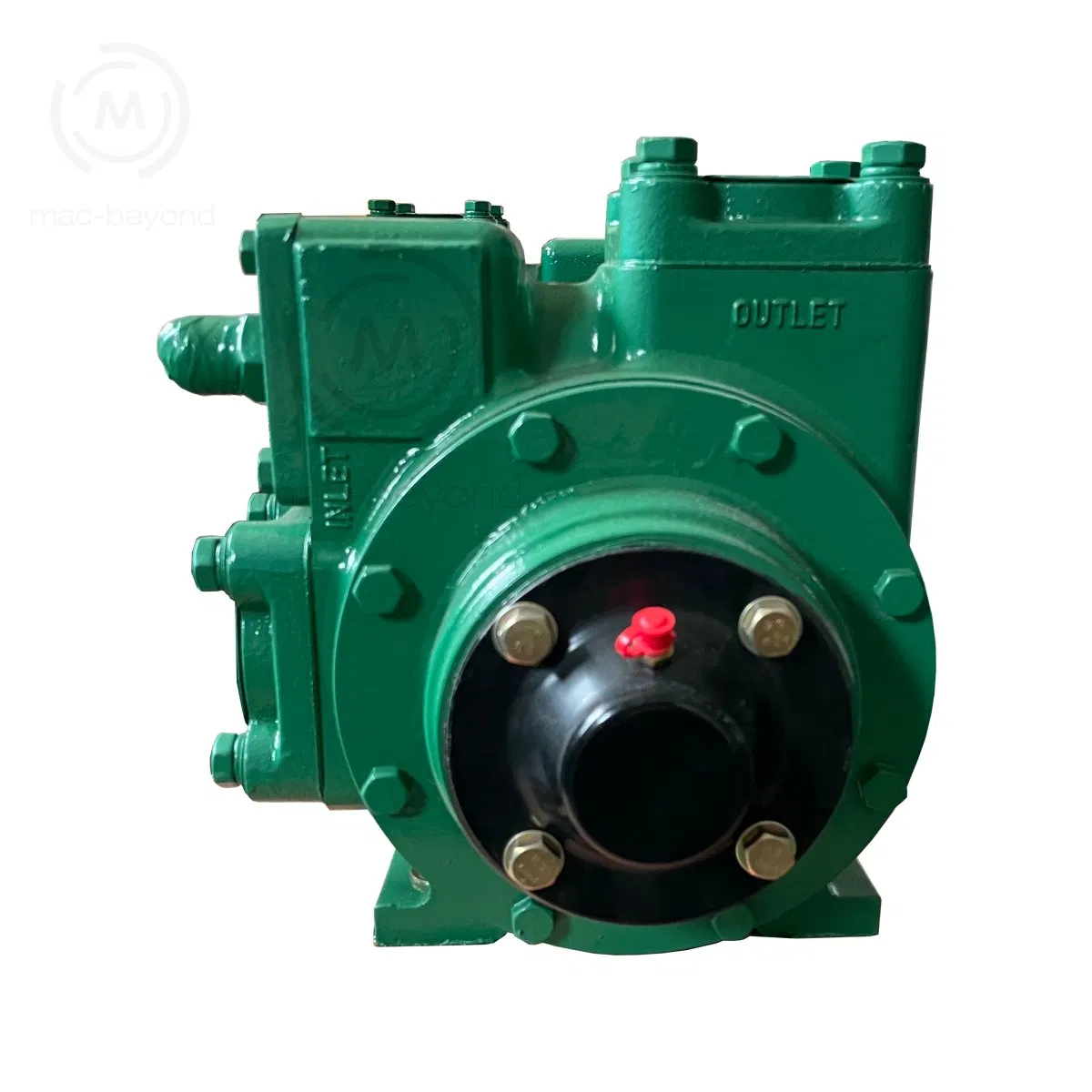

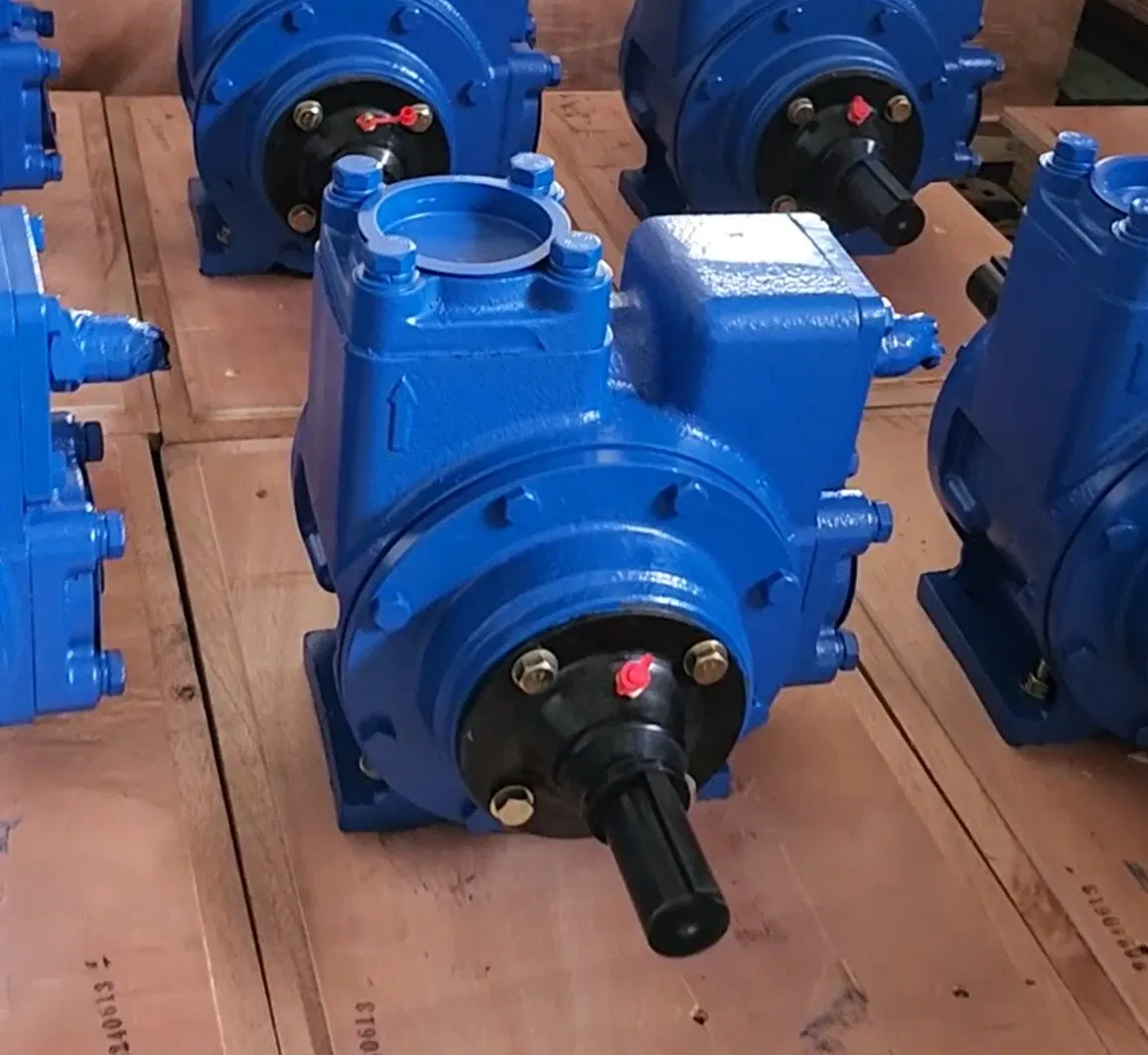

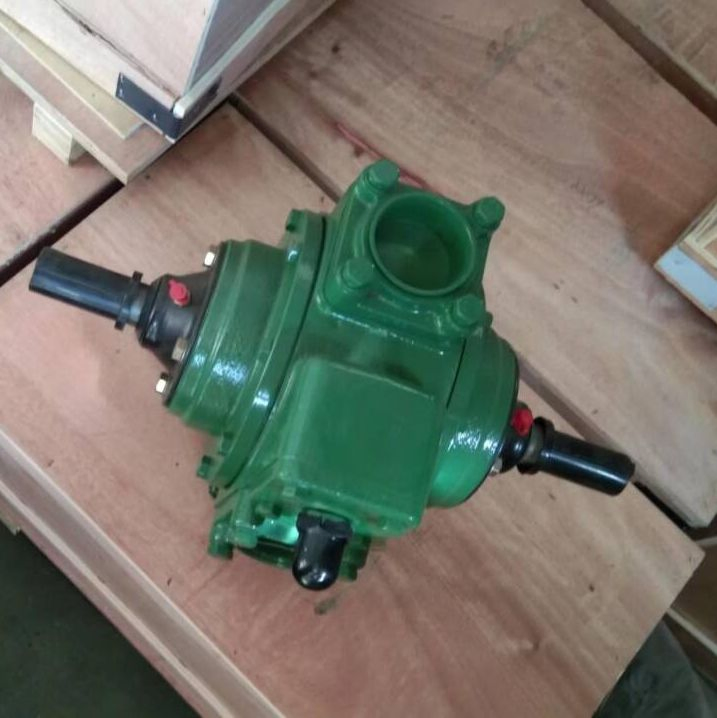

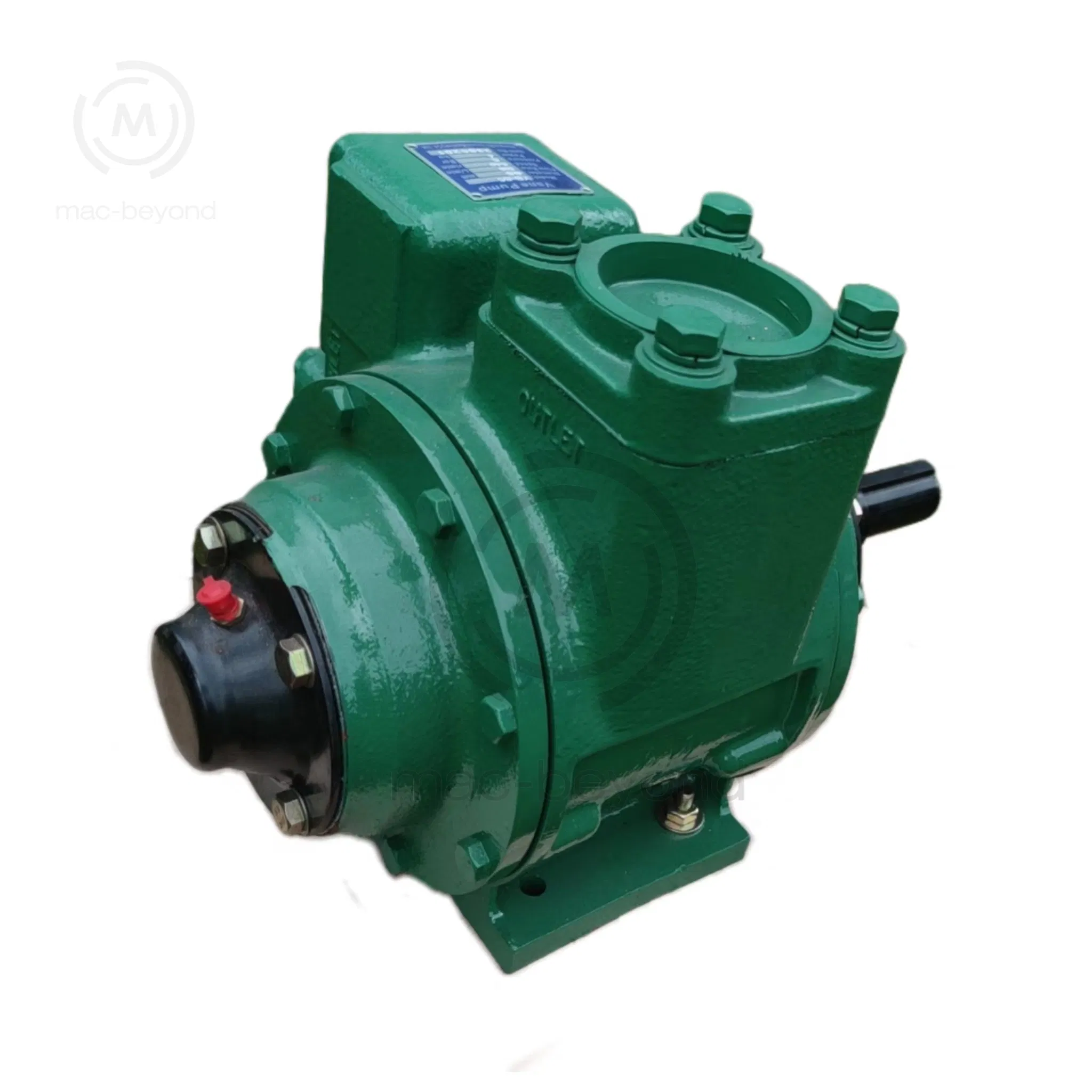

The YB series self-priming rotary vane pump features an internal by-pass valve and utilizes a motor with sliding vanes to draw liquid. Constructed with durable nodular iron and self-lubricating vanes, this pump handles viscous and volatile liquids efficiently. Its advanced design allows for higher flow rates at lower revolutions compared to standard equivalent pumps, requiring less horsepower for operation.
| Model | YB-65 Specs |
|---|---|
| Size | 65mm / 2.5" |
| Pump Speed | 400-640 RPM |
| Max. Flow Rate | 300-500 L/M |
| Vacuum | 0.5 Bar |
| Working Pressure | 5 Bar |
| Motor Power | 4 KW |
| Dimension | 46 × 35 × 37 cm |
| Net / Gross Weight | 40kg / 47kg |
| Package | 1 PC / Wooden Case |
| Model | YB-50 | YB-65 | YB-80 | YB-100 |
|---|---|---|---|---|
| Size | 50mm/2" | 65mm/2.5" | 80mm/3" | 100mm/4" |
| Pump Speed | 400-640RPM | 400-640RPM | 400-640RPM | 500RPM |
| Flow Rate | 150-300L/M | 300-500L/M | 600-1000L/M | 1500-1900L/M |
| Motor Power | 2.2KW | 4KW | 7.5KW | 18.5KW |

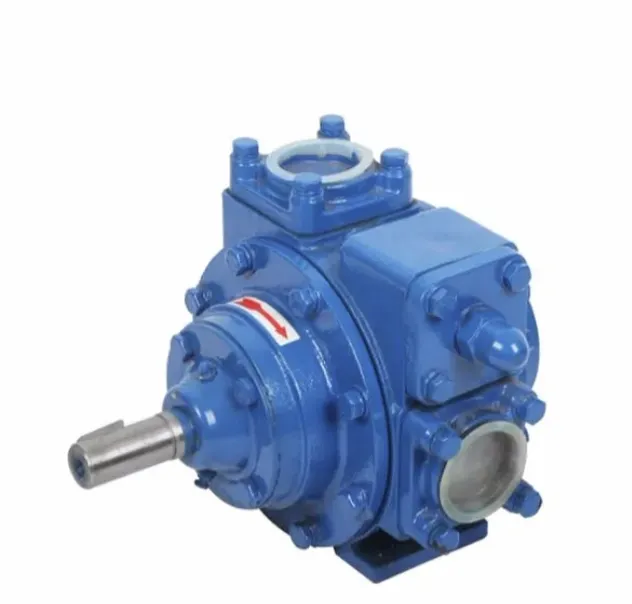

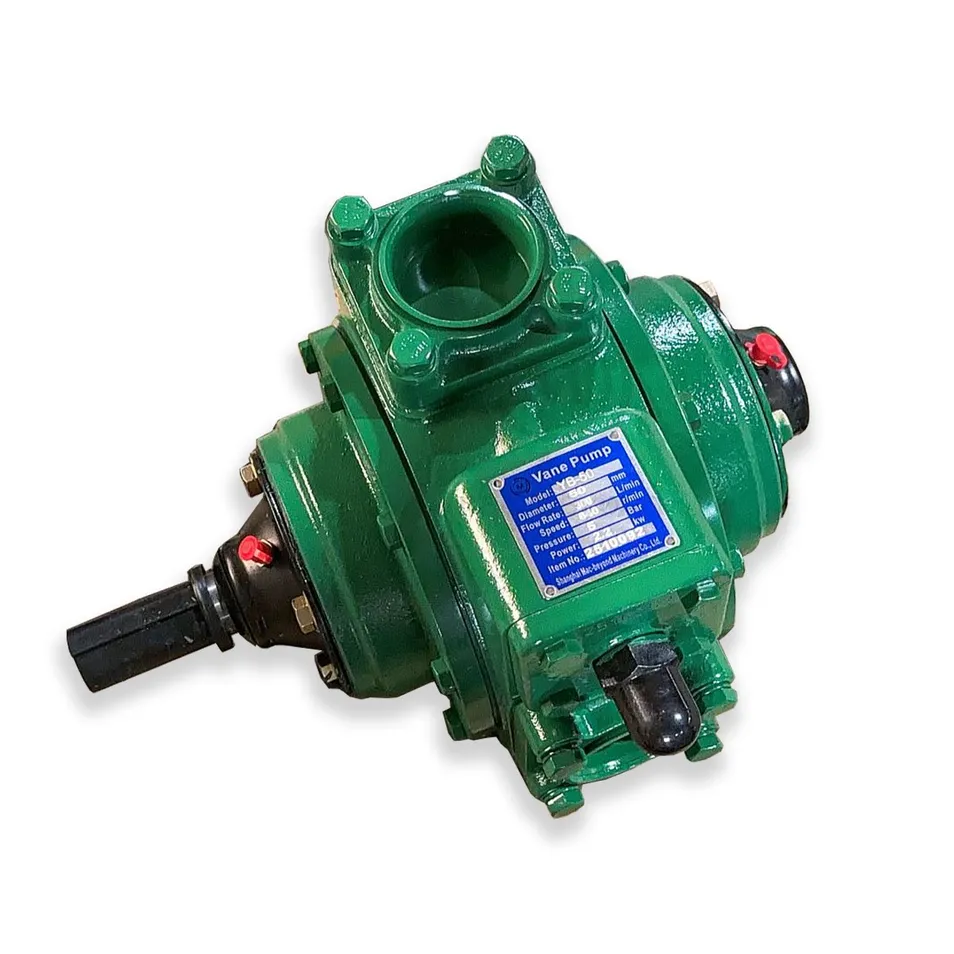

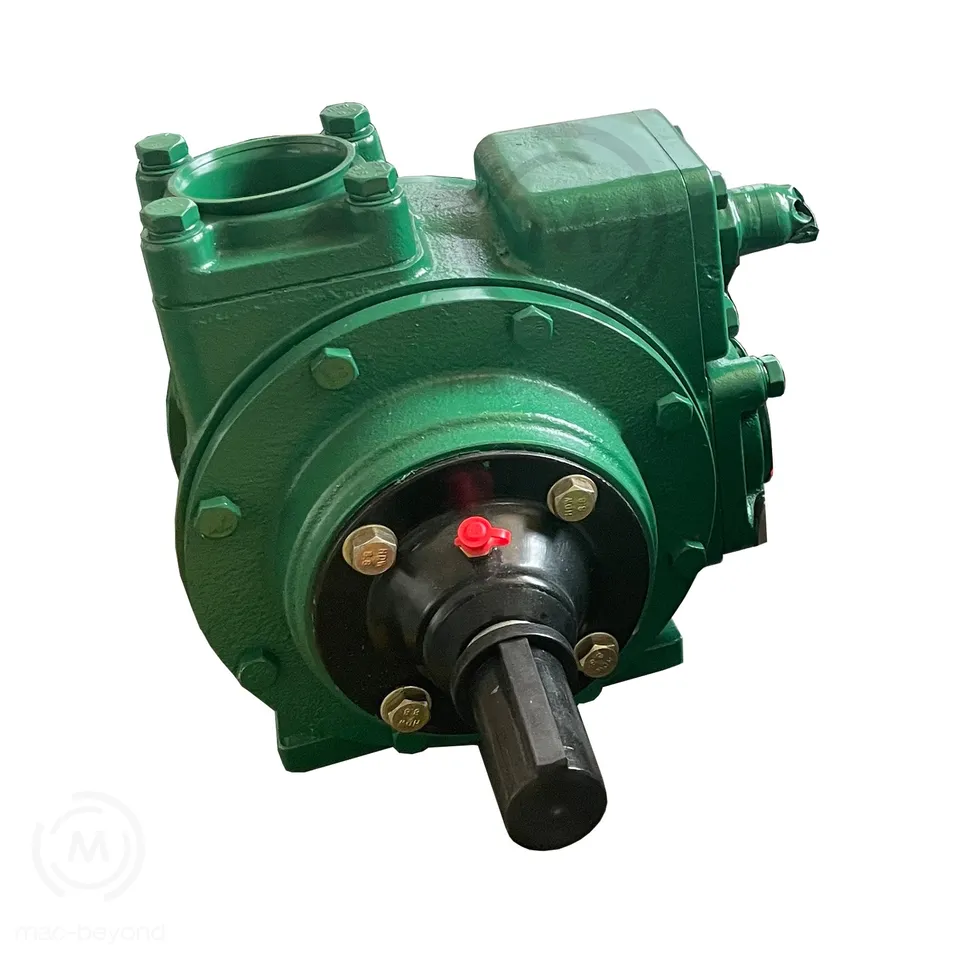

Pump Head

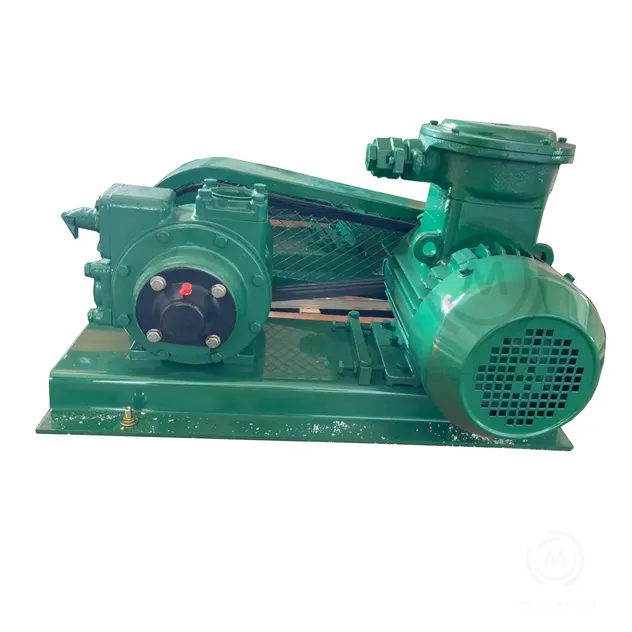

Pump with V-belt Motor

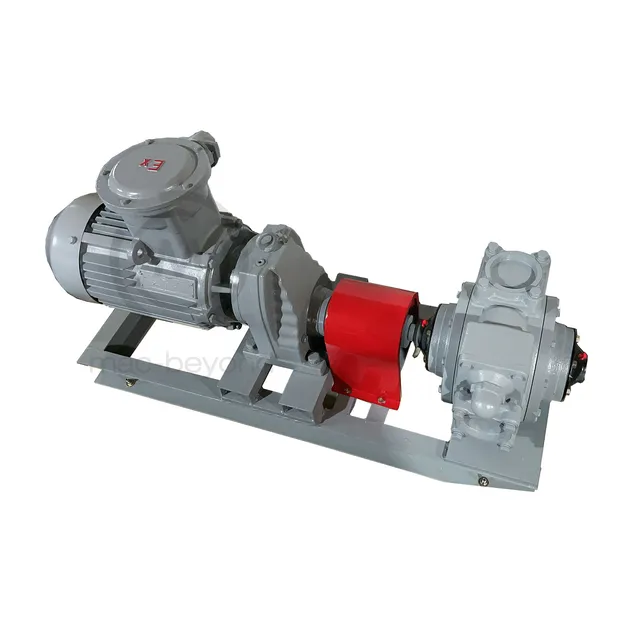

Pump with Coupling Motor
Specializing in the manufacturing of first-class fueling equipment since the 1980's, we integrate design, development, production, and technical service. Our product range includes bulk flow meters, oil pumps, fuel dispensers, and tank truck parts. With UL, CE, and ISO9001 certifications, these products are exported globally to markets in the United States, Europe, the Middle East, and Africa.
