High Performance Solar Submersible Irrigated Water Pump Deep Well Pump New Energy Hot Sale

1 / 5

High Performance Solar Submersible Irrigated Water Pump Deep Well Pump New Energy Hot Sale

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

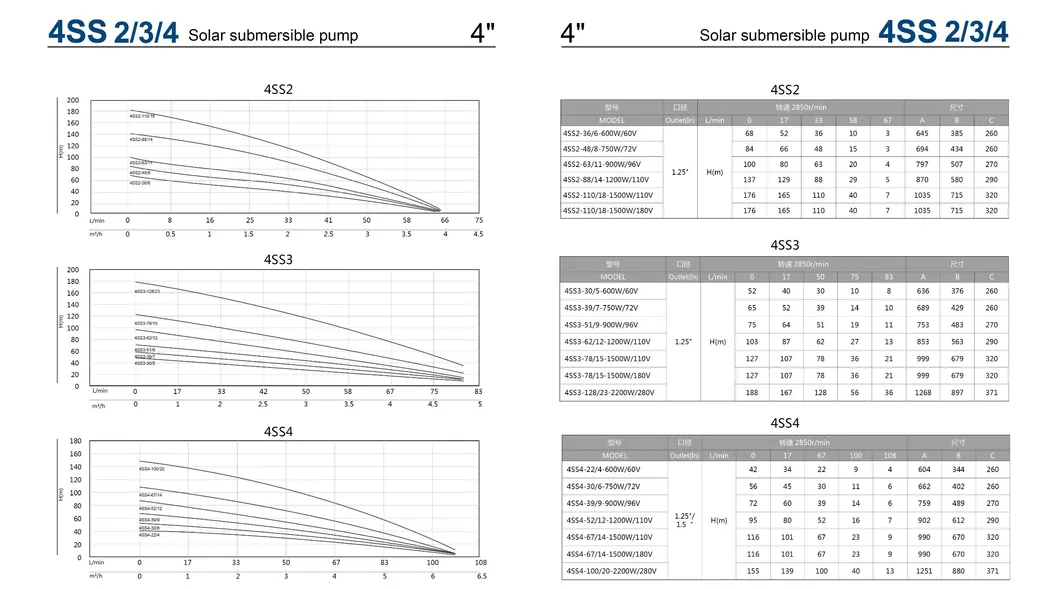

Basic Specifications

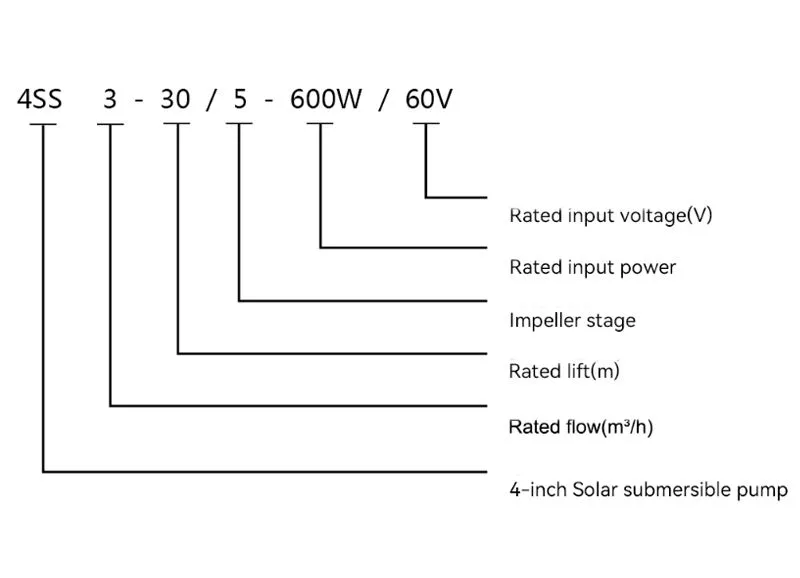

Model NO.

4SS 2/3/4

Max. Head

30-50m

Max. Capacity

50-100 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Single-stage Pump

Power

Electric

Voltage

220V

Application

Submersible Pump, Domestic Use, Garden Use

Theory

Centrifugal Pump

Speed

2850 R/Min

Origin

China

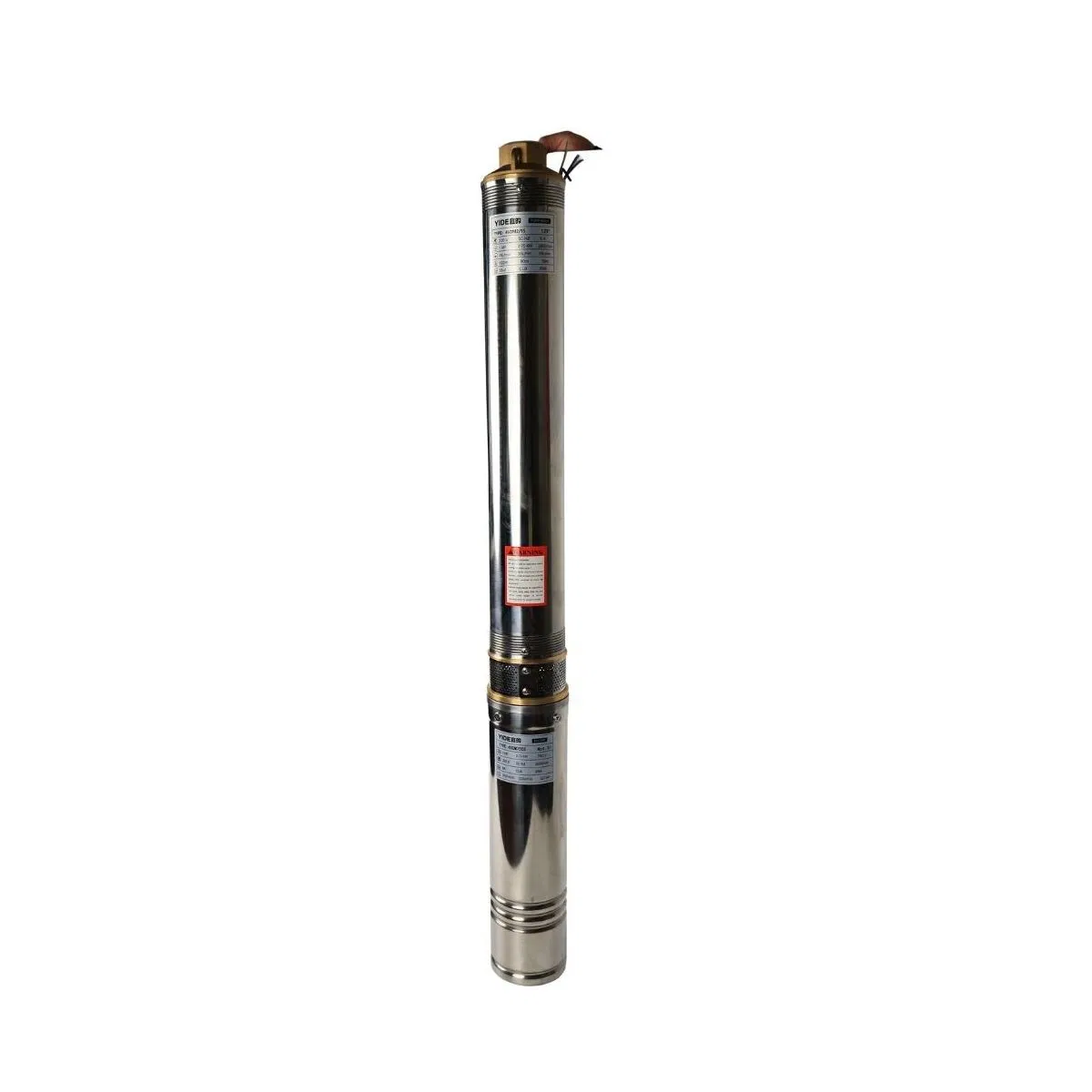

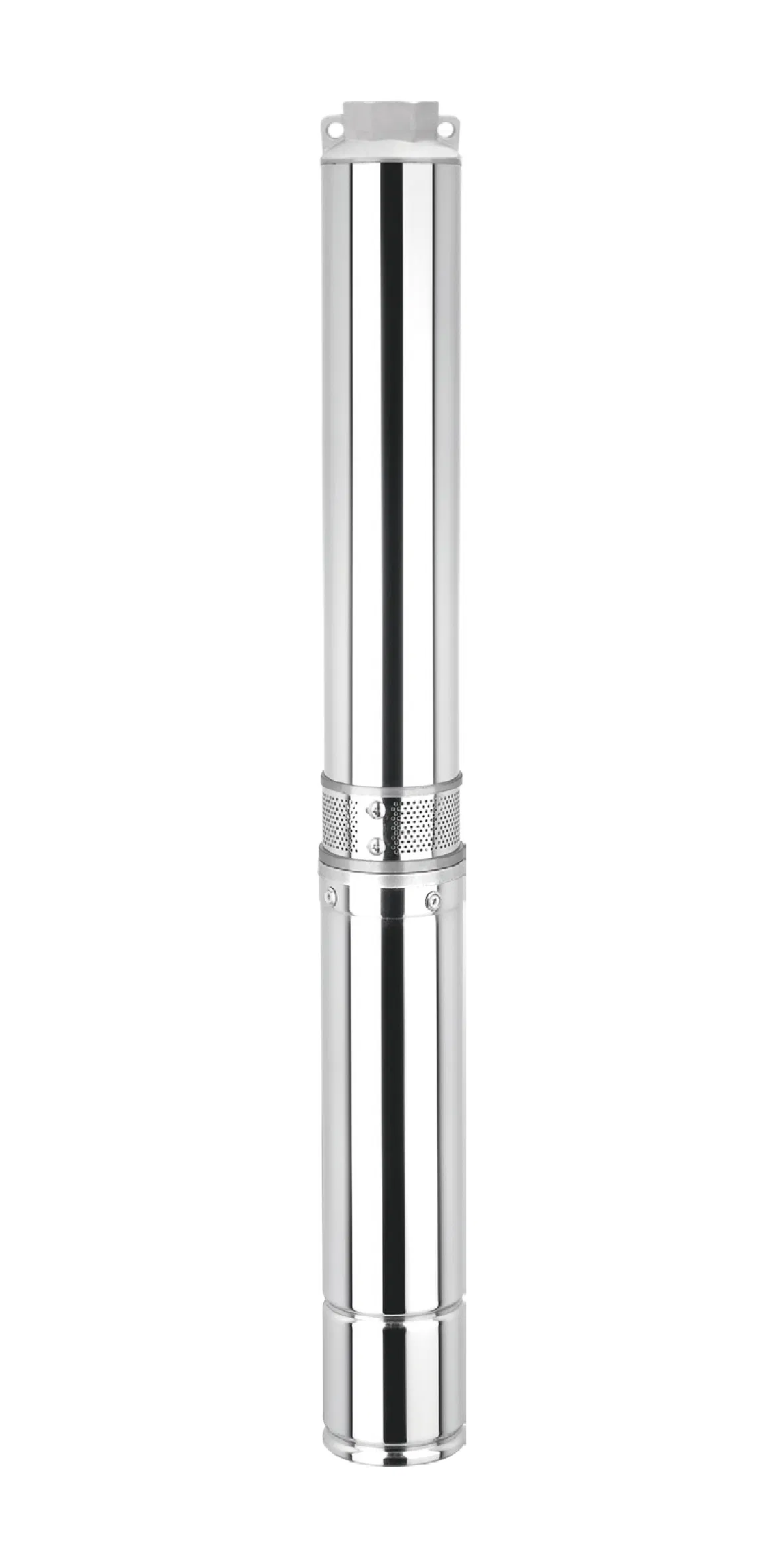

High Performance Solar Submersible Pump

Efficient Irrigated Water Solution for Deep Wells

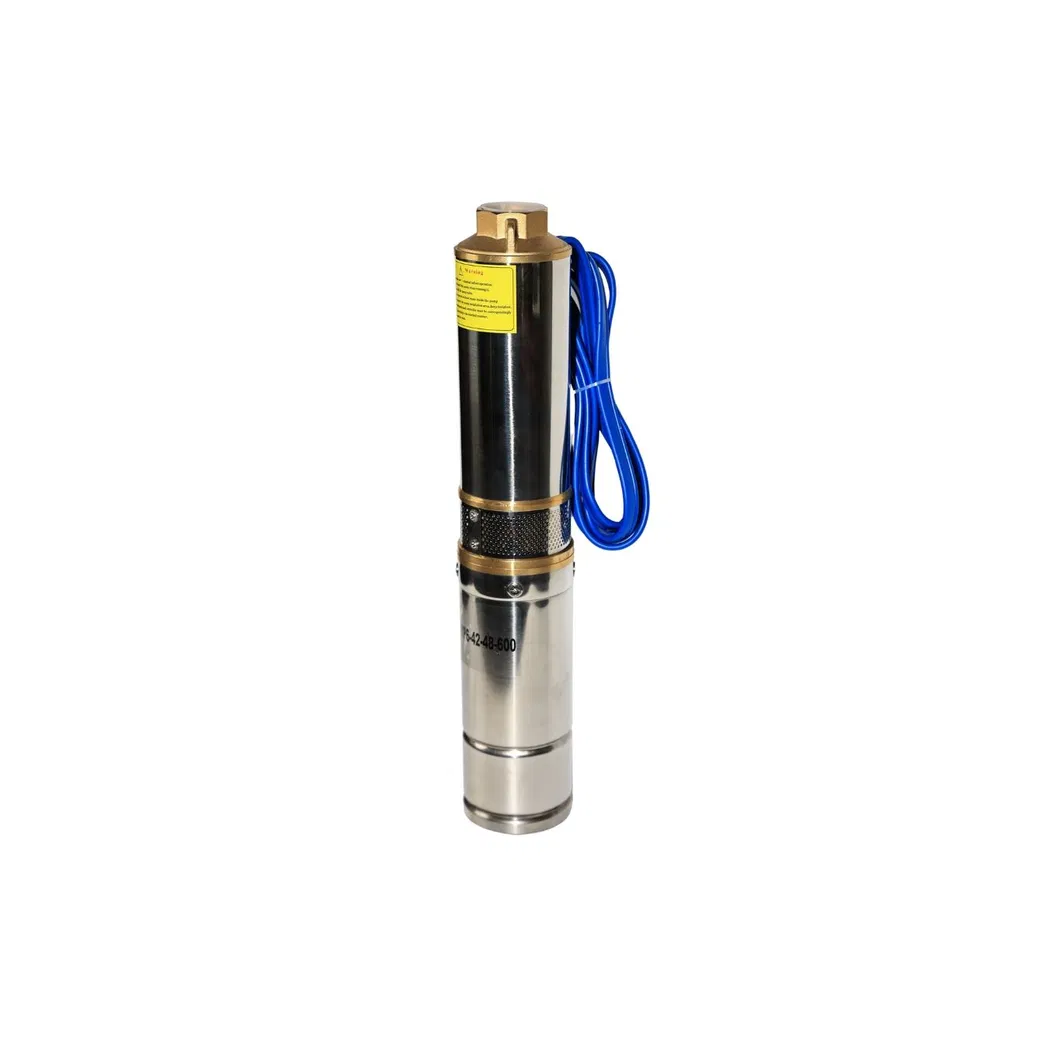

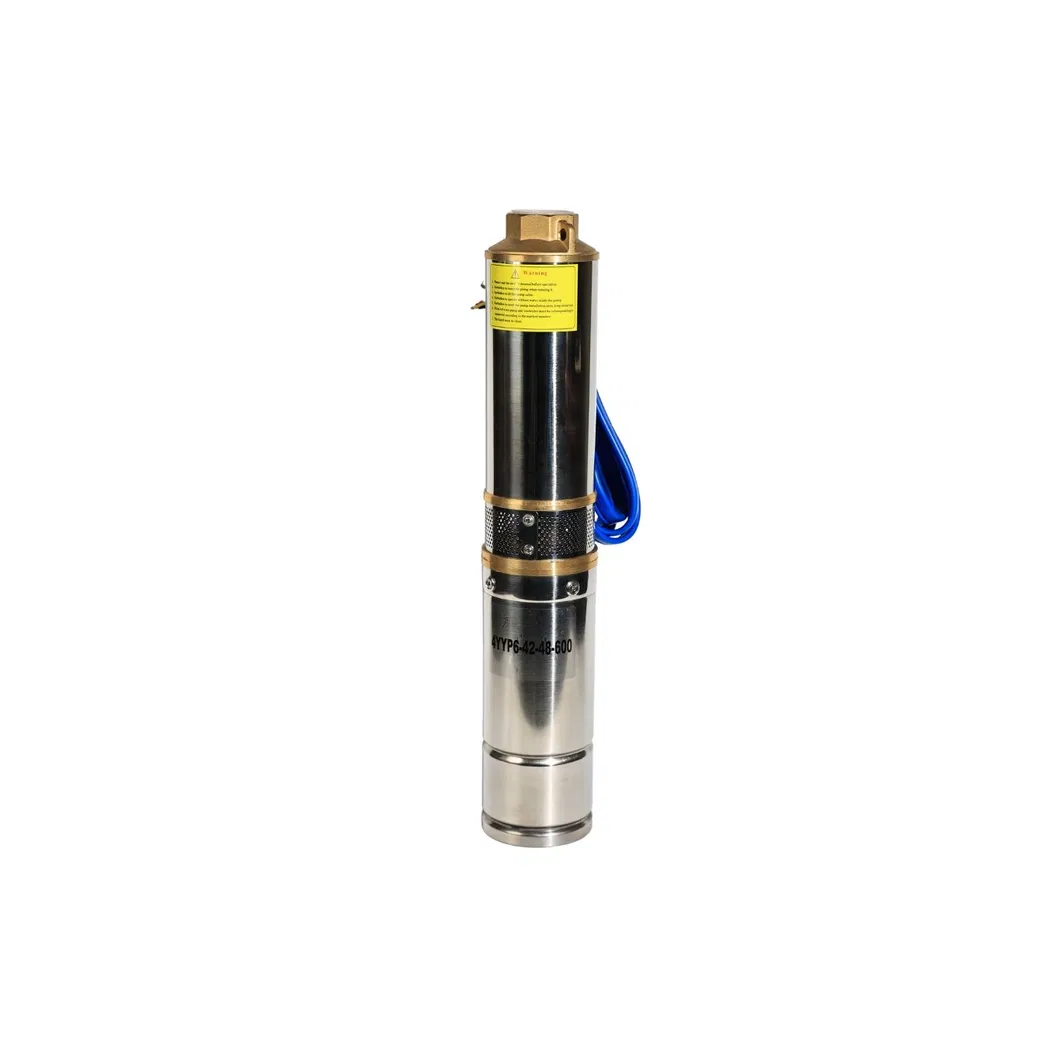

This submersible pump is designed for 4" deep wells with a maximum outer diameter of 98mm. It utilizes solar energy as the primary power source and a single-phase grid as auxiliary. Featuring a DC brushless motor and MPPT controller, it offers high efficiency and reliable operation using rust and corrosion-resistant materials.

Detailed Visuals

Core Features & Material

Premium Materials

Stainless steel shell, shaft, coupling, and pump body
Stainless steel inlet and outlet joints
High-quality copper winding
Oil-filled submersible motor (Stainless Steel)
High-efficiency bearings

Technical Advantages

Compact structure with high lift and noiseless operation
Automatic protection: Under voltage, over voltage, over current, and water shortage recovery
Green energy: Solar-powered with auxiliary grid support
Simple maintenance and safe operation

Diving Depth	1-100m
Maximum Flow / Lift	14m³/h / 188m

Operating Conditions & Applications

Conditions: Non-corrosive liquids, sediment concentration ≤ 2%, PH 5-10. Pump must be fully immersed.

Applications: Deep-well lifting, high-rise buildings, domestic water supply, garden irrigation, and fountains.

Frequently Asked Questions

What power sources can be used for this pump?

The pump primarily uses solar energy. It can also be connected to a single-phase power grid as an auxiliary supply for hybrid operation.

Is the pump resistant to rust?

Yes, the pump features a stainless steel shell, shaft, and body components to ensure maximum corrosion and rust resistance in deep well environments.

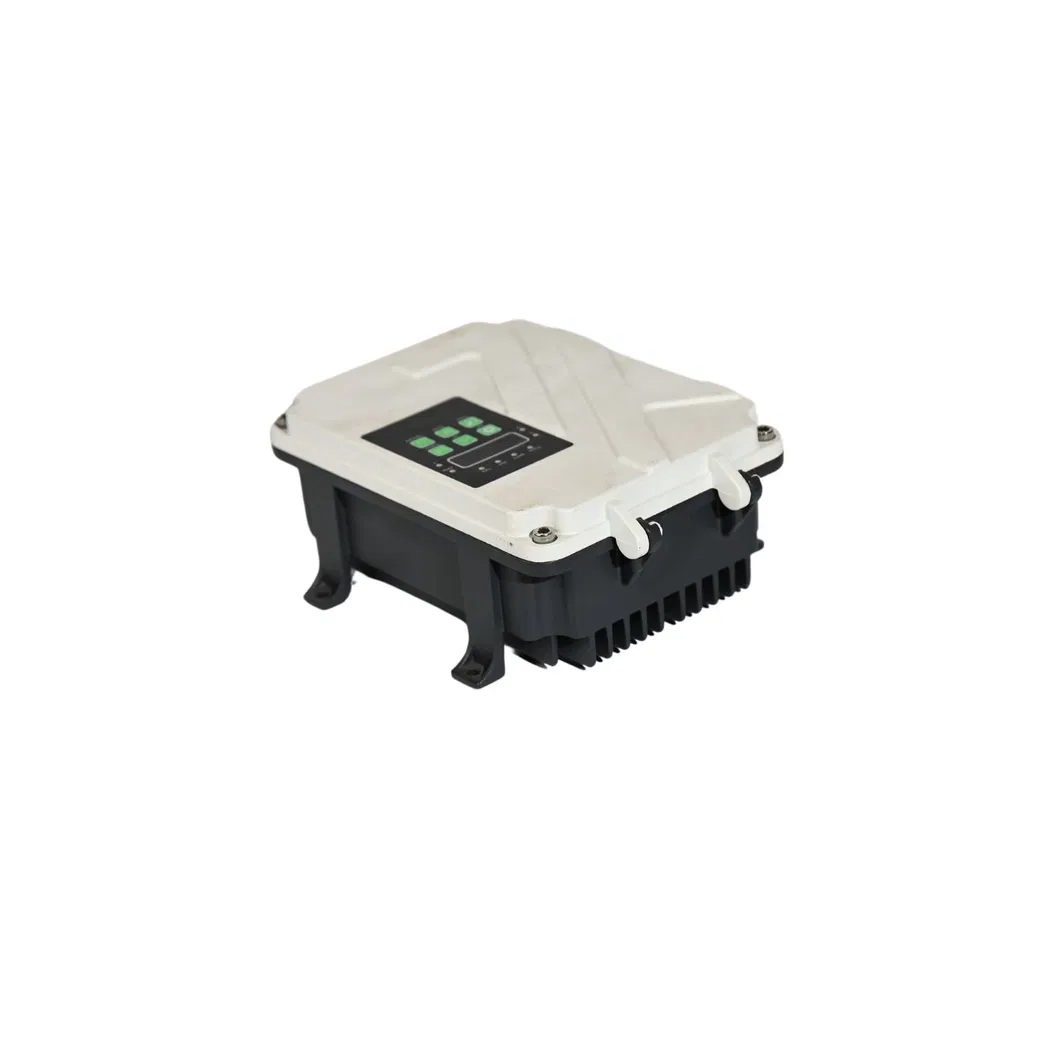

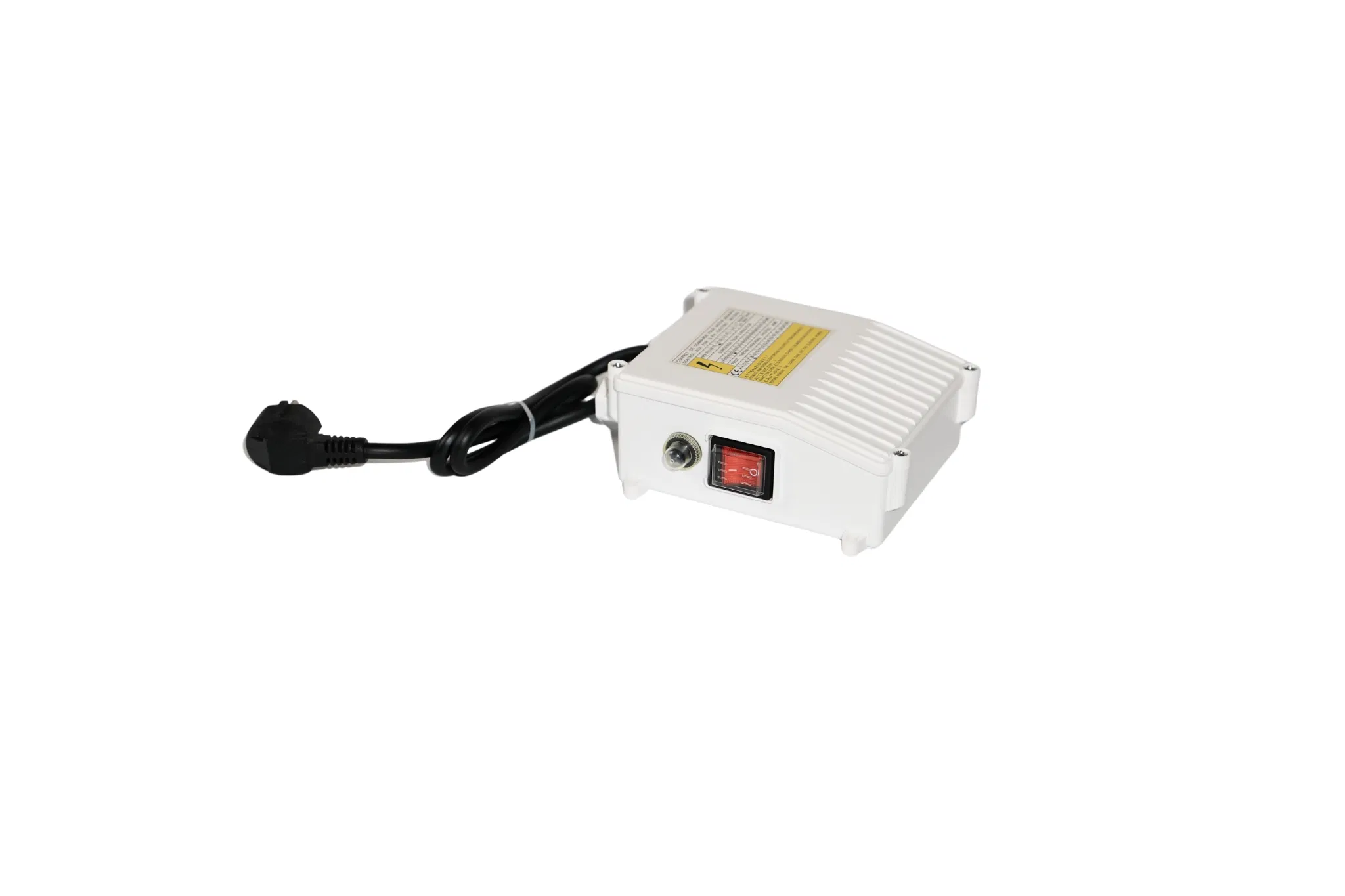

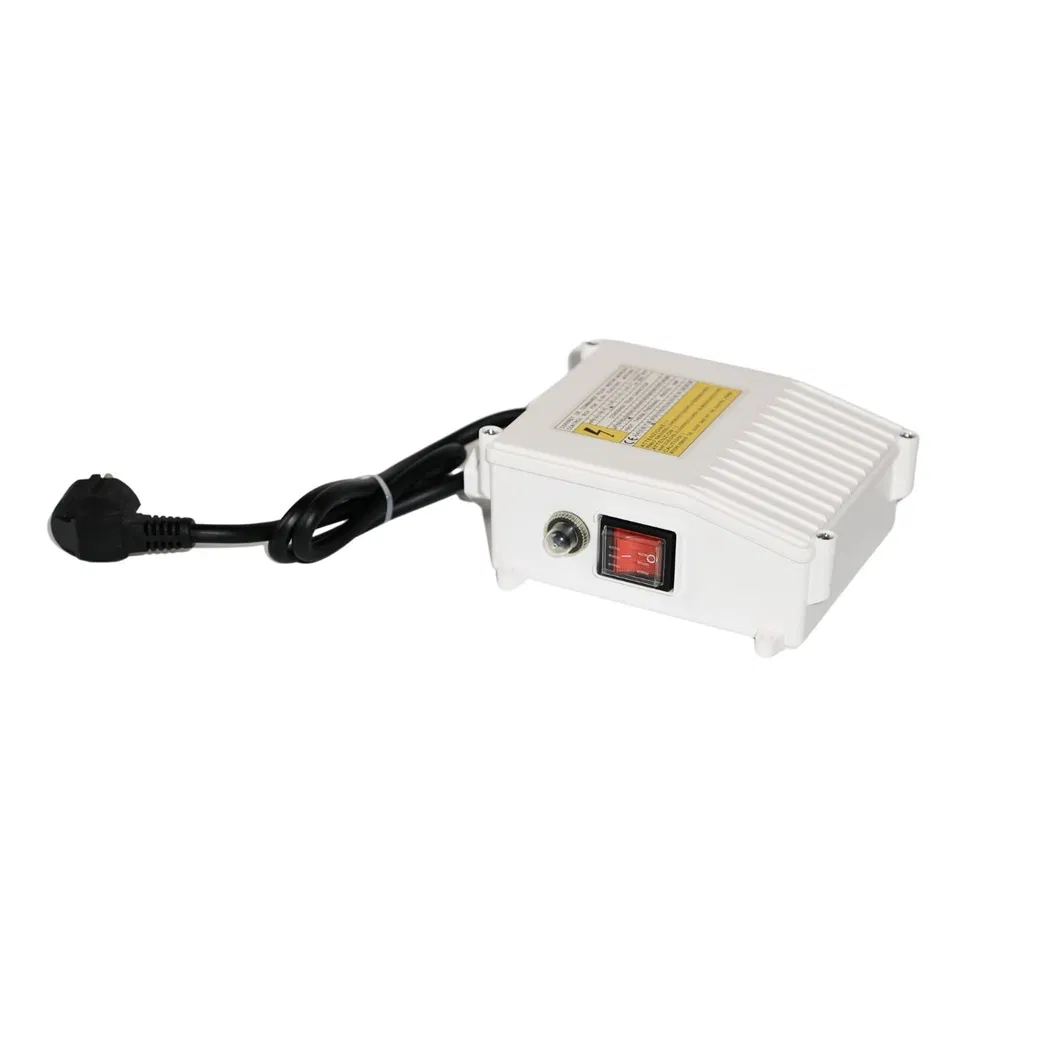

What protection features does the controller include?

The controller provides automatic protection and recovery for under voltage, over voltage, over current, over load, and water shortage.

Can this pump handle water with sand or particles?

It can handle a sediment concentration of up to 2% with a particle size no larger than 0.2 in volume ratio.

What is the maximum depth and flow rate?

The pump supports a diving depth up to 100m, with a maximum flow of 14m³/h and a maximum lift of 188m.

Is customized service (OEM/ODM) available?

Yes, both OEM and ODM services are available to meet specific project requirements.
