Basic Specifications
Impeller Number
Multistage Pump
Working Pressure
High Pressure Pump
Position of Pump Shaft
Vertical Pump
Application
Commercial Buildings
Product Overview

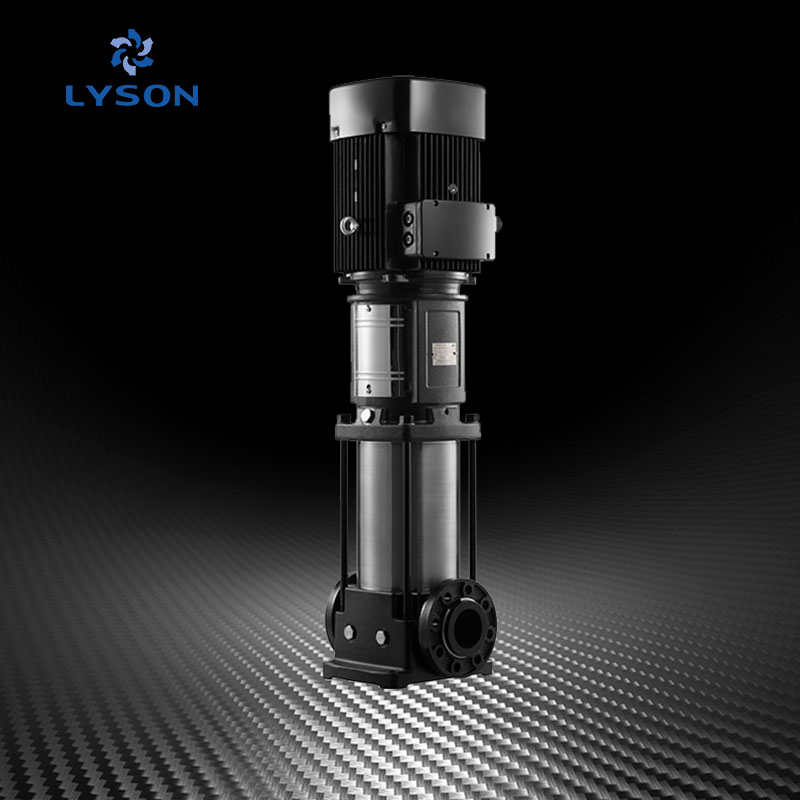

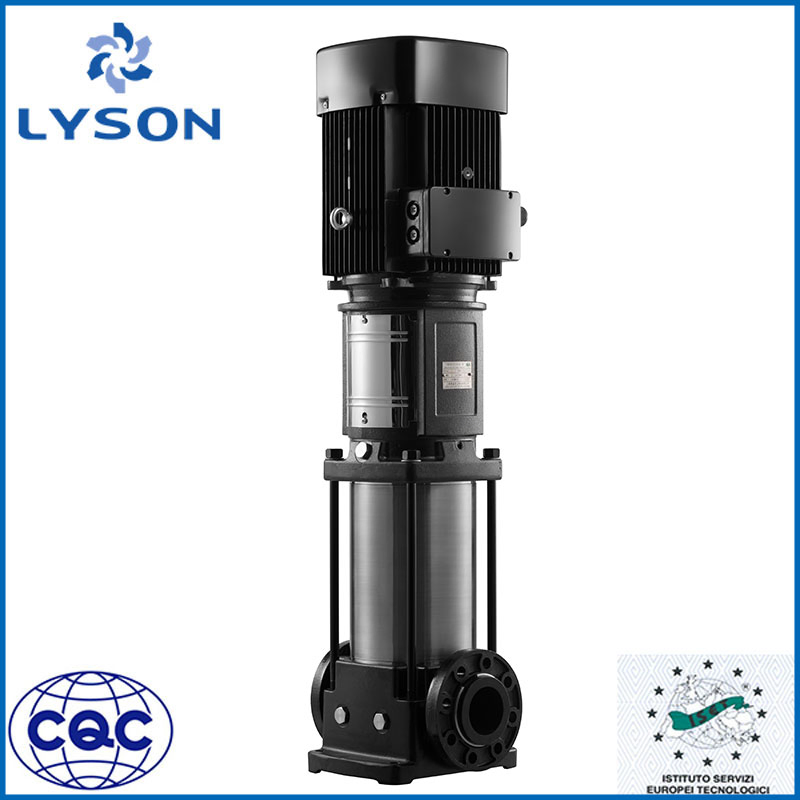

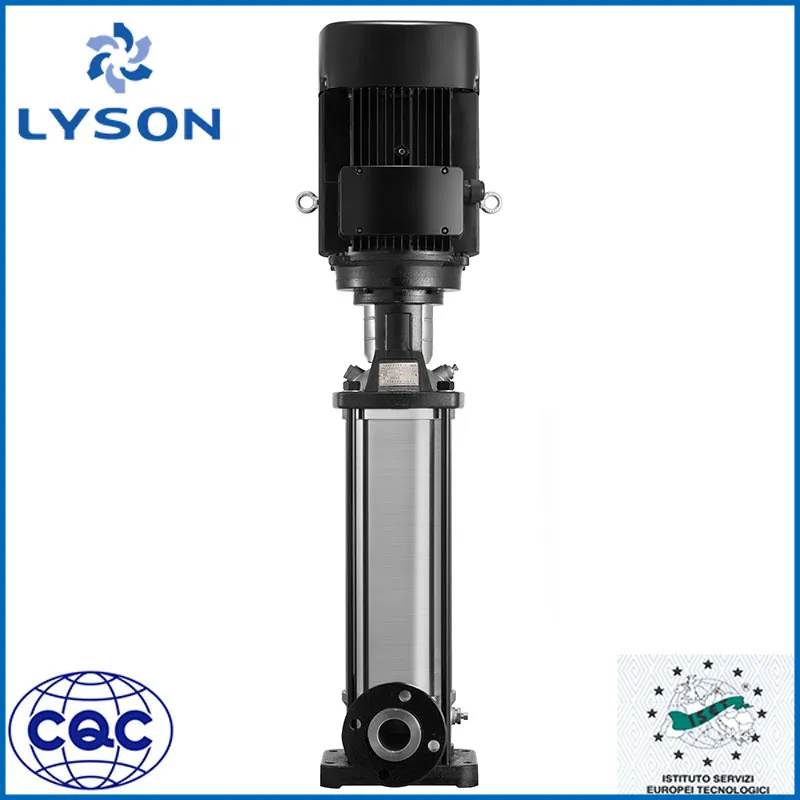

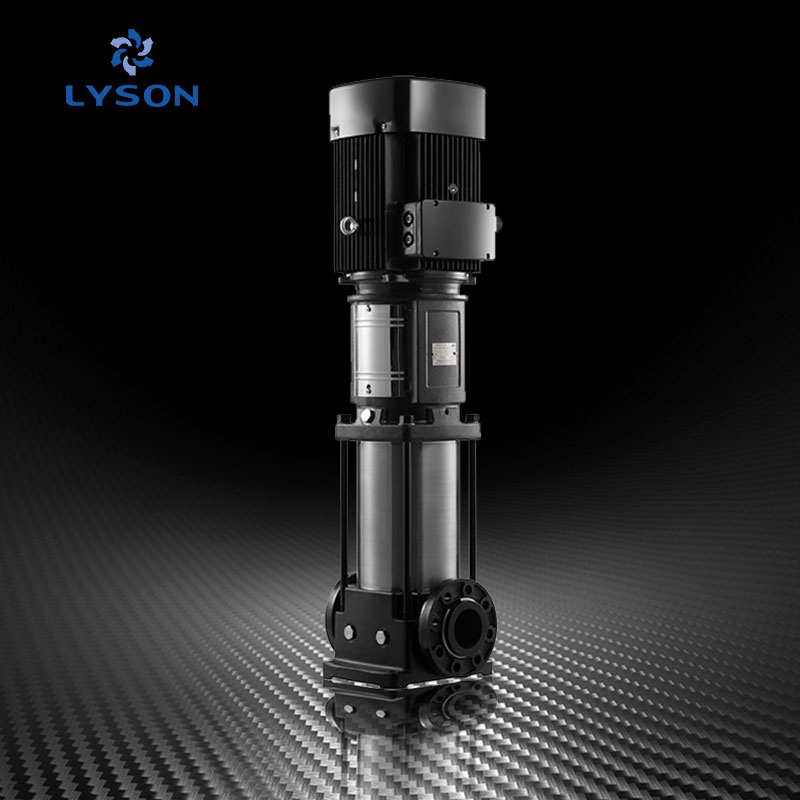

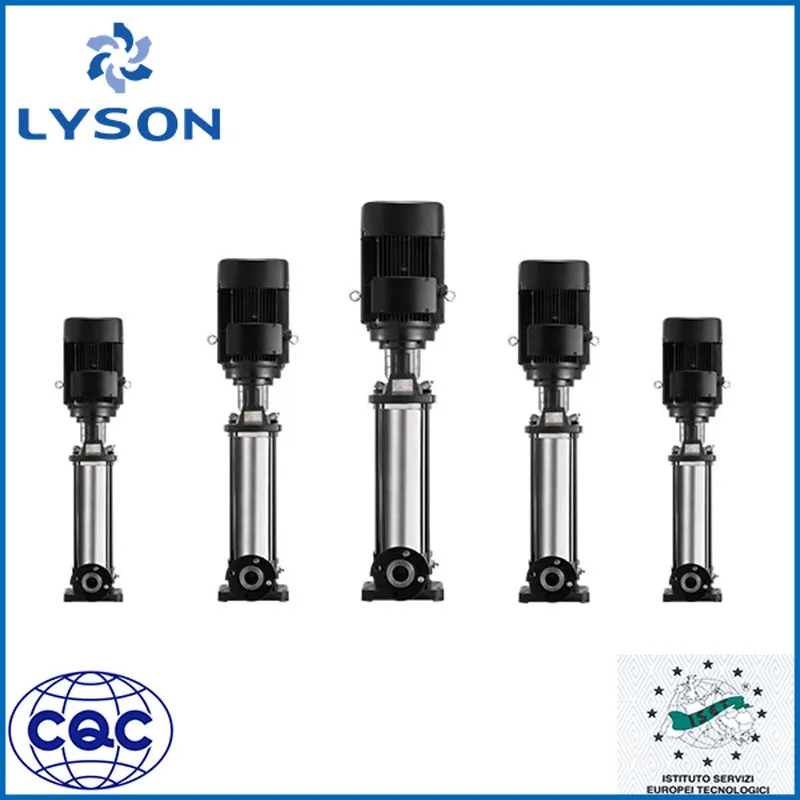

High Pressure Stainless Steel Vertical Multistage Water Centrifugal Pump
| Flow range | 1.4-1 94.4CBM/h |
| Head range | 1-230m |
| Speed | 1450/2900r/min |
| Pressure of system | 2.5MPa |
| Medium temperature | -15 to +120 Celsius |
| Motor protection | IP44, IP54, IP55 |
| Insulation grade | B, F rank |
Key Features & Advantages
Product Features
- 304 stainless steel shell for corrosion resistance
- Energy-saving design with minimal space requirement
- Hydraulic equilibrium for smooth running and low noise
- Stable performance for high building water supply
Main Advantages
- Compact structure and beautiful outlook
- Easy to install with speed control options
- Zero leakage during centrifugal operation
- High concentricity of components for long life
Technical & Application Details
Motor Specifications:
- Single phase / Three Phase available
- Heavy Duty Motor housing for superior ventilation
- Continuous rated duty with current protector
- Externally ventilated closed structure
Primary Applications:
- Domestic and Fire water supply for buildings
- Industrial water circulation and boosting
- Boiler water supply systems
- Clean fluid transportation for agriculture
Frequently Asked Questions

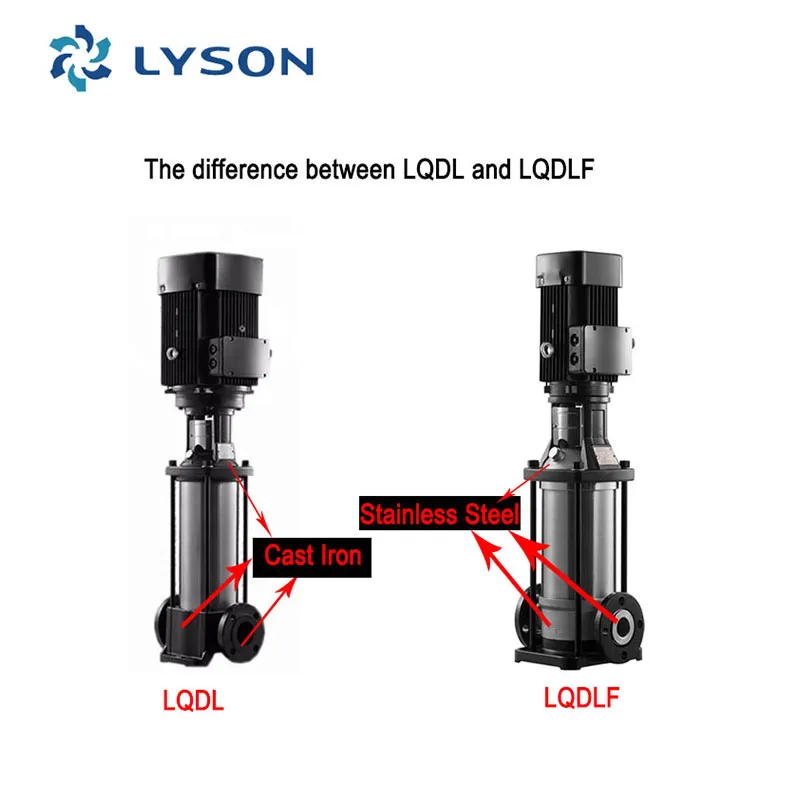

1. What are the primary materials used in the LQDLF pump?
The pump features a 304 stainless steel shell and high-quality wear-resistant axle seals to ensure durability and prevent leakage.
2. Can this pump handle high-temperature liquids?
Yes, the pump is designed to handle medium temperatures ranging from -15°C up to +120°C, making it suitable for boiler and industrial applications.
3. What makes the vertical design advantageous?
The vertical multistage design significantly reduces the installation space required and allows for easy integration into existing pipelines on the same level.
4. What motor protection levels are provided?
We provide motors with IP44, IP54, or IP55 protection levels and Class F insulation to ensure safe operation in various environments.
5. Is the pump noisy during operation?
No, the pump utilizes hydraulic equilibrium to balance axial forces, which ensures smooth running, high concentricity, and low noise levels.
6. What power configurations are available?
The pumps are available in both Single Phase and Three Phase configurations with multiple voltage options including 220V, 380V, 230V, and 460V.
water pump, centrifugal pump, vertical centrifugal pump, submersible pump, multistage pump, high pressure pump.
