| Name | Model | Brand | OEM Number | Cylinder | Stroke | Spline Teeth | Con-rod Stroke (mm) |
|---|---|---|---|---|---|---|---|
| Crankshaft Assy | T2.5 | Yamaha | 6A1-11400-00 | Single | 2 | / | 18 |
| Crankshaft Assy | T3 | Yamaha | 6L5-11400-00 | Single | 2 | 8 | 21 |
| Crankshaft Assy | T3.5 | Tohatsu | 3F0000300 | Single | 2 | 18 | 21.5 |
| Crankshaft Assy | T5 | Tohatsu | 369000310 | Single | 2 | 9 | 21.5 |
| Crankshaft Assy | T9.8 | Tohatsu | 3B2000690 | Twin | 2 | 10 | 21.5 |
| Crankshaft Assy | T15 | Yamaha | 63V-11400-01 | Twin | 2 | 11 | 25 |

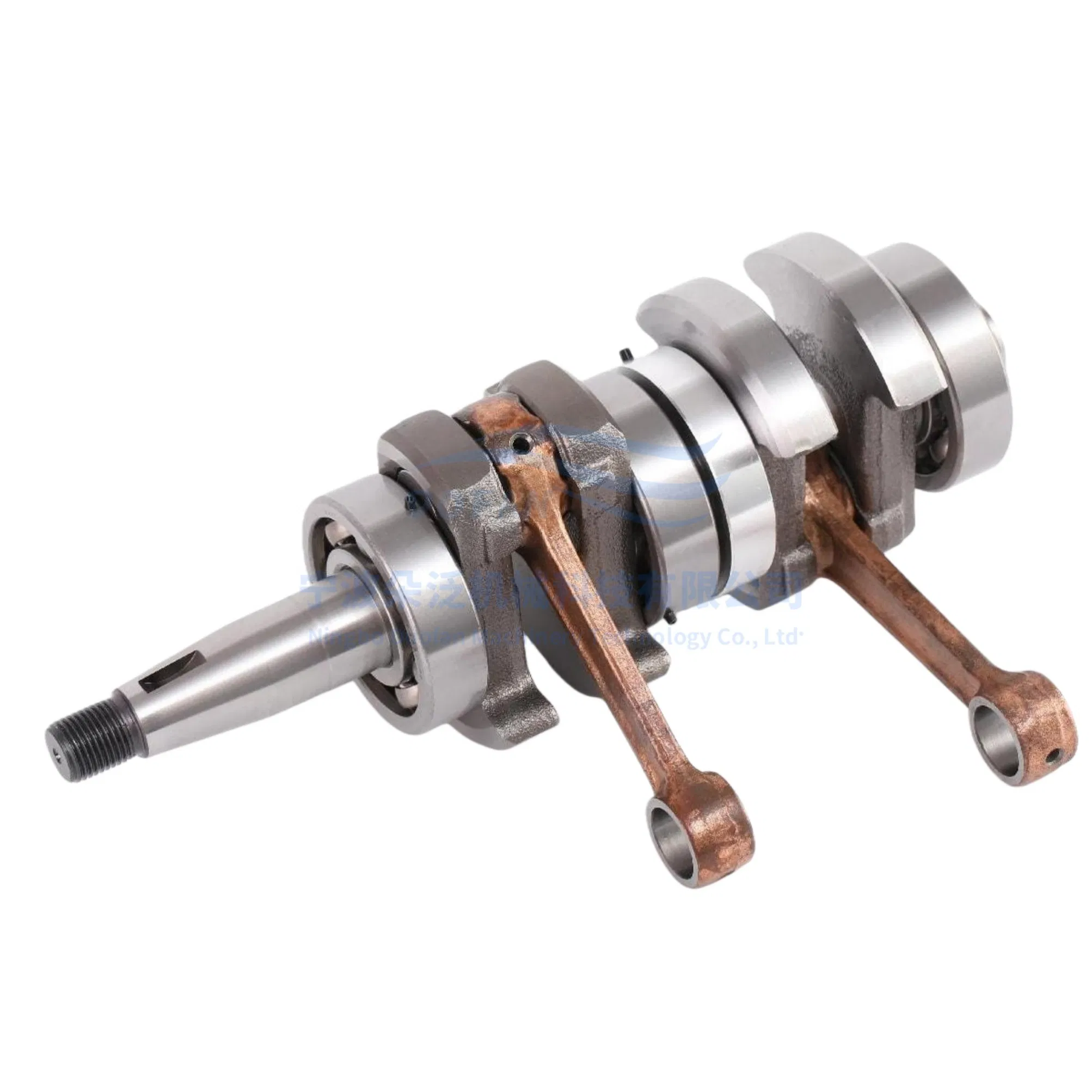

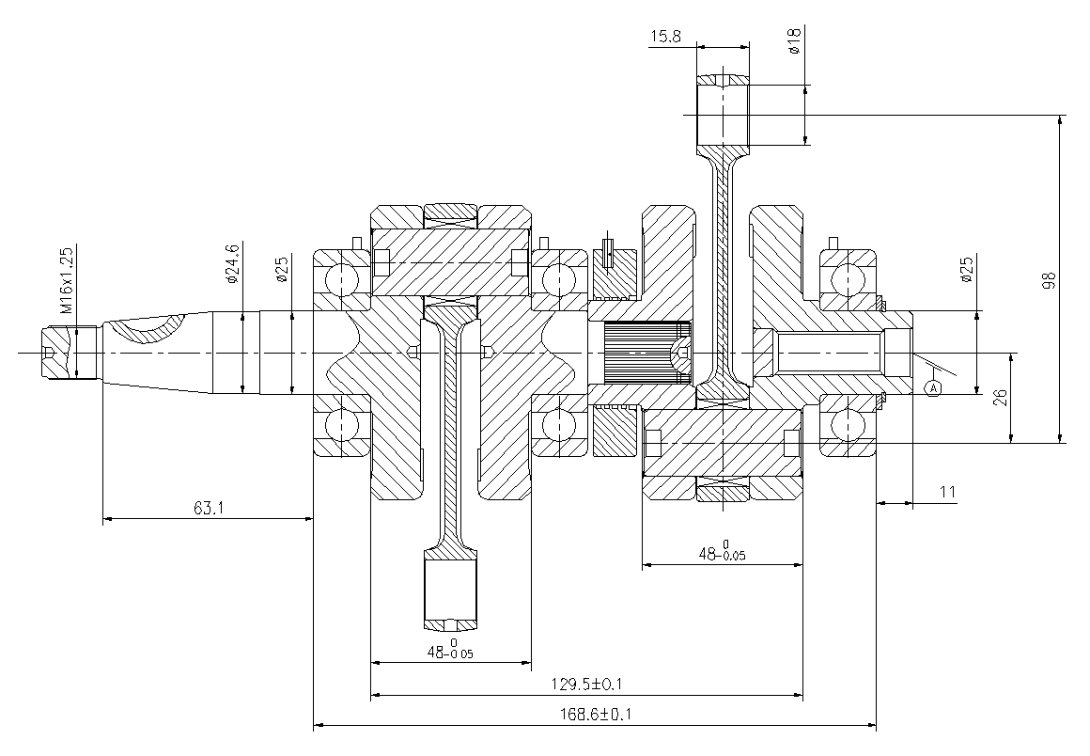

| Crankshaft Assy | T18 | Tohatsu | 350-00030-0 | Twin | 2 | 11 | 27 |
| Crankshaft Assy | F2.5 | Yamaha | 69M-11400-00 | Single | 4 | 18 | 15.7 |
| Crankshaft Assy | F6 | Yamaha | 6BX-E1410-00 | Single | 4 | 9 | 23 |
We specialize in precision aluminum alloy castings for mainstream outboard engine models, including 6B4 series, 9.8 HP, 15 HP, 18 HP, 20 HP and 30 HP. Through innovative casting processes and comprehensive quality control, we provide high-performance, cost-effective and environmentally friendly lightweight solutions for marine propulsion systems.
Our mission is to "do a good job in China's marine outboards", and we achieve this goal by continuously improving our processes and controlling costs. We have helped our customers reduce their purchasing costs significantly and have provided a stable supply to many domestic outboard engine repairers and manufacturers.
| No. | Material Name | OEM Number | Weight (g) | L x W x H (cm) |
|---|---|---|---|---|
| 1 | Casing, Lower | 63V-45311-01-4D | 2551 | 36 x 37 x 14 |
| 2 | Cap, Lower Casing | 683-45361-02-4D | 200 | 8 x 11 x 11 |
| 3 | Casing, Upper (Short) | 63V-45111-05-4D | 2789 | 37 x 17 x 22 |
| 4 | Bracket, Steering | 63V-42511-04-4D | 1320 | 43 x 32 x 20 |
| 5 | Bracket, Swivel | 63V-43311-03-4D | 1692 | 31 x 13 x 22 |
| 6 | Crankcase Assy | 63V-15100-02-1S | 2989 | 25 x 20 x 23 |
| 7 | Manifold, Ext. | 65F-41131-00-5B | 349 | 29 x 13 x 9 |
| 8 | Head, Cylinder | 6E7-11111-01-1S | 631 | 12 x 6 x 22 |
