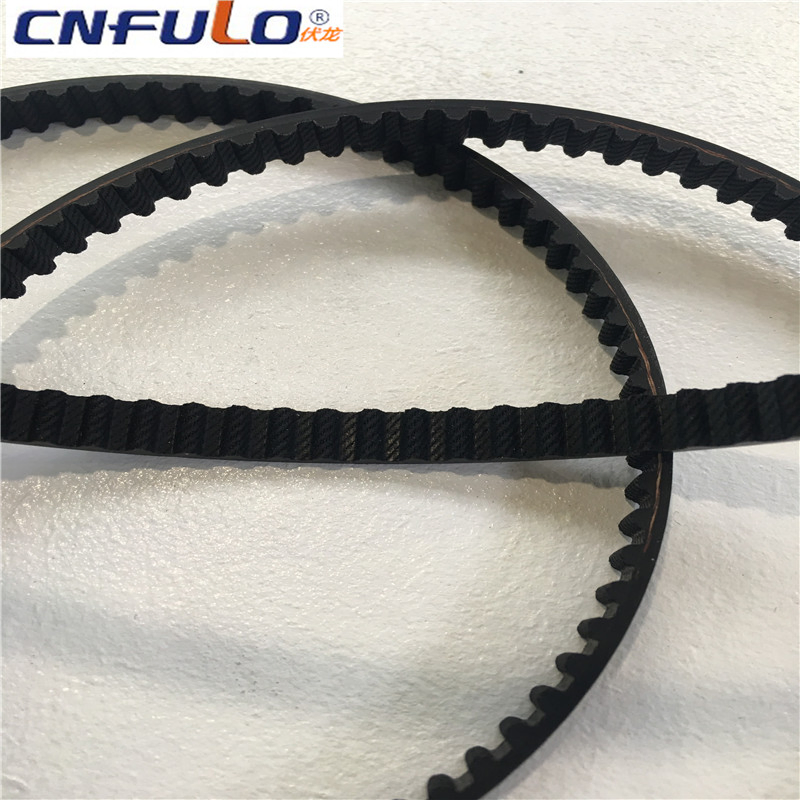

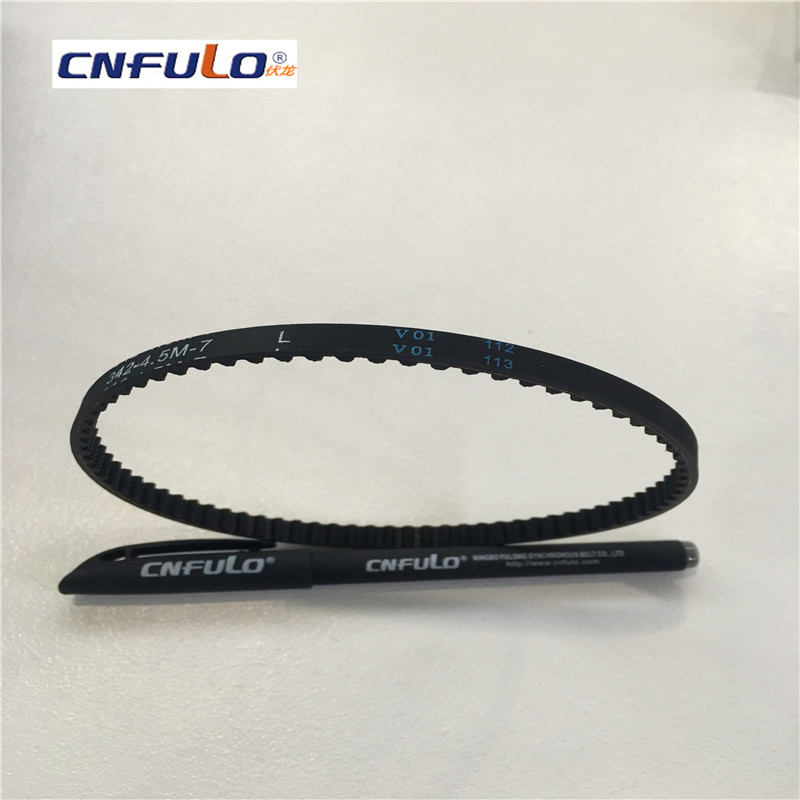

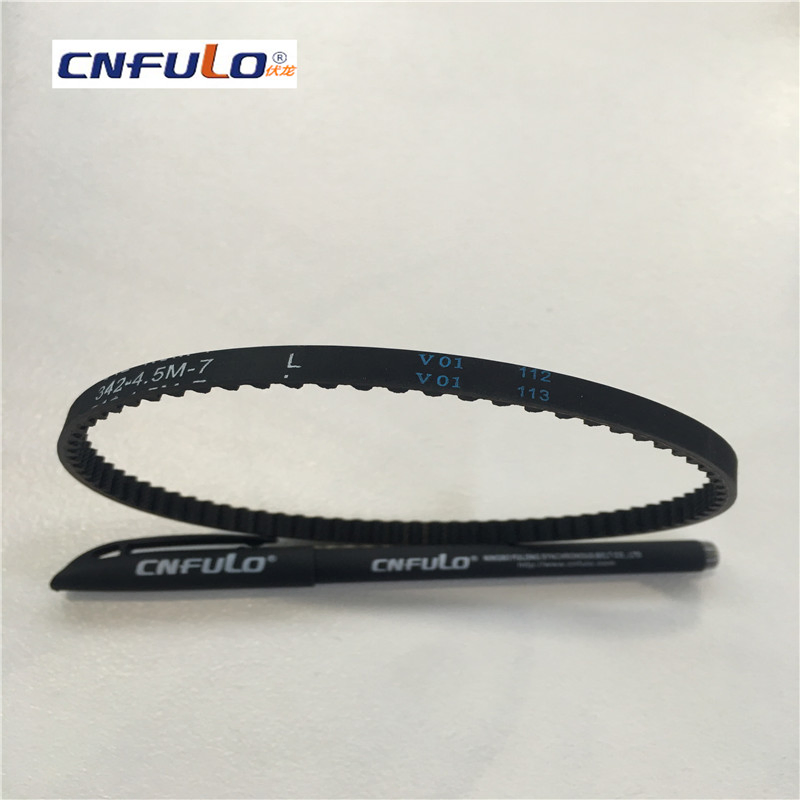

The synchronous belt utilizes high-quality synthetic neoprene imported from Japan, specifically formulated for diverse industrial applications. The skeleton material features high-grade glass fiber cords, while the tooth surfaces are protected by high-stretch Nylon 66 fabric.
This belt provides a modern synchronous transmission mode. It operates without lubrication, eliminating slip and pollution while significantly reducing noise. With a transmission efficiency exceeding 98%, it supports speed ratios up to 1:10 and linear velocities up to 50 m/s.
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
|---|---|---|---|---|
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 12.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| AT5 | 5 | 1.20 | 2.70 | 50 |
| AT10 | 10 | 2.50 | 5.00 | 50 |
