| TYPE | SUPPLY CHARACTERISTIC |
|---|---|
| MXL XXL XL L H XH XXHT 2.5 T5 T10 T20 AT5 AT10 AT 20 HTD:2M 3M 5M 8M 14M 20M STS:S2M S3M S4.5M S5M S8M S14M RPP:RP2M RP3M RP5M RP8M RP14M |
1. Over 4000 moulds available. 2. Custom cutting or sleeve provision. 3. Anti-static, oil, heat-resistant, low temperature resistance etc. |
| Test Item | Test Result |
|---|---|
| Tension strength (≥KN/25.4mm) | 0.59-10.8 (according to types) |
| Elongation (≤ % ) | 4.0 (all types) |
| Loading (KN/25.4mm) | 0.49-8.64 (according to types) |

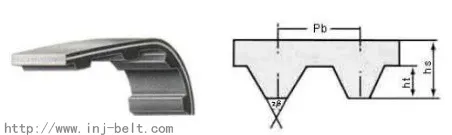

Trapezoidal Tooth Profile

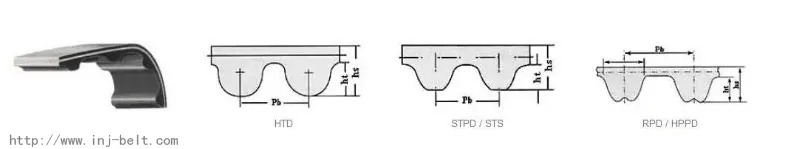

Curvilinear Tooth Profile
| Gear code | Type | Pitch(mm) | Tooth height(mm) | Belt thickness(mm) |
|---|---|---|---|---|
| HTD | 3M | 3 | 1.22 | 2.40 |
| 5M | 5 | 2.06 | 3.80 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| STPD/STS | S3M | 3 | 1.14 | 1.90 |
| S5M | 5 | 1.91 | 3.40 | |
| S8M | 8 | 3.05 | 5.30 | |
| S14M | 14 | 5.30 | 10.20 |
