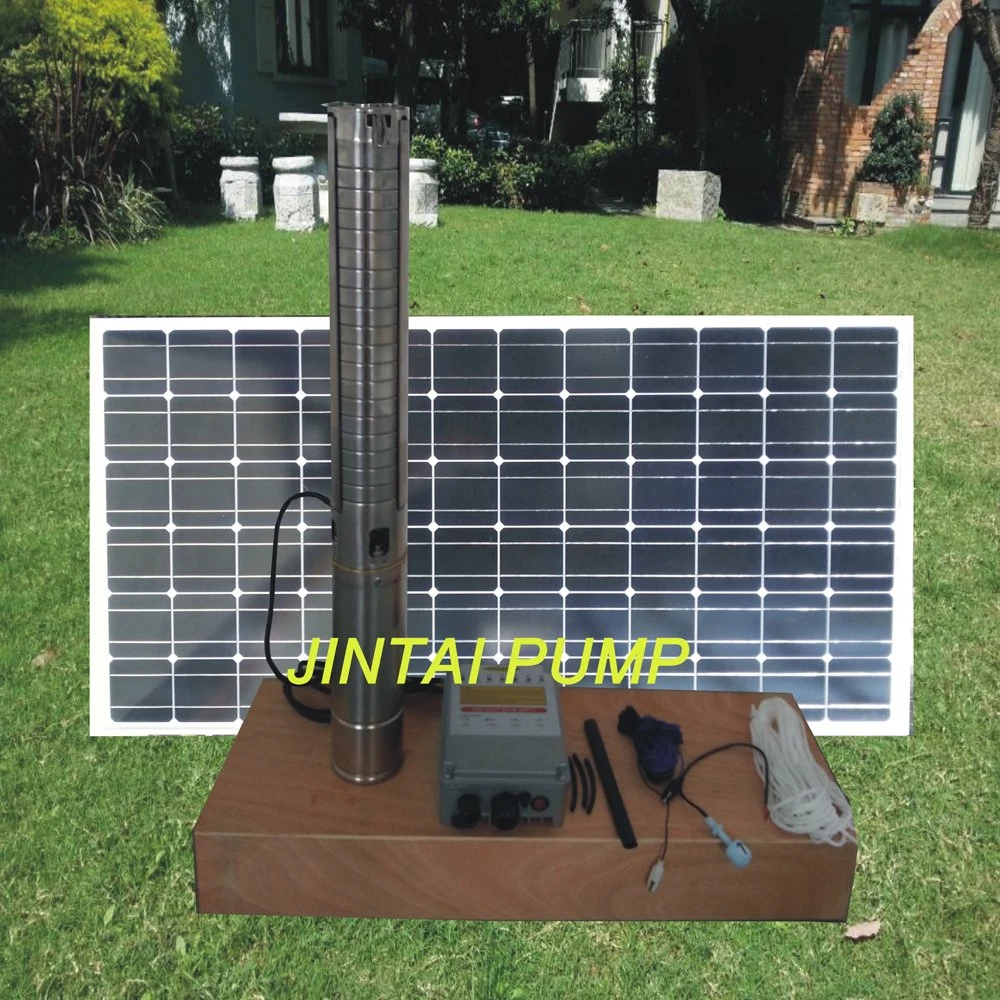

1HP, 2HP, 3HP, 5HP Solar Powered DC Submersible Deep Well Water Pumps

1 / 5

1HP, 2HP, 3HP, 5HP Solar Powered DC Submersible Deep Well Water Pumps

Customization:	Available
After-sales Service:	3 Years
Warranty:	3 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

JS, JC, JCS, JQB, JP, JETS

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Multistage Pump

Power

Solar Energy

Voltage

24V to 540VDC

Motor Power

100W to 30kw

Cooling

Oil Filled

Certificate

CE, ISO9001

Capacity

20000 Pieces / Month

Product Description

0.5HP to 40HP Solar Submersible Borehole Water Pump (1-60m³/hour)

🛡️

Comprehensive Warranty

Solar Water Pump & MPPT Controller: 3 Years
Solar Panels: 25 Years

Our commitment: If the controller or motor is damaged within 3 years, we provide free replacements with shipping included. Spare impellers are also provided free of charge for damage within the same period.

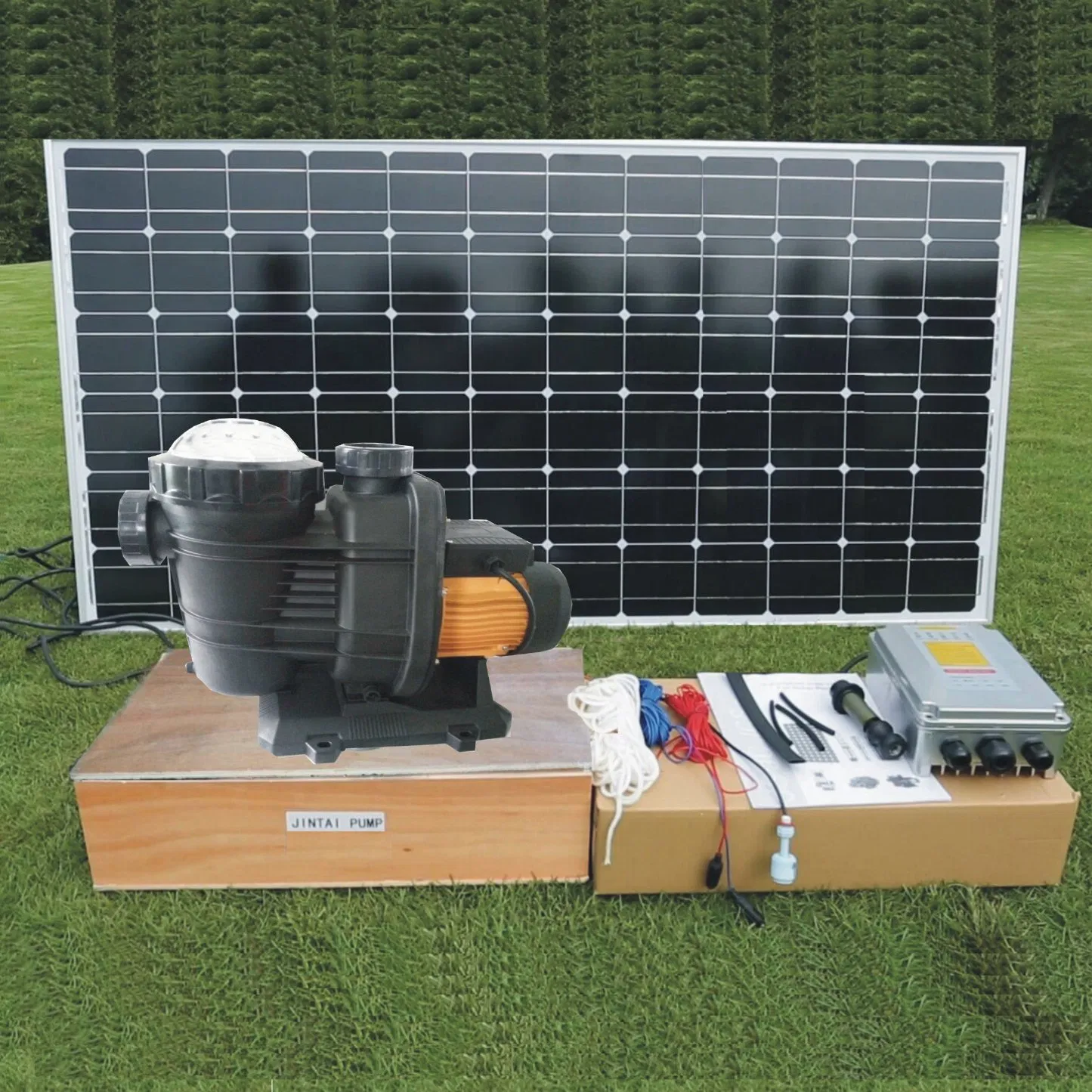

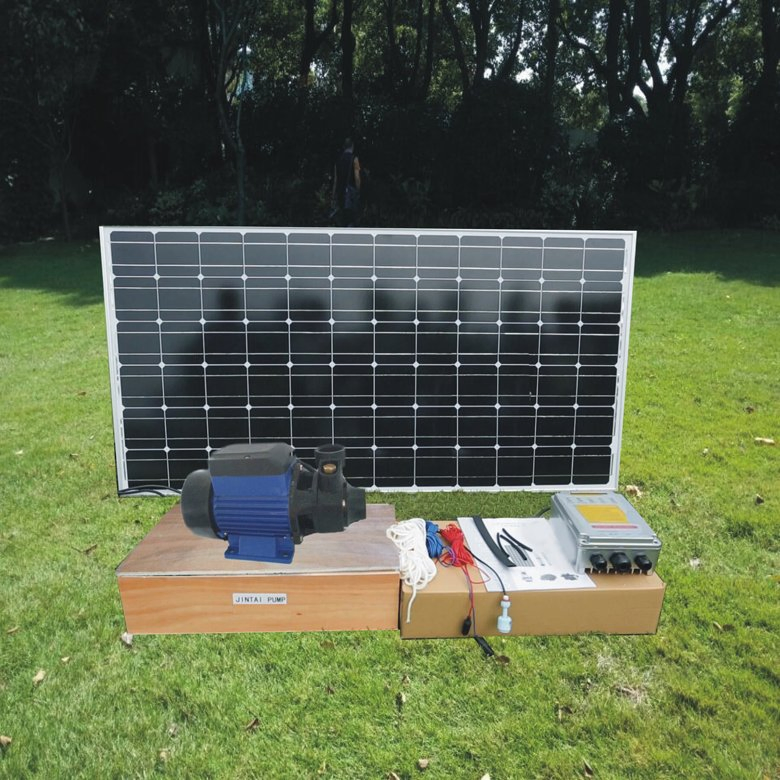

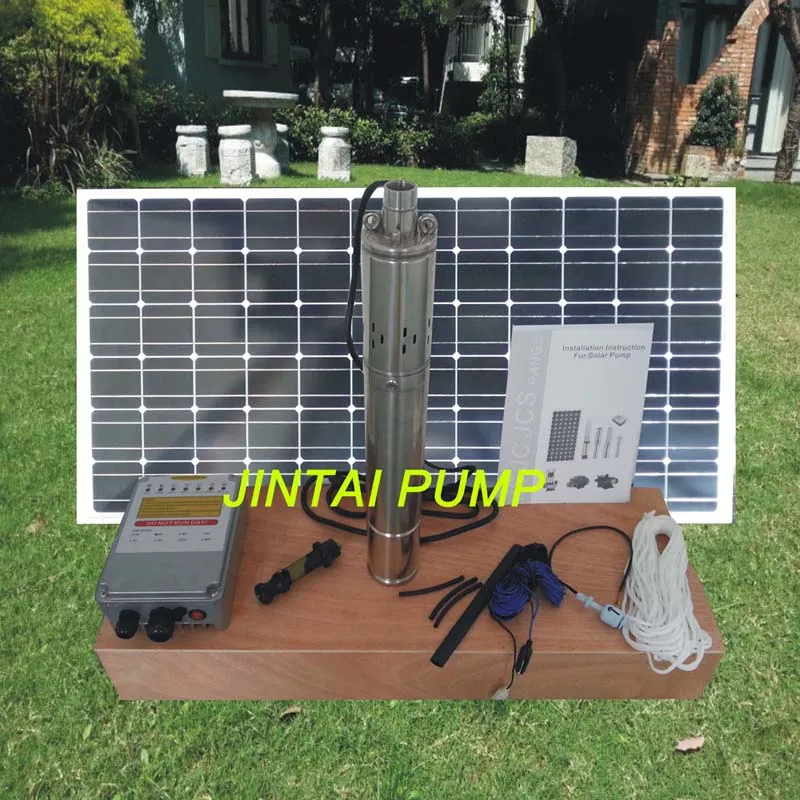

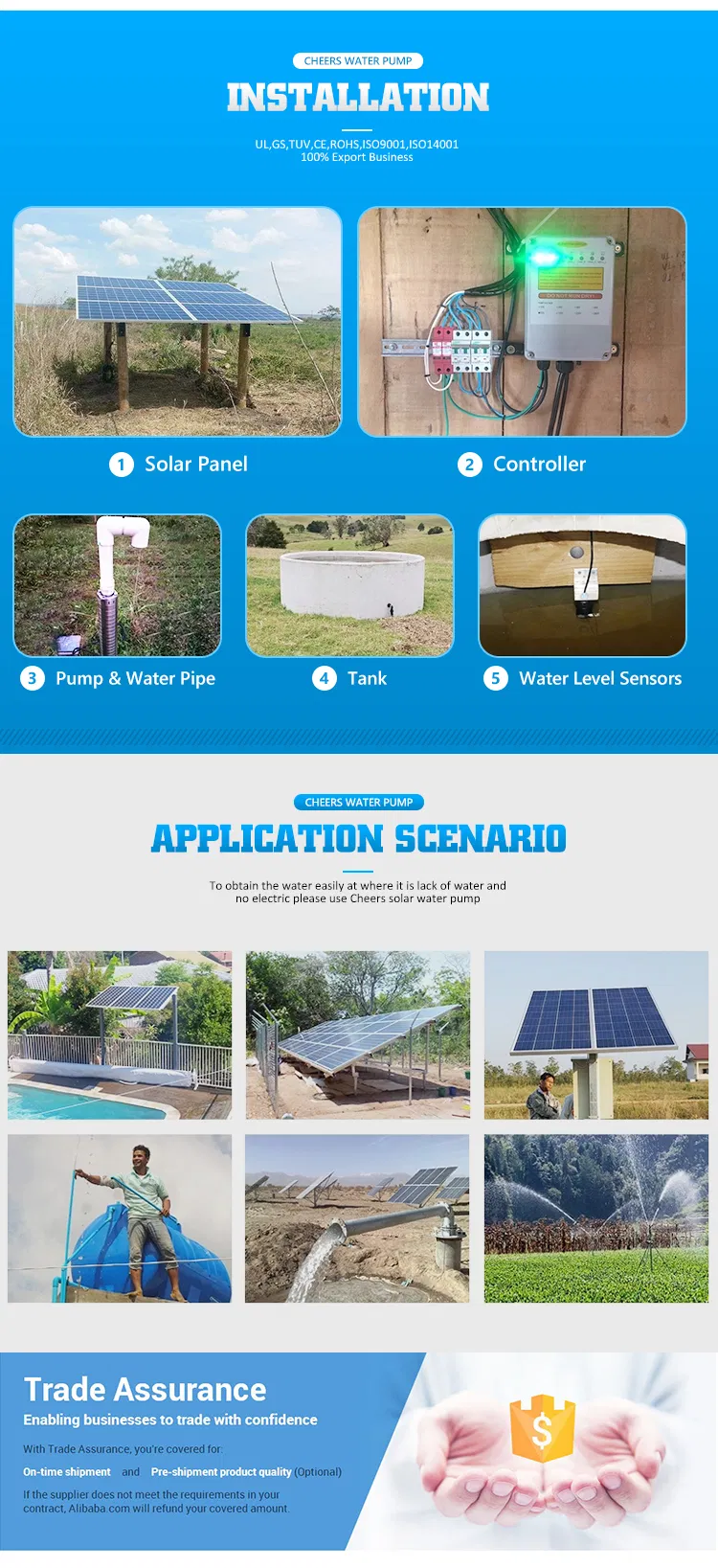

Solar Water Pump System Set

No.	Component Description
1	Solar pump with 3m cable (customizable length)
2	Advanced MPPT Controller
3	Water level sensor / float switch (10m cable)
4	Solar panel cables (6m included)
5	Heavy-duty cable connectors
6	Optional Solar Panels
7	Professional Installation Manual

Applications

📍 Agricultural Irrigation

📍 Livestock & Drinking Water

📍 Remote Farming Areas

📍 Decorative Fountains

📍 Swimming Pool Filtration

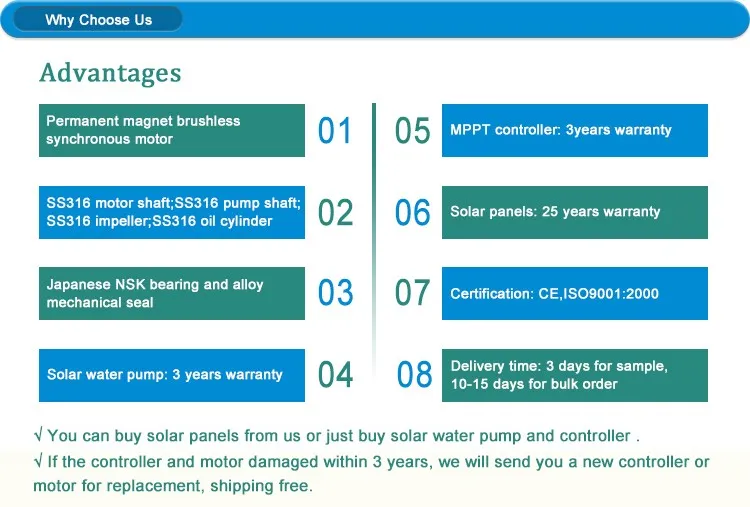

Advanced Technology & Materials

Outlet/Body

Stainless Steel / Brass

Impeller

Stainless Steel / PPO Plastic

Bearing

NSK Precision Bearings

Motor

Brushless DC Permanent Magnet

⚡

Efficiency Innovation: Efficiency is improved by 25% compared to traditional AC machines using non-sensor, brushless DC technology. Safety: Double plastic package for rotor/stator ensures insulation ≥300MΩ.

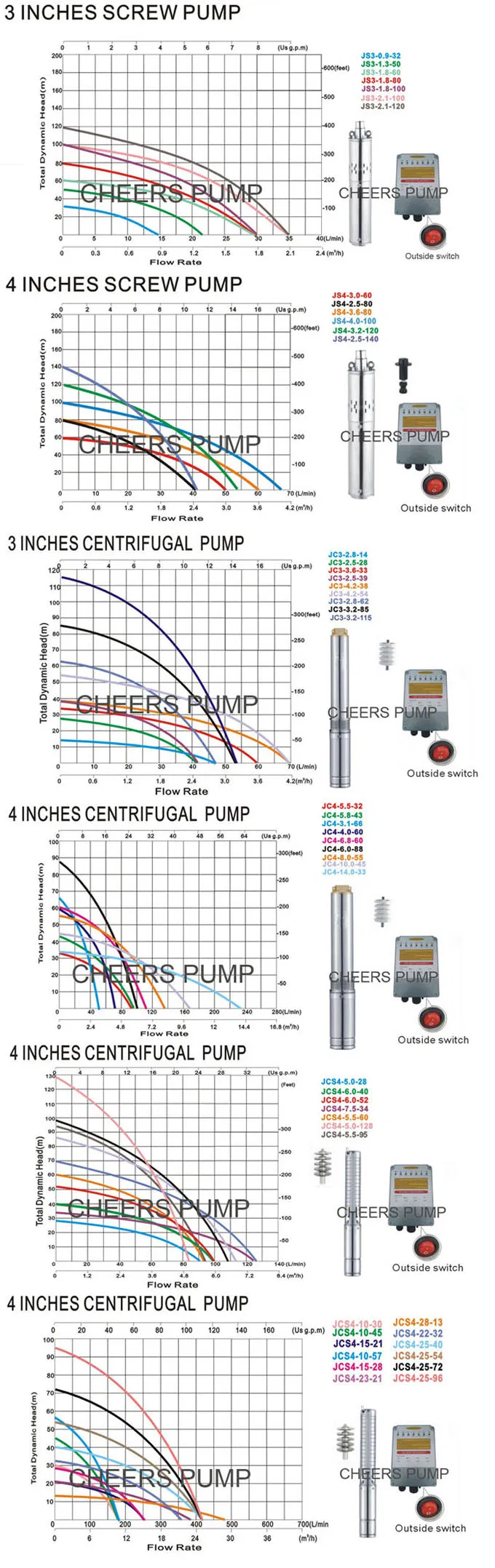

Performance Data Table

TYPE	VOLTAGE (V)	POWER (W)	MAX FLOW (m³/h)	MAX HEAD (m)	OUTLET (in)	DIAMETER (mm)
JS3-0.9-32	24	100	0.9	32	3/4"	76
JS3-2.1-120	48	540	2.1	120	3/4"	76
JC3-4.2-54	48	600	4.2	54	1"	76
JS4-4.0-100	72	1000	4	100	1"	100
JCS4-25-96	288	4000	25	96	2"	100
JCS6-70-33	288V	4000	70	33	4"	150

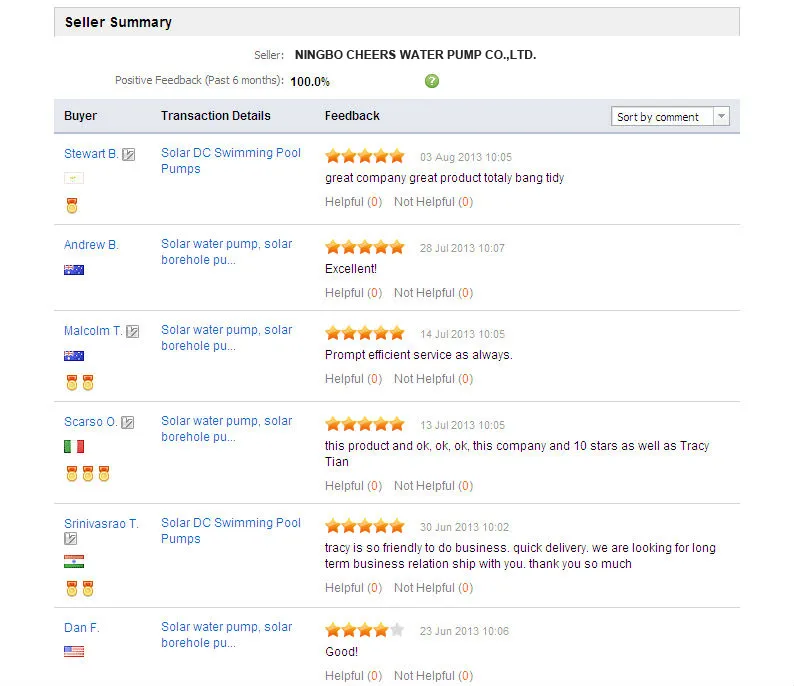

Buyer Feedback

Frequently Asked Questions

What is the warranty for this solar pump system?

We offer a 3-year warranty for both the solar water pump and the MPPT controller. The solar panels come with a 25-year warranty.

How efficient is the brushless DC motor compared to AC pumps?

Our permanent magnetism brushless DC motors improve efficiency by approximately 25% compared to traditional alternating current machines.

Can I use this pump for deep borehole applications?

Yes, we have models designed for deep wells with a maximum head exceeding 150 meters and diameters ranging from 2" to 6".

What information is needed to select the right pump model?

To help you choose, please provide: your daily water requirement (m³/h), the depth of the borehole, and the horizontal/vertical distance to the storage tank.

What materials are used in the pump construction?

The pump body, motor body, and screws are made of high-quality stainless steel. Outlets are available in brass or stainless steel, and we use premium NSK bearings.

Is the system environmentally friendly?

Yes, the system uses clean solar energy and features oil-filled motors for convenient installation and environmental protection.
