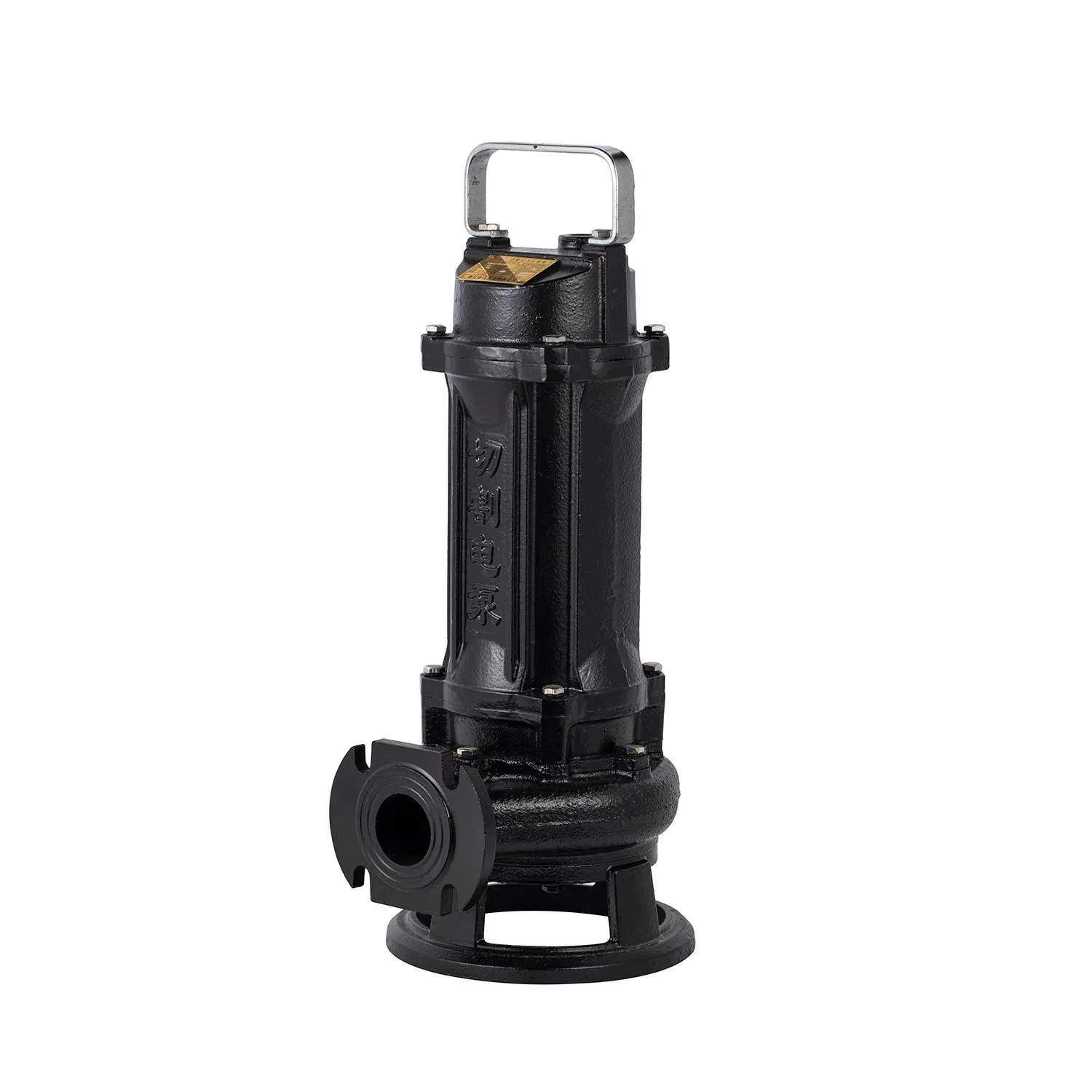

Submersible Sewage 1HP to 200HP Cast Iron Wq Series Water Pump

1 / 5

Submersible Sewage 1HP to 200HP Cast Iron Wq Series Water Pump

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ Basic Information

Model NO.:WQ

Max.Capacity:>400 L/min

Driving Type:Motor

Material:Cast Iron

Structure:Single-stage Pump

Assembly:Liquid Pumps

Power:Electric

Start Up:Electric Pump

Type:Blade Pump

Application:Submersible Pump, Sewage Pump

Industry:Water Pump

Media:Sewage Pumps

Performance:Wear Pump

Theory:Centrifugal Pump

Impeller:Closted Type, Cast Iron

Pump Body:Cast Iron

Stator:Cr 800#

Agitator:Optional

Transport Package:Wooden Case

Specification:0.75kw-132kw

HS Code:8413709190

Production Capacity:100PCS/Day

📋 Product Description

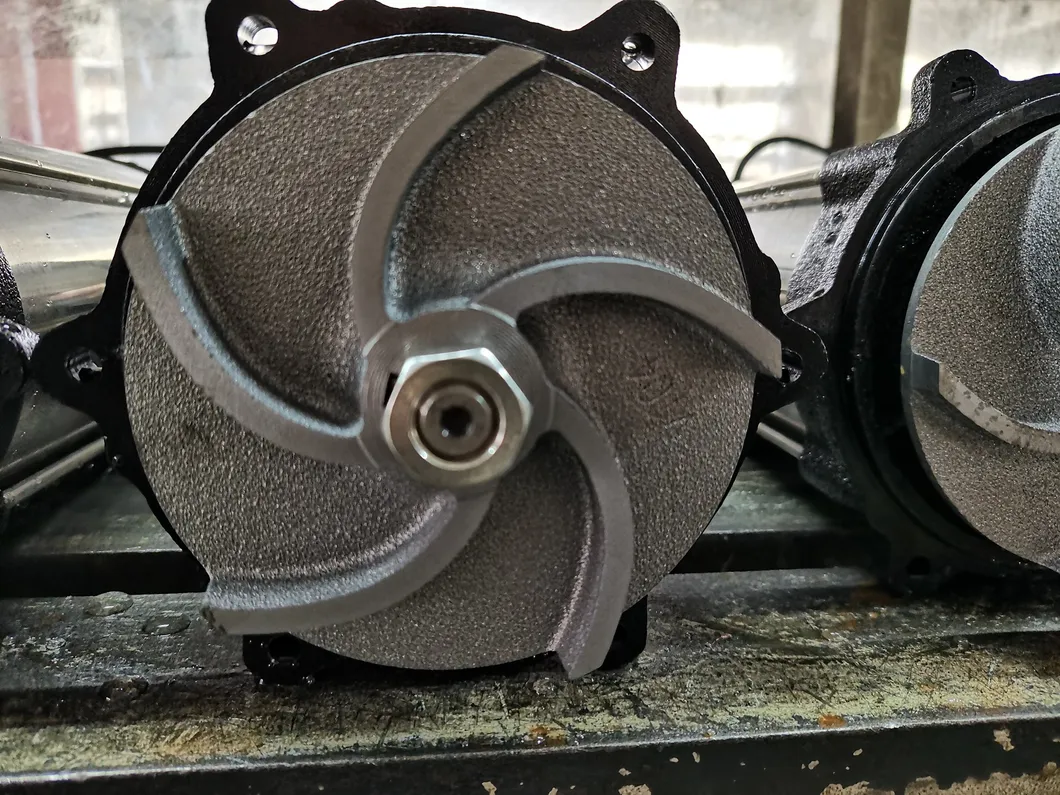

Closed type non-clogging cast iron impeller

Pump body and motor body: High-grade cast iron

Mechanical seal: SIC/SIC for enhanced durability

MODEL	POWER (KW/HP)	VOLTAGE (V)	RATED FLOW (M³/H)	RATED HEAD (M)	DEL (MM)
50WQD10-10-0.75	0.75/1	220	10	10	50
50WQ10-10-0.75	0.75/1	380	10	10	50
50WQ7-15-1.1	1.1/1.5	220 OR 380	7	15	50
65WQ15-9-1.1	1.1/1.5	220 OR 380	15	9	65
50WQ12-15-1.5	1.5/2	220 OR 380	12	15	50
65WQ25-10-1.5	1.5/2	220 OR 380	25	10	65
50WQ9-22-2.2	2.2/3	380	9	22	50
65WQ20-18-2.2	2.2/3	380	20	18	65
80WQ45-9-2.2	2.2/3	380	45	9	80
50WQ15-30-3	3/4	380	15	30	50
65WQ25-22-3	3/4	380	25	22	65
80WQ40-15-3	3/4	380	40	15	80
100WQ60-9-3	3/4	380	60	9	100
50WQ15-32-4	4/5.5	380	15	32	50
65WQ25-26-4	4/5.5	380	25	26	65
80WQ30-26-4	4/5.5	380	30	26	80
100WQ50-10-4	4/5.5	380	50	10	100
50WQ18-32-5.5	5.5/7.5	380	18	32	50
65WQ25-30-5.5	5.5/7.5	380	25	30	65
80WQ40-22-5.5	5.5/7.5	380	40	22	80
100WQ70-10-5.5	5.5/7.5	380	70	10	100
150WQ100-7-5.5	5.5/7.5	380	100	7	150

❓ Frequently Asked Questions

What materials are used in the construction of the WQ series pumps?

The pump body, motor body, and impeller are primarily constructed from durable high-quality cast iron, designed for wear resistance in sewage applications.

What is the range of power and capacity for these pumps?

The WQ series offers a power range from 0.75kw up to 132kw, with a maximum capacity exceeding 400 L/min.

Is the impeller design suitable for clogging materials?

Yes, the pump features a closed-type non-clogging cast iron impeller, specifically engineered to handle sewage and media without clogging.

What type of mechanical seal does the pump use?

The WQ series uses a high-performance SIC/SIC (Silicon Carbide) mechanical seal to ensure long-term reliability and leak prevention.

Can an agitator be added to the pump?

Yes, an agitator is optional for the WQ series to help mix media and prevent sediment buildup during operation.

What are the primary applications for this equipment?

It is primarily used as a submersible sewage pump in water pump industries, handling wastewater and sewage media effectively.
