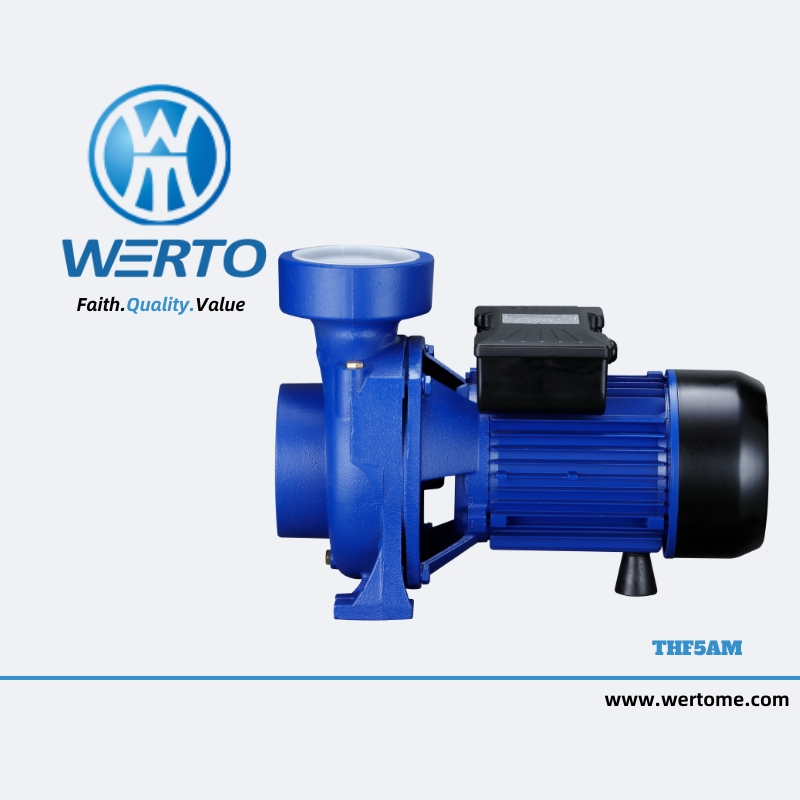

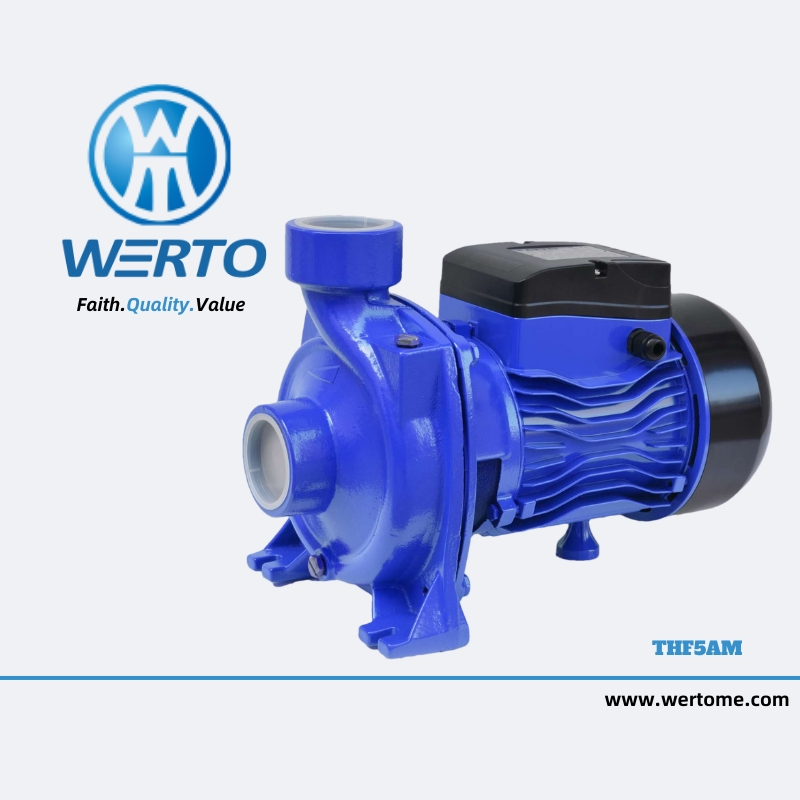

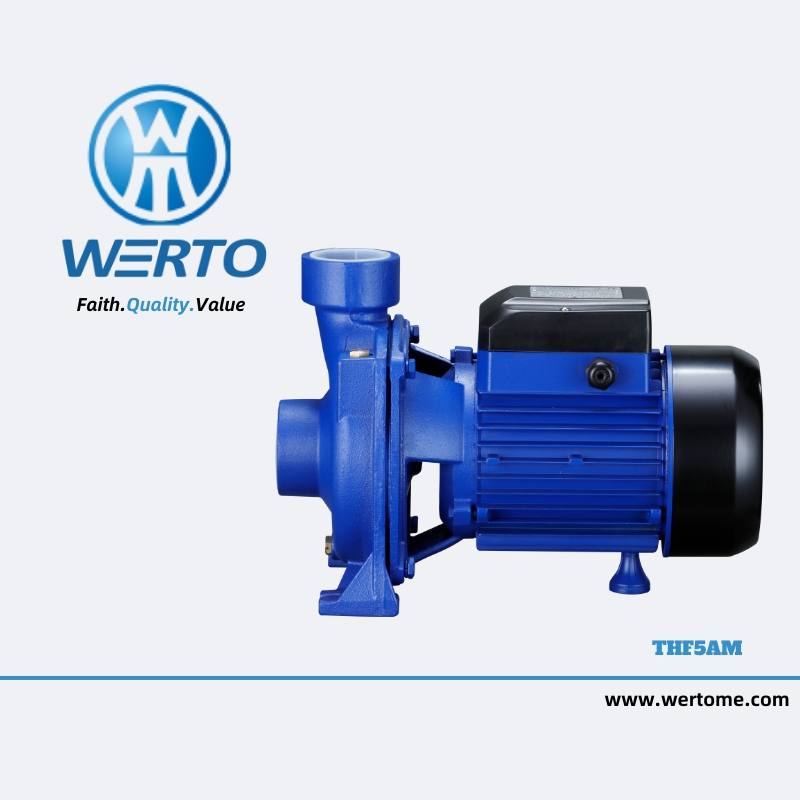

Trendy Centrifugal Water Pump for Efficient Farm Irrigation Systems

Basic Information

Model NO.

THF5AM

Max. Head

10-30m

Max. Capacity

>400 L/min

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Power

Electric

Insulation

Class B

Protection

IP44

Motor Winding

100% Copper Wire

Origin

China

Package Size

41.50cm * 24.00cm * 28.50cm

Product Description

Versatile Agricultural & Industrial Solution

Suitable for use in civil and agricultural applications. The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and middle to low head are required.

The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Motor Features

✓Insulation Class B

✓Protection IP44

✓Thermal protector included

✓Continuous service S1

✓Two-pole induction motor

✓Single-phase: 220V/50Hz (60Hz on demand)

✓Three-phase: 380V/50Hz (60Hz on demand)

Operating Conditions

⚓Suction lift up to 8m

🌡️Liquid temperature up to 60ºC

☀️Ambient temperature up to 40ºC

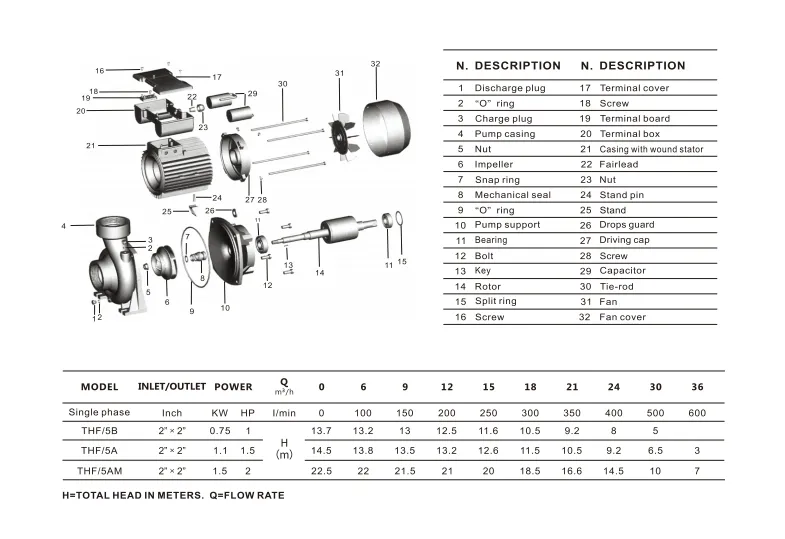

COMPONENT	CONSTRUCTION CHARACTERISTICS
PUMP BODY	Cast iron
PUMP SUPPORT	Cast iron
MOTOR HOUSING	Aluminum
IMPELLER	Brass
MOTOR SHAFT	Carbon steel, AISI304SS on request
MECHANICAL SEAL	Ceramic/Graphite
BEARINGS	6203 RZ/6202 RZ(1HP), 6204 RZ(1.5HP&2HP), 6205 RZ(3HP)
