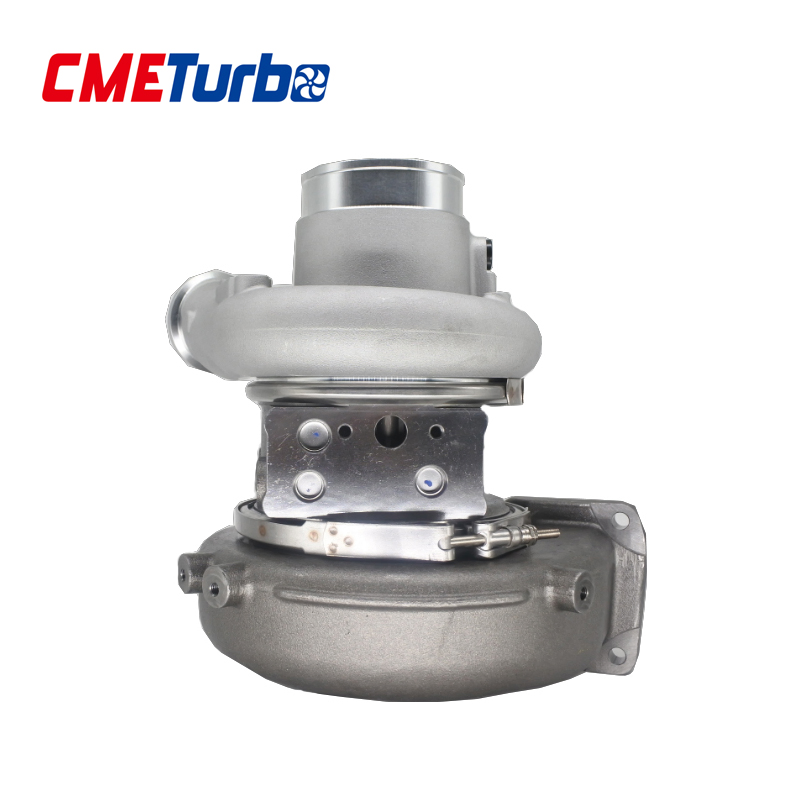

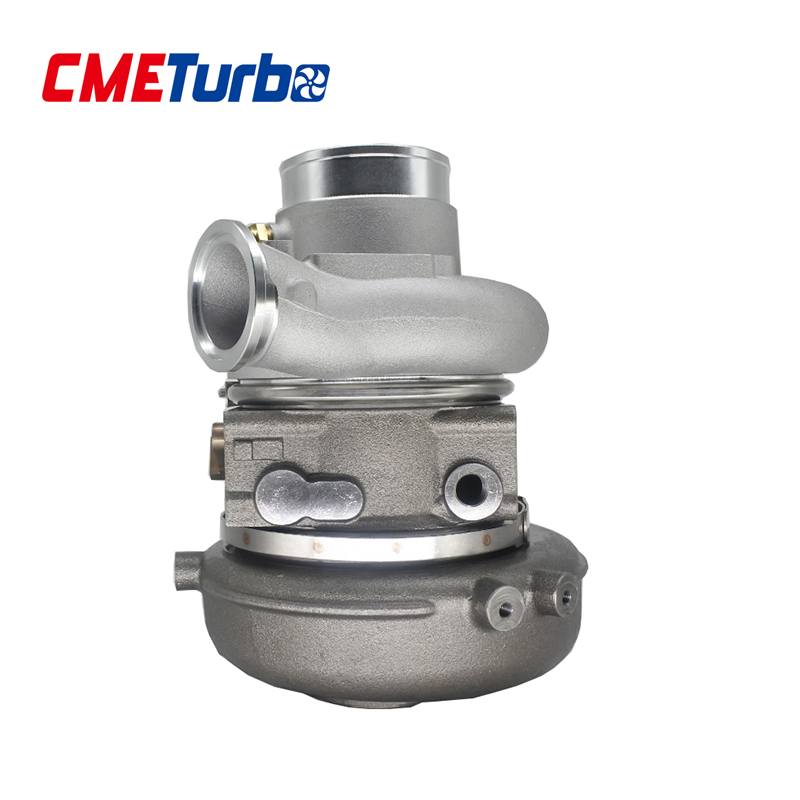

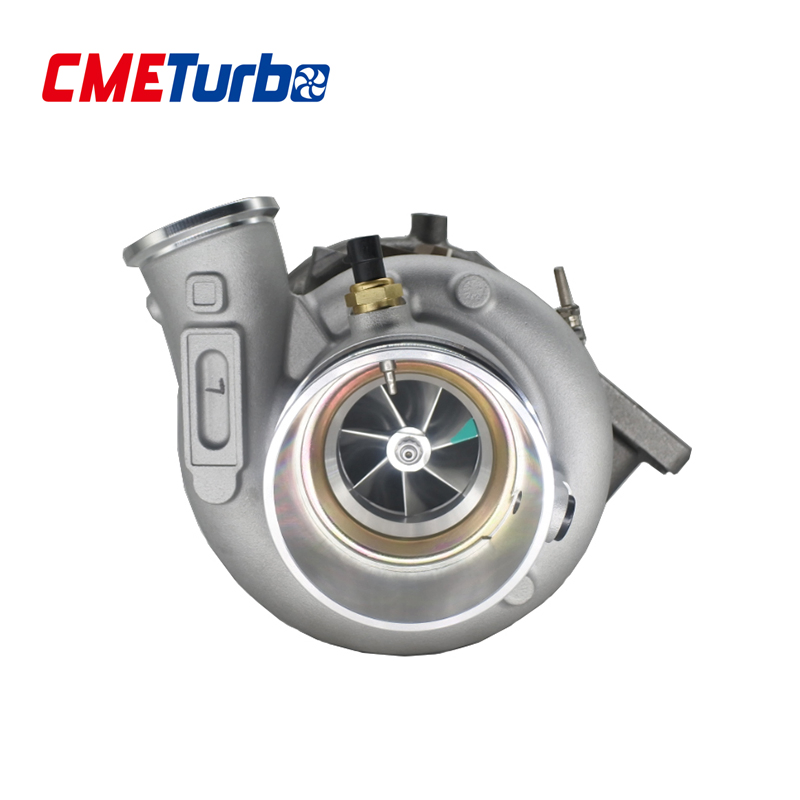

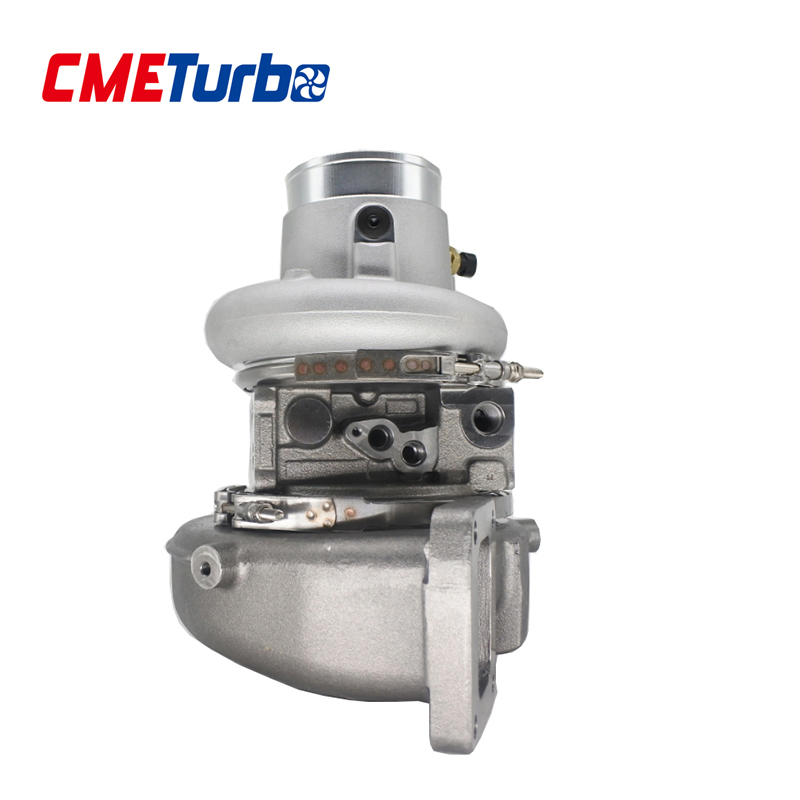

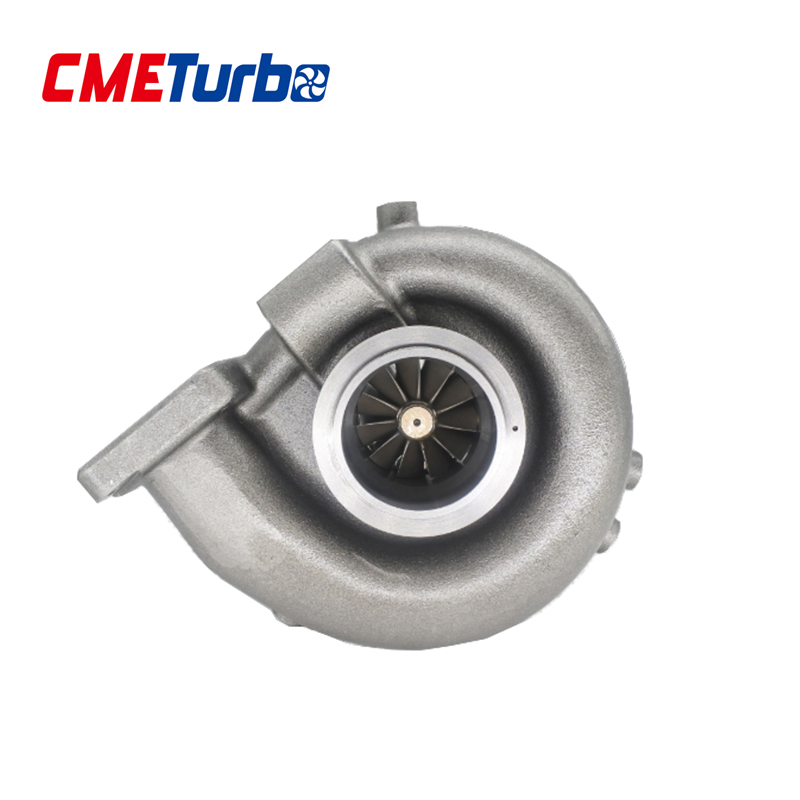

Turbocharger He451ve 2882111 3773562 for Isx Engine

1 / 5

Turbocharger He451ve 2882111 3773562 for Isx Engine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

2882111

Type

ETS Exhaust-Gas-Turbo-Super-Charger

Body Material

Alloy

Certification

TS16949, ISO9001

ETS Component

Turbine and Compressor

ETS Type

Runoff

Brand

Holset

Fuel

Diesel

Model

He451ve

Engine

Isx

Part Number

2882111

Actuator

Available

Transport Package

Neutral

Specification

OEM Standard

Origin

Jiangsu

HS Code

8414803090

⚙️ Product Description & Technical Specifications

Part Number	2882111
Previous Version	2882004NX, 288211100, 2882111NX, 2882111RX, 2841220, 2841221, 2841222, 3768194, 3773569, 3792586, 2882111, 2881807, 2882004, 2840007, 3773562, 3773561, 2882110, 3792586H, 2882110NX, 3792586HX, 288211100HX
Year	2005-10
OE Number	8773568, 3783568, 2843893, 3792584, 3773566, 3768191, 2882110NX
Description	Various Trucks
Manufacturer Part Number	2843481
Turbo Model	HE451VE, HE400VG
Engine	ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X114, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102
Displacement	15.0L, 1500 ccm
Fuel	Diesel
Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades)
Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback)
Turbine Housing AR	VGT

💡 Frequently Asked Questions

Which engine models is the HE451VE turbocharger compatible with?

It is designed for ISX series engines, including ISX CM570, CM870, CM871, ISX15 CM2250, QSX15, and QSZ13, among others.

What certifications does this turbocharger have?

The product is manufactured under TS16949 and ISO9001 quality management certifications to ensure high standards.

What material is used for the turbocharger body?

The body is made of high-quality Alloy, providing excellent durability and heat resistance for heavy-duty diesel applications.

Is the actuator included with this model?

Yes, according to the specifications, the actuator is available for this turbocharger model (2882111).

What is the displacement capacity for this unit?

This turbocharger is optimized for 15.0L (1500 ccm) diesel engines.

What are the specifications of the turbine and compressor wheels?

The turbine wheel features 11 blades (Ind. 66.35 mm), and the compressor wheel features a 7+7 blade Superback design (Ind. 61.95 mm).

Turbocharger He451ve 2882111 3773562 for Isx Engine

Product Description

Related Products

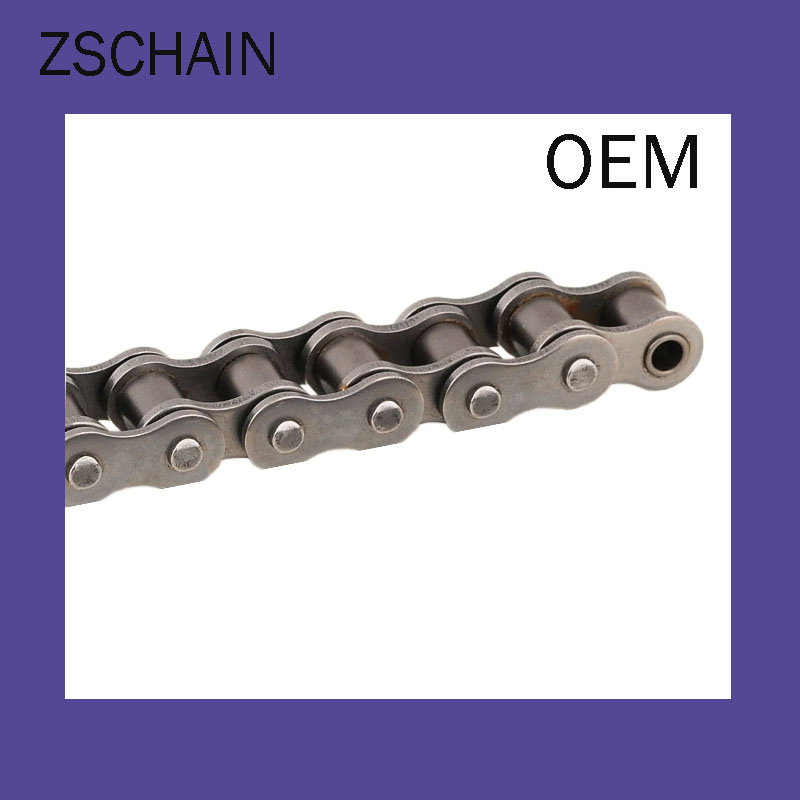

Manufacturer Heavy Duty Timing Drive Conveyor Transmission Roller Chain with Sprocket

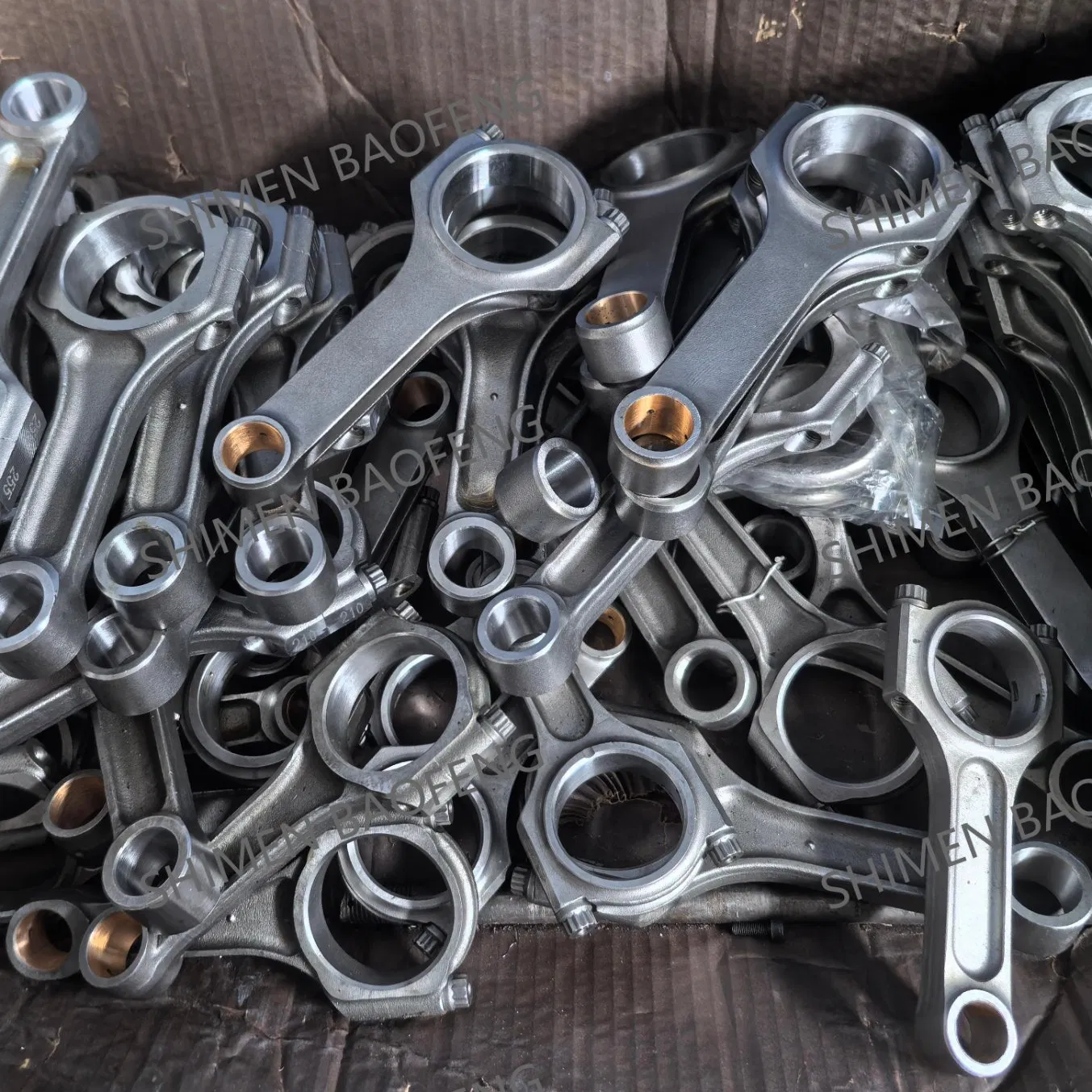

Customized Racing Connecting Rod, Forged Conrod, Con Rod

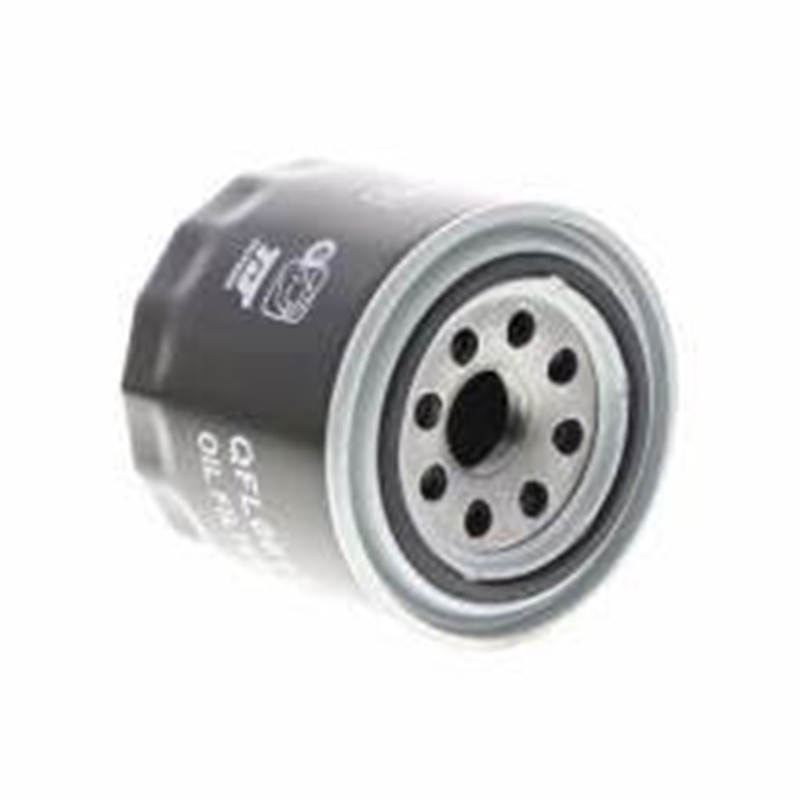

Fuel Filter 817323802 D87z6731A Lf16354 P502051 B161s

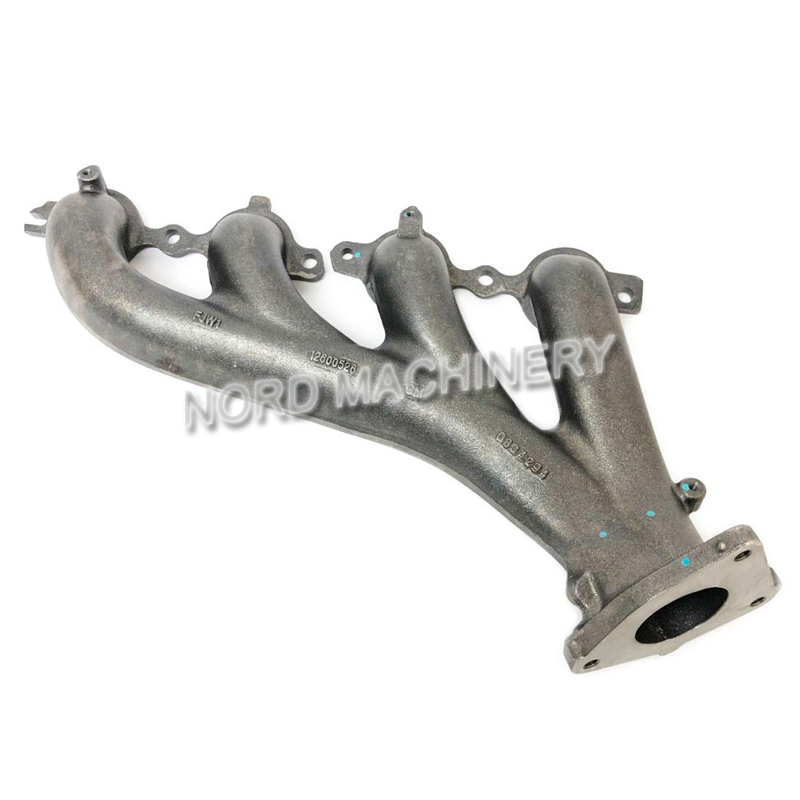

Custom Auto Parts Cast Iron Exhaust Manifold

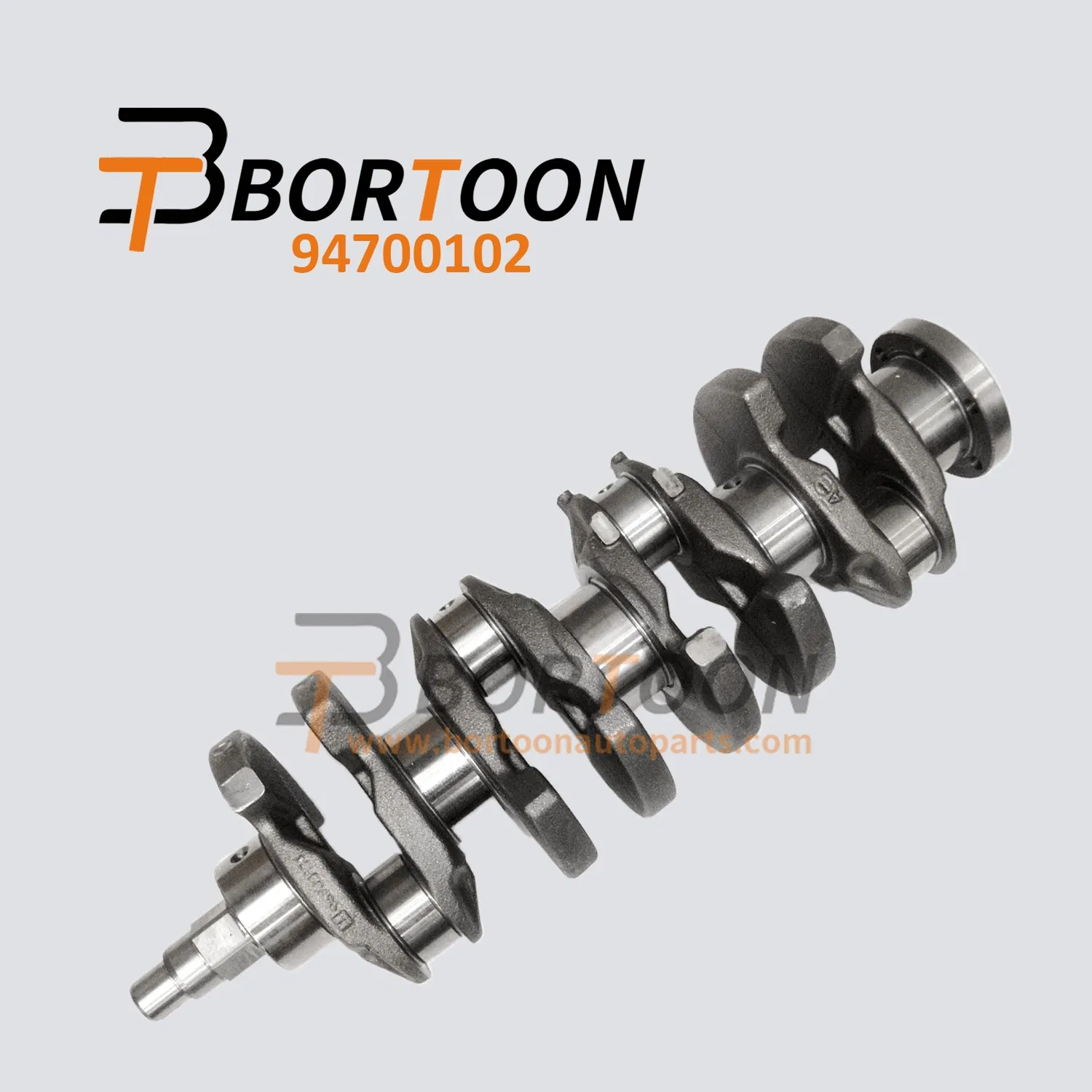

The Crankshaft of GM Corsa 1.4L Engine OE 94700102/ Auto Parts / Factoryprice

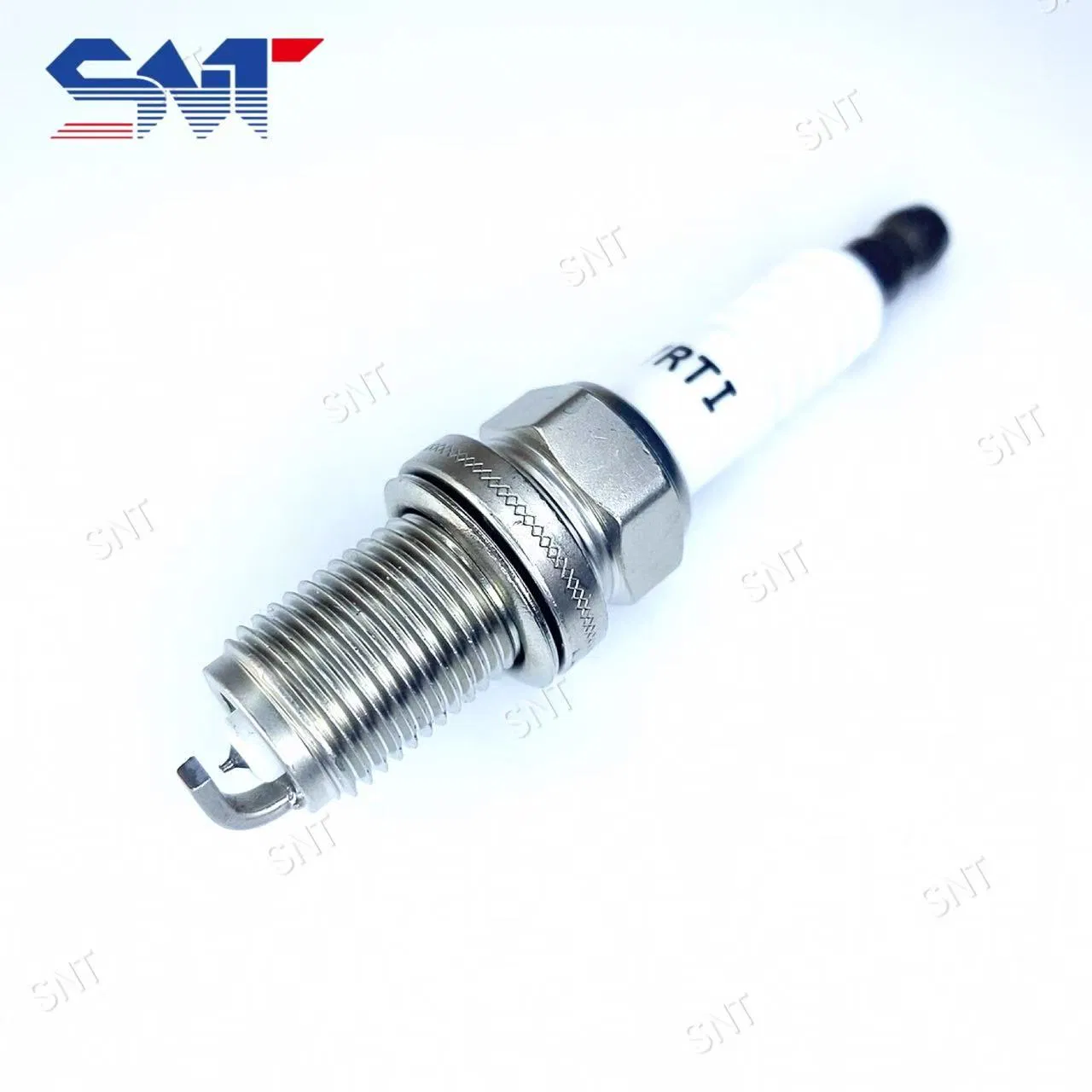

High Quality Low Price Automobile Engine Parts K7rti Spark Plug, Same as Ngk 7092, Toyota 90919-01210, Bosch+45

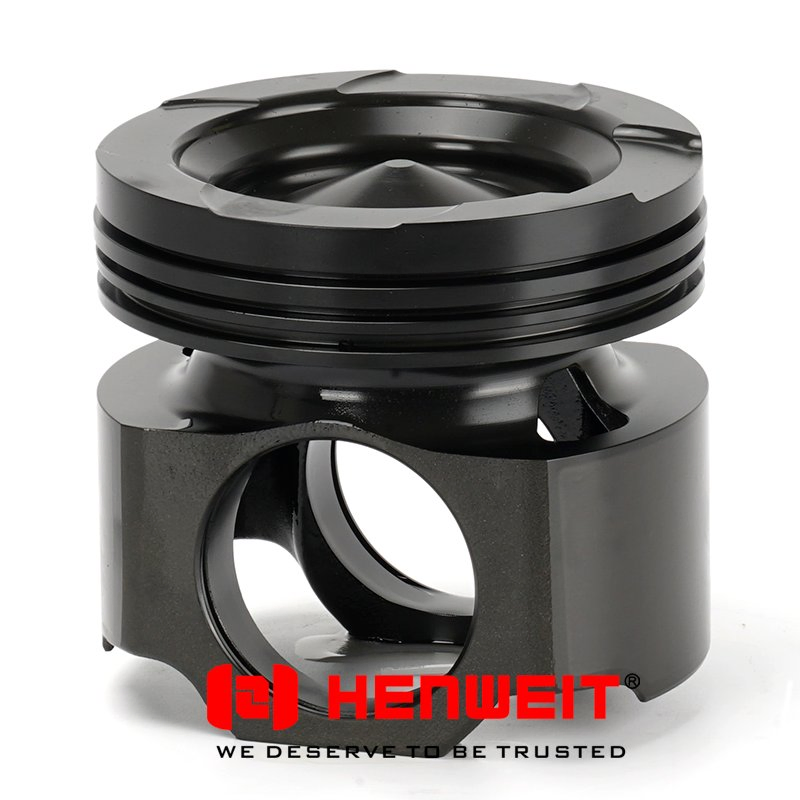

Manufactured Steel Piston for X15 Diesel Engine Parts 3687897 3688405

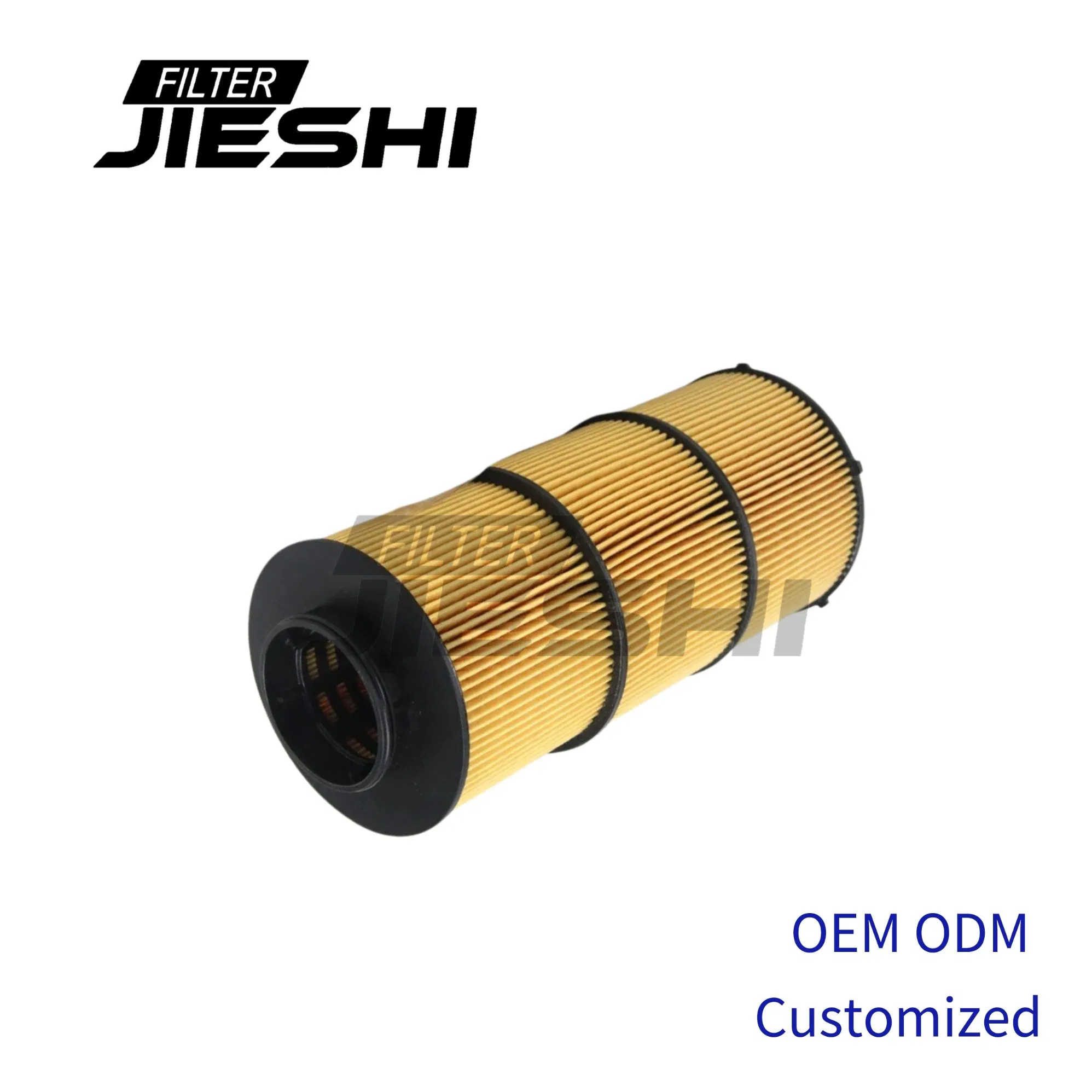

Jieshi OEM Factory A4721800209 Hu12001z E510HD129 Truck Bus MB Euro5 Spare Parts Engine Oil Filters

Td07s Turbocharger (49187-00270) for 1998- Mitsubishi Fuso FM 657 Truck Engines - Auto, Car &amp; Diesel Parts

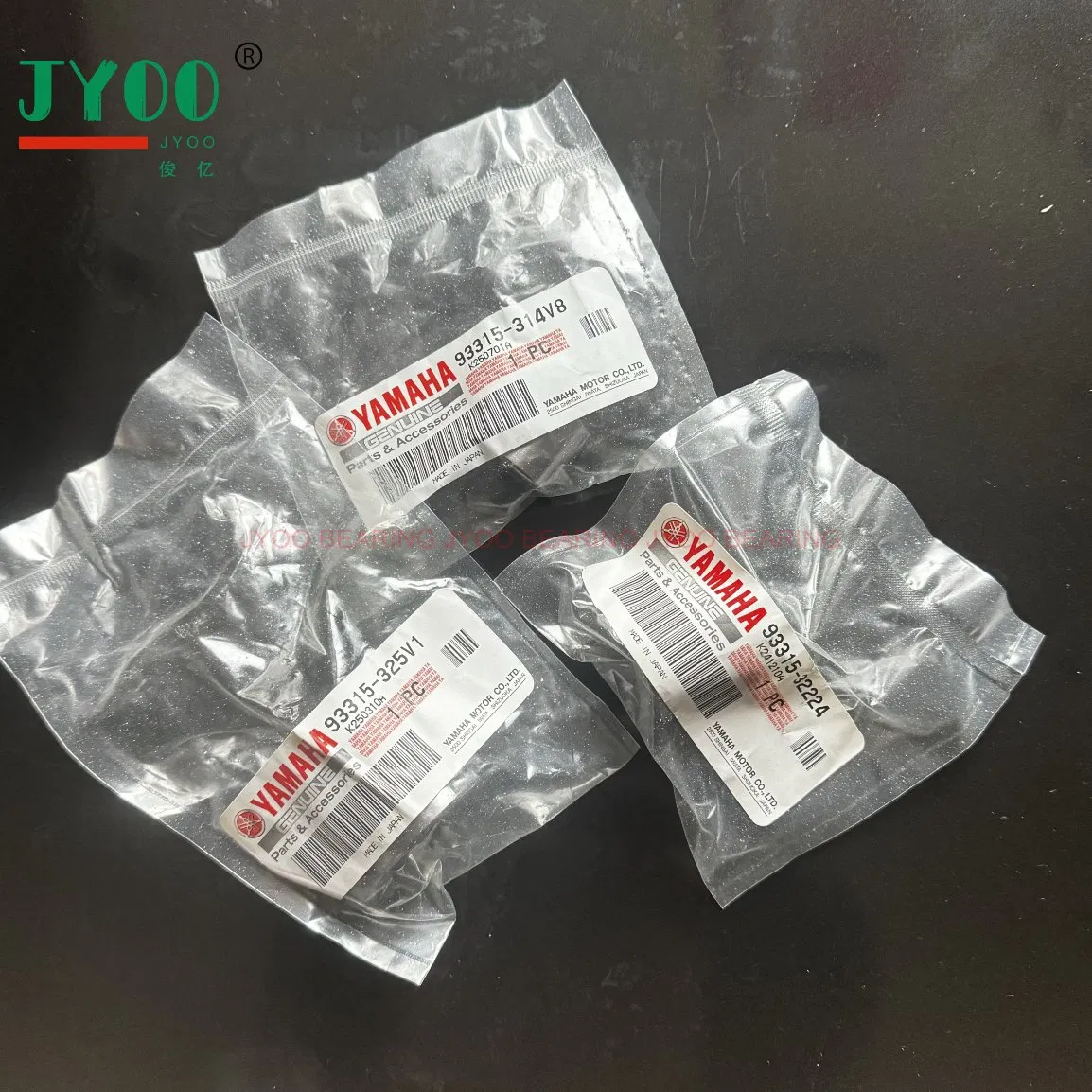

YAMAHA Outboard Motor Bearing 93315-314V8 93315-314V8-00 for 2 Strokes 9.9HP 15HP Driver Shaft YAMAHA Outboard Engine Parts
