Ultra Mini Pleat High Efficiency Air Filter for Global B2B Clean Air Solutions-Dominion Parts

Basic Information

Model NO.

Fine

Medium Material

Fiberglass

Efficiency

H13~H14

Filtration Grade

HEPA Filter

Type

V Bank Filter

Filter Element

Ultra Fine Glass Fiber Filter Paper

Frame

Aluminum Profile/ Aluminum Sheet/ Zinc-Coated Steel

Filtration Efficiency

99.99%~99.999%@0.3μm

Sealant

Two-Component Polyurethane Adhesive

Max. Temperature

70℃

Max. Humidity

100%

Origin

China

Product Description

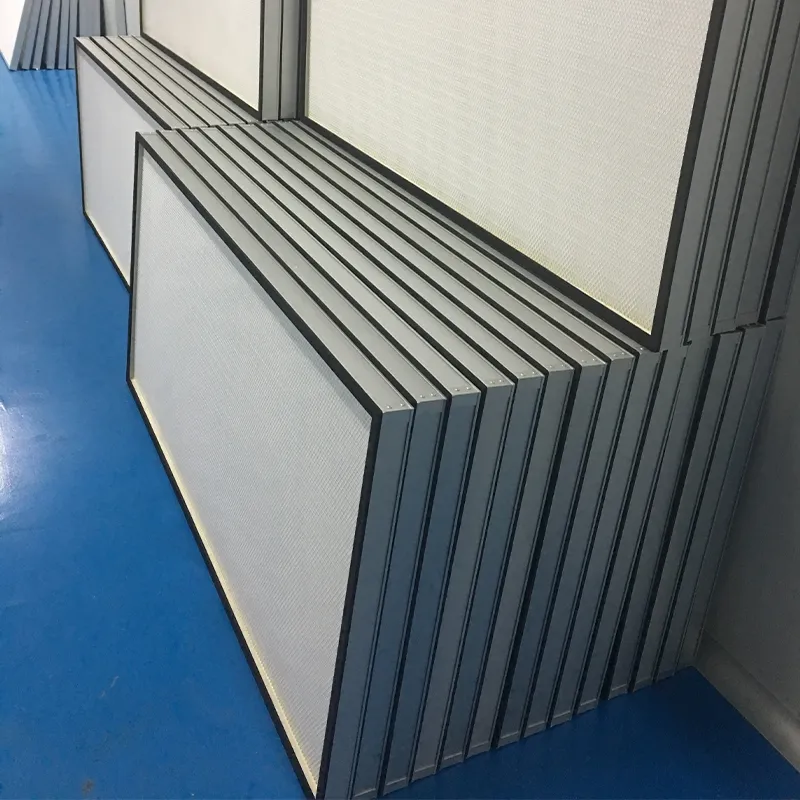

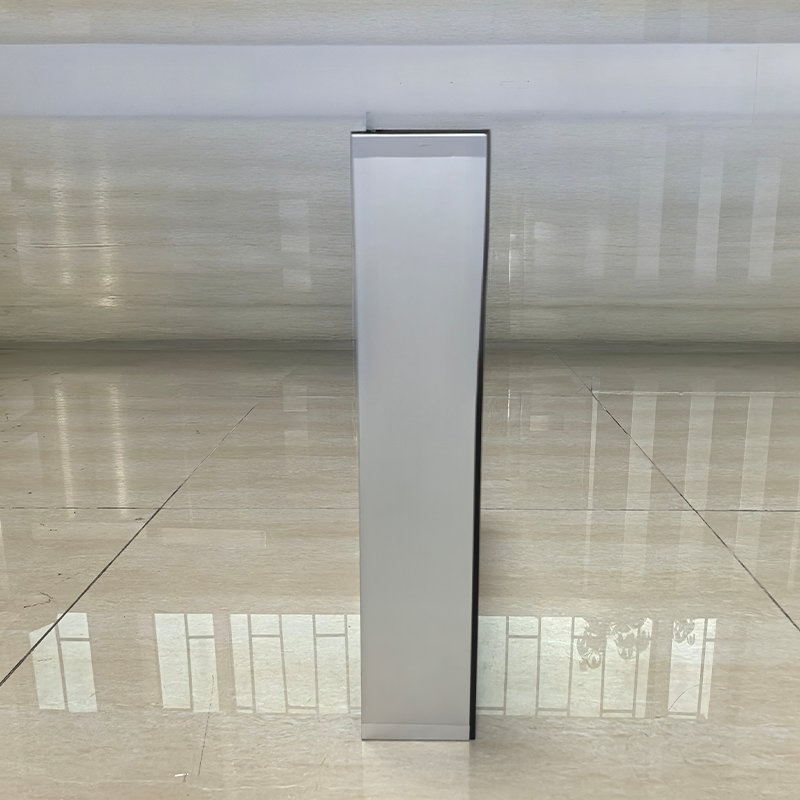

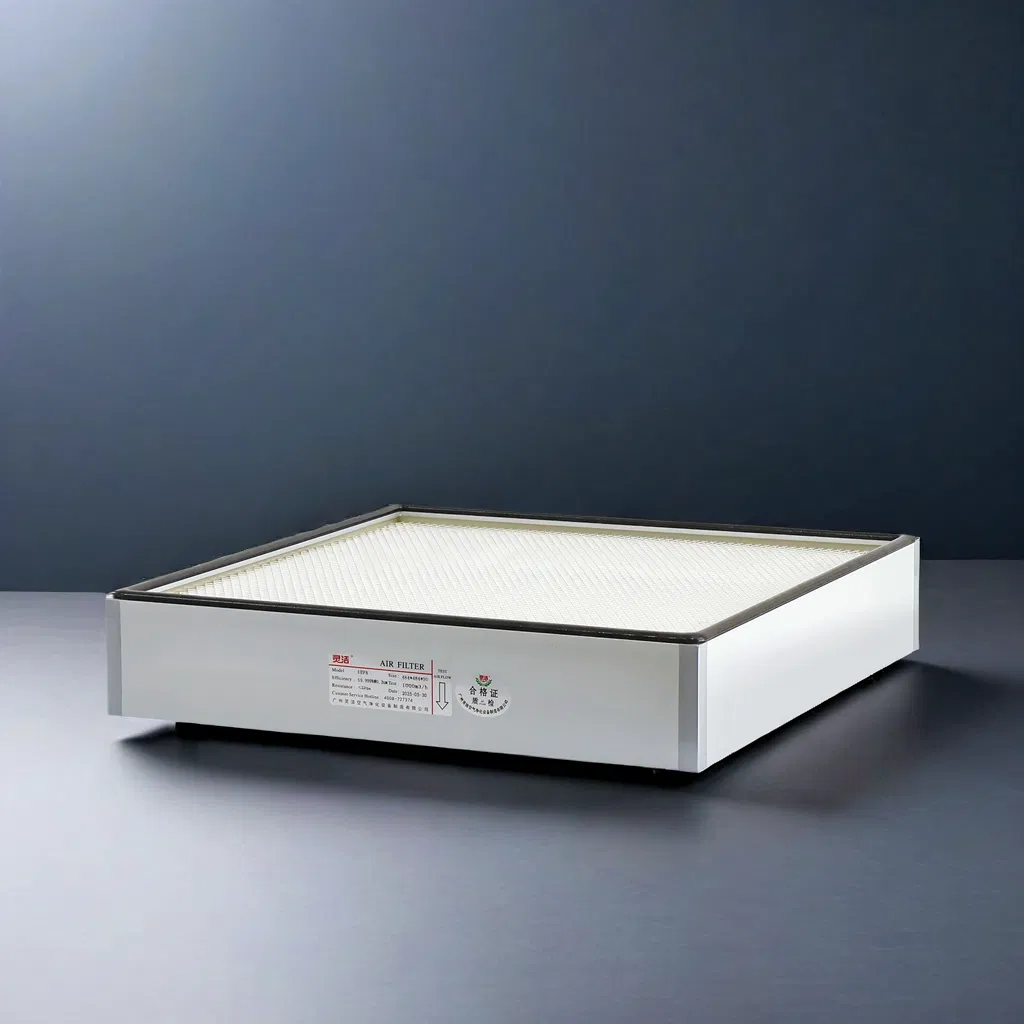

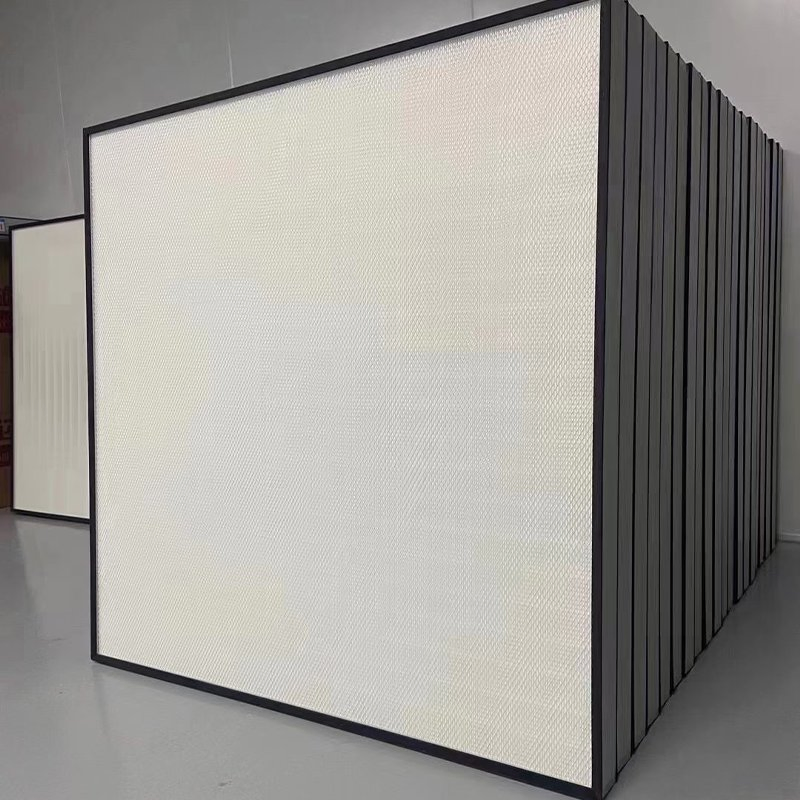

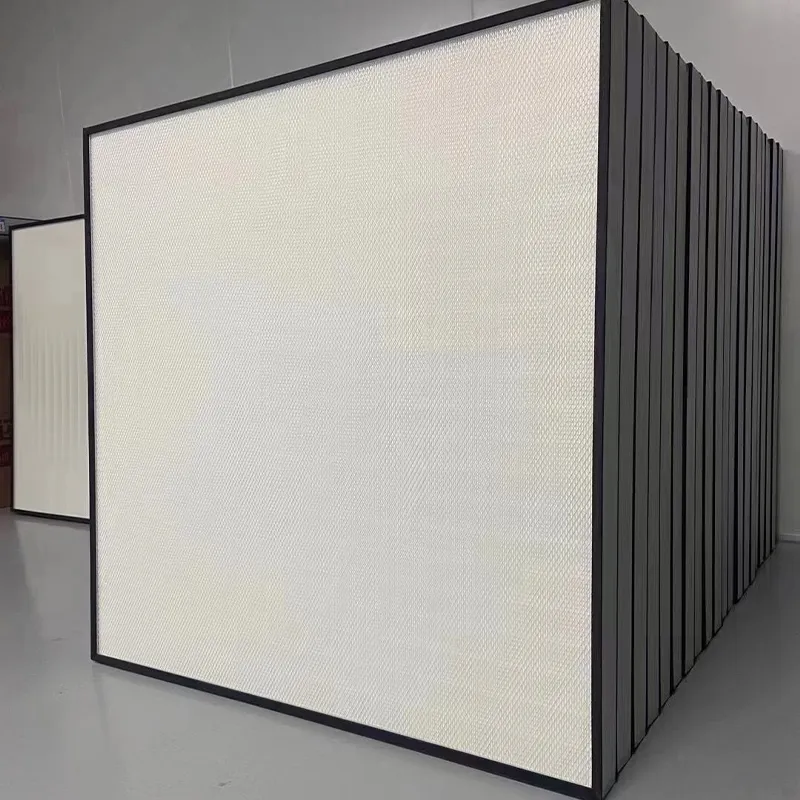

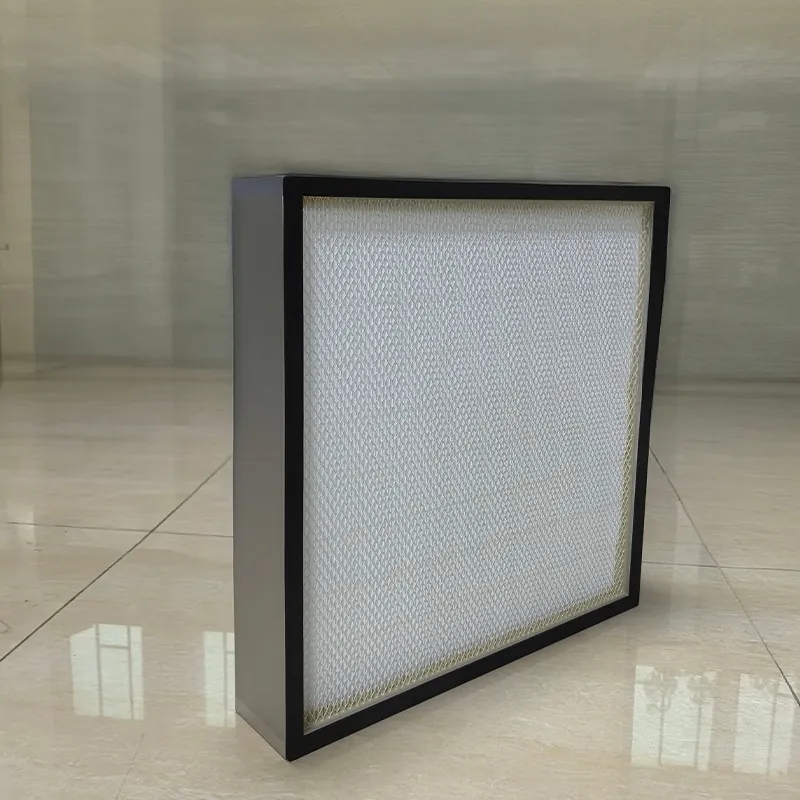

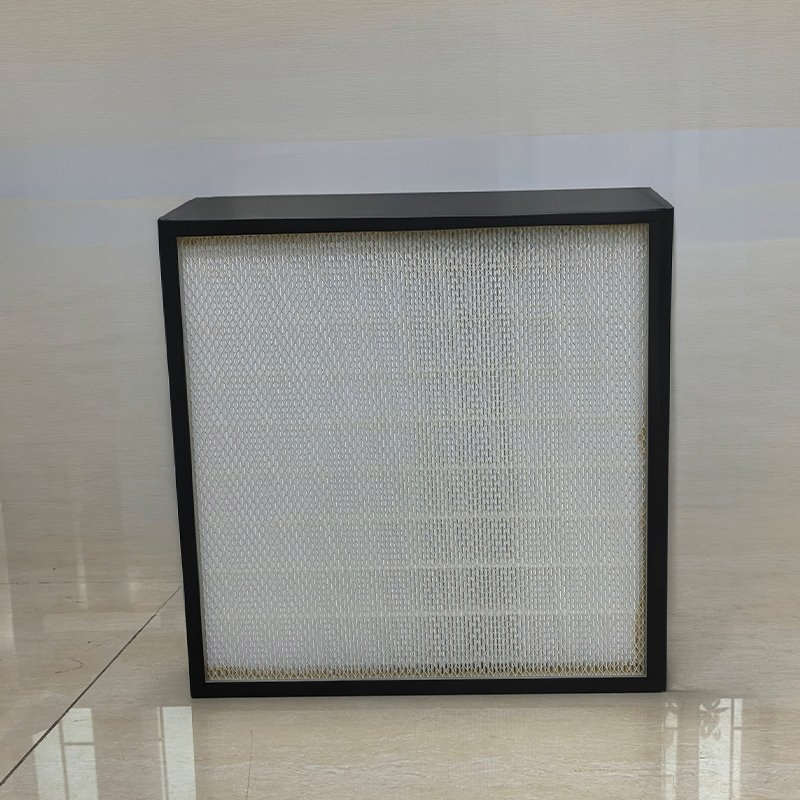

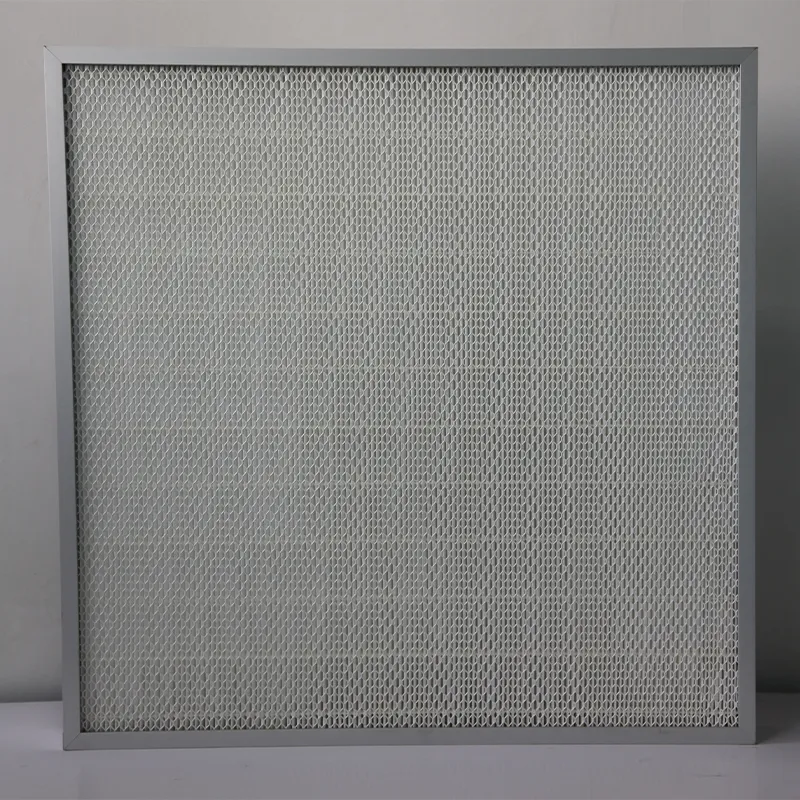

Mini Pleat Fine Efficiency Air Filter

Product Features

Patented technology to ensure effective use of the "V" shaped air tunnel.

Anodizing aluminum profile frame, metal cover on both air inlet and extraction sides.

Special seamless sealing technology to ensure good elasticity, no deformation, and no leakage.

Anti-aging sealing strip, high airflow, and low resistance for long service life.

Size & Technical Data

Size (HWD) (mm)	Rated Airflow (m³/h)	Initial Resistance (<=pa)	Final Resistance (pa)	Filtration Area (㎡)	Dust Capacity (g)	Efficiency
30530550	200	200	400~600	1.8	100	H13~H14
48448450	500	200	400~600	4.6	300	H13~H14
61061050	800	200	400~600	7.5	450	H13~H14
61091550	1200	200	400~600	11.2	700	H13~H14
610122050	1600	200	400~600	14.9	900	H13~H14
61061069	1000	200	400~600	10.7	650	H13~H14
610122090	3000	200	400~600	29.8	1800	H13~H14

* Custom sizes are acceptable beyond the standard specifications listed above.

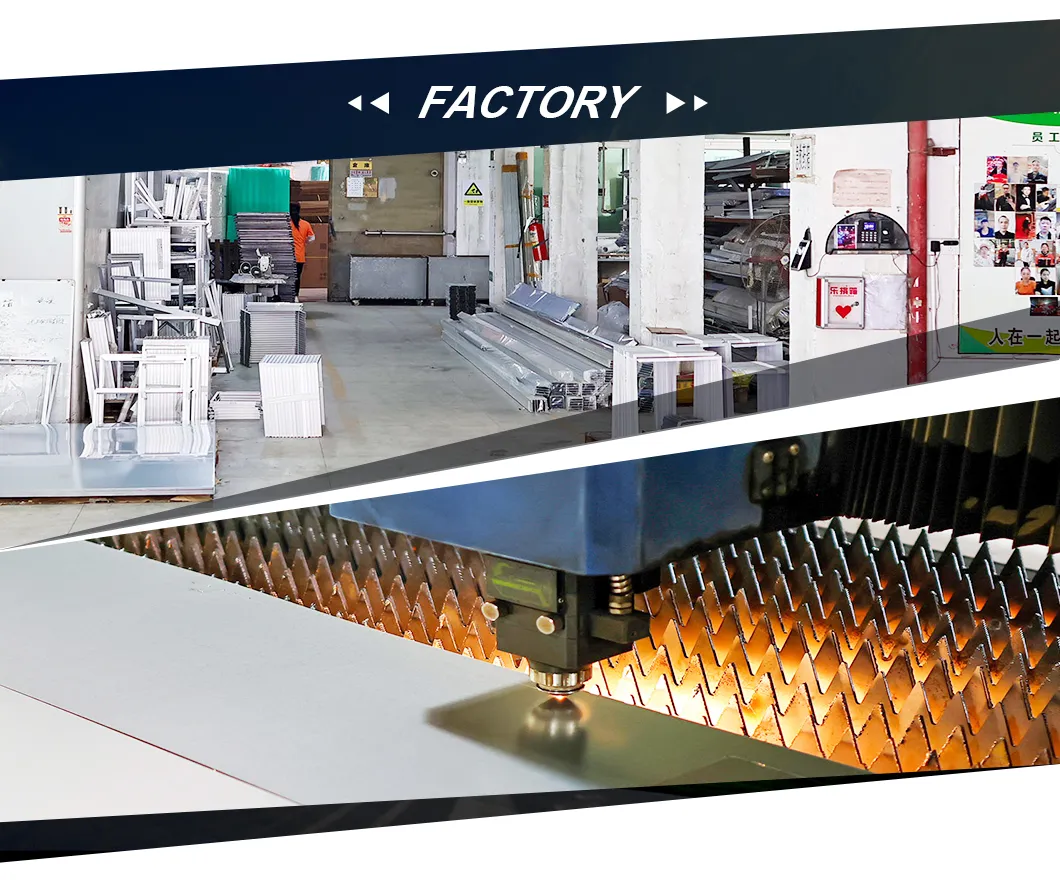

Factory Display & Certifications

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional factory. Online verification and face-to-face factory visits are warmly welcomed.

What are the available delivery terms?

We offer Ex-works, FOB Guangzhou, FOB Shenzhen, and CIF delivery terms.

How long is the product quality guarantee?

We provide a one-year quality warranty for our air filters.

What is the typical production lead time?

Normally, production is completed within two weeks. For bulk quantities, the lead time may vary.

What are your payment terms?

We accept T/T or L/C at sight. A 30% deposit is required, with the balance paid prior to delivery.

How are the filters packaged for shipping?

Filters are sealed by film and loaded into sturdy corrugated boxes. Heavy boxes are further secured with PP strapping belts for safety during transport.
