V Belt Cogged Belt Timing Belt for Power Transmission

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

A, B, C, D, E, XPA, XPB, XPC, 3VX, 5VX

Performance

Strong Rubber Conveyor Belt

Name

Cogged Raw Edge Rubber Belts

Material

Cr/HNBR Rubber

Character

Wear Resistance

Production Capacity

10,000,000/Year

HS Code

40103900

Package

Carton

Product Description

Wrapped rubber v belt, cogged belt, and timing belt for machine power transmission.

Technical Construction

Material: High-grade CR / HNBR Rubber
Layer 1: Out cover of rubber impregnated fabric
Layer 2: High-strength Tension Cord
Layer 3: Durable Filler Rubber
Layer 4: Flexible Base Rubber

Key Features & Advantages

High efficiency factor and extreme tensile strength for heavy-duty applications.
Extraordinary resistance to extreme temperatures (-40ºC to 120ºC), oil, and ozone.
Excellent aging-resistance and superior abrasion-resistance.
Slip-free transmission and low noise operation.
The wrapper protects the inner layer, ensuring strong durability.

<a href='/catalog/china-oem-v-belt-manufacturers-factory/'>V Belt</a> Cogged Belt Timing Belt

Technical Data & Size Charts

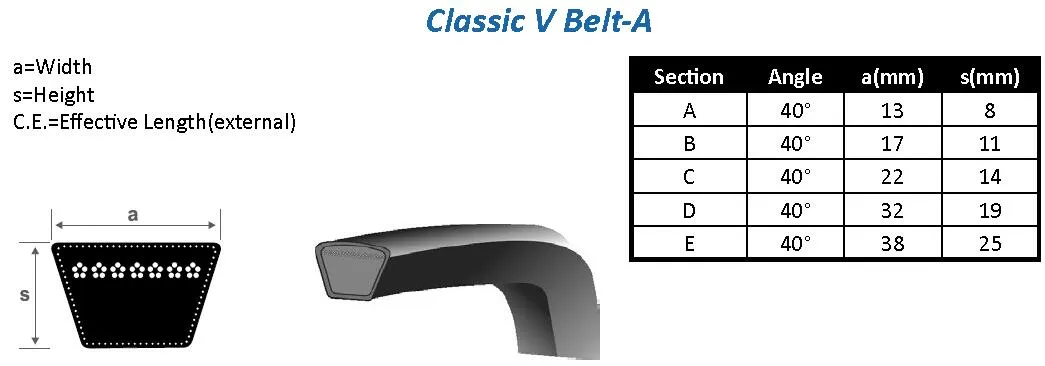

1. Classical Wrapped V-Belt

Type	Top Width (mm)	Height (Hs, mm)	Material	Length Range
K	8	5	Rubber	297mm - 16780mm
Z	10	6
A	13	8
B	17	11
C	22	14
D	32	19

2. Narrow V-Belts

The transmitted power of narrow V-belts is three times more than that of ordinary V-belts, suitable for space-saving designs.

Type

Top Width (mm)

Height (Hs, mm)

V Belt Cogged Belt Timing Belt for Power Transmission

Product Description

Basic Specifications

Product Description

Technical Construction

Key Features & Advantages

Technical Data & Size Charts

1. Classical Wrapped V-Belt

2. Narrow V-Belts
