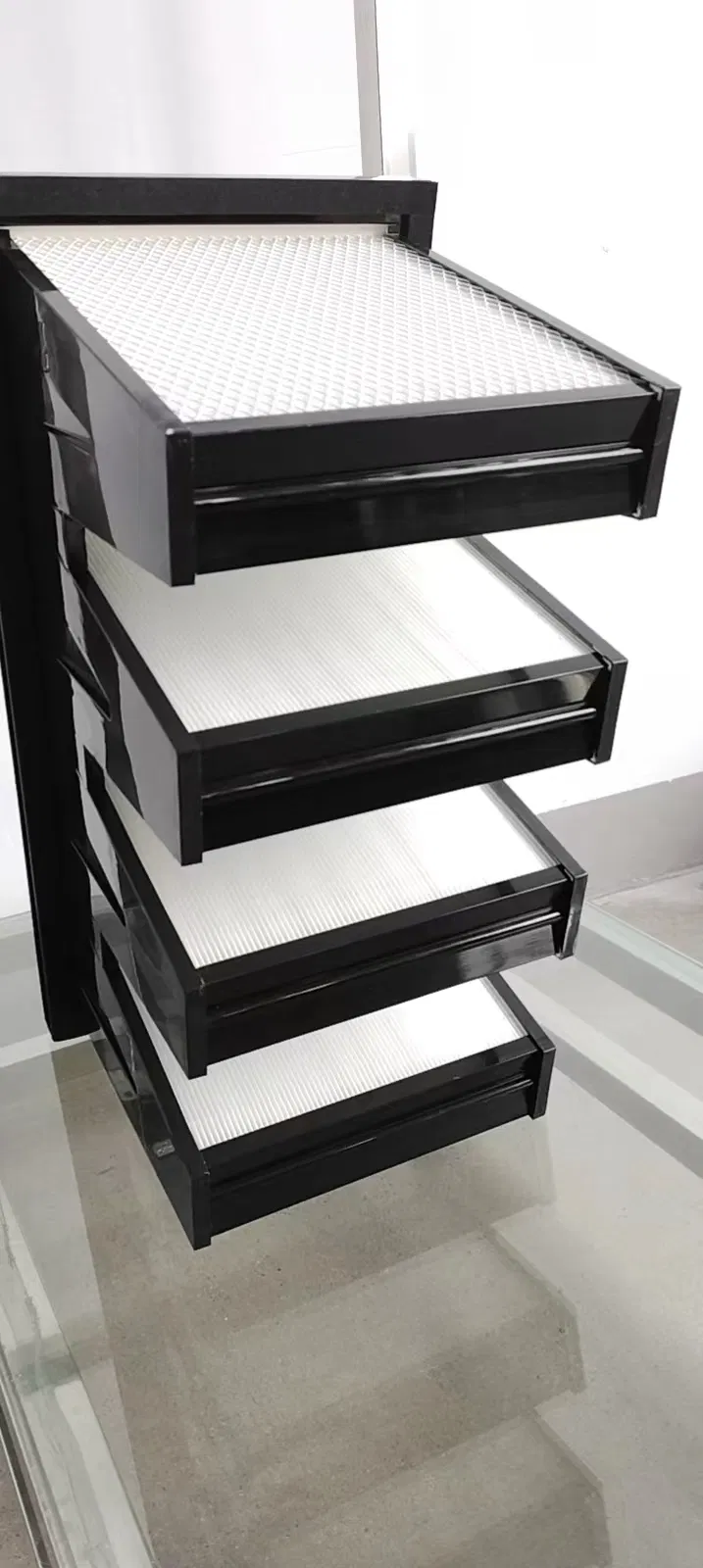

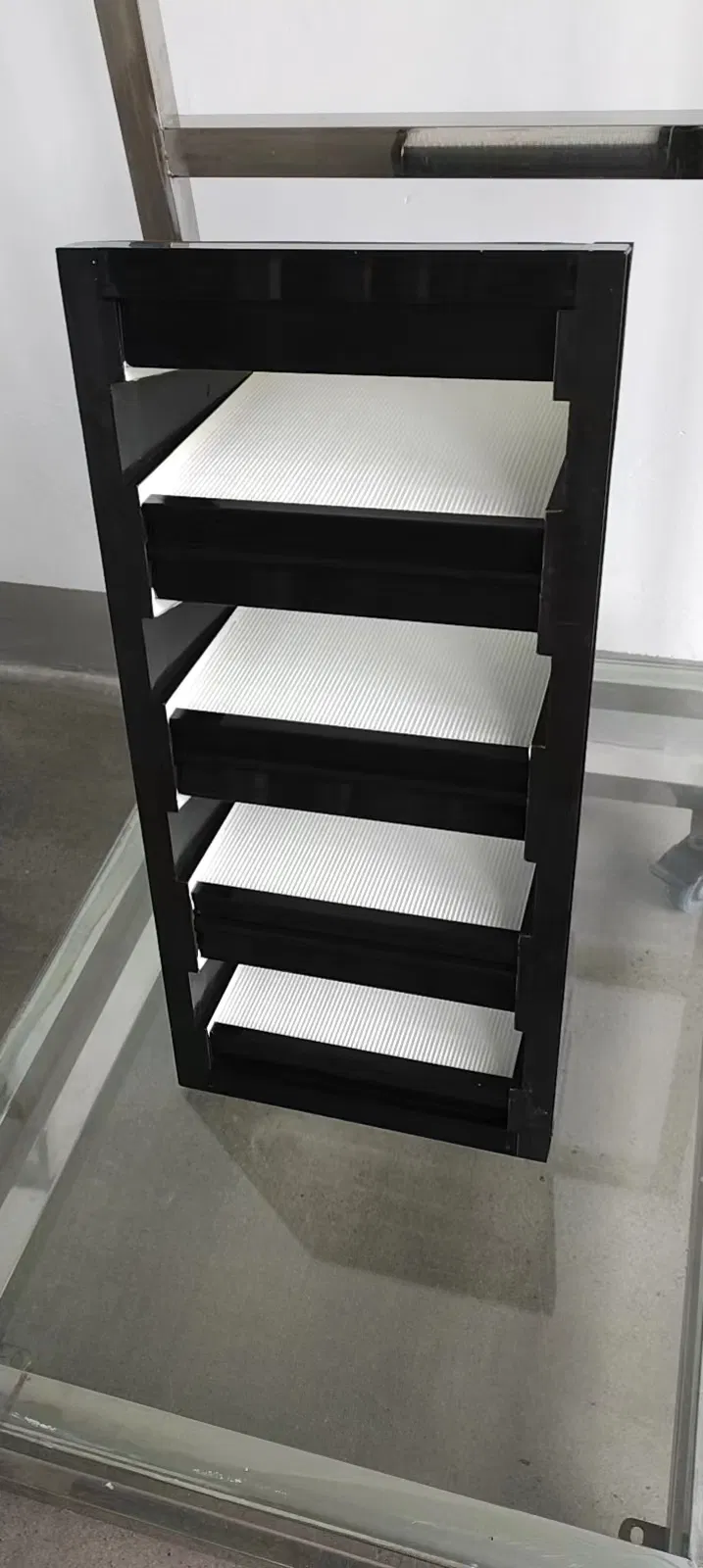

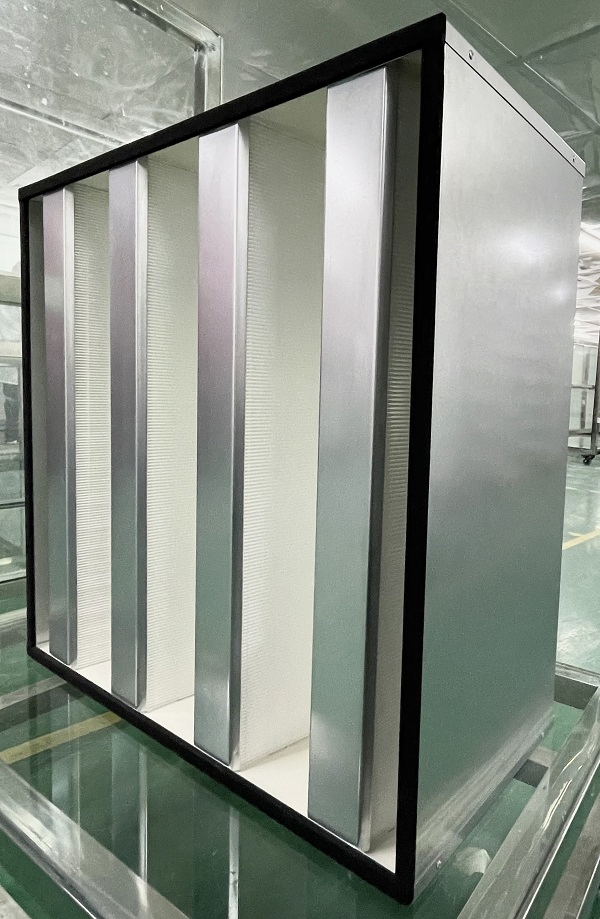

V Cell Ahu HEPA Filter Medium Efficiency Merv13 F7 F8 Plastic Frame Mini-Pleated Compact 4 V Bank Air Filter 24X24X12

Customization: Available
Clapboard: without Clapboard
Medium Material: Fiberglass

Product Description

Basic Specifications
Efficiency
H13~H14
Filtration Grade
HEPA Filter
Type
V Bank Filter
Frame
Galvanized / Plastic
Applications
Clean Room
Style
Mini-Pleated
Certification
ISO9001, ISO14001, ISO45001
Partition
Hot Melt
Gasket
EVA/EPDM
Transport
PE Bag and Carton
Specification
592x592x292mm (optional)
Capacity
50,000 PCS/Year
Product Overview

Custom Plastic Frame 24*24 Fiberglass F7 F8 Mini Pleat AHU/MAU Air Filter

V bank filters, also known as Compact filters or Rigid pocket filters, play a vital role in clean room ventilation systems, especially for filtration class levels 100 or 10. They serve as pre-filters or secondary stage filters before terminal HEPA filters. While sharing functions with pocket filters, V-bank filters provide significantly more stable performance.

MediaWet-laid Glass fiber
SeparatorsHot melt
SealantPolyurethane
Operating Temp≤70ºC
Efficiency Standards:
• H10 (EN 1822) ≥85 at MPPS
• H11 (EN 1822) ≥95 at MPPS
• H13 (EN 1822) ≥99.95 at MPPS
• H14 (EN 1822) ≥99.995 at MPPS
Recommended final pressure drop: ≤600Pa
Technical Specifications & Visuals

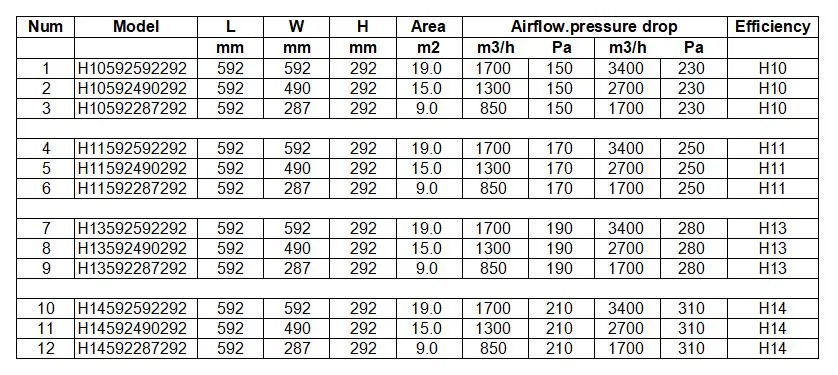

Specification Chart
Applications: Clean room recirculation, AHU, and MAU applications.
Manufacturing Excellence

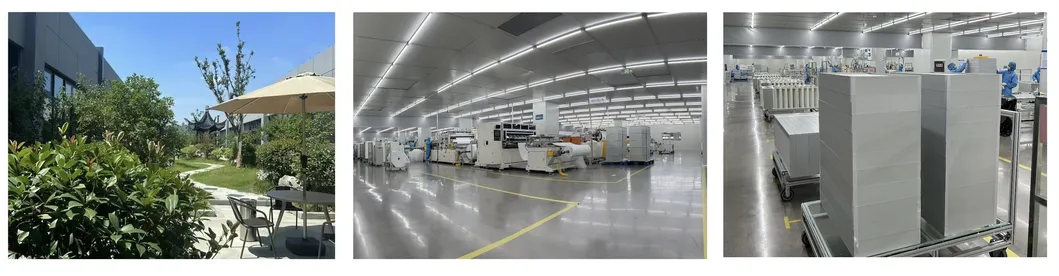

Production Base

Established in 2009, we specialize in all grades of air filters, HEPA boxes, and FFUs (Fan Filter Units). As a leading professional in the air filtration industry, our production base covers approximately 35,000 m², with all workshops fully operational.

We hold ISO9001 quality management, ISO14001 environmental management, EU CE, and US UL certifications. With over 50 patents, we adhere to the principles of innovation, intelligent manufacturing, and excellent quality to provide cost-effective solutions.

Customer Visiting
Frequently Asked Questions
Q1: Do you provide samples?
Yes, free samples can be provided, though customers are responsible for the shipping costs.
Q2: Can the air filters be customized?
Yes, we provide fully customized filters to meet specific size and efficiency requirements.
Q3: What is the typical delivery time?
It depends on the order quantity. Usually, it takes about 7 to 15 working days after receiving the deposit.
Q4: Are you a manufacturer?
We are a top 5 professional factory in China with extensive experience in clean room engineering and over 50 product patents.
Q5: What is the recommended final pressure drop?
The recommended final pressure drop for these V-bank filters is ≤600Pa.
Q6: What frame materials are available for the compact filters?
We offer frames in both high-quality Plastic and Galvanized sheet metal to suit different environmental needs.
