Product Description

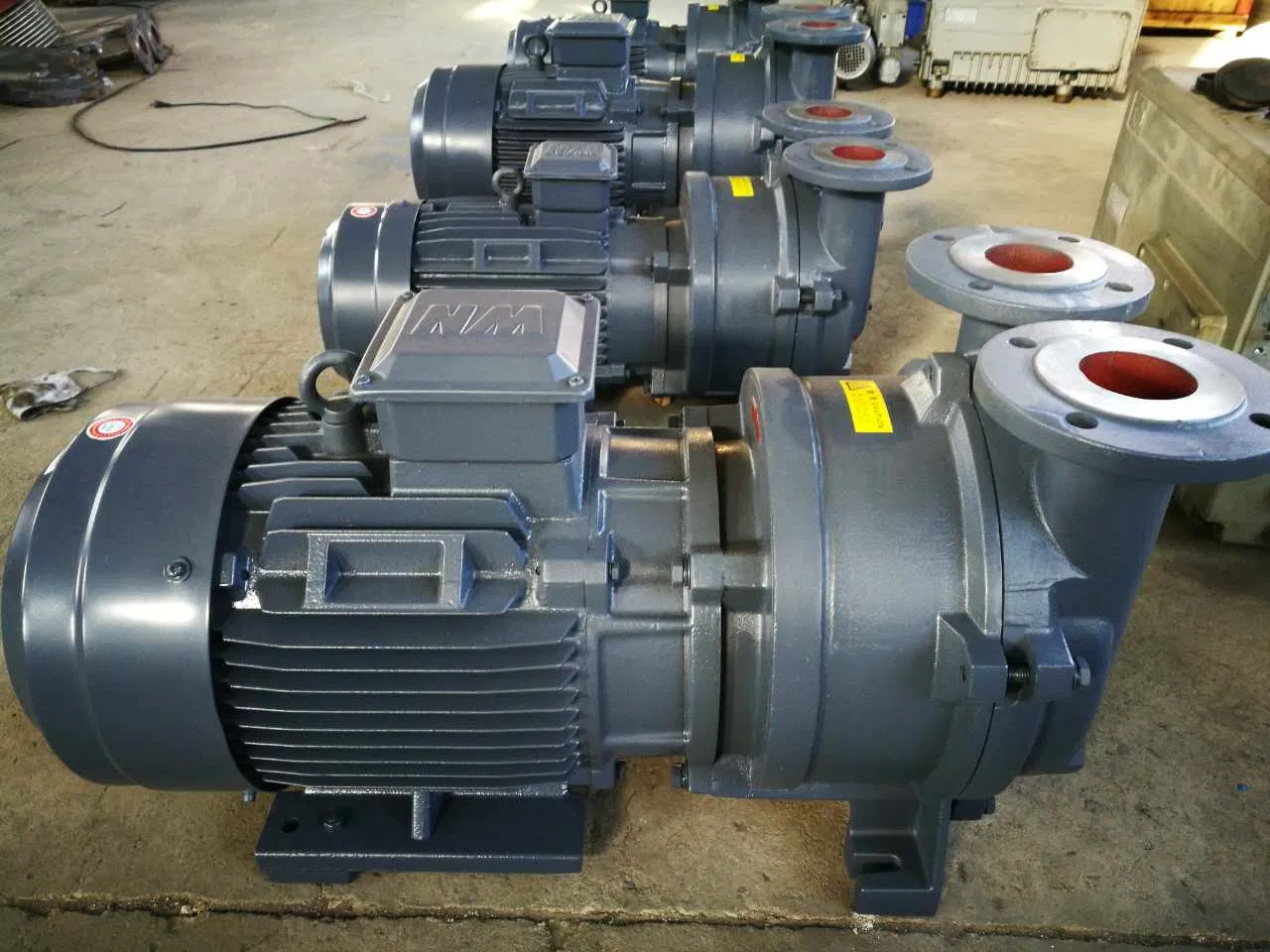

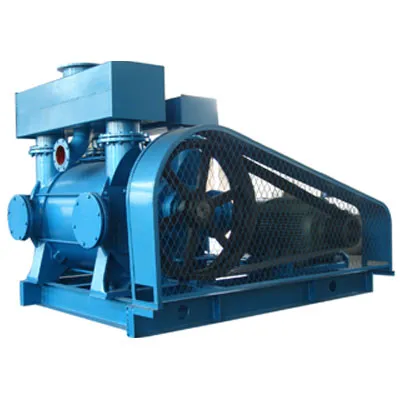

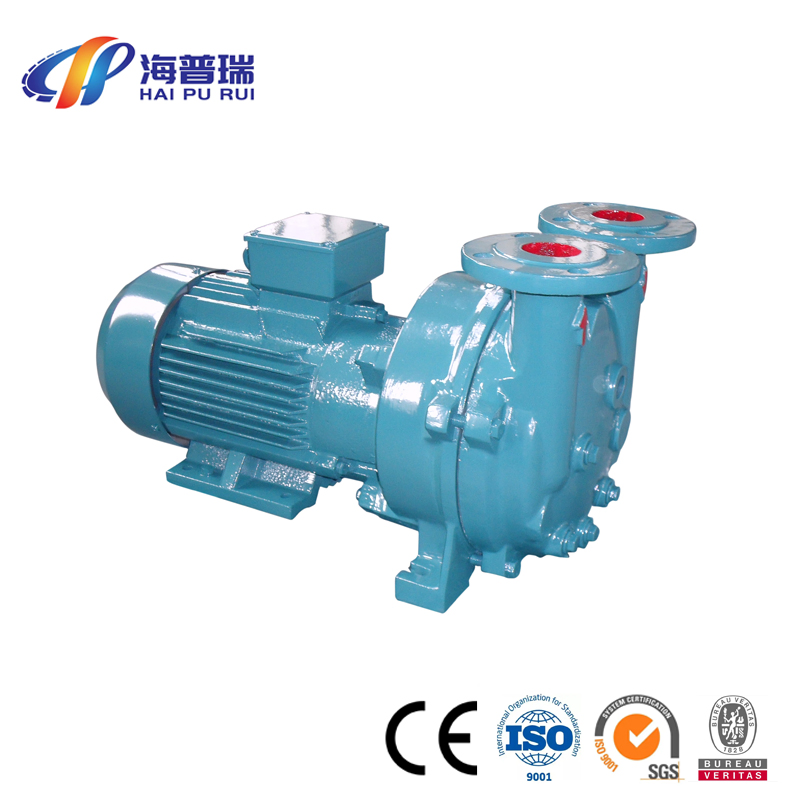

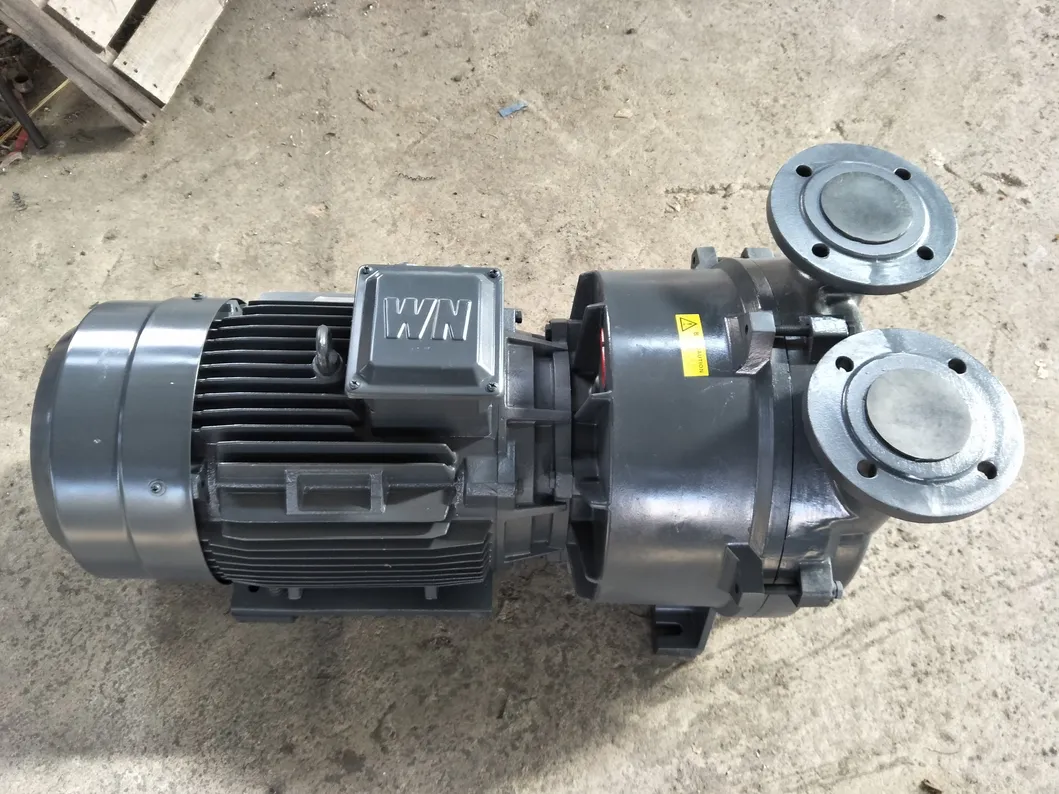

Vacuum Pump - Water Ring Series
2BV series water ring vacuum pump is suitable for pumping gas and water vapor, the ultimate pressure can reach absolute pressure 3300pa (97% vacuum). The working fluid can be recycled using the pumped medium to form a closed cycle system, achieving zero emissions and solvent recovery.
When operating near ultimate vacuum, a cavitation protection pipe is connected to protect the pump. For compressor applications, outlet pressure can reach up to 0.26Mpa (absolute pressure). The 2BV2-EX and 2BV6 series are specifically designed for explosive gases and flammable environments.
Main Features

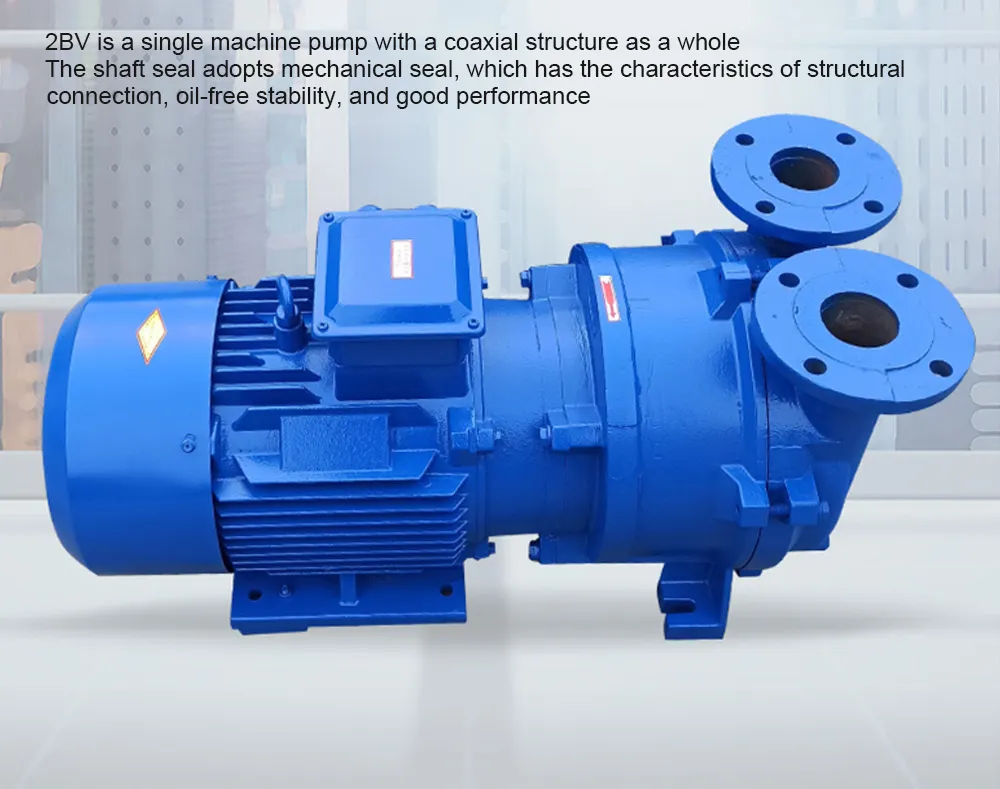

- Machine pump coaxial or direct connection design for space-saving and easy maintenance.
- Standard mechanical seals completely eliminate leaks.
- Cavitation protection interface to eliminate cavitation noise and protect components.
- Corrosion resistance: Parts available in SUS304, SUS316L, 2205, 2507, titanium for acid/alkaline gases.
- Unique flexible exhaust port design ensures optimal operating efficiency across the vacuum range.
Technical Parameters
| Model |
Max Gas Capacity |
Extreme Pressure hPa |
Speed r/min |
Motor Power Kw |
Suction/Exhaust mm |
Weight Kg |
| m³/min |
m³/h |
| 2BV2 060 | 0.45 | 27 | 33 | 2890 | 0.81 | G 1" | 31 |
| 2BV2 061 | 0.86 | 52 | 33 | 2890 | 1.45 | G 1" | 35 |
| 2BV2 070 | 1.33 | 80 | 33 | 2890 | 2.35 | G 1 1/2" | 56 |
| 2BV2 071 | 1.83 | 110 | 33 | 2890 | 3.85 | G 1 1/2" | 66 |
| 2BV5 110 | 2.75 | 165 | 33 | 1440 | 4 | 50 | 103 |
| 2BV5 121 | 4.66 | 280 | 33 | 1440 | 7.5 | 65 | 149 |
| 2BV6 131 | 6.66 | 400 | 33 | 1440 | 11 | 65 | 320 |

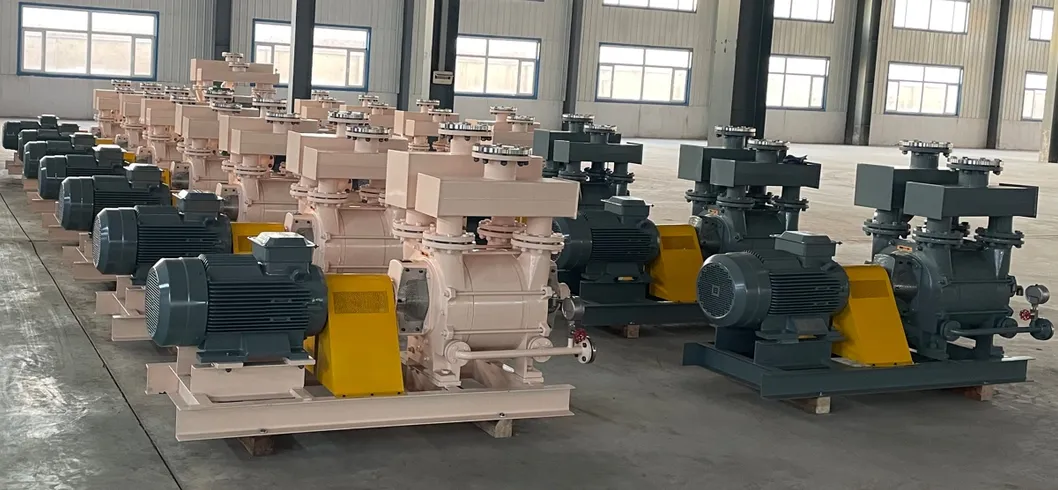

Material Options
According to different medium liquids: 304, 316, 2205, 2507, Titanium.

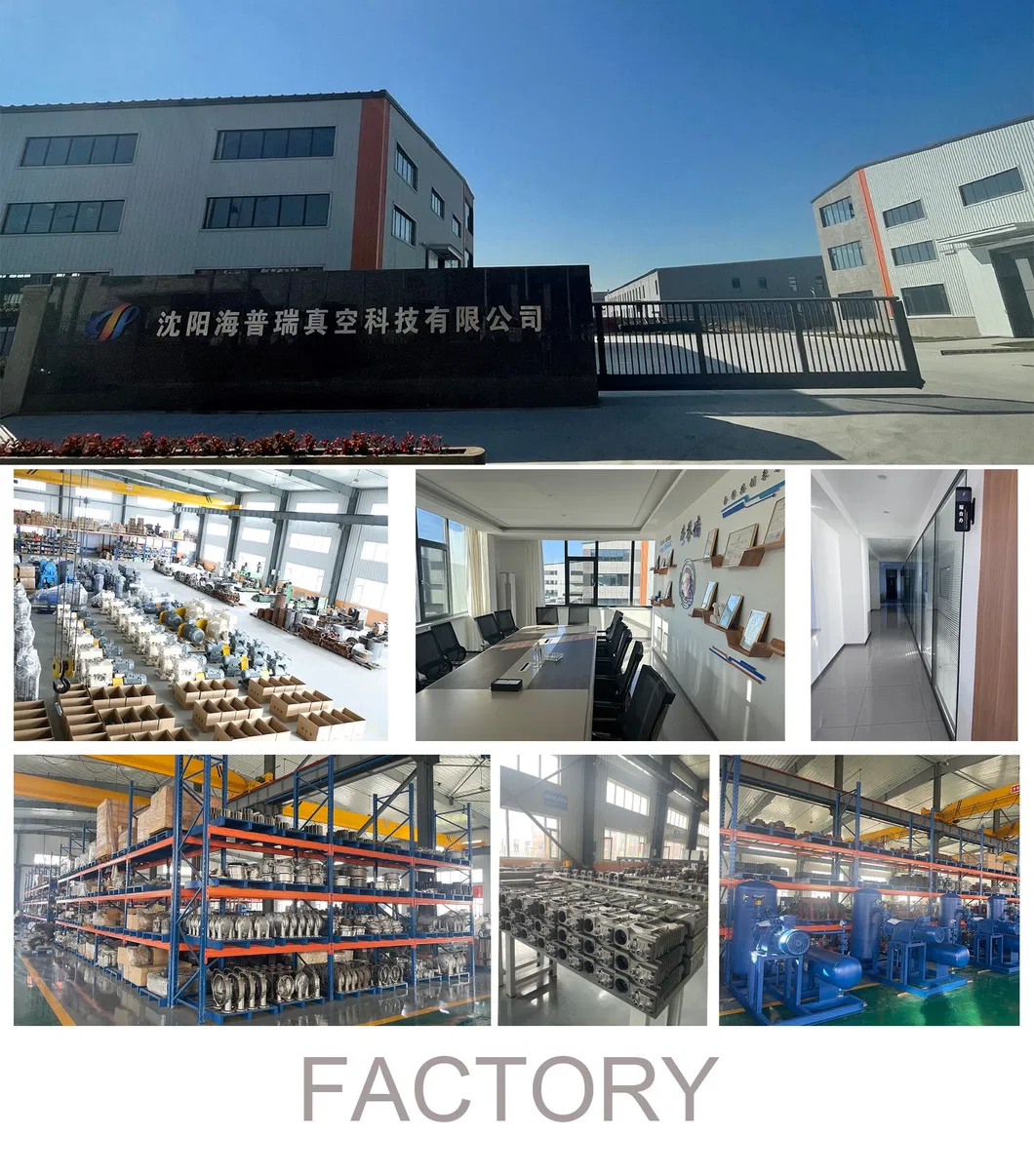

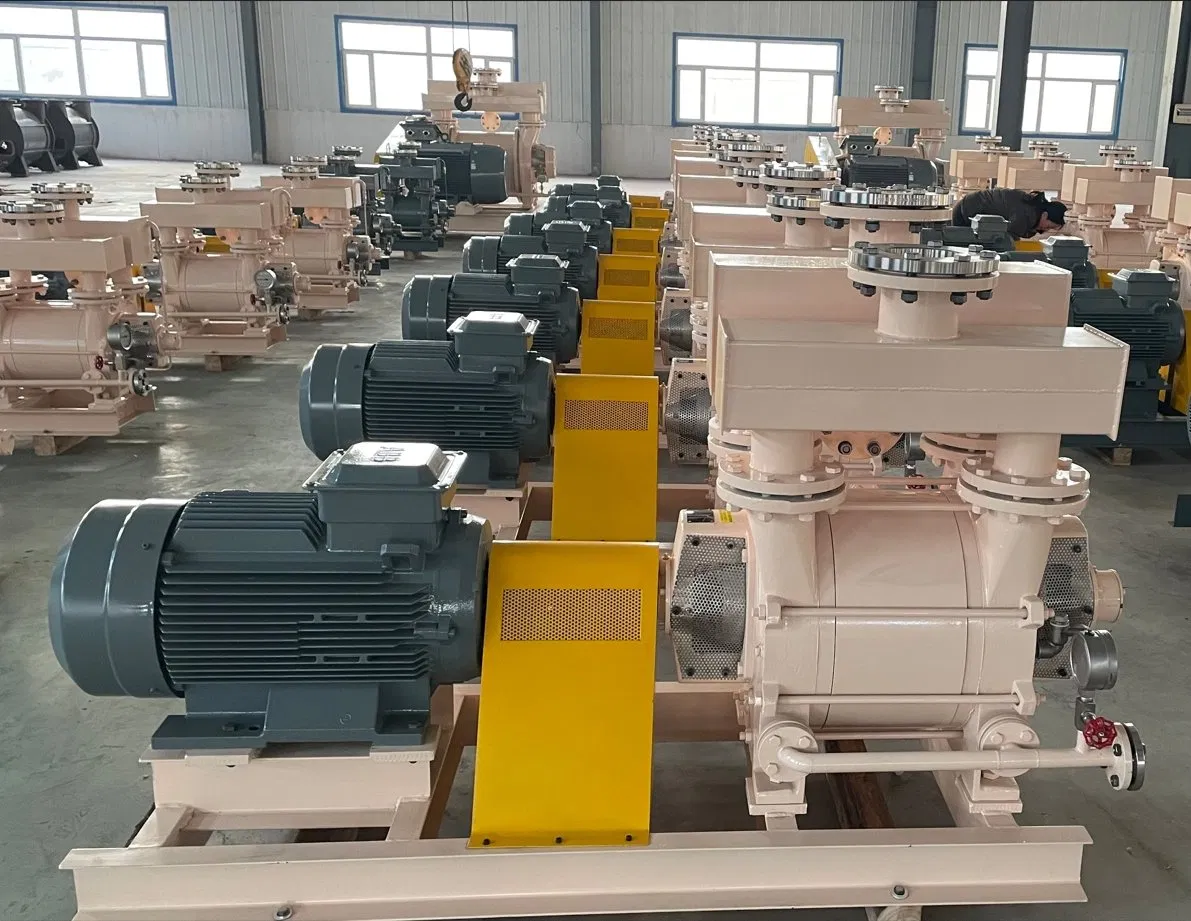

Factory & Production

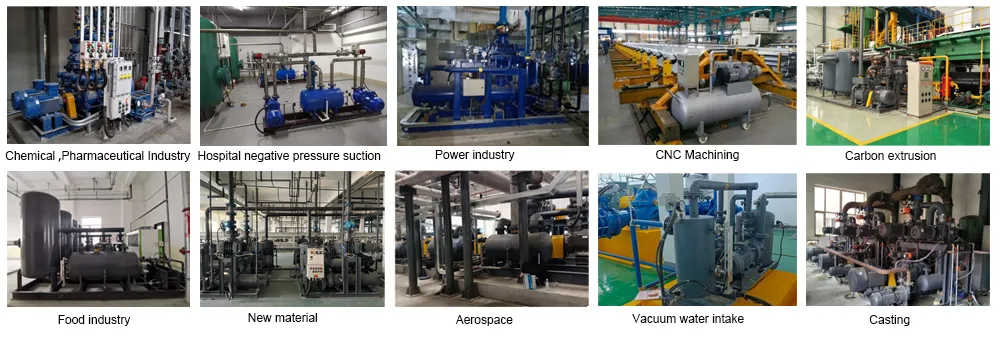

Specialized in R&D, design, manufacturing, and sales of vacuum equipment. Utilizing advanced vacuum technology to provide high-quality solutions for petrochemical, pharmaceutical, aerospace, and packaging industries. Certified with ISO9001 and holding multiple patents for innovation in liquid ring technology.
Quality Certificates
Frequently Asked Questions
1. Are you a manufacturer or a trading company?
We are a dedicated factory with professional teams for design, production, and quality inspection.
2. Do you support customized vacuum solutions?
Yes, we support OEM orders and custom designs based on specific industrial requirements, photos, or technical specs.
3. What materials are available for corrosive environments?
We offer pumps in 304 stainless steel, 316L, 2205, 2507 duplex steel, and titanium for acid and alkaline resistance.
4. What are the common shipping terms?
We offer air shipping via DHL, UPS, FedEx, or TNT, and sea shipping through reliable forwarders to ensure competitive pricing.
5. What information is needed for a technical quotation?
Please provide pump capacity (m³/h or L/S), required voltage (V), frequency (Hz), and the type of medium being pumped.
6. Which payment methods do you accept?
Currently, we accept TT (Telegraphic Transfer), LC (Letter of Credit), and Western Union.
