■Basic Info.
Application
Submersible Pump
Specification
GS, CE, EMC, ISO9001
■Packaging & Delivery
Package Size
144.00cm * 13.00cm * 13.00cm
■Product Description

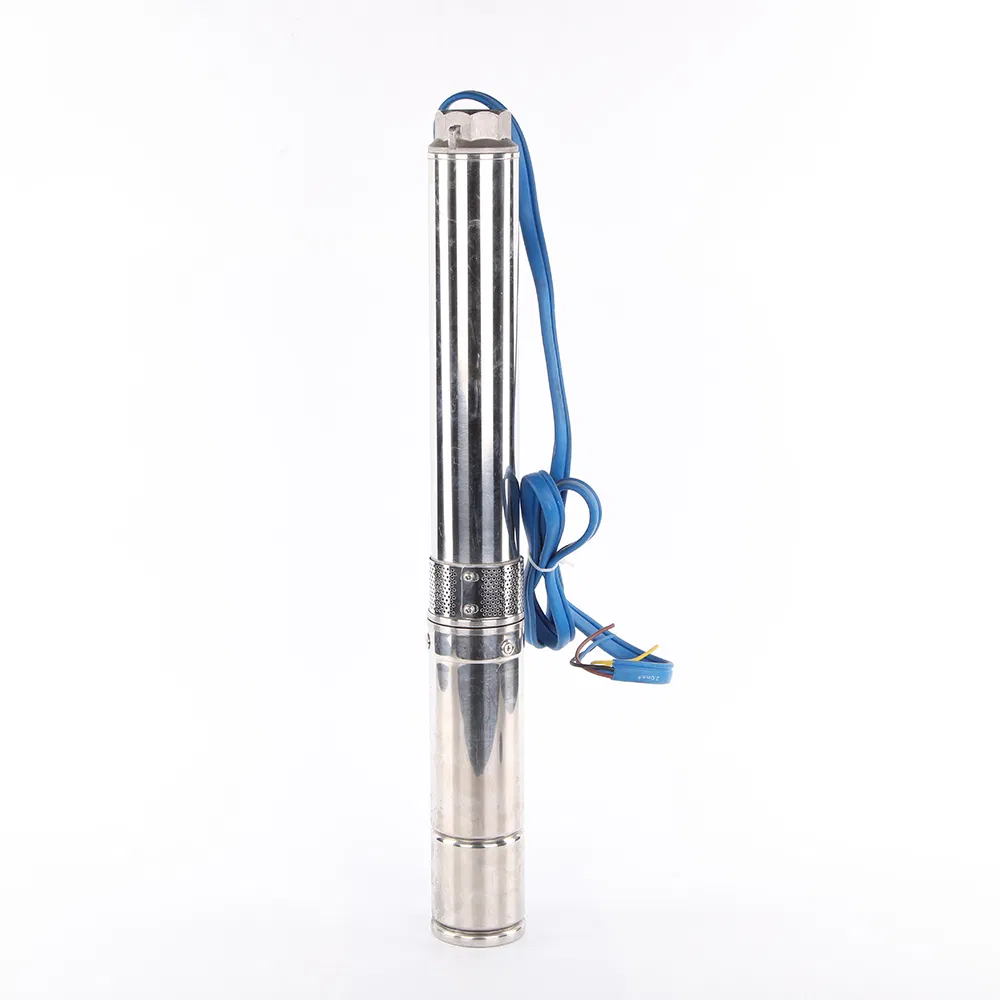

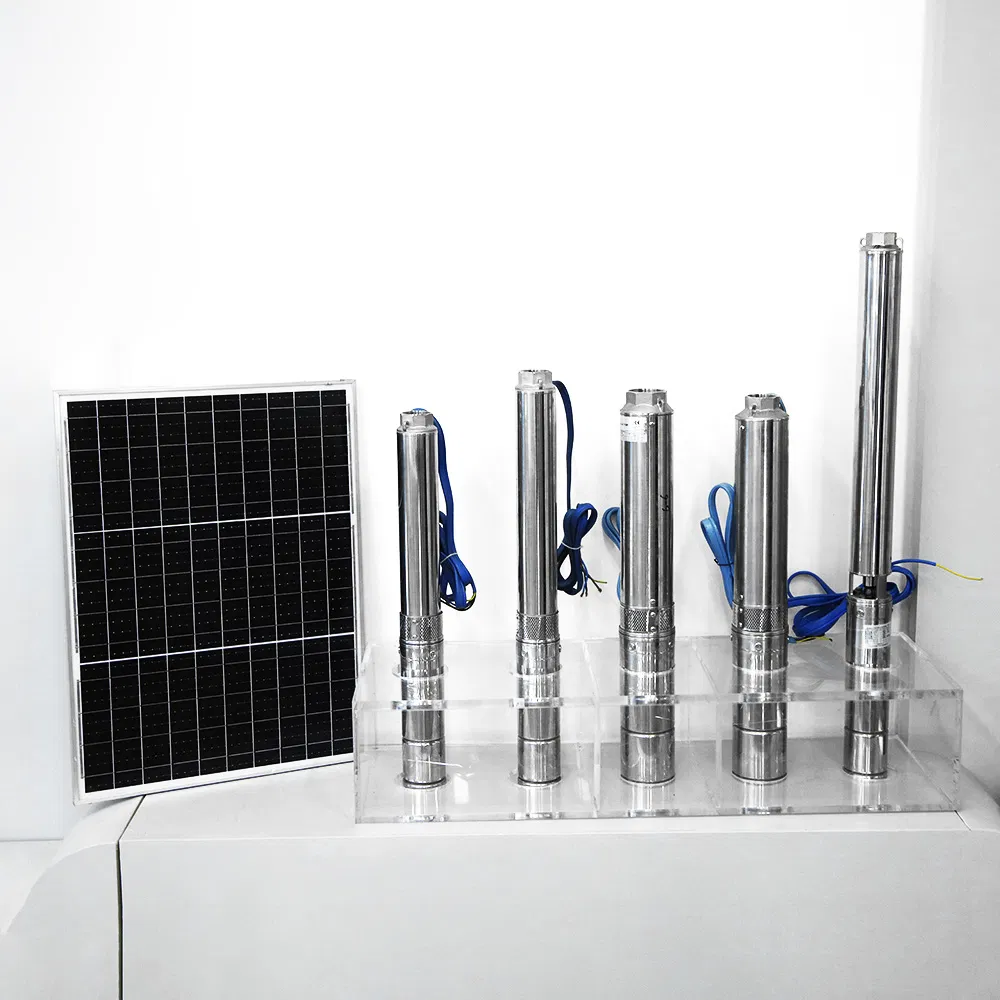

Solar Submersible Borehole Pump
| Model |
Power (W) |
Voltage (DC) |
Optimal Voltage (DC) |
Open Circuit Voltage (DC) |
Flow (m³/h) |
Head (m) |
Outlet (inch) |
| 4DSP5/55-48/600 | 600 | 48 | 48-90 | <110V | 5 | 55 | 1.25" |
| 4DSP5/85-72/600 | 600 | 72 | 72-120 | <160V | 5 | 55 | 1.25" |
| 4DSP5/85-72/900 | 900 | 72 | 72-120 | <160V | 5 | 85 | 1.25" |
| 4DSP5/105-72/1100 | 1100 | 72 | 72-120 | <160V | 5 | 105 | 1.25" |
| 4DSP5/105-110/1100 | 1100 | 110 | 110-160 | <210V | 5 | 105 | 1.25" |
| 4DSP5/125-110/1300 | 1300 | 110 | 110-160 | <210V | 5 | 125 | 1.25" |
| 4DSP5/142-110/1500 | 1500 | 110 | 110-160 | <210V | 5 | 142 | 1.25" |
| 4DSP6.5/42-48/600 | 600 | 48 | 48-90 | <110V | 6.5 | 42 | 1.25" |
| 4DSP6.5/70-72/900 | 900 | 72 | 72-120 | <160V | 6.5 | 70 | 1.25" |
| 4DSP9/60-110/1100 | 1100 | 110 | 110-160 | <210V | 9 | 60 | 2" |
| 4DSP9/85-110/1500 | 1500 | 110 | 110-160 | <210V | 9 | 85 | 2" |
Since its founding, the company has rapidly risen to become an innovation leader in the industry, a modern technology enterprise that integrates research and development, production and sales. As a national high-tech enterprise, the company has always adhered to the corporate culture of 'specialization, innovation and professionalism', implemented the business philosophy of 'AI empowerment and intelligent manufacturing of the future' and committed to promoting the development and application of permanent magnet frequency conversion technology to contribute to the overall industrial upgrading of the water pump industry.
?Frequently Asked Questions
In which scenarios are the permanent magnet variable frequency pumps mainly applied?
They are suitable for scenarios such as domestic water supply, commercial circulation systems, agricultural irrigation, industrial cooling, etc. Specific models can be selected according to the requirements of flow rate and head.
What are the advantages of permanent magnet variable frequency pumps compared to traditional water pumps?
They can save 30% to 50% of energy, have lower noise, intelligent speed regulation, a longer service life, and support remote monitoring for optimized performance.
What precautions should be taken when installing the water pump?
1. Ensure that the installation foundation is flat and stable;
2. Install a filter at the water inlet to prevent impurities from damaging the impeller;
3. The motor shaft must be placed horizontally;
4. Check whether the power supply voltage matches after wiring.

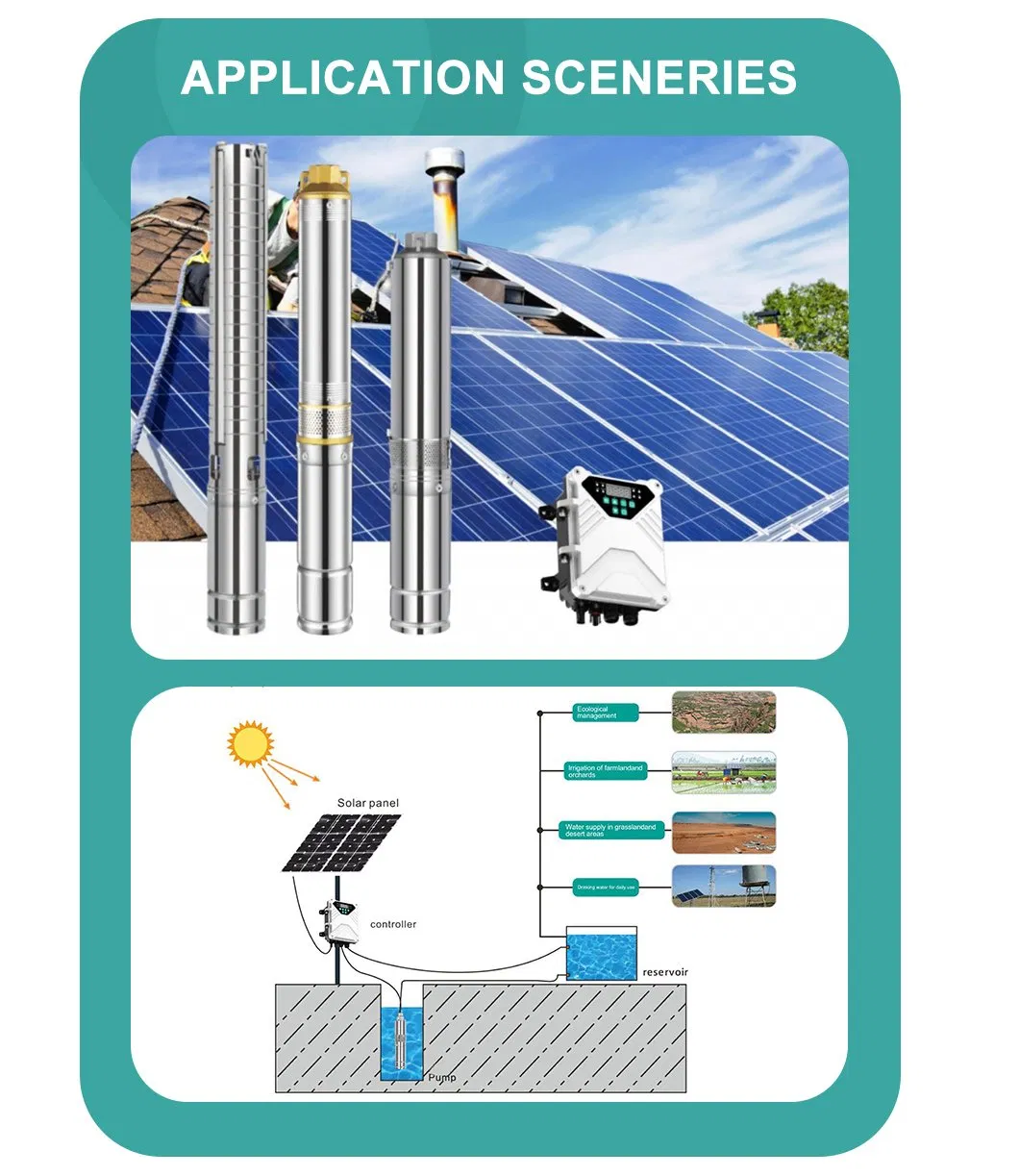

Can these pumps be used with solar energy systems?
Yes, these pumps are specifically designed for solar energy applications, supporting DC power inputs from solar arrays, making them ideal for remote borehole and irrigation needs.
What materials are used in the construction of these borehole pumps?
The pumps utilize high-quality materials such as cast iron and permanent magnet components to ensure durability and high-efficiency performance in submersible environments.
Do the pumps support intelligent speed regulation?
Yes, the permanent magnet frequency conversion technology allows for intelligent speed regulation, which adjusts the motor output to match the demand, significantly reducing energy consumption.
