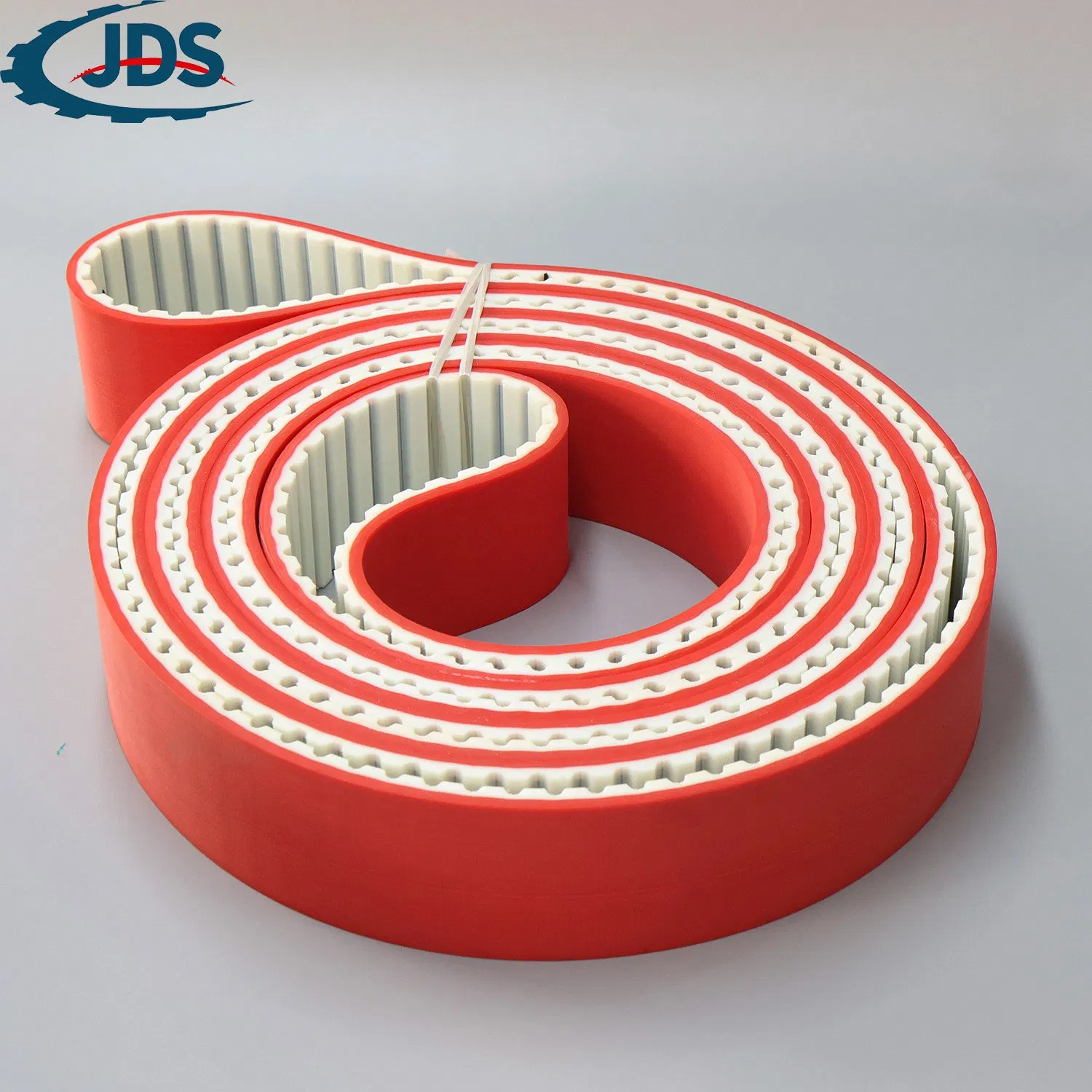

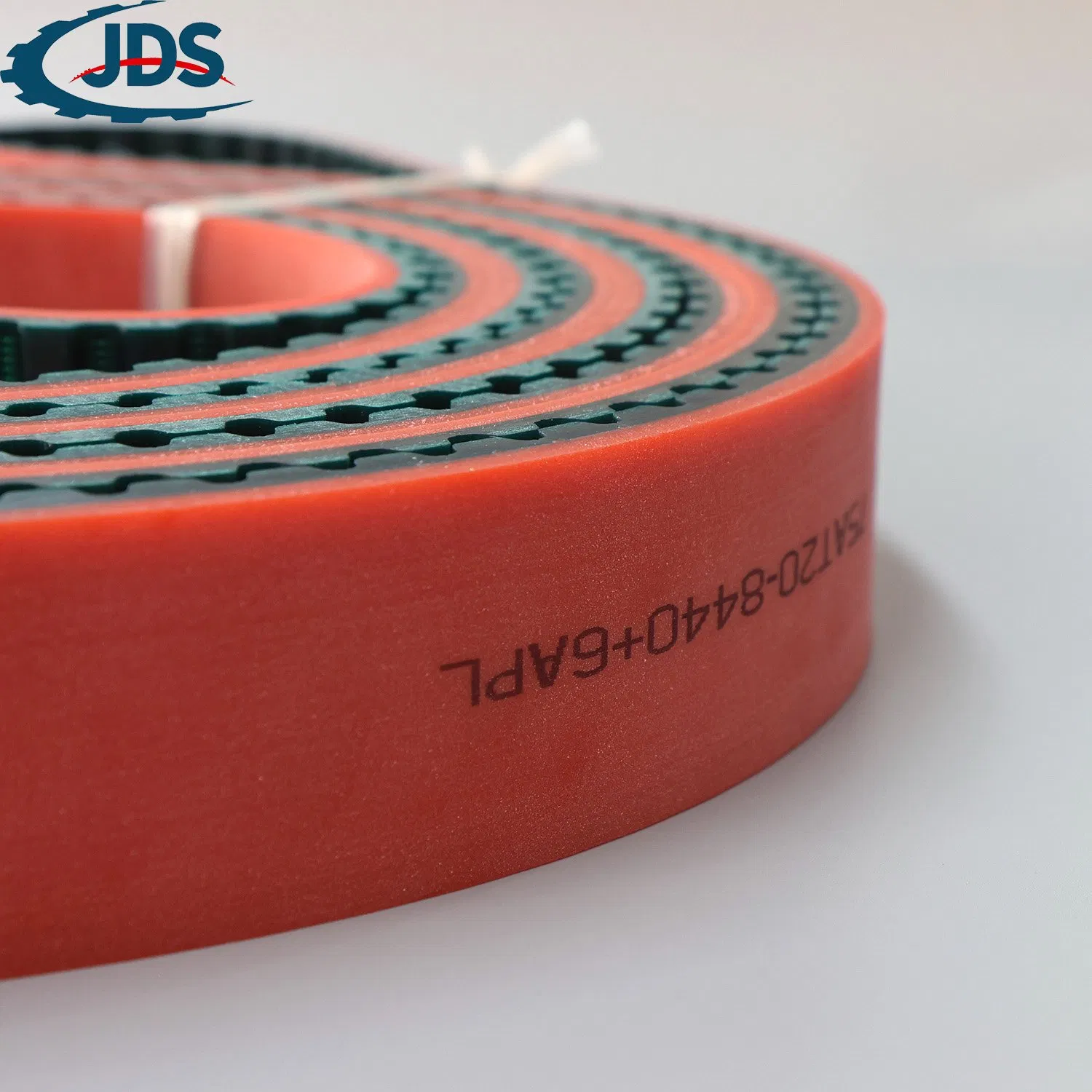

Durable At20 Truly Endless Industrial Timing Belt with Apl Coating for Ceramic Industry Applications

1 / 5

Durable At20 Truly Endless Industrial Timing Belt with Apl Coating for Ceramic Industry Applications

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.

AT 20

Type

Open End Timing Belt

Inside Material

PU (Polyurethane)

Reinforcement

Stainless Steel Wire

Warranty Period

1 Year

Tensile Strength

Strong

Certificate

ISO SGS

HS Code

3926909090

Features:

Oil-Resistant Acid and Alkali Resistant Tear-Resistant Heat-Resistant Cold-Resistant Wear-Resistant

Product Description

The AT20 polyurethane timing belt is precisely engineered for high-performance tasks requiring reliable synchronization. It is particularly effective in power transmission and linear motion devices, especially for low-speed, high-torque drives.

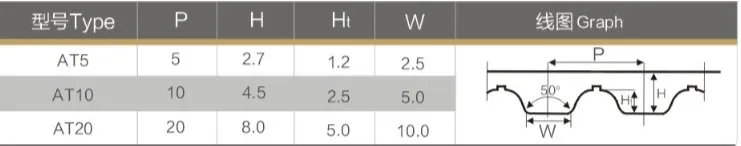

Technical Specifications

Parameter	Detail
Top cover	APL/AVAFC/PU/RUBBER, etc.
Teeth Color	White/red/yellow/black/green, etc.
Standard width (mm)	50mm/75mm/100mm/150mm
Minimum length (mm)	2500
Max. available length (mm)	20000
Pitch (mm)	20
Height (mm)	8.0
Ht (mm)	5.0
Width between adjacent teeth	10.0
Material	PU & APL

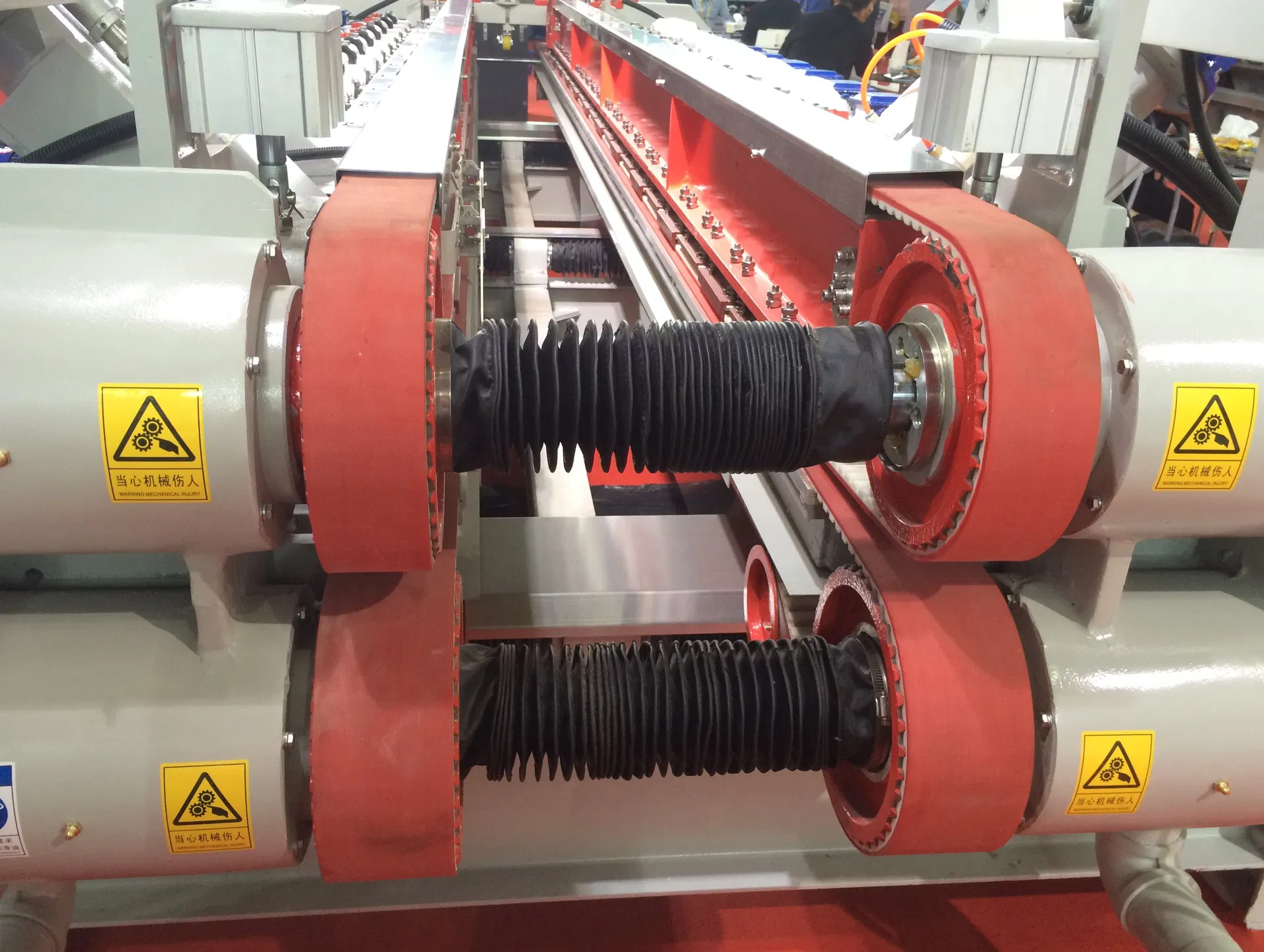

Application	Edge grinding machines for Ceramics, marble, tiles, stones, glasses

Key Applications & Structure

⚙️

Applications: Office equipment, textile machinery, automotive equipment, machine tools, food machinery, printing and packaging equipment, construction machinery, and home appliances.

🏗️

Structure:

Polyurethane backing: Protects against oil, grease, heat, and aging.
Steel Cord Tension Members: Ensures high strength and minimal elongation.
Nylon fabric tooth facing: Resists abrasion and tooth shear.

💎

APL Coating: Vulcanized to the belt to ensure high cohesion and pressure tolerance, significantly extending service life.

🎨

Customization: Coating options include average rubber, APL, and AVAFC. Available in multiple colors including white and red.

Industry Capabilities

About the Manufacturer

Specializing in producing, researching, processing, and marketing polyurethane timing and conveyor belts since 2004. With a focus on research and innovation, high-performance seamless ring belts have been developed specifically for industries requiring high tensile strength, abrasion resistance, and synchronization.

Why Choose Us?

Consistent Quality Control
Long Lifespan and High Durability
Competitive Pricing Structures
Sufficient Production Capacity
Fast and Reliable Delivery

Other Available Profiles:

Trapezoidal: MXL, XL, L, H
T-Tooth: T2.5, T5, T10
HTD Arc: 3M, 5M, 8M, 14M
STD S-Tooth: S3M, S5M, S8M

Frequently Asked Questions

Is your company a manufacturer or a trading company?

We are specialized manufacturers with our own dedicated facility focusing on high-quality transmission technology.

How can I trust your company for long-term business?

We maintain professional certifications and operate as a verified supplier with field certification, ensuring transparency and reliability.

Can I request a sample before placing a bulk order?

Absolutely. We provide samples so you can experience our quality and material performance firsthand before commitment.

How do you ensure the quality of the belts?

We follow strict manufacturing procedures with rigorous quality control. Our testing center performs 100% inspection on finished products.

Do you offer custom-made (OEM/ODM) services?

Yes. By providing drawings or samples, we can customize products to your specific technical requirements and offer expert design advice.

What materials are used for reinforcement?

We primarily use high-strength stainless steel wire as reinforcement to ensure excellent flexing and minimal elongation.
