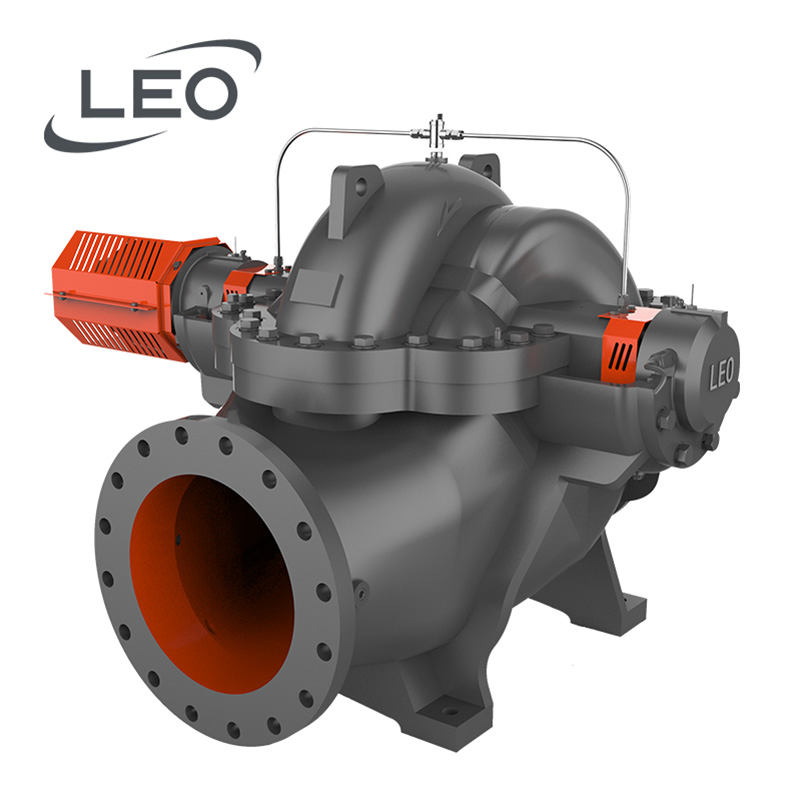

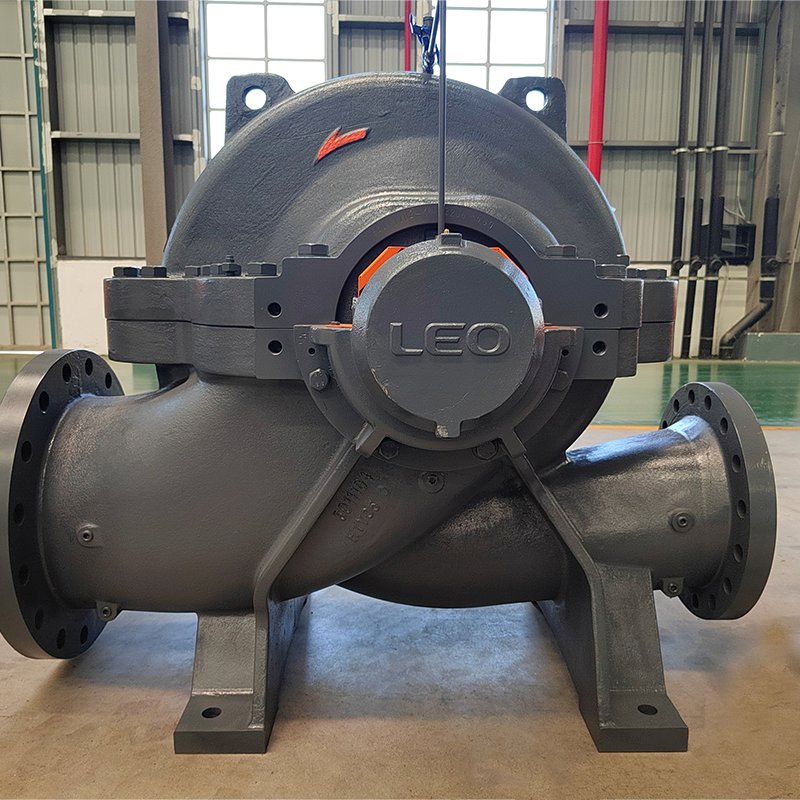

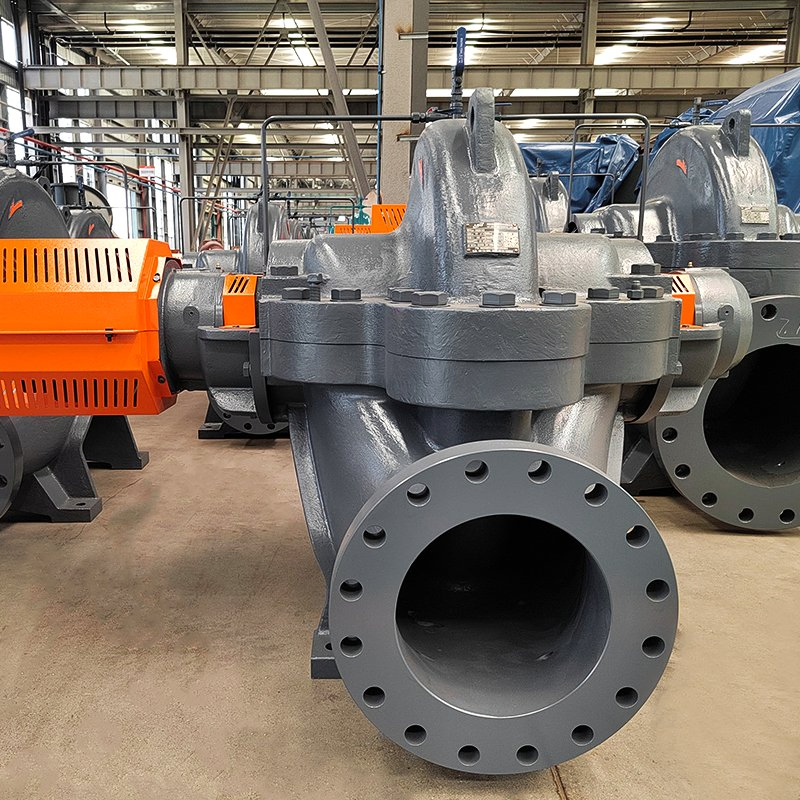

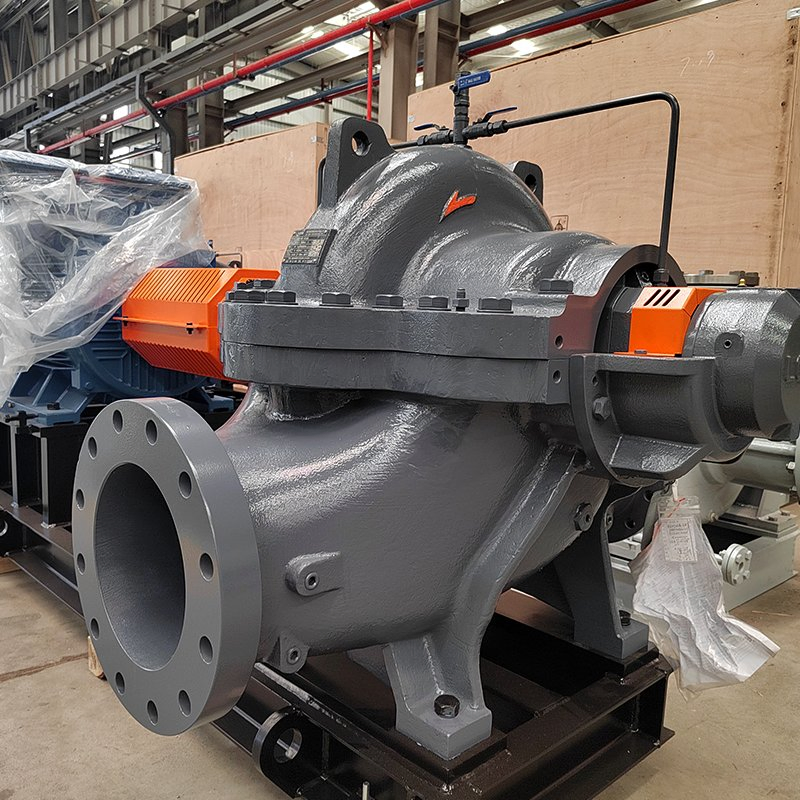

Leo Industrial Electric High Pressure Horizontal Single Stage Double Suction Centrifugal Water Pump for Farmland Irrigation

Type GSX series product is characterized by broad comprehensive performance curve, sound hydraulic performance, novel structure, high efficiency, high reliability, low net positive suction head, and low maintenance.

The design, manufacture, and quality of this series product meet the standard of GB/T5656 "Technical conditions for centrifugal pumps-Class II" and its efficiency indexes meet the standard of GB/T19762 "The minimum allowable values of energy efficiency and evaluating values of energy conservation of centrifugal pump for fresh water".

GSX series products are mainly used for transport fresh water or other liquid with similar physicochemical properties to fresh water. It can also be widely applied in water supply and drainage systems or circulation cooling water systems for steel, petrochemical, thermal power generation, mining, and other working conditions.

• 1. SealingSuperior mechanical seal for long-term operation without leakage. Stainless steel shaft sleeve for easy maintenance. Half packing gland provides large space for replacement.
• 2. Protective CoverHalf-split structure, complying with IE standards, safe and reliable.

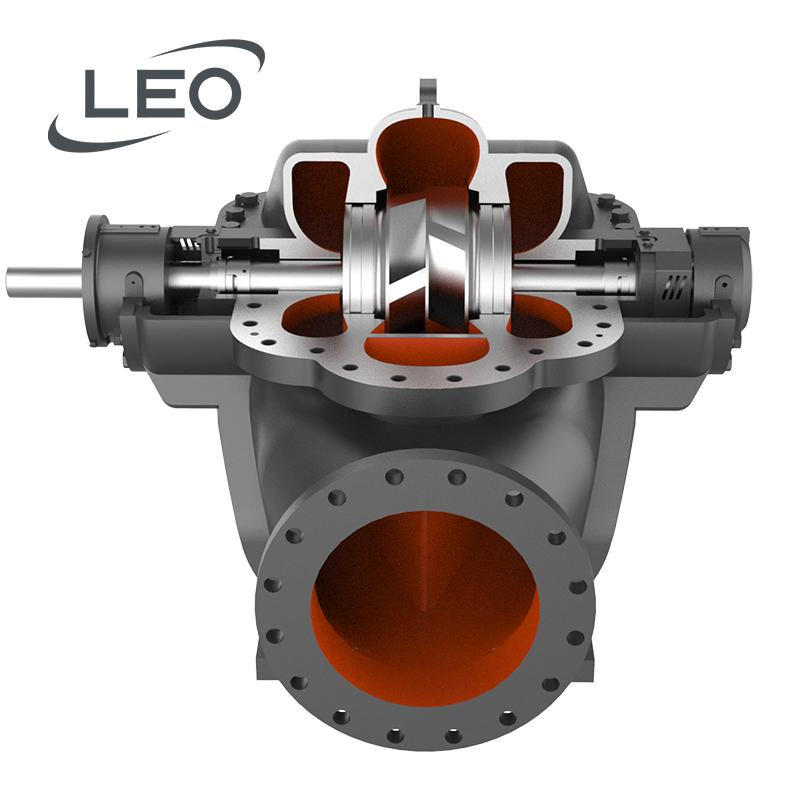

• 3. CasingDouble-volute pumping chamber balances radial force. Circular pressure chamber design ensures high efficiency. Water suction chamber with split rib design prevents vortex and noise.
• 4. BearingShort span and enlarged diameter design for stable operation. Online vibration and temperature monitoring available. Grease lubrication for medium pumps with online refueling.
• 5. ShaftBold design, universal for 50HZ and 60HZ. Full sealing design prevents contact with liquid. Allows short-time inversion.
• 6. ImpellerThree-dimensional flow theory design (CFD calculation). Staggered blade design with V-shaped outlet for low pulse and high efficiency. Labyrinth seal design reduces leakage.

Please provide the following information:

• Pump mode or working data: capacity, head, and NPSH.
• Medium properties: temperature, corrosiveness (Note: for >80ºC, cooling structure and specific materials are required).
• Type of shaft seal: non-asbestos soft packing, mechanical seals, or injection type.
• Direction of rotation (Default is clockwise from motor to pump).
• Motor requirement: power, voltage, protection class, insulation class, etc.
