Rubber PU Industrial Automotive Conveyor Wedge Belt Narrow Classic Banded Cogged V Belt for Lawn Mower and Timing Drive Systems

Basic Information

Model NO.Z, A, B, C, D, E, SPZ, SPA, SPB, SPC 3V, 5V, 8V

FeatureAnti-Static, Oil-Resistant, Heat-Resistant, Wear-Resistant

MaterialRubber

TypeV Belt

Fiber CordPolyester, Kevlar

ColorBlack / Grey / Red

Temp Resistance-40°C to +80°C

CertificationsDIN 7721, ISO 13050, RoHS, Reach

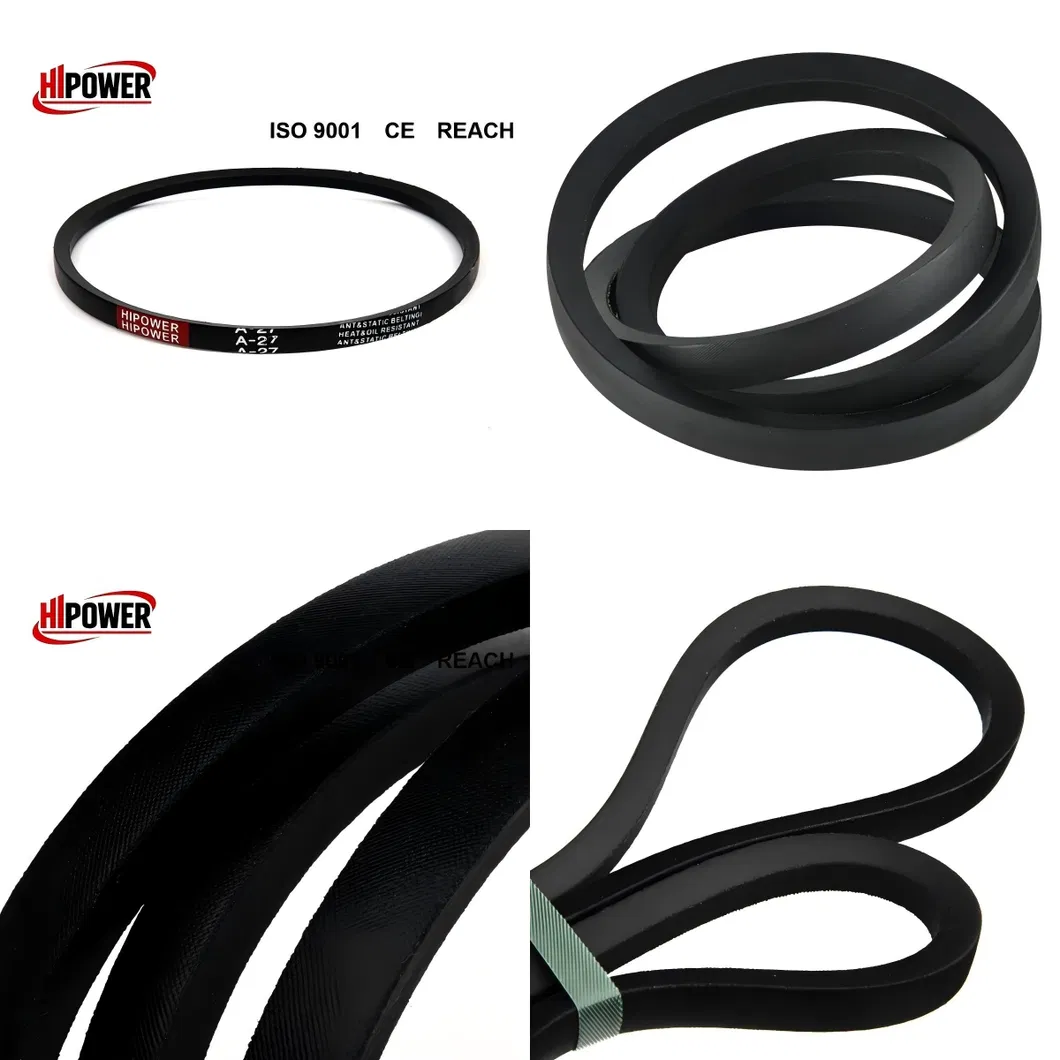

Classical Wrapped V-Belt Description

Classical Rubber V-Belts are high-strength power transmission belts designed for light to medium-duty industrial applications. They offer low elongation, precise length tolerance, and excellent fatigue resistance for reliable performance in motors, conveyors, and packaging machinery.

Marking Systems:

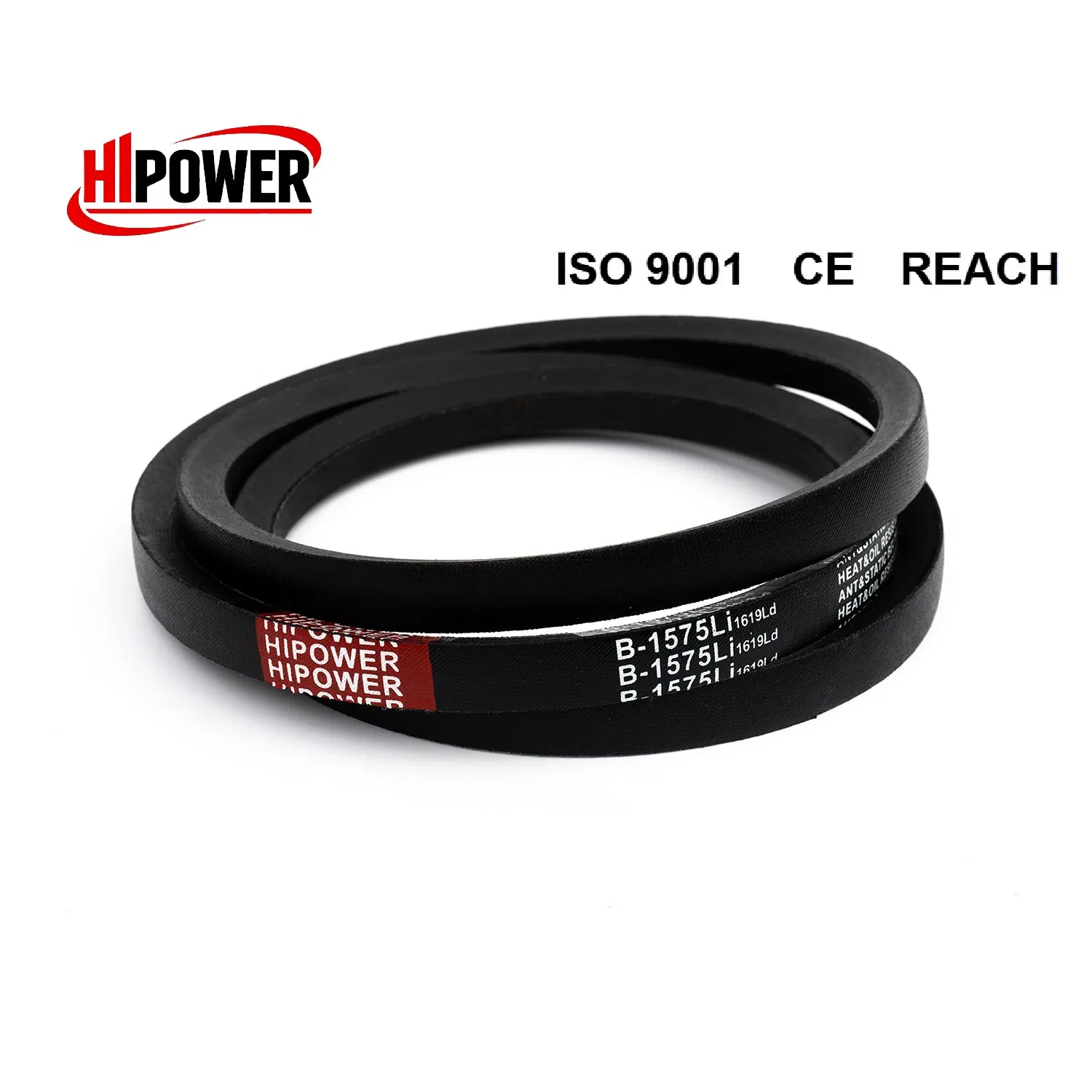

Metric System: E.g., A 1321Li 1351Ld (A type, pitch length 1351mm, inside length 1321mm).
Inch System: E.g., B 50 Li (B type, inside length 50 inches).

Classical Wrapped V Belt Specifications

Type	Top Width (mm)	Pitch Width (mm)	Height (mm)	Angle	Length Conversion	Range (mm)
Z	10	8.5	6	40º	Li=Ld-22	330-3000
A	13	11.0	8	40º	Li=Ld-30	356-10000
B	17	14.0	11	40º	Li=Ld-40	483-15000
C	22	19.0	14	40º	Li=Ld-58	737-15240
D	32	27.0	19	40º	Li=Ld-75	2032-15240

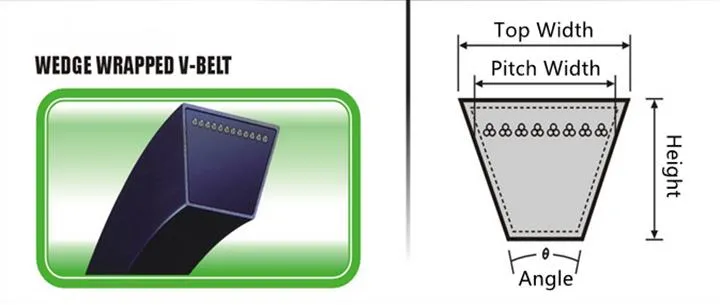

Wedge Wrapped V Belt

Featuring high transverse strength and large transmission power (50-80% more than classical belts). Transmission efficiency exceeds 95%.

Type	Top Width	Height	Angle	Length Coversion	Range (mm)
3V/9N	9.5	8.0	40	La=Li+50	406-5080
5V/15N	16.0	13.5	40	La=Li+82	1100-10008
SPZ	10.0	8.0	40	La=Li+50	406-5080
SPA	13.0	10.0	40	La=Li+63	600-5080
SPB	17.0	14.0	40	La=Li+88	1118-10008

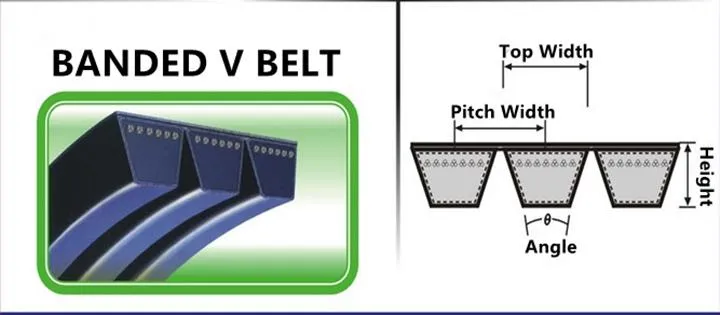

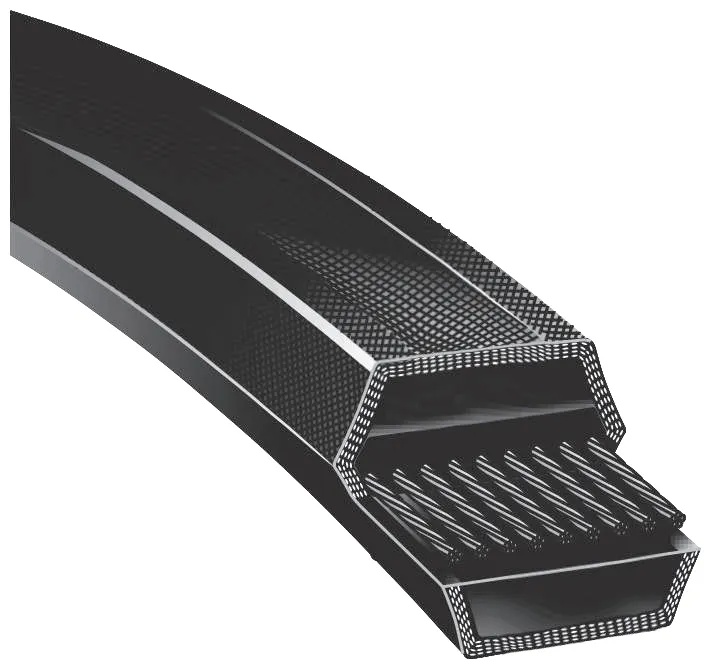

Banded V Belt & Special Application

Recommended for heavy-duty drives where single belts may vibrate, turn over, or jump off the drive.

Production & Quality Control

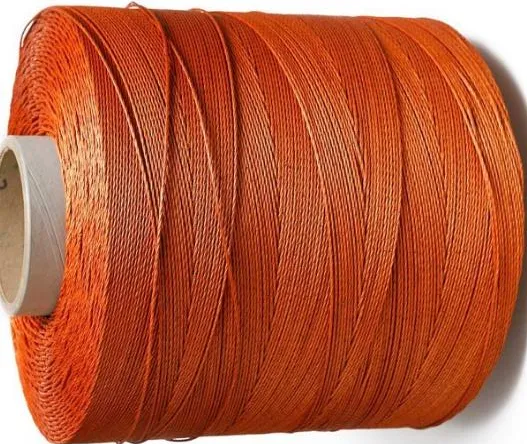

Material Selection: High-grade NR/CR/SBR rubber and Polyester/Kevlar cords.

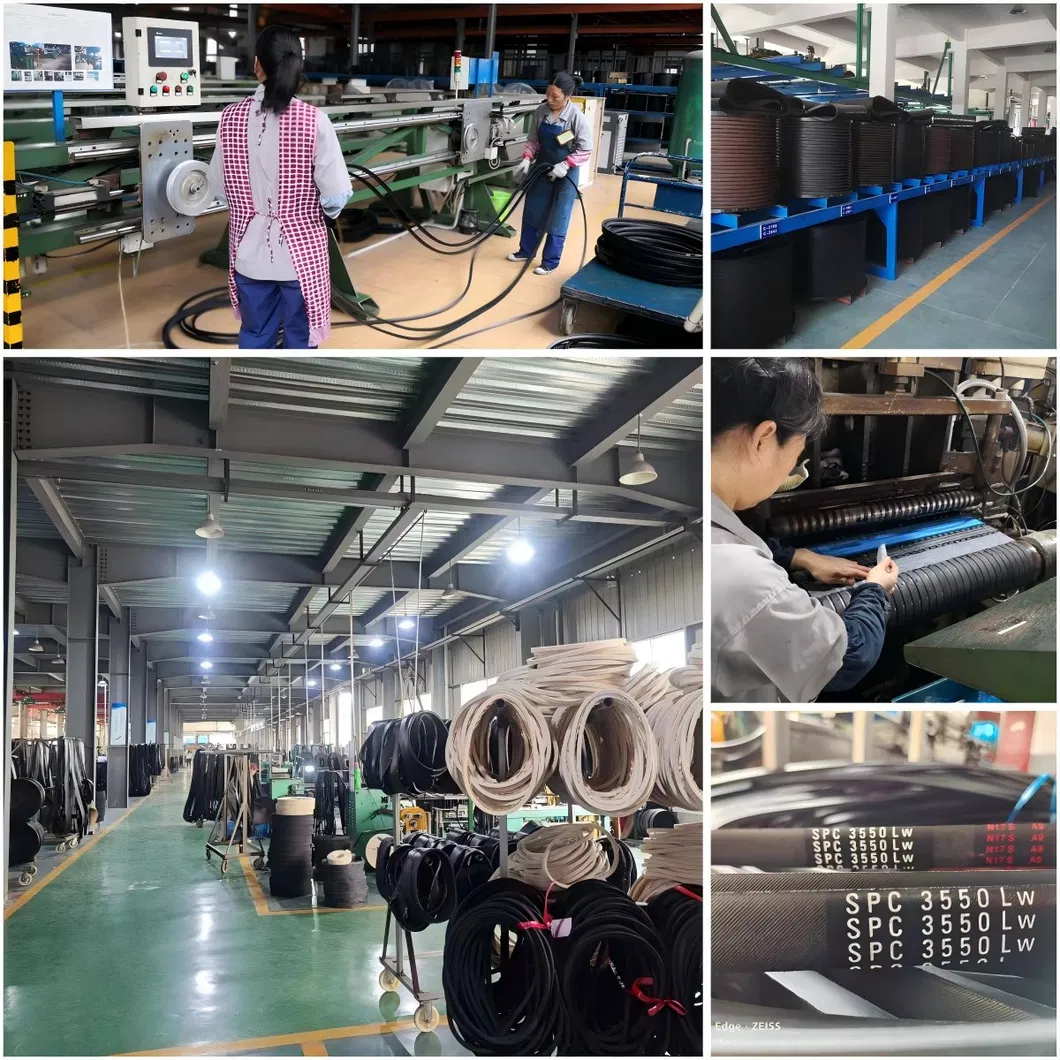

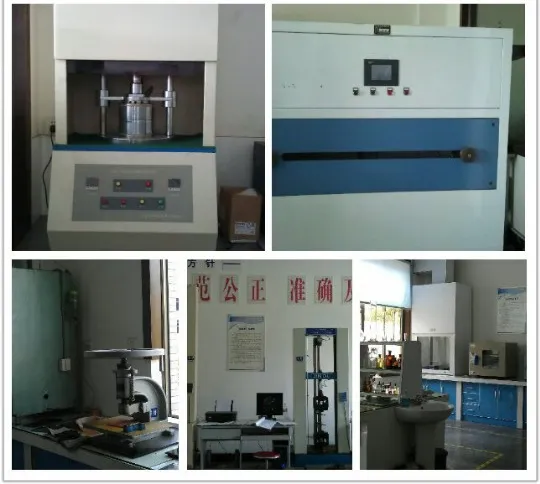

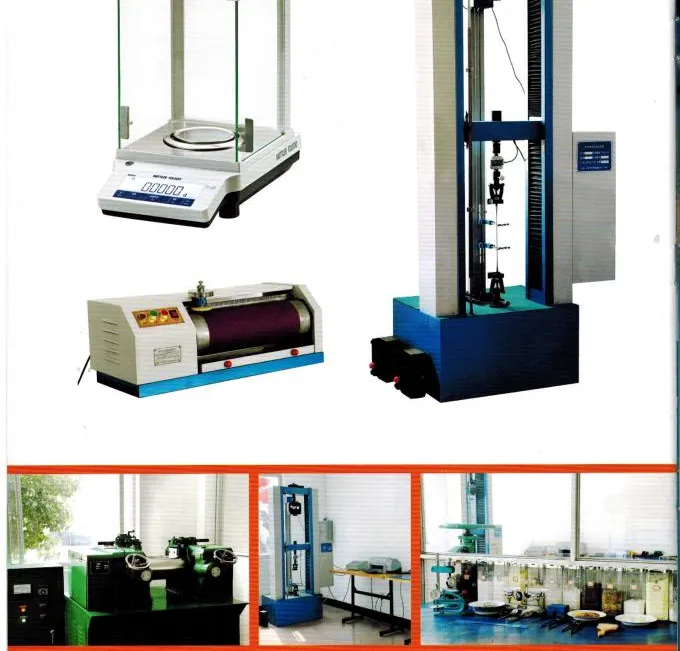

Manufacturing & Testing:

Packaging Solution

Frequently Asked Questions

Can I request a sample order?

Yes, sample orders are welcome to evaluate the quality of our rubber belts.

What is the typical lead time?

Normal samples take 2-5 days, while formal bulk orders typically require 25-40 days.

What is the Minimum Order Quantity (MOQ)?

Usually one mould quantity. This is approximately 50pcs for small items and 10pcs for large items.

Can you print customized logos on the belts?

Yes, we provide branding services upon receipt of a formal authorization letter for the logo.

What is the temperature range for these belts?

Our V-belts are designed to operate reliably within a temperature range of -40°C to +80°C.

What kind of warranty do you provide?

We generally offer a one-year warranty on all our power transmission products.
