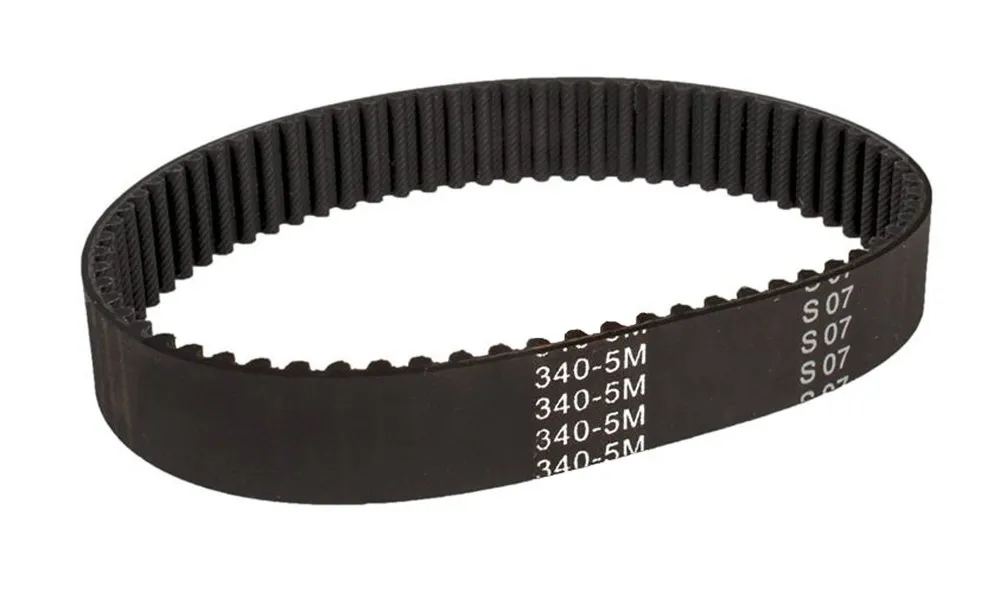

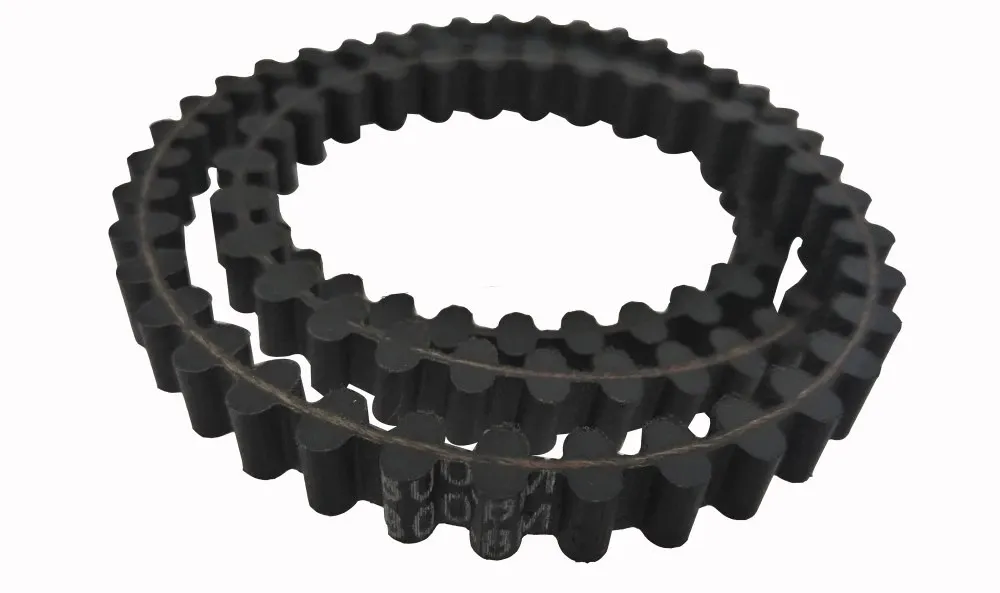

Key Properties:

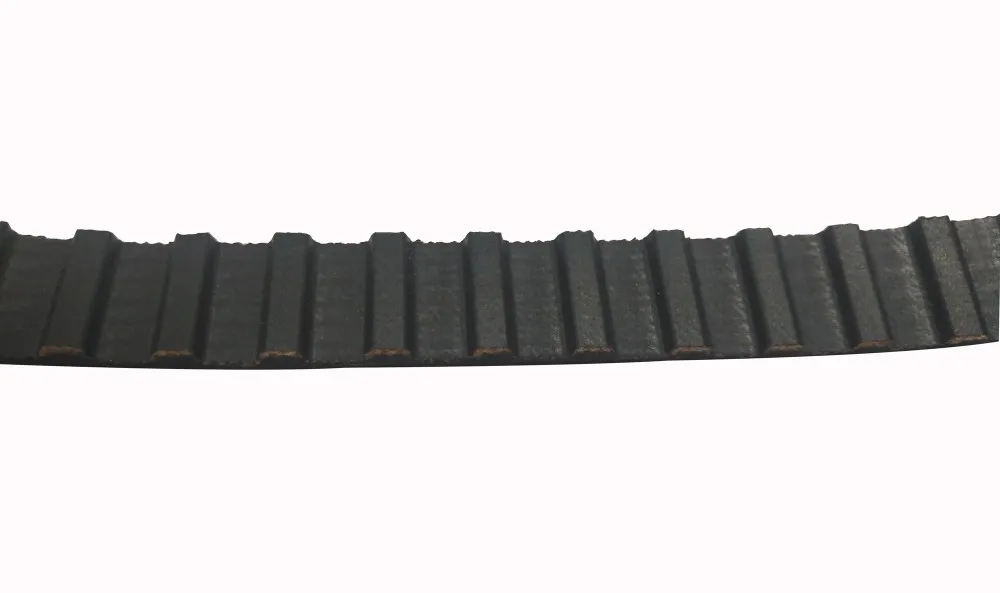

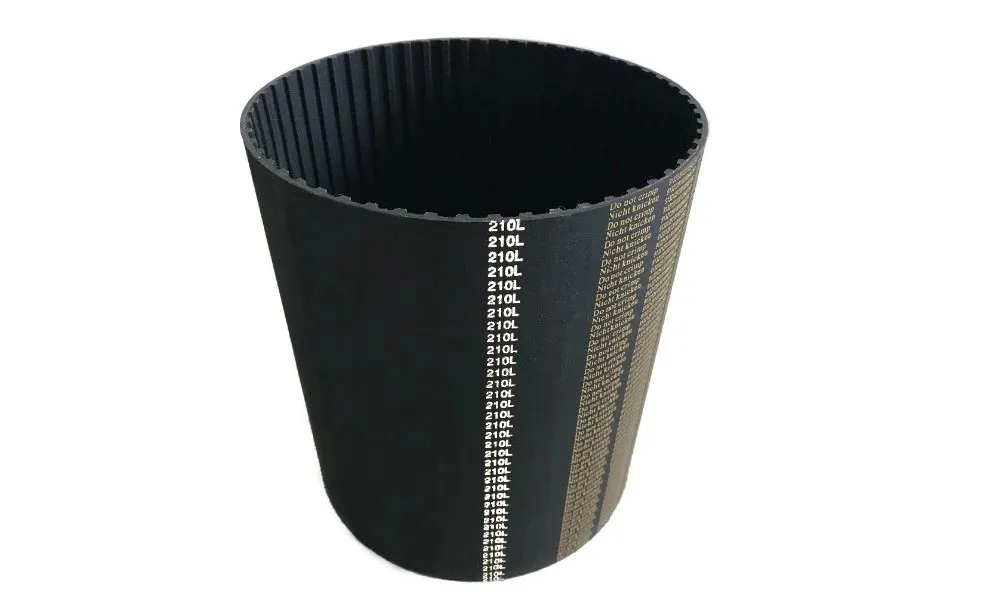

Structure Breakdown:

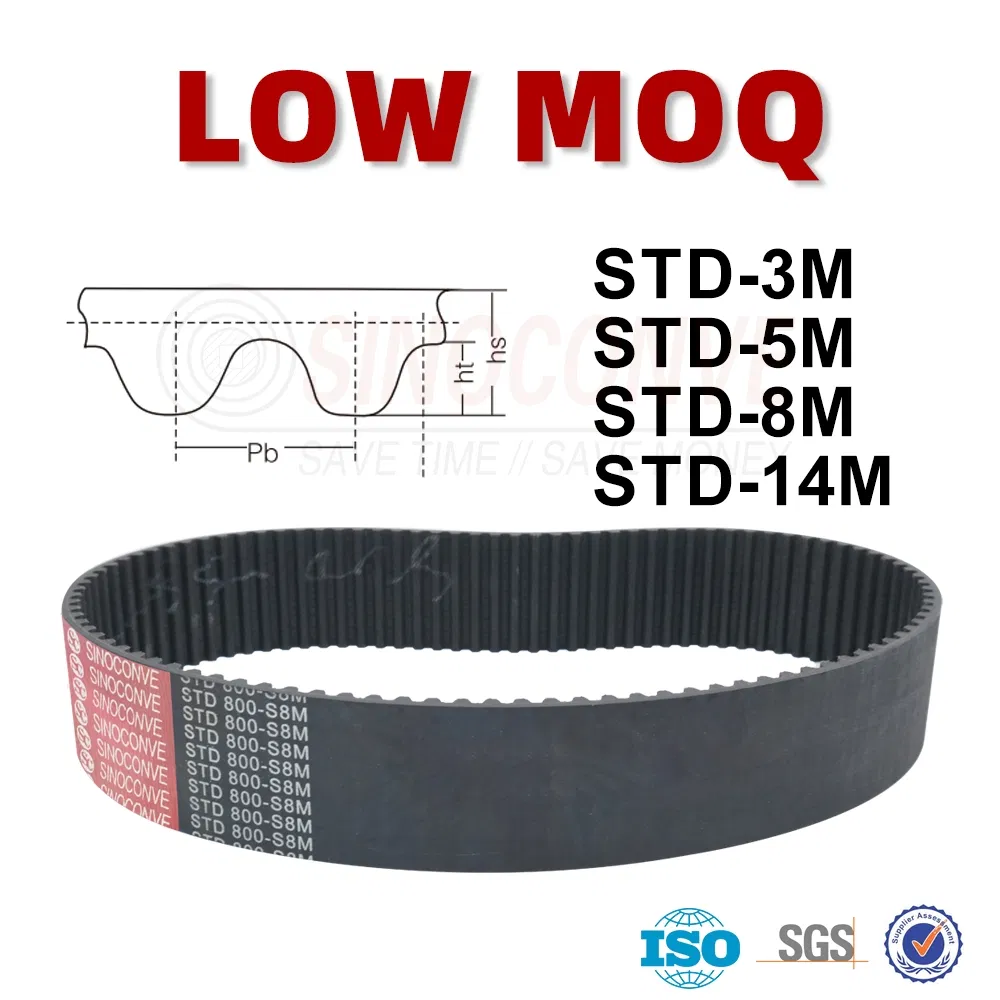

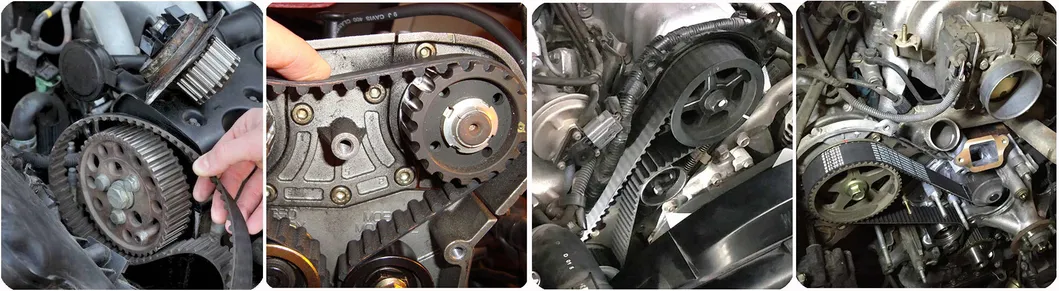

T-toothed Timing Belt Data:
| TYPE | Pitch (Pb) | Booth Edge | Tooth Thickness | Tooth Height | Belt Thickness | Teeth Number Range |
|---|---|---|---|---|---|---|
| MXL | 2.023 | 40 | 1.14 | 0.51 | 1.14 | 43~2044 |
| XL | 5.085 | 50 | 2.57 | 1.27 | 2.3 | 22~510 |
| L | 9.525 | 40 | 4.65 | 1.91 | 3.6 | 23~530 |
| H | 12.700 | 40 | 6.12 | 2.29 | 4.3 | 29~440 |
| T5 | 5 | 40 | 2.65 | 1.20 | 2.2 | 30~400 |
| T10 | 10 | 40 | 5.30 | 2.50 | 4.5 | 34~536 |

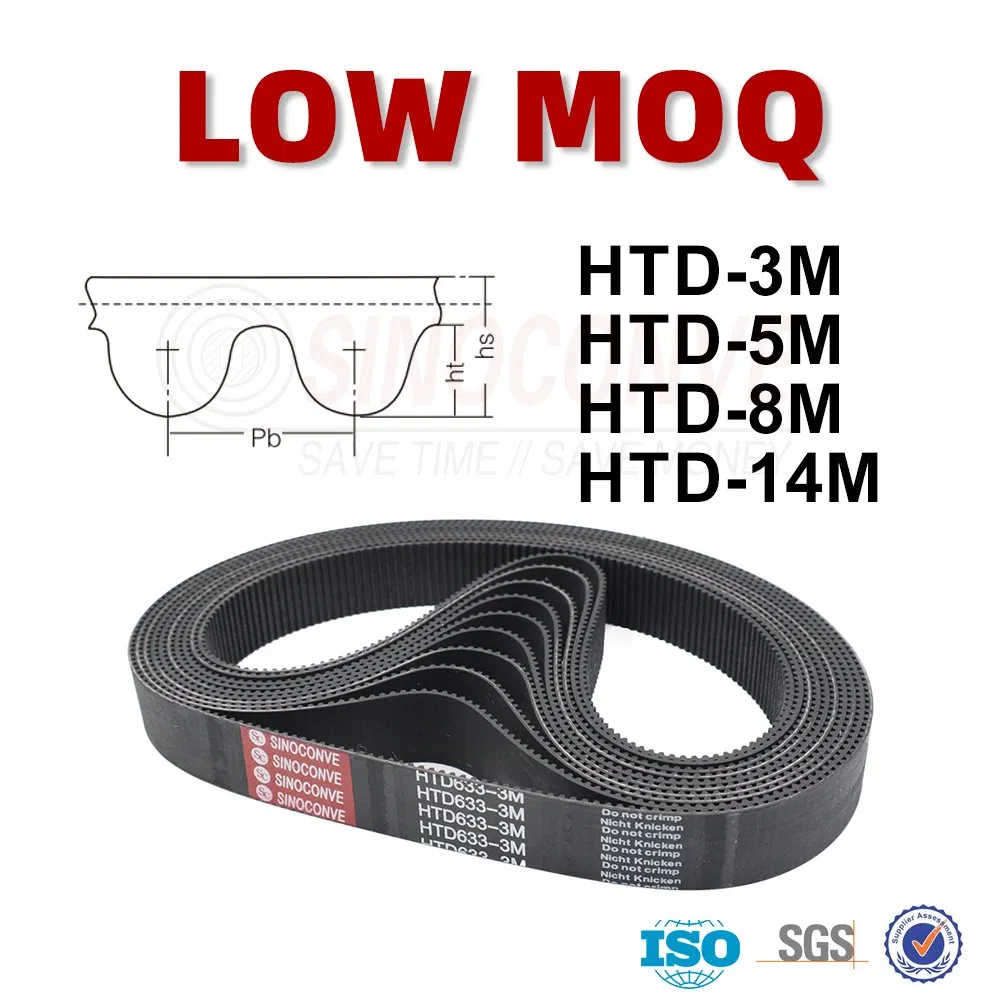

HTD-toothed Timing Belt Data:
| TYPE | Pitch (Pb) | Tooth Thickness | Tooth Height | Belt Thickness | Teeth Number Range | Pitch Length |
|---|---|---|---|---|---|---|
| 3M | 3 | 1.78 | 1.17 | 2.4 | 35~1000 | 105.00~3000.00 |
| 5M | 5 | 3.05 | 2.06 | 3.8 | 35~852 | 175.00~4260.00 |
| 8M | 8 | 5.15 | 3.36 | 6.0 | 36~565 | 288.00~4520.00 |
| 14M | 14 | 9.40 | 6.02 | 10.0 | 56~340 | 784.00~4760.00 |
