Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life
Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life
Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life
Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life
Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life
1 / 5
Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life
Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life
Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life
Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life
Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life

Life Low Extractables 20" 0.45 Micron Pes Filter Cartridge for Vegetable Oil Filtration Removes Impurities Extends Shelf Life

Customization: Available
Material: Polyethersulfone
Application: Industry, Food and Beverage, Medicine, Vegetable Oil Filtration
Send Inquiry

Product Description

i

Basic Information

Model NO.
20" 0.45 Micron PES Filter
Type
Folding Microporous Filter
Filter Connector
Code 7, Code 8, 226, 222, DOE, etc
Filtration Grade
Medium Filter
Product Name
Pes Filter Cartridge
Filtration Area
0.65 Square Meter Per 10 Inch
Outer/Inner Diameter
69mm(2.75'')/33mm(1.30'')
Length
10, 20, 30, 40 Inch
Cage/Core Material
Polypropylene
pH Compatibility
1-13
Micron Rating
0.1, 0.2, 0.45, 0.65, 1 Um etc.
Max Temperature
85ºC (185ºF) at P≤1.0 Bar
★

Product Details

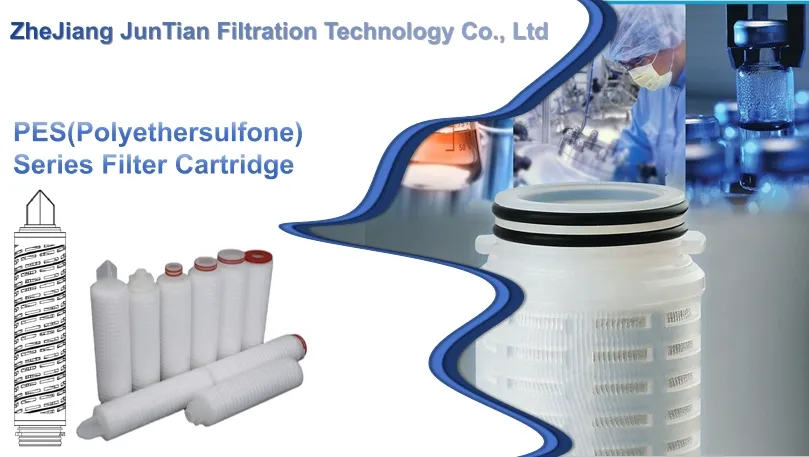

PES Filter Cartridge Main
PES Filter Detail 1
PES Filter Detail 2
PES Filter Detail 3
⚙

Applications

Bacterial removal from API, LPV, blood serum, biologicals, buffers, and culture media.
Large volume infusion and syringe pre-filtering for pharmaceutical use.
Fine Chemicals and high-purity water process filtration.
Wine, fruit juice, and tea beverage fine filtration for clarity.
Sterile filtration for bottled water, mineral water, and other beverages.
Vegetable oil filtration to remove impurities and extend shelf life.

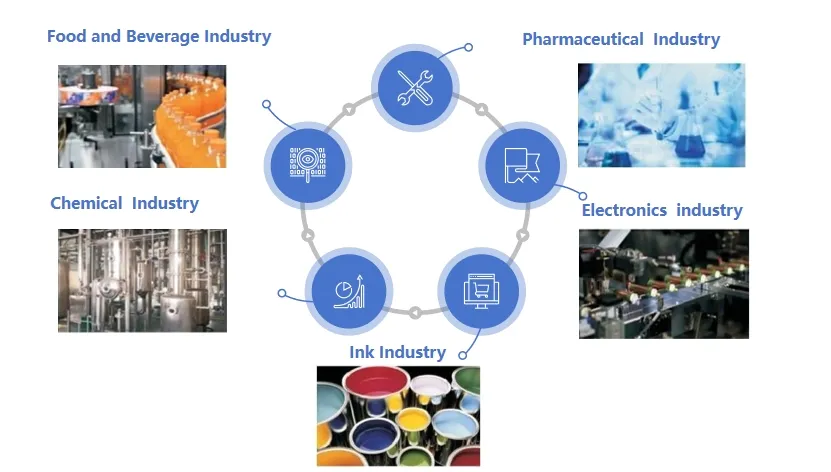

Filter Application Diagram
📋

Technical Specifications

Category Feature Specification Details
Materials Filter Media Asymmetric PES Membrane
Support Layers Polypropylene
Inner Core / Cage Polypropylene / Stainless Steel
O-rings/Gaskets Silicone, Nitrile, EPDM, etc.
Operating Conditions Max Temperature 85ºC (185ºF) at P≤1.0 bar (14psi)
Normal Flow 0.42 Mpa/25ºC; 0.20 Mpa/80ºC
Sterilization Steam: 121±2°C for 30 Min; Autoclave: 30 Min
Safety Endotoxin <0.25 EU/ml
Extractables <0.03g / 10"
✔

Manufacturing & Quality

We specialize in the research, production, and sales of precision folded filters, bag filters, and membrane filtration equipment. Our facility utilizes advanced international production equipment and a strict quality control system.

All products are manufactured under rigorous standards, holding certifications such as ISO9001, CE, and SGS, ensuring professional filtration and purification solutions for diverse industrial requirements.

Production Facility
Certification 1
Certification 2
📦

Packing & Shipping

Packaging
Shipping Methods

Frequently Asked Questions

1. Are you a manufacturing enterprise? Yes, we possess our own manufacturing facilities and are capable of managing complete production and shipment processes.
2. What transportation methods are available? We offer FedEx, UPS, DHL, sea freight, and air freight. Other modes can be accommodated upon request.
3. What is the typical delivery timeframe? Delivery depends on order volume, but standard production usually requires approximately 30 business days to fulfill.
4. What payment methods do you accept? We primarily accept wire transfers and PayPal. Please contact us for alternative payment arrangements.
5. What is the Minimum Order Quantity (MOQ)? We have no specific MOQ request; we cater to both small and large-scale orders.
6. Can the PES filter cartridges be sterilized? Yes, they support steam sterilization at 121±2°C and autoclave sterilization for 30 minutes per cycle.

Related Products

Car Accessories Auto Parts Original Laser Iridium Spark Plug 6962 2288

Car Accessories Auto Parts Original Laser Iridium Spark Plug 6962 2288

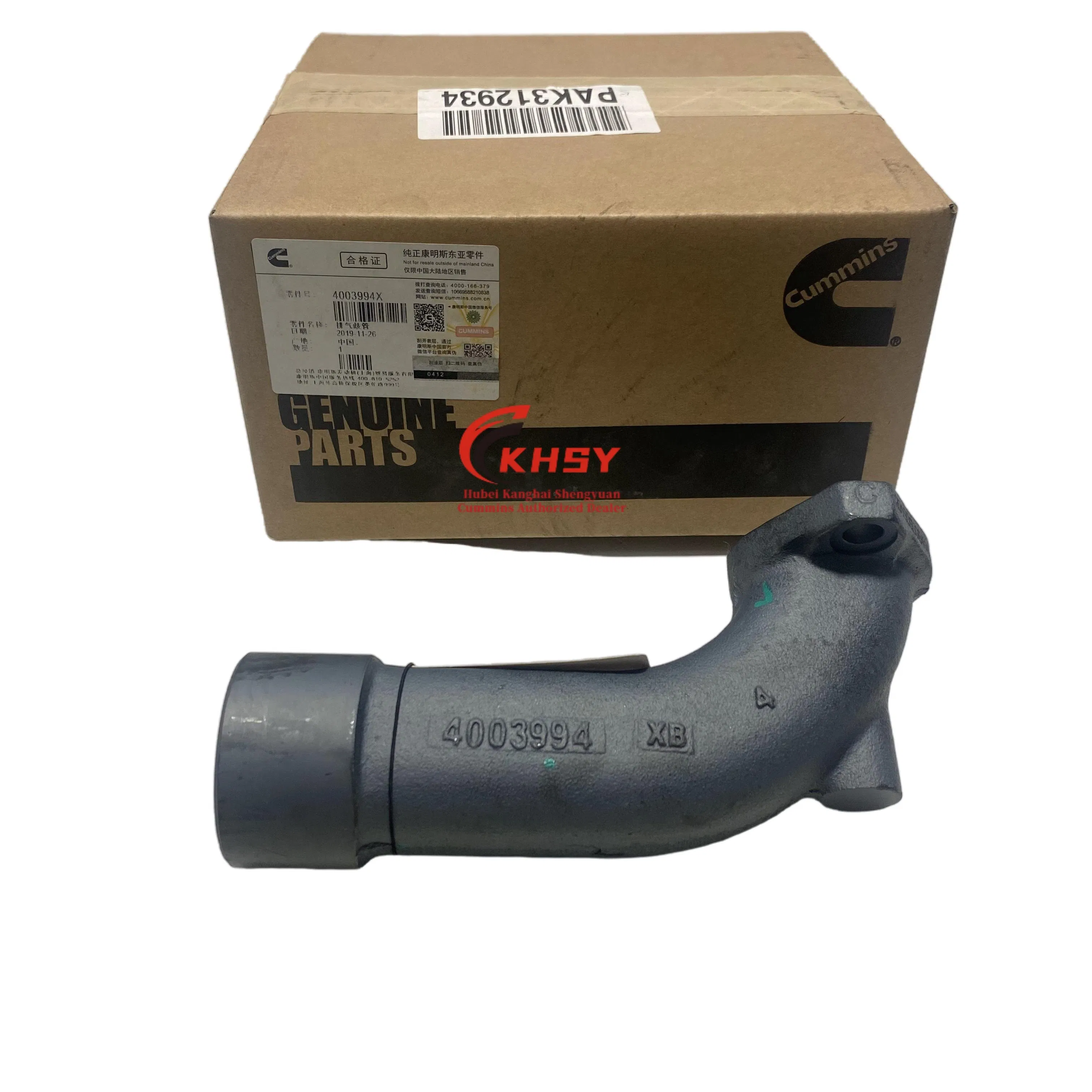

High Quality Exhaust Manifold 4003994X for Cummins Engine M11
